Buyers Products Corner Security Latch Set is a basic latch set for flat surface fastening and can be used for stake bodies, trailers, gates, and numerous other applications. Available in either a plain finish bolt-on style, zinc finish bolt-on style, or plain finish weld-on style, the set can be installed for either right- or left-hand operation. Pieces are also sold individually for customization and repair needs.

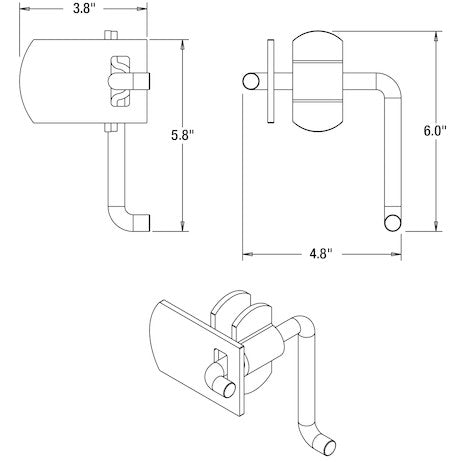

Specifications
| Bolt Diameter (in.) | 0.50 |
|---|---|
| Bolt Length (in.) | 4.69 |
| Finish | Plain |
| Handle Length | 4.60 |
| Material | Carbon Steel |
| Mounting Type | Weld-On (No Holes) |
| Number of Mounting Holes | 0 |
| Orientation (Right Hand/Left Hand) | Both |
| Straight/Corner | Corner |
The Buyers Products Weld-On Corner Security Latch Set represents a robust and highly durable fastening solution engineered for demanding industrial and commercial applications. This specialized latch set is meticulously designed to provide superior security and structural integrity for critical access points on various equipment, including stake bodies, utility trailers, cargo gates, and an expansive range of other fabricated structures. The deliberate choice of a weld-on mounting mechanism, coupled with its corner-specific design, distinguishes this product as a premium-grade component for professionals seeking uncompromising strength and longevity.
At the core of this latch set's exceptional performance is its material composition: high-quality carbon steel. Carbon steel is renowned in engineering applications for its inherent strength, stiffness, and excellent resistance to deformation under load. Its high tensile strength and yield strength ensure that the latch can withstand significant forces, making it inherently resistant to tampering, forced entry attempts, and the stresses of dynamic operational environments. This material choice guarantees a prolonged service life, even when subjected to repetitive use and challenging conditions typically encountered in heavy-duty transportation and construction sectors.
The "weld-on" mounting type is a critical attribute that confers several distinct advantages over traditional bolt-on or screw-fastened alternatives. By integrating the latch directly into the parent structure through welding, a monolithic bond is formed, eliminating potential points of failure associated with fasteners, such as bolt shear or loosening due to vibration. This permanent attachment method provides unparalleled shear and tensile strength, making the latch virtually inseparable from the structure once installed correctly. Furthermore, the absence of exposed mounting hardware inherently enhances security, as there are no visible bolts or screws that could be tampered with or removed by unauthorized individuals. This seamless integration also contributes to a cleaner aesthetic and reduced profile, which can be advantageous in certain applications where protrusions need to be minimized.
The design as a "corner" security latch is a deliberate engineering choice that optimizes load distribution and enhances structural reinforcement. Unlike straight latches that apply force linearly, a corner-mounted latch engages at a critical junction, leveraging the inherent rigidity of the corner structure. This configuration allows the latch to anchor securely across two planes, significantly increasing its resistance to racking, twisting, and prying forces. For applications such as trailer gates or stake bodies, which often experience considerable dynamic stresses during transit or loading/unloading operations, the corner design provides a more stable and resilient fastening point, effectively preventing accidental disengagement and bolstering overall structural integrity.
Examining the specific dimensions, the latch features a substantial 0.50-inch bolt diameter. This dimension is not arbitrary; it represents an optimal balance between material strength and operational smoothness for a mechanism of this class. A half-inch diameter bolt offers a robust cross-sectional area, endowing it with superior shear strength capable of resisting substantial lateral forces. The bolt length, at 4.69 inches, ensures ample engagement depth, providing secure locking even when there might be slight variances or tolerances in the mating components. This extended engagement minimizes the risk of the bolt dislodging under vibration or impact, a common concern in vehicular and industrial applications.
The handle length of 4.60 inches is ergonomically designed to provide sufficient leverage for smooth and effortless operation. While maintaining a compact profile that minimizes snagging, the length ensures that users can apply adequate force to engage or disengage the robust half-inch bolt without excessive strain. This thoughtful design contributes to both the security and user-friendliness of the latch set, ensuring efficient operation in diverse working environments, often by personnel wearing gloves or operating in less-than-ideal conditions.
The "plain finish" on this weld-on latch component offers distinct advantages for professional installers and custom fabricators. Unlike pre-coated or plated alternatives, the plain carbon steel surface is ideal for direct welding, ensuring optimal weld penetration and strong metallurgical bonds. This finish allows the end-user or fabricator the flexibility to apply their own protective coatings post-installation, such as industrial-grade paints, primers, or powder coats, specifically tailored to the environmental demands of the final application. This customization capability is crucial for maximizing corrosion resistance in highly corrosive environments, matching existing equipment aesthetics, or applying specialized coatings for chemical resistance, thereby extending the component's lifespan and maintaining its functional integrity.
A significant operational advantage of the Buyers Products Corner Security Latch Set is its universal orientation capability. Designed for "both" right- or left-hand operation, this feature greatly simplifies inventory management for distributors and installers. Furthermore, it provides unparalleled flexibility during the installation process, allowing fabricators to adapt the latch to various gate configurations or opening directions without needing to stock separate handed components. This adaptability streamlines project execution, reduces potential delays, and ensures that the correct component is always available, regardless of the specific mounting requirements.
The absence of mounting holes, as indicated by "Number of Mounting Holes: 0," directly correlates with its weld-on mounting type. This design choice is fundamental to achieving the highest levels of structural integration and security. Without pre-drilled holes, the installer has complete control over the precise positioning and orientation of the latch, allowing for custom fitment that might not be possible with fixed-pattern bolt-on alternatives. This also means that the integrity of the base material is not compromised by drilling, which can create stress concentrations or weaken the structure. The weld creates a continuous joint, distributing stress more effectively across the mating surfaces.
From an application perspective, the utility of this weld-on corner security latch extends far beyond its listed uses for stake bodies and trailers. Its robust construction and secure mounting make it an ideal choice for:
- Heavy-duty industrial gates and access panels where unauthorized entry must be prevented.
- Agricultural machinery and farm gates, providing dependable closure in harsh outdoor conditions.
- Construction equipment enclosures and storage containers, securing valuable tools and components.
- Custom vehicle fabrications, including utility trucks and emergency service vehicles, requiring durable and tamper-resistant latches.
- Marine applications (with appropriate post-weld corrosion treatment) for securing hatches or access points on workboats or docks.
- Security barriers and fencing systems where a permanent, high-strength locking mechanism is paramount.
- Any custom fabrication project demanding superior structural integrity and enhanced security at a corner junction.
The installation process for a weld-on component requires skilled personnel and appropriate welding equipment. Proper preparation of both the latch and the parent structure is crucial to ensure a strong, durable weld. This typically involves cleaning the surfaces of any paint, rust, or contaminants to ensure optimal metal-to-metal contact. Common welding techniques such as MIG (Gas Metal Arc Welding), TIG (Gas Tungsten Arc Welding), or Stick (Shielded Metal Arc Welding) can be employed, with parameters adjusted based on the thickness of the parent material and the specific welding codes or practices being followed. Post-welding, thorough cleaning to remove slag and spatter is essential, followed by the application of the chosen protective finish to safeguard the plain carbon steel from environmental corrosion.
Maintenance for this type of robust latch is minimal, primarily focusing on periodic inspection of the weld integrity and ensuring the bolt mechanism operates smoothly. Given its carbon steel construction, occasional lubrication of the sliding bolt mechanism with a suitable grease or oil can prevent wear and maintain ease of operation, particularly in dusty or outdoor environments. Any signs of wear or damage to the latch components or the surrounding structure should be addressed promptly to maintain optimal security and functionality. The availability of individual pieces for customization and repair further enhances the long-term serviceability and economic value of this product line.
In conclusion, the Weld-On Corner Security Latch Set from Buyers Products is more than just a basic fastening component; it is a meticulously engineered solution designed for professional-grade applications where durability, security, and structural integration are non-negotiable. Its carbon steel construction, half-inch diameter bolt, specialized corner design, and weld-on mounting signify a commitment to robust performance and longevity. The plain finish allows for critical post-installation customization, while its universal handedness offers unparalleled flexibility. By choosing this weld-on security latch, professionals are investing in a superior fastening solution that enhances the integrity, safety, and operational efficiency of their equipment and structures for years to come.
