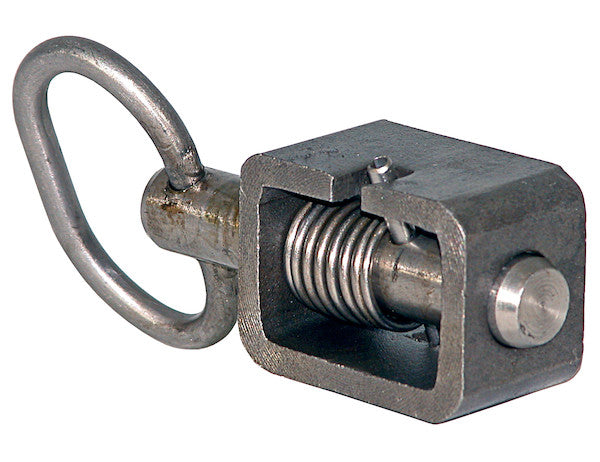

Buyers Products Weld-On Spring Latch is designed for 90?? engage application. The spring-loaded mechanism can be locked in the open position; turn to put the spring in the closed position. The latch comes with either a heat-treated or stainless steel tube. Both feature a stainless steel pin and spring. Latch can be ordered unassembled for a custom installation. Extended plunger model is also available.
Specifications
| Bolt Dia. (in.) | 0.62 |
|---|---|
| Bolt Finish | Plain |
| Bolt Length (in.) | .84 |
| Bolt Material | Stainless Steel |
| Bolt Travel | 19.00/32.00 |
| Handle Finish | Zinc Plated |
| Handle Length | 1.75 |
| Handle Material | Carbon Steel |
| Housing Finish | Plain |
| Housing Height (in.) | 1.25 |
| Housing Length (in.) | 2.00 |
| Housing Material | Stainless Steel |
| Housing Width (in.) | 1.50 |
| Keeper (y/n) | No |
| Latch Style | Spring Latch |
| Mount Type | Weld-On |
| Pin Length | 0.84 |
The Ultimate Guide to the Stainless Steel 5/8 Inch Weld-On Spring Latch Assembly - Standard Plunger
In the realm of robust fastening and secure closure mechanisms, the Stainless Steel 5/8 Inch Weld-On Spring Latch Assembly with a Standard Plunger stands as a benchmark for durability, reliability, and precision engineering. This comprehensive description delves into the intricate details, material science, functional advantages, and diverse applications of this critical industrial component, designed to meet the rigorous demands of various professional environments.
At its core, this spring latch assembly is meticulously engineered for superior performance. The designation "5/8 Inch" refers to the nominal diameter of the bolt, a critical dimension that dictates its shear strength and engagement capability. This robust dimension ensures a secure hold, preventing unintended disengagement even under significant stress or vibration. The "Weld-On" mounting type is a defining characteristic, offering an unparalleled level of structural integration and strength, far surpassing mechanical fastening methods in many heavy-duty applications. Furthermore, the "Spring Latch" mechanism provides intuitive operation with a self-actuating closure, while the "Standard Plunger" design ensures consistent and reliable engagement, making it a versatile choice across numerous industrial and commercial contexts.
Material Excellence: The Stainless Steel Advantage
The strategic selection of stainless steel for critical components is central to this latch assembly's exceptional performance profile. Specifically, the bolt material and housing material are fabricated from stainless steel, a choice driven by its intrinsic properties that are highly desirable in demanding environments. Stainless steel, an alloy primarily composed of iron, chromium (typically 10.5% or more), and often nickel, molybdenum, or other elements, is renowned for its outstanding corrosion resistance. This resistance is attributed to the formation of a passive, self-repairing chromium-oxide layer on the surface, which acts as a barrier against oxidation and various corrosive agents.
In industrial applications, components are frequently exposed to moisture, chemicals, salt spray, extreme temperatures, and abrasive substances. Traditional carbon steel, without extensive surface treatments, would quickly succumb to rust and degradation in such conditions, compromising structural integrity and functional reliability. Stainless steel, particularly grades like 304 or 316 (common choices for industrial hardware due to their excellent balance of corrosion resistance, strength, and formability), ensures the latch maintains its aesthetic appeal, mechanical strength, and operational efficacy over an extended service life, significantly reducing maintenance requirements and replacement costs. The "Plain" finish of the bolt and housing further emphasizes the material's inherent resistance, as no additional coatings are required to protect the base metal from corrosion. This also means no chipping or flaking of external coatings, preserving the integrity of the component.
Beyond corrosion resistance, stainless steel offers superior tensile strength and hardness compared to many other metals, contributing to the latch's ability to withstand significant loads and impacts without deformation. Its non-magnetic properties (for austenitic grades), hygienic surface, and ability to perform across a wide temperature range also make it suitable for specialized applications in food processing, medical, or cryogenic industries, although the primary focus here is general heavy-duty and outdoor use.
The product description also mentions the availability of a "heat-treated or stainless steel tube" and explicitly states a "stainless steel pin and spring." The inclusion of a heat-treated tube, likely a carbon steel variant subjected to processes like hardening and tempering, indicates an option for enhanced wear resistance and increased rigidity in specific applications where such properties might be prioritized over the ultimate corrosion resistance of stainless steel for the tube component. However, the consistent use of stainless steel for the pin and spring is crucial. The spring, a dynamically stressed component, benefits immensely from stainless steel's fatigue resistance and non-corrosive properties, ensuring consistent tension and reliable return action throughout its lifespan. The pin, which endures shear forces and repeated friction, also gains from the durability and smooth operation afforded by stainless steel.
Precision Engineering: Mechanism and Functionality
The core of this assembly's functionality lies in its meticulously designed spring-loaded mechanism. Engineered for a "90-degree engage application," this implies that the plunger extends perpendicular to the mounting surface, designed to engage with a receiving strike or keeper on an adjacent plane. This configuration is common for gates, doors, panels, and equipment covers where a simple, yet secure, perpendicular locking action is desired.
The operational sequence is straightforward yet effective: the spring-loaded mechanism provides constant pressure, driving the plunger into its engaged, or closed, position. To open, the user manipulates the handle, retracting the bolt against the spring force. A key feature of this design is the ability to "lock in the open position." This is typically achieved by rotating the handle 90 degrees after retraction, engaging a detent or notch that holds the plunger in its retracted state. This feature is invaluable for temporary access, loading/unloading operations, or situations where the latch needs to remain disengaged without constant manual intervention. To re-engage the latch, the user simply "turn[s] to put the spring in the closed position," disengaging the detent and allowing the spring to propel the plunger forward into its locked state. This intuitive quarter-turn operation for locking/unlocking the open position enhances user convenience and operational efficiency.
The specifications provide precise dimensions for the bolt: a "Bolt Dia. (in.)" of 0.62 (approximately 5/8 inch) and a "Bolt Length (in.)" of 0.84. These dimensions indicate a substantial engagement depth, contributing significantly to the latch's shear strength and resistance to prying forces. The "Bolt Travel" is listed as "19.00/32.00." This dual value could denote several things in a technical context: it might represent the maximum possible travel of the bolt (e.g., 32.00 mm or inches, depending on implied units, if it's not relative to 'in.'), with 19.00 indicating the effective engagement travel or the minimum necessary travel for secure locking. More commonly, for spring latches, this might indicate two states of travel: the initial compression of the spring before full retraction, and the total travel from fully extended to fully retracted, providing versatility in engagement scenarios. For instance, 19mm might be the initial resistance, with 32mm being the total possible movement. This range allows for robust engagement and compensates for slight misalignments in the mating components.
The "Handle Material" is specified as Carbon Steel with a "Zinc Plated" finish, and a "Handle Length" of 1.75 inches. While the housing and bolt benefit from stainless steel for extreme corrosion resistance, carbon steel for the handle, protected by zinc plating, offers excellent mechanical strength and a cost-effective solution for a component that primarily experiences compressive and rotational forces. Zinc plating provides a sacrificial layer of corrosion protection, preventing rust on the carbon steel handle, ensuring smooth operation and a long service life even in outdoor environments. The handle's length is ergonomically designed for comfortable and effective manual operation.
Robust Construction: Housing and Pin Details
The structural integrity of the latch assembly is further reinforced by its housing and internal components. The "Housing Material" is Stainless Steel, providing the same high level of corrosion resistance and durability as the bolt. With dimensions specified as "Housing Height (in.) 1.25," "Housing Length (in.) 2.00," and "Housing Width (in.) 1.50," the housing forms a compact yet sturdy enclosure for the internal spring mechanism. Its "Plain" finish is consistent with the self-protecting nature of stainless steel. These dimensions are crucial for integrators, allowing for precise planning and fabrication when welding the unit onto various structures. The robust nature of the housing protects the delicate spring mechanism from external contaminants and physical damage, thereby enhancing the overall reliability and longevity of the latch.
The "Pin Length" is 0.84, mirroring the bolt length. This pin, also specified as stainless steel, is integral to the plunger mechanism, guiding the bolt's linear motion and often serving as a key component in the retention mechanism for the "lock in the open position" feature. Its stainless steel construction ensures minimal friction, excellent wear resistance, and consistent performance over countless cycles, resisting seizing or binding that could occur with less robust materials.
An important detail in the specifications is "Keeper (y/n): No." This indicates that the latch assembly does not come with a dedicated strike plate or keeper. This is a common practice for weld-on components, as the receiving mechanism is often custom-fabricated directly into the mating structure. For instance, a simple hole drilled into a gate frame or a custom-welded bracket can serve as the keeper. This allows fabricators maximum flexibility in design and installation, ensuring a perfect fit for their specific application rather than being constrained by a generic keeper design.
Mounting Versatility: The Weld-On Advantage
The "Mount Type: Weld-On" is a significant attribute, signifying a permanent and high-strength installation method. Welding offers several advantages over bolt-on or screw-on applications:
1. **Superior Strength and Shear Resistance:** A properly executed weld creates a monolithic bond between the latch housing and the parent material of the structure (e.g., steel gate frame, truck body, equipment enclosure). This provides exceptional shear strength, making the latch incredibly resistant to forces that might try to pry it open or dislodge it. In applications involving heavy gates, high vibration, or potential impact, welded attachments are often indispensable.
2. **Enhanced Security:** The permanent nature of a weld-on installation significantly deters tampering and theft. Without visible fasteners, unauthorized removal becomes much more difficult, enhancing the overall security of the secured item or access point.
3. **Clean Aesthetics and Flush Integration:** Weld-on latches can be integrated seamlessly into the design of the structure, often resulting in a cleaner, more streamlined appearance without protruding bolt heads or nuts. This can be important for both aesthetic reasons and to prevent snagging.
4. **Vibration Resistance:** In environments prone to constant vibration, such as on trailers, heavy machinery, or off-road vehicles, bolted connections can loosen over time. Welded connections, being a continuous metallurgical bond, are inherently resistant to loosening from vibration, ensuring long-term reliability.
The option to order the "Latch can be ordered unassembled for a custom installation" further underscores its utility for custom fabricators and OEM manufacturers. This flexibility allows for specialized mounting configurations, component placement, and integration into complex assemblies where standard pre-assembled units might not fit optimally. This adaptability makes the latch a preferred choice for bespoke industrial solutions.
Diverse Applications and Industry Suitability
The robust design and material specifications of this Stainless Steel 5/8 Inch Weld-On Spring Latch Assembly make it ideally suited for a vast array of demanding applications across numerous industries:
* **Transportation and Automotive:** Ideal for securing trailer gates, truck bed toolboxes, utility vehicle compartments, RV access panels, and heavy equipment access points. The stainless steel construction ensures resistance to road salt, weather, and general operational wear. * **Agricultural Equipment:** Used on tractor attachments, farm gates, livestock enclosures, and machinery covers where exposure to outdoor elements, mud, and fertilizers necessitates extreme durability and corrosion resistance. * **Industrial and Manufacturing:** Critical for securing safety guards on machinery, access panels for electrical enclosures, industrial cabinets, storage bins, and heavy-duty doors within manufacturing plants. * **Marine Applications:** Though not explicitly marine grade (which often implies 316 stainless steel), the inherent corrosion resistance of the stainless steel components makes it suitable for many marine environments, particularly for securing boat hatches, dock gates, and equipment in areas exposed to saltwater spray. * **Construction and Infrastructure:** Perfect for securing heavy-duty gates at construction sites, utility access points, temporary fencing, and equipment sheds, where reliability and resistance to harsh weather are paramount. * **Custom Fabrication:** Due to its weld-on nature and option for unassembled delivery, this latch is a favored component for custom metal fabricators creating bespoke solutions for various industrial, commercial, and residential projects requiring strong, durable, and secure closures. * **Security Applications:** While not a primary security lock, its robust construction and weld-on nature contribute to a high level of physical security for gates and access points, especially when complemented by additional locking mechanisms.
Long-Term Performance and Value Proposition
Investing in the Stainless Steel 5/8 Inch Weld-On Spring Latch Assembly is an investment in long-term performance and reliability. The meticulous selection of high-grade materials and precision engineering translates into a product with exceptional longevity, minimizing the need for frequent replacements or repairs. The stainless steel components resist degradation from environmental factors, maintaining their structural integrity and operational smoothness over an extended operational lifespan. The robust weld-on mounting ensures that the latch remains firmly in place, even under severe conditions, providing peace of mind and consistent security. The ergonomic handle and positive spring-loaded action ensure user-friendly operation, contributing to overall efficiency in demanding work environments.
This latch assembly represents a critical component in the design and maintenance of durable, secure, and reliable industrial equipment and infrastructure. Its combination of material strength, corrosion resistance, intuitive functionality, and robust mounting options positions it as a superior choice for professionals seeking uncompromising quality and performance. Whether for new fabrication projects or as a replacement for lesser-quality components, this stainless steel weld-on spring latch assembly delivers exceptional value through its unparalleled durability and consistent operational excellence.
