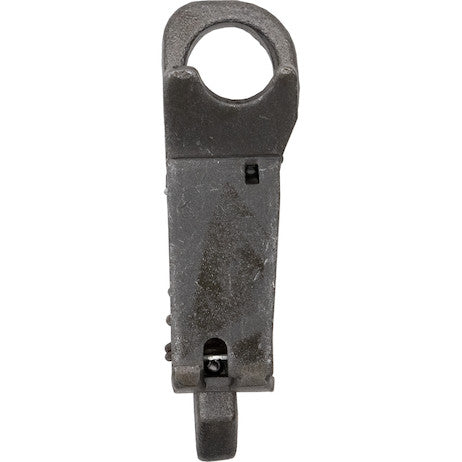

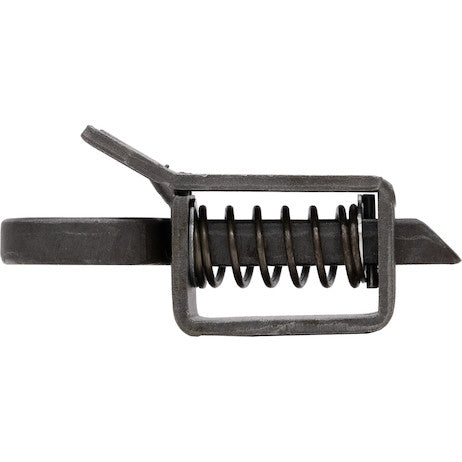

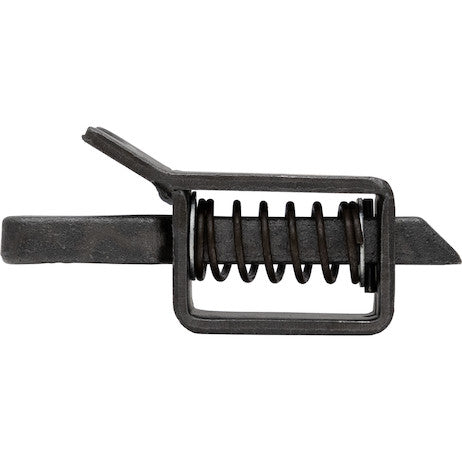

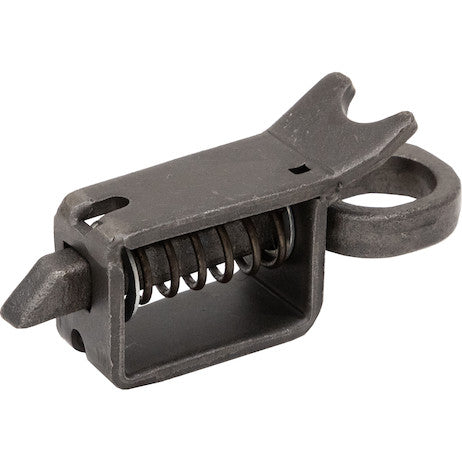

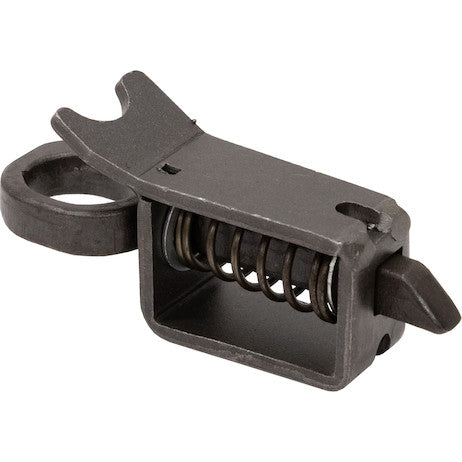

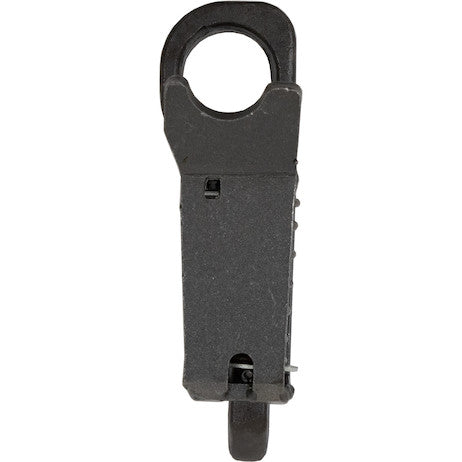

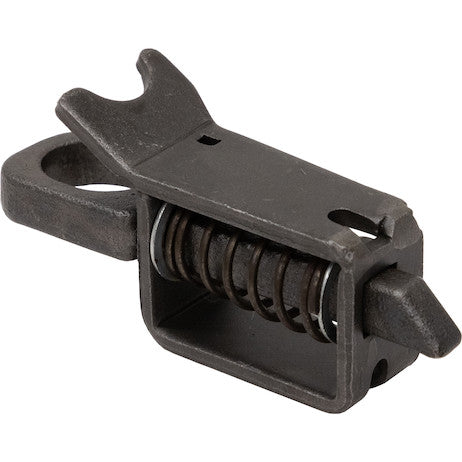

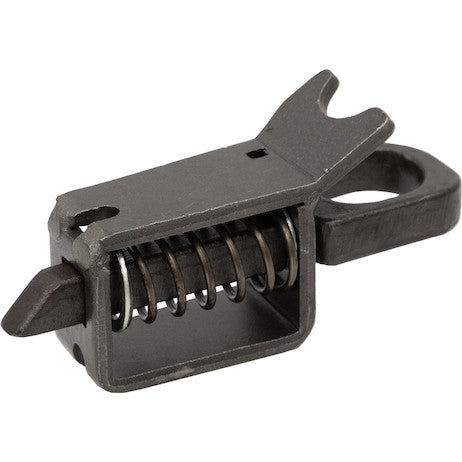

Buyers Products Quick Release Spring Latch is ideal for truck or trailer compartment doors. The spring-loaded latch has an angled plunger that allows the latch to slam shut. It can be locked in the open position as needed. The latch is available in your choice of left- or right-handed operation.
Specifications
| Bolt Dia. (in.) | 0.49 |
|---|---|
| Bolt Finish | Plain |
| Bolt Height | 0.45 |
| Bolt Length (in.) | 0.70 |
| Bolt Material | Carbon Steel |
| Desc. | Left Hand |
| Handle Finish | Plain |
| Handle Material | Carbon Steel |
| Housing Finish | Plain |
| Housing Height (in.) | 1.60 |
| Housing Length (in.) | 2.27 |
| Housing Material | Carbon Steel |
| Housing Width (in.) | 1.69 |
| Keeper (y/n) | No |
| Latch Style | Spring Latch |
| Mount Type | Weld-On |
Advanced Technical Overview: Left Hand Quick Release Spring Latch - 2 x 5 Inch
The Left Hand Quick Release Spring Latch, a meticulously engineered component, represents a pinnacle of functional design and robust construction within the industrial hardware sector. Specifically designed for demanding applications such as truck and trailer compartment doors, this latch offers a blend of operational efficiency, steadfast security, and inherent durability. This comprehensive technical description delves into the intricacies of its design, material science, installation methodology, and broad spectrum of applications, providing a detailed understanding of its value proposition.
Precision Engineering and Functional Mechanics
At the core of this product's efficacy lies its sophisticated spring-latch mechanism, which ensures consistent and reliable engagement. Unlike simple gravity-fed or friction-based latches, the spring-loaded design provides a constant closing force, mitigating the risk of inadvertent opening due to vibration, shock, or minor misalignments inherent in dynamic environments. The spring, precisely calibrated for optimal tension, facilitates a quick-release action, enabling rapid access to compartments when required, a crucial feature for operational efficiency in time-sensitive industrial settings.
A distinctive feature of this latch is its angled plunger. This specific geometric configuration is not merely aesthetic but serves a critical functional purpose: it allows the latch to be "slam shut." As the door or panel approaches closure, the angled face of the plunger contacts the strike plate or receiving mechanism, compressing the internal spring and retracting the bolt momentarily. Upon full closure, the plunger aligns with the strike, and the spring force drives the bolt forward, positively engaging and securing the compartment. This self-latching capability enhances user convenience and ensures a secure closure without requiring manual manipulation of the latch handle for every closing cycle. Furthermore, the positive engagement provided by the plunger design inherently reduces rattling and minimizes wear on both the latch and the mating surface, contributing to the overall longevity of the assembly.
The integrated ability to lock the latch in the open position is another testament to its thoughtful engineering. This feature is invaluable in scenarios where frequent access is required, or during maintenance operations where a door must remain open without obstruction. By holding the plunger in a retracted state, it prevents accidental re-engagement, thereby streamlining workflow and enhancing safety by preventing unexpected door closures. This functionality is typically achieved through a detent or a simple mechanical hold-back mechanism integrated into the handle or housing, providing a reliable temporary override of the spring's closing action.
Left-Handed Orientation: A Design Imperative
The designation "Left Hand" is a critical specification dictating the orientation and operational ergonomics of the latch. In industrial hardware, handing refers to the side from which the latch is operated when facing the application, or the direction the bolt extends. For a left-hand quick release spring latch, this typically means the handle is configured for ergonomic operation from the left side of the mounting point, or the bolt mechanism is designed to retract and extend in a manner consistent with a left-handed application. This specific orientation is vital for seamless integration into vehicle designs and industrial enclosures where panel layouts and access patterns are predetermined, ensuring optimal user interaction and operational flow. Selecting the correct handing prevents awkward operation, reduces potential for user error, and maintains the intended aesthetic and functional symmetry of the installation.
Material Science and Structural Integrity: Carbon Steel Construction
The choice of material for the Left Hand Quick Release Spring Latch underscores its commitment to durability and performance in harsh operational environments. All primary components – the bolt, handle, and housing – are fabricated from carbon steel. Carbon steel is a robust and versatile alloy, renowned for its excellent balance of strength, hardness, and ductility. Its high tensile strength ensures resistance to significant pulling forces, while its inherent hardness contributes to wear resistance, prolonging the operational life of critical moving parts like the bolt and plunger, which endure repetitive friction and impact.
The "Plain Finish" specified for all components indicates that the steel is supplied without a primary surface coating, such as plating, paint, or powder coat. This choice is deliberate for several reasons. Firstly, a plain finish allows the end-user or fabricator maximum flexibility for post-installation treatment. Depending on the specific environmental exposure, the latch can be painted, powder-coated, galvanized, or otherwise treated to match adjacent components or to provide superior corrosion resistance tailored to the application. For instance, in highly corrosive marine or chemical environments, a specialized coating would be applied after installation. Secondly, for weld-on applications, a plain finish is often preferred as it simplifies the welding process by eliminating the need to strip existing coatings, ensuring stronger, cleaner welds and reducing potential for porosity or contamination during the welding procedure. While plain carbon steel will naturally oxidize (rust) if exposed to moisture without protection, its inherent mechanical properties remain paramount for structural and functional integrity.
Detailed Dimensional Analysis and Precision Manufacturing
The precise dimensions detailed in the specifications are critical for ensuring proper fit, function, and integration into diverse assemblies. Each measurement contributes to the overall performance and reliability of the latch:
- Bolt Diameter (0.49 in.): A substantial bolt diameter provides ample shear strength, which is the resistance of the bolt to forces that try to cut it across its axis. This dimension ensures that the latch can withstand significant dynamic and static loads without deformation or failure, crucial for securing heavy compartment doors or resisting attempted forced entry.
- Bolt Height (0.45 in.): This measurement, in conjunction with the bolt length, defines the cross-sectional area and engagement depth of the bolt. Adequate bolt height ensures a robust profile for resisting bending moments and distributing stress effectively across the engaged surfaces.
- Bolt Length (0.70 in.): The length of the bolt directly correlates with its engagement depth into the strike or receiver. A 0.70-inch engagement ensures a positive and secure lock, preventing disengagement even under conditions of vibration or minor structural flex. This depth is engineered to maximize security while allowing smooth operation of the quick-release mechanism.
- Housing Dimensions (Height: 1.60 in., Length: 2.27 in., Width: 1.69 in.): These dimensions define the compact footprint of the latch housing, which contains the spring mechanism, plunger, and handle assembly. The relatively compact design facilitates installation in confined spaces, while the robust dimensions ensure that the housing itself is structurally sound and capable of withstanding operational stresses. The housing acts as the primary mounting point, and its precise measurements are vital for ensuring accurate alignment and secure welding to the parent structure.
The specification "Keeper (y/n): No" is important. It indicates that the latch assembly does not include a dedicated strike plate or keeper mechanism. This design choice provides greater flexibility for the installer, allowing them to custom-fabricate or select a keeper that perfectly suits the specific application's geometry, material, and required level of engagement. In many industrial applications, the mating surface itself or a simple, robust bracket fabricated from matching material serves as the keeper, which is then welded into place. This approach ensures maximum customization and structural integration.
Installation Methodology: Weld-On Mount Type
The designation of "Weld-On" as the mount type is a defining characteristic of this latch, indicating its suitability for applications demanding superior structural integrity and permanent fixture. Weld-on components are favored in heavy-duty industrial and vehicle applications for several compelling reasons:
- Unmatched Strength: Welding provides a monolithic connection between the latch housing and the substrate, distributing loads over a larger area and eliminating potential points of failure associated with bolted or riveted connections (e.g., loosening, shear failure of fasteners). This is crucial for applications subjected to continuous vibration, high impact, or significant dynamic forces.
- Tamper Resistance: A welded latch is inherently more resistant to tampering and forced removal compared to mechanically fastened alternatives. This enhances security for valuable cargo or sensitive compartment contents.
- Streamlined Profile: Weld-on installation often results in a cleaner, more integrated appearance, as no external fasteners are visible. This can be beneficial for aesthetic reasons and for reducing snag points.
- Corrosion Resistance (Post-Treatment): When properly welded and subsequently treated (e.g., painted, coated), the entire assembly can achieve superior corrosion resistance, as there are no seams or fastener heads where moisture can ingress and initiate corrosion.
- Material Compatibility: Given that the latch housing is carbon steel, it is optimally suited for welding to other carbon steel structures, ensuring metallurgical compatibility and strong fusion.
Successful weld-on installation requires proper welding techniques, including appropriate joint preparation (cleaning, beveling), selection of suitable filler material, and control of welding parameters (current, voltage, travel speed). Professional welding ensures the full benefits of this robust mounting method are realized, creating a connection that is often stronger than the parent material itself.
Versatile Application Spectrum
While initially highlighted as ideal for truck and trailer compartment doors, the technical attributes of the Left Hand Quick Release Spring Latch extend its utility across a much broader array of demanding industrial and commercial applications:
- Heavy-Duty Vehicle Manufacturing: Beyond trailers, this latch is perfectly suited for utility trucks, emergency vehicles, refuse haulers, construction equipment (e.g., excavator access panels, toolbox compartments), and specialized fleet vehicles where reliable access and robust security are paramount.
- Agricultural Machinery: Farm equipment often operates in harsh, dusty, and vibrating environments. The latch's carbon steel construction and positive engagement make it suitable for securing access panels, battery compartments, and toolboxes on tractors, combines, and other machinery.
- Industrial Enclosures and Cabinets: For manufacturing plants, power stations, and processing facilities, this latch can secure access doors to control panels, electrical enclosures, machinery guards, and storage cabinets, providing quick access for maintenance while ensuring secure closure during operation.
- Marine Applications (with coating): While the plain carbon steel would require post-welding galvanization or specialized marine-grade coatings, the inherent strength and quick-release functionality make it a viable option for securing compartments on workboats, barges, or utility vessels where robust hardware is essential.
- Custom Fabrication and OEM Projects: Its weld-on design and absence of an integrated keeper offer maximum flexibility for custom fabricators and Original Equipment Manufacturers (OEMs) who need to integrate a reliable latch into bespoke designs, allowing them to engineer the perfect mating strike for their specific application.
- Material Handling Equipment: Conveyor system access points, service doors on forklifts, or secure closures on mobile work platforms can all benefit from the durability and quick-release action of this latch.
Operational Benefits and Long-Term Performance
The Left Hand Quick Release Spring Latch delivers significant operational advantages. Its quick-release mechanism drastically improves efficiency in operations requiring frequent access, saving time and effort. The positive locking action, driven by the robust spring and angled plunger, assures users that compartments are securely fastened, thereby minimizing the risk of accidental openings, which can lead to lost equipment, damaged goods, or hazardous situations. The ability to lock the latch in the open position further enhances operational safety and convenience during loading, unloading, or maintenance tasks. The high-strength carbon steel construction ensures resistance to physical damage, wear, and fatigue, even in high-cycle applications. While the plain finish necessitates protective treatment in corrosive environments, the underlying material integrity guarantees long-term mechanical performance. Proper lubrication of moving parts will further extend the service life and maintain smooth operation over years of rigorous use.
Conclusion
The Left Hand Quick Release Spring Latch - 2 x 5 Inch is a testament to functional design and industrial-grade construction. Its spring-loaded mechanism, angled plunger for slam-shut functionality, and lock-open feature deliver superior operational efficiency and security. Crafted from durable carbon steel with a weld-on mounting configuration, it promises unparalleled structural integrity and adaptability for a diverse range of heavy-duty applications. From the demanding environments of commercial transportation and agricultural machinery to critical industrial enclosures, this latch provides a reliable, robust, and technically sophisticated solution for securing access points, ensuring both the safety of contents and the efficiency of operations. Its precision engineering and material selection underscore its readiness for the most challenging operational contexts, making it an indispensable component for professionals prioritizing durability, security, and ease of use.
