B27026M10 - 1/2 x 10 Inch Forged Rod End Machined With 1/2-13 NC Thread

The Forged Rod End from Buyers Products is machined with NC thread and is ideal for all connecting and linkage needs.

Specifications

Advanced Technical Overview: 1/2 x 10 Inch Forged Rod End with 1/2-13 NC Thread

This document provides a comprehensive technical description of the 1/2 x 10 Inch Forged Rod End, precision-machined with a 1/2-13 NC thread, from Buyers Products. Designed for demanding mechanical applications, this rod end exemplifies robust engineering, superior material selection, and precise manufacturing, making it an indispensable component for a wide array of connecting and linkage systems across various industries. This detailed analysis will delve into its design philosophy, material science, manufacturing processes, dimensional specifications, functional advantages, application suitability, and maintenance considerations, aiming to equip engineers, procurement specialists, and technical personnel with a thorough understanding of its capabilities.

Design Philosophy and Structural Integrity

The core design philosophy behind this forged rod end centers on maximizing strength, durability, and operational reliability under significant static and dynamic loads. Forging, as the primary manufacturing method for the rod end body, is critical to achieving these objectives. Forging involves the application of compressive forces to shape metal, resulting in a grain flow that follows the contours of the part. This process eliminates internal voids, refines the grain structure, and enhances the material's fatigue resistance, impact strength, and overall mechanical properties compared to cast or machined-from-bar alternatives. The result is a component with superior load-bearing capacity and an extended service life, particularly in applications subject to repetitive stress or shock loads.

The integration of a solid rod (bolt shaft) with an integral eye is a testament to its robust design. This monolithic construction eliminates potential failure points associated with multi-piece assemblies, ensuring seamless force transmission from the threaded section to the eye. The carefully specified dimensions, including the 1/2-inch bolt shaft diameter and 10-inch length, provide ample material cross-section for strength while offering sufficient reach for diverse linkage requirements. The eye, a critical load-bearing interface, is precisely dimensioned to accommodate connection pins or fasteners, facilitating controlled angular and linear motion within the system.

Material Science and Properties

While the specific material composition is not explicitly stated, the term "forged rod end" strongly implies the use of a high-strength, forgeable steel alloy. Typical materials for such components include various grades of carbon steel (e.g., AISI 1018, 1045) or alloy steel (e.g., AISI 4140, 4340), selected for their excellent mechanical properties, workability, and cost-effectiveness. The choice of material is paramount to the rod end's performance characteristics:

• Tensile Strength: The ability to withstand pulling forces without fracturing. Forged steels typically exhibit high tensile strengths, crucial for sustaining continuous loads in linkage systems.
• Yield Strength: The stress at which the material begins to deform plastically. A high yield strength ensures the rod end maintains its original shape and function under operational stresses.
• Hardness: Resistance to localized plastic deformation, such as indentation or scratching. Proper hardness contributes to wear resistance, particularly in the threaded section and the eye bore.
• Fatigue Strength: The ability to withstand repeated cycles of stress without failure. Forging enhances fatigue life by creating a favorable grain structure, making the component suitable for dynamic applications.
• Toughness: The material's ability to absorb energy and deform plastically before fracturing. This property is vital for components exposed to shock loads or impact.

Post-forging heat treatments, such as quenching and tempering, are often applied to further optimize these mechanical properties. These processes can enhance hardness, strength, and toughness, tailoring the material characteristics to meet specific performance requirements and environmental conditions, including resistance to corrosion (if protective coatings are applied).

Precision Machining and Thread Specifications

Following the forging process, the rod end undergoes precision machining to achieve the specified dimensional tolerances and surface finishes, particularly for the threaded section and the eye opening. The machining process ensures:

• Thread Accuracy: The 1/2-13 NC (National Coarse) thread is precisely cut, ensuring optimal engagement with mating components. The "1/2" denotes the nominal major diameter in inches, and "13" indicates 13 threads per inch. NC threads are characterized by their coarser pitch, which provides greater resistance to stripping, facilitates faster assembly, and offers higher tolerance to minor damage or contamination compared to finer threads. This makes them ideal for general-purpose applications where robust fastening is prioritized.
• Eye Opening Tolerance: The eye opening of 0.281 inches is machined to a precise tolerance, ensuring a snug fit with a corresponding pin or fastener. This minimizes play and wear, preserving the integrity of the connection and ensuring accurate force transmission. The specified Outer Eye Diameter of 0.97 inches provides ample material around the opening to withstand shear and bearing stresses.
• Surface Finish: Machining processes also dictate the surface finish. A smooth, consistent finish in the threaded area ensures proper torque transmission and reduces galling, while a well-finished eye bore minimizes friction and wear on mating pins.
• Dimensional Accuracy: The bolt shaft length (10.000 inches) and diameter (0.500 inches) are maintained within tight tolerances, critical for consistent performance and interchangeability within assemblies.

Adherence to ASME B1.1 standards for unified screw threads is paramount in ensuring the interchangeability and reliability of the 1/2-13 NC thread. These standards define thread form, pitch, diameter limits, and gauging practices, guaranteeing that the rod end will mate correctly with standard fasteners.

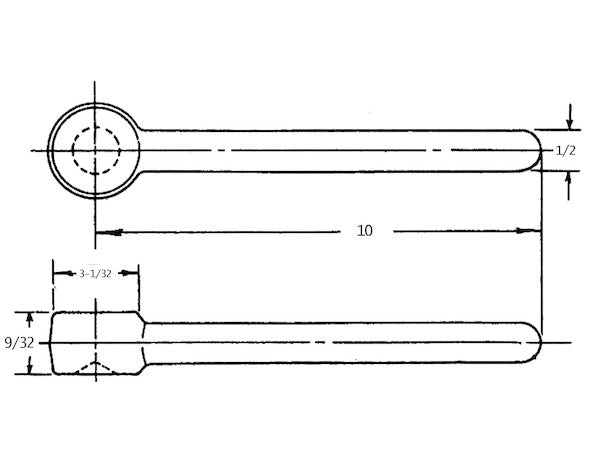

Dimensional Specifications and Their Implications

The provided specifications are critical for engineers designing systems that incorporate this rod end:

• Thread Stocked: 1/2-13 NC: Confirms the thread type and size, essential for selecting compatible fasteners or adjusting mechanisms. The coarse pitch of NC threads provides strength and ease of assembly.
• Bolt Shaft Length (in.): 10.000": A substantial length that provides significant adjustability and reach. This extended length can simplify complex linkage designs by reducing the need for additional extensions or custom components, offering greater flexibility in system layout and articulation.
• Eye Opening (in.): 0.281": This precise diameter indicates the size of the pin or bolt required for connection. A 0.281-inch opening is slightly larger than 1/4 inch (0.250 inch), allowing for easy insertion of a 1/4-inch pin while providing minimal clearance for articulation, reducing slop in the linkage.
• Outer Eye Diameter (in.): 0.97": The overall diameter of the eye provides a clear indication of the amount of material surrounding the eye opening. A larger outer diameter generally signifies greater strength and resistance to deformation or failure at the eye, distributing forces over a wider area.
• Bolt Shaft Diameter (in.): 0.500": A robust 1/2-inch diameter for the main shaft, indicating significant bending and tensile strength. This dimension is crucial for calculating the rod end's capacity to withstand axial and transverse loads without buckling or fracturing.

These dimensions collectively define the rod end's physical footprint, load-bearing characteristics, and interface capabilities, allowing for precise integration into mechanical systems.

Functional Advantages and Applications

The 1/2 x 10 Inch Forged Rod End with 1/2-13 NC Thread offers several compelling functional advantages:

• High Strength-to-Weight Ratio: Forging creates a part with optimal strength distribution, allowing for efficient material usage and contributing to overall system performance.
• Enhanced Durability and Fatigue Life: The refined grain structure from forging, combined with appropriate material selection, ensures long-term reliability even under arduous operating conditions.
• Precision Connectivity: Accurate machining of the thread and eye opening guarantees secure and precise connections, minimizing backlash and ensuring smooth operation.
• Versatility: Its robust design and standard thread size make it suitable for a wide range of applications requiring robust linkages and adjustable connections.

Typical applications for this type of forged rod end include, but are not limited to:

• Industrial Machinery: Used in control linkages, actuators, and motion transfer systems in manufacturing equipment, agricultural machinery, and construction vehicles. Its durability is critical in harsh industrial environments.
• Automotive and Heavy Equipment: Integral to steering mechanisms, suspension components, shift linkages, and throttle controls, where reliability and resistance to vibration and impact are paramount.
• Material Handling Systems: Employed in conveyors, hoists, and lifting equipment for connecting various movable parts, requiring robust and stable connections.
• Specialized Fixtures and Tooling: Utilized in custom jig and fixture design where adjustable and strong pivot points are needed.
• Marine Applications: While requiring appropriate corrosion protection, the inherent strength makes it suitable for various control and linkage systems in marine environments.

The extended 10-inch length provides particular utility in applications requiring significant adjustment range or where connection points are spaced farther apart, reducing the need for intermediate components and simplifying design.

Installation and Maintenance Considerations

Proper installation is crucial to realizing the full performance potential of the forged rod end. Key considerations include:

• Thread Engagement: Ensure adequate thread engagement with mating components to prevent stripping and ensure the full load capacity of the threaded connection. Industry standards often recommend at least 1.5 times the nominal diameter for steel fasteners in steel components.
• Torque Specifications: Adhere to recommended torque specifications for mating fasteners to prevent over-tightening (which can lead to thread damage or material yielding) or under-tightening (which can result in loosening or fatigue failure).
• Alignment: Proper alignment of the eye with the connecting pin is essential to prevent bending moments on the pin and uneven wear within the eye.
• Lubrication: Depending on the application and material, lubrication of the eye opening and pin may be necessary to reduce friction and wear, especially in systems experiencing significant angular movement.
• Corrosion Protection: For applications in corrosive environments, the rod end may require additional surface treatments (e.g., zinc plating, hot-dip galvanizing, or specialized coatings) to prevent rust and maintain structural integrity.

Regular inspection for signs of wear, deformation, or corrosion is recommended as part of a routine maintenance schedule. Any component exhibiting significant wear or damage should be replaced immediately to prevent catastrophic failure of the linkage system.

Quality Assurance and Manufacturer Reputation

Buyers Products, as the manufacturer, is known for its commitment to producing high-quality components for a diverse range of industries. The specification of a "forged" rod end implies a stringent manufacturing process that begins with quality raw materials and adheres to precise engineering standards. This commitment to quality assurance ensures that each rod end meets or exceeds performance expectations, providing reliability and safety in critical applications. Manufacturers typically employ advanced inspection techniques, including dimensional checks, material composition analysis, and mechanical property testing, to verify product conformity. Certifications to ISO 9001 or similar quality management standards further reinforce the confidence in the product's quality and consistency.

Conclusion

The 1/2 x 10 Inch Forged Rod End with 1/2-13 NC Thread from Buyers Products represents a high-performance, precision-engineered component designed to meet the rigorous demands of industrial, automotive, and heavy equipment applications. Its construction, leveraging the superior mechanical properties of forged steel and precise machining, ensures exceptional strength, durability, and reliable connectivity. The carefully specified dimensions and standard NC thread facilitate seamless integration into a vast array of mechanical systems, offering significant design flexibility and robust force transmission capabilities. By understanding its technical specifications, material advantages, and application considerations, engineers and system designers can confidently select and deploy this rod end to optimize the performance and longevity of their linkage and control mechanisms, upholding the highest standards of operational efficiency and safety.
