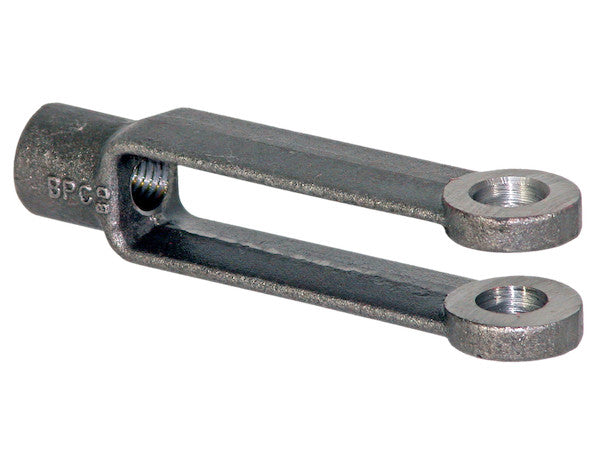

Adjustable Yoke Ends from Buyers Products are machine forged and meet SAE standards. Custom sizes and finishes are available.
Specifications
| Clevis Pin Hole Dia. (in.) | .N/A " |
| Base to Hole Center (in.) | 1.563 " |
| Width (in.) | 0.188 " |
| Type | Standard |
| Thread Size (in.) | 3/16-32 |
| Clevis Pin Incl. (y/n) | No |
| Center Hole to Neck (in.) | 1.000 " |
| Material | Forged Steel |
| Neck Dia. (in.) | 0.313 " |
| Neck Length (in.) | 0.563 " |
| Finish | Zinc Plated |
| Inner Arm to Arm (in.) | 0.188 " |
| Height of Yoke Arm (in.) | .438 |
| Hole Dia. (in.) | 0.188 " |
The Adjustable Yoke End, featuring a 3/16-32 NF thread and a 3/16-inch (0.188") diameter thru-hole, with a durable zinc-plated finish, is a precision-engineered component for mechanical linkage systems. Manufactured from high-quality forged steel and adhering to stringent SAE standards, this yoke end ensures robust construction and precise adjustability, crucial for reliable transmission of linear motion and force in demanding industrial and automotive applications where operational integrity is paramount.
Advanced Material Science and Manufacturing Excellence: Forged Steel
The intrinsic strength and durability of this adjustable yoke end derive from its machine-forged steel construction. Forging refines the metal’s internal grain structure, aligning it with the component’s contours and eliminating metallurgical defects inherent in casting. This process results in steel with significantly enhanced mechanical properties, including superior tensile strength, exceptional fatigue resistance, and increased impact toughness. Such inherent structural integrity ensures the yoke end withstands high static and dynamic loads without deformation or failure, offering a higher safety factor in critical linkage systems. The chosen steel alloy optimizes hardness, ductility, and machinability, facilitating precise threading and hole creation while maintaining overall robust performance.
Precision Threading: 3/16-32 NF for Granular Adjustment
A defining characteristic is its 3/16-32 NF thread. The ‘NF’ (National Fine) designation indicates a finer pitch than National Coarse, offering critical engineering advantages. With 32 threads per inch (TPI) on a 3/16-inch diameter, this fine pitch enables exceptionally granular and accurate positional adjustments, vital for fine-tuning control linkages or sensor alignments. Secondly, the increased thread contact area significantly enhances resistance to vibrational loosening, improving long-term stability and reliability under dynamic conditions. This minimizes the risk of self-unthreading. Adherence to the National Fine thread standard guarantees broad compatibility with corresponding threaded rods, streamlining integration into new or existing mechanical designs.
Critical Dimensional Analysis: Precision for Functional Integration
The precise specifications of this adjustable yoke end are meticulously engineered for seamless functional integration. The 0.188-inch (3/16") thru-hole diameter is accurately machined for a corresponding clevis pin, forming the essential pivot point. This precision minimizes operational play, crucial for accurate motion transfer and reducing wear. The ‘Clevis Pin Hole Dia. (in.)’ being N/A is clarified by the explicit ‘Hole Dia. (in.)’ of 0.188". The absence of an included clevis pin (‘Clevis Pin Incl. (y/n): No’) grants engineers flexibility in pin selection.
The internal dimensions, specifically the 0.188-inch ‘Inner Arm to Arm’ clearance, are critical for accommodating mating components without binding. The 0.188-inch ‘Width’ of each yoke arm ensures structural integrity and uniform stress distribution, enhancing load-bearing capacity. The 0.438-inch ‘Height of Yoke Arm’ reinforces arm rigidity, directly correlating with its ability to withstand shear and bending loads, ensuring long-term integrity.
Geometric positioning is defined by the 1.563-inch ‘Base to Hole Center’, a fundamental reference for linkage length and accurate assembly alignment. The 1.000-inch ‘Center Hole to Neck’ specifies the distance from the clevis pin center to the threaded neck, critical for effective reach in kinematic designs. Finally, the threaded section’s integrity is supported by the 0.313-inch ‘Neck Diameter’, providing robust material around threads, and the 0.563-inch ‘Neck Length’, guaranteeing full, secure thread engagement for maximum holding power and stable adjustments. These dimensions collectively ensure reliable function and precise fit.
Standardized Type for Broad Compatibility
The designation ‘Type: Standard’ signifies this adjustable yoke end conforms to widely accepted industry dimensions and configurations. This ensures high interoperability with other common mechanical components, simplifying design integration and replacement. It assures users of a reliable, readily available component meeting established industry norms, facilitating seamless incorporation into diverse mechanical systems without custom mating parts.
Protective Zinc Plated Finish for Enhanced Durability
The zinc-plated finish applied to this yoke end is critical for extending its operational lifespan, particularly in corrosive environments. This electrochemical process deposits a thin zinc layer, providing robust sacrificial protection: if compromised, the zinc corrodes preferentially to the steel, safeguarding the base metal from rust and oxidation. This galvanic action is highly effective in environments exposed to moisture and mild chemicals. Beyond corrosion resistance, zinc plating offers a clean aesthetic and some abrasion resistance, ensuring sustained integrity and appeal across varied conditions.
Adherence to SAE Standards: A Benchmark of Quality
Compliance with SAE (Society of Automotive Engineers) standards is a definitive assurance of this adjustable yoke end’s quality and reliability. SAE International sets global benchmarks for products, materials, and processes. Meeting SAE standards typically mandates adherence to specific material compositions, stringent dimensional tolerances, verified strength requirements, and rigorous testing. This commitment provides engineers confidence in the product’s design integrity and manufacturing consistency, ensuring consistent performance within systems developed under these respected industry benchmarks.
Diverse Applications: Versatility in Motion Control
The robust construction and precise adjustability of this Adjustable Yoke End make it suitable for an extensive array of applications:
- Automotive & Commercial Vehicles: Integral in throttle, gear shift, clutch/brake control, and steering linkages where precise, adjustable connections are paramount.
- Heavy Equipment & Off-Highway: Employed in agricultural, construction, and forestry machinery for controlling hydraulic cylinders, implements, and steering, often under severe conditions.
- Industrial Automation & Machinery: Utilized in packaging, printing, textile, and automated systems as actuators for levers, connectors for push-pull rods, and adjustable stops, facilitating process control.
- Marine Systems: Essential in boat steering, engine controls, and other marine linkages where enhanced corrosion resistance (zinc plating) and reliable operation in saltwater are critical.
- HVAC & Environmental Control: Applied in damper controls and ventilation systems for precise airflow regulation.
- Robotics & Motion Control: Provides robust and adjustable connection points for robotic arms and sensory systems, where positional accuracy and durability are crucial.
Customization for Specialized Requirements
Beyond the standard offering, Buyers Products provides comprehensive options for custom sizes and finishes. This bespoke manufacturing allows for yoke ends tailored to highly specific project requirements, encompassing unique dimensional adjustments, alternative thread forms (e.g., metric, custom pitches), or specialized protective coatings beyond standard zinc plating (e.g., nickel, chrome, powder coating for extreme environments). This flexibility ensures even niche or demanding applications can be accommodated with a purpose-built component, optimizing performance, integration efficiency, and longevity.
Conclusion
The Adjustable Yoke End, meticulously engineered with a 3/16-32 NF thread and 0.188-inch thru-hole, protected by a zinc-plated finish, and precision-manufactured from machine-forged steel to rigorous SAE standards, stands as a premier component for mechanical linkage systems. Its balanced attributes—high strength, exceptional durability, precise adjustability, and superior corrosion resistance—collectively deliver a robust solution for actuating, positioning, and controlling mechanical elements. From stringent automotive controls to rugged industrial and marine applications, this yoke end ensures long-term operational integrity and contributes significantly to the overall efficiency, safety, and reliability of complex mechanical assemblies. Its adherence to leading industry standards, combined with customization options, positions it as a versatile asset for contemporary engineering challenges.
