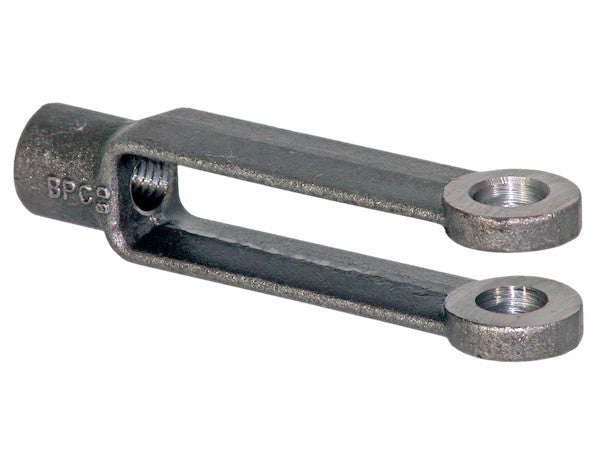

B27082A - Adjustable Yoke End 1/4-28 NF Thread And 1/4 Inch Diameter Thru-Hole

Adjustable Yoke Ends from Buyers Products are machine forged and meet SAE standards. Custom sizes and finishes are available.

Specifications

The Adjustable Yoke End, featuring a 1/4-28 NF thread and a 1/4 inch diameter thru-hole, represents a critical component engineered for precision linkage and control applications across a multitude of industrial and mechanical systems. Manufactured by Buyers Products, this specific yoke end is meticulously designed to provide reliable, adjustable connectivity, ensuring optimal performance and longevity in demanding operational environments. Its construction from forged steel, coupled with adherence to stringent SAE standards, underscores its superior quality and suitability for high-stress applications.

At the core of this component's robust design is its material: Forged Steel. The forging process, a method of shaping metal using localized compressive forces, is paramount to the exceptional strength and durability of this yoke end. Unlike casting or machining from bar stock, forging rearranges the internal grain structure of the steel, aligning it with the shape of the part. This metallurgical phenomenon significantly enhances the material's fatigue resistance, impact strength, and overall tensile strength. The resulting component is free from internal voids, porosity, and other defects that can compromise structural integrity, making it ideal for applications subject to dynamic loads, vibrations, and cyclical stresses. The selection of forged steel ensures that the yoke end can withstand significant operational demands without premature failure, contributing to the safety and reliability of the larger system it integrates into.

The manufacturing precision extends to the "machine forged" designation. This implies that while the initial forming is achieved through forging, subsequent machining operations are performed to achieve the final, precise dimensions and surface finishes. This two-stage process guarantees not only the inherent strength benefits of forging but also the critical dimensional accuracy required for precise mechanical linkages. Tolerances for features such as the 1/4 inch thru-hole, the 1/4-28 NF thread, and the various specified dimensions are meticulously maintained, ensuring proper fitment and functionality. This combination of forging and precision machining results in a product that is both structurally sound and dimensionally exact.

Compliance with SAE Standards is a testament to the engineering integrity and interchangeability of this adjustable yoke end. The Society of Automotive Engineers (SAE) sets forth rigorous specifications for materials, dimensions, testing, and performance for components used in automotive and related industries. By meeting these standards, Buyers Products assures users that this yoke end has been manufactured to recognized industry benchmarks for quality, safety, and reliability. This adherence simplifies component selection for engineers, guarantees compatibility with other SAE-compliant parts, and provides confidence in the component's ability to perform as expected under specified operating conditions. It also implies a commitment to consistent quality across all manufactured units.

A pivotal feature of this component is its 1/4-28 NF Thread Size (in.). The "1/4" indicates a nominal major thread diameter of 0.250 inches. The "28" signifies 28 threads per inch, providing a fine thread pitch. "NF" stands for National Fine, a standard thread series known for its smaller helix angle, which offers several advantages. Fine threads like the 1/4-28 NF are inherently stronger in tension than coarse threads of the same nominal diameter due to their larger minor diameter and greater stress area. This increased strength is crucial for applications where high tensile loads are present. Furthermore, the fine pitch allows for more precise adjustments, as a smaller rotation of the mating threaded component results in a finer linear displacement. This characteristic is particularly valuable in control linkages where exact positioning and minimal backlash are required. The fine pitch also contributes to a more secure connection, as it is less prone to loosening under vibration compared to coarse threads, often negating the need for additional locking mechanisms in certain applications.

The 1/4 Inch Diameter Thru-Hole, specified as Hole Dia. (in.) 0.250" in the technical specifications, is a critical functional element of the yoke end. This precisely machined hole facilitates the connection of the yoke end to other components within a linkage system, typically via a clevis pin, bolt, or rod of corresponding diameter. The accuracy of this hole diameter is paramount for minimizing play and ensuring smooth, efficient transfer of force or motion. A snug fit between the clevis pin and the thru-hole prevents excessive wear, reduces noise, and maintains the integrity of the linkage, thereby enhancing the overall precision and responsiveness of the mechanical system. This standard 1/4-inch diameter makes it highly versatile and compatible with a wide range of standard fastening hardware.

Delving into the dimensional specifications provides a comprehensive understanding of this yoke end's physical attributes and its suitability for various integration scenarios:

• Center Hole to Neck (in.): 1.250 " This dimension is crucial for understanding the overall geometry and the effective length of the yoke arms. It defines the distance from the center of the main clevis pin hole to the beginning of the threaded neck. Engineers rely on this measurement for calculating clearances, linkage lengths, and angular motion within an assembly.
• Width (in.): 0.625 " This refers to the overall width of the yoke arms at their widest point. It's a critical dimension for ensuring proper fit within confined spaces or when mating with other components that have specific slot or bracket widths. Maintaining this precise width helps prevent binding or excessive side play in the linkage.
• Inner Arm to Arm (in.): 0.281 " This dimension is exceptionally important for the mating interface. It specifies the clear distance between the interior surfaces of the two yoke arms. A component, such as an eye end, rod end, or bracket, with a thickness slightly less than 0.281 inches, can be precisely accommodated between the arms, allowing for smooth pivoting action when a clevis pin is inserted through the 0.250" holes. Careful consideration of this dimension is vital to prevent friction or unnecessary gaps in the linkage.
• Neck Length (in.): 0.750 " This measurement defines the length of the threaded portion, extending from the base of the yoke arms to the end of the thread. A sufficient neck length is essential for providing ample engagement with the mating threaded component, ensuring a strong, secure, and adjustable connection. It allows for a range of linear adjustments, crucial for fine-tuning linkage lengths in the field.
• Base to Hole Center (in.): 2.000 " This vertical dimension provides the distance from the base of the yoke neck to the center of the primary clevis pin hole. It is a critical parameter for determining the spatial positioning and leverage points within a linkage assembly. Designers use this dimension to establish mounting heights and ensure proper alignment relative to other system components.
• Neck Dia. (in.): 0.438 " This specifies the diameter of the unthreaded portion of the neck immediately adjacent to the yoke arms. This dimension is important for engineering considerations such as stress distribution at the transition point between the threaded section and the yoke arms, and for ensuring clearance if the component passes through an aperture or bearing.
• Height of Yoke Arm (in.): 0.438 " This dimension indicates the vertical extent of the yoke arms from their base to their top surface. It contributes to the overall structural integrity of the arms, influencing their shear and bending resistance, and plays a role in clearance calculations.
• Clevis Pin Hole Dia. (in.): 0.500 " While the product title and "Hole Dia." specification emphasize a 1/4-inch (0.250") thru-hole, the inclusion of a 0.500" Clevis Pin Hole Diameter in the specifications table may indicate an optional or specific integration scenario for a larger clevis pin or a different component of the assembly that this yoke end could interact with. If interpreted as a secondary feature or an interface for a larger system, it highlights the potential versatility, allowing for adaptability in more complex or robust assemblies where a stronger, larger diameter pin connection might be required elsewhere in the system. For the primary function of the yoke arms, the 0.250" hole remains central. However, the presence of a specified 0.500" hole diameter further underlines the comprehensive design considerations inherent in Buyers Products' offerings, potentially allowing for integration into systems with varying pin requirements or serving as a reference for mating component selection. It's important for designers to clarify which hole is being referred to for specific application design. Given the title, the 1/4" (0.250") thru-hole is the primary functional hole for the yoke arms.

The finish of this adjustable yoke end is designated as Plain. A plain finish, typically achieved after the forging and machining processes, leaves the steel in its natural state, without additional surface treatments such as plating, painting, or coating. This choice of finish offers several practical advantages. Firstly, it is often more cost-effective, reducing the overall price point of the component. Secondly, a plain finish is ideal for applications where the end-user intends to apply their own specific coating (e.g., custom paint, specialized corrosion-resistant coating) to match system requirements or environmental conditions. Thirdly, plain steel can be readily welded, allowing for integration into fabricated assemblies where welding is the preferred method of attachment. While a plain finish might necessitate additional corrosion protection in humid or corrosive environments, its versatility in post-processing makes it a preferred option for many industrial users who customize components to their specific needs. Buyers Products' capability to provide custom finishes, as mentioned, further enhances the adaptability of this component to a broader array of operational contexts.

The Adjustability aspect of this yoke end is paramount to its utility. The 1/4-28 NF thread on the neck allows for precise linear adjustment when screwed into a corresponding internally threaded component, such as a turnbuckle, rod end, or custom bracket. This adjustability is critical for fine-tuning the length of a linkage, compensating for manufacturing tolerances in other components, or making on-site adjustments to optimize mechanical advantage or align control surfaces. In dynamic systems, the ability to precisely adjust linkage length can significantly impact performance, responsiveness, and wear characteristics, ensuring that components operate within their intended geometric and kinematic envelopes. The fine thread pitch ensures that even small rotations yield minimal changes in length, allowing for very accurate positioning.

The versatility of this Adjustable Yoke End makes it suitable for a wide array of demanding applications across various industries:

• Automotive and Heavy Equipment: Used in steering linkages, throttle controls, brake systems, gear shifting mechanisms, and suspension components for trucks, buses, construction equipment, and agricultural machinery. Its robust forged steel construction can withstand the rigorous vibrations and heavy loads common in these environments.
• Industrial Machinery: Integral to various control and actuation systems in manufacturing equipment, packaging machinery, textile machines, and material handling systems. Provides reliable connections for levers, rods, and actuators.
• Hydraulic and Pneumatic Systems: Serves as a crucial interface for connecting hydraulic cylinders or pneumatic actuators to the components they need to move, ensuring precise and powerful linear motion transfer.
• Marine Applications: Although a plain finish may require additional protection for saltwater environments, the inherent strength of forged steel makes it suitable for various control linkages on boats and marine equipment, provided appropriate corrosion prevention is applied.
• Aerospace (Non-Flight Critical): Can be found in ground support equipment, testing fixtures, and non-flight critical control systems where precise adjustments and high strength are necessary.
• Agricultural Equipment: Critical for linkages in tractors, harvesters, and implements, managing everything from PTO controls to lift arms and steering components.
• Specialized Fabrication: Its standard dimensions and robust construction make it a go-to component for custom fabricators and engineers designing bespoke mechanical solutions.

In summary, the Adjustable Yoke End with 1/4-28 NF thread and 1/4 inch diameter thru-hole from Buyers Products is an exemplary component designed for high performance and reliability. Its foundation in forged steel guarantees exceptional strength and durability, overcoming the limitations of less robust manufacturing methods. The precision of its machine forged fabrication ensures dimensional accuracy critical for seamless integration and optimal functionality. Adherence to rigorous SAE standards instills confidence in its quality, safety, and interchangeability. The fine 1/4-28 NF thread provides superior tensile strength and enables precise, incremental adjustments, crucial for fine-tuning linkage systems. The accurately machined 1/4 inch thru-hole ensures a tight, secure connection with mating pins or bolts, minimizing play and maximizing efficiency. While featuring a cost-effective plain finish for maximum versatility, the option for custom sizes and finishes further expands its applicability across diverse industrial requirements. This adjustable yoke end is not merely a connection point; it is a meticulously engineered solution that underpins the reliability, precision, and longevity of critical mechanical and control systems across a broad spectrum of heavy-duty and industrial applications.
