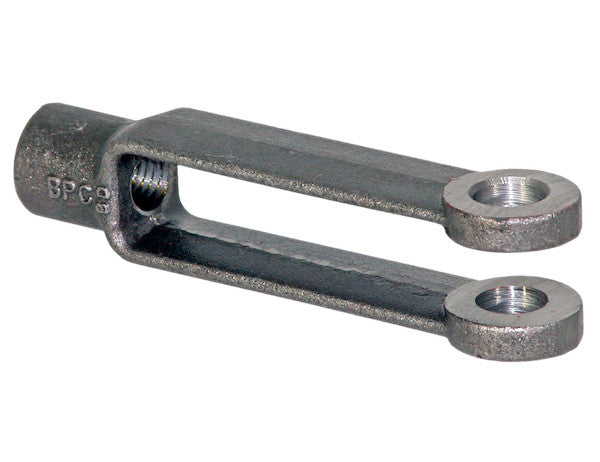

B27082AZ - Adjustable Yoke End 1/4-28 NF Thread And 1/4 Inch Diameter Thru-Hole Zinc Plated

Adjustable Yoke Ends from Buyers Products are machine forged and meet SAE standards. Custom sizes and finishes are available.

Specifications

The Adjustable Yoke End, featuring a 1/4-28 NF thread and a 1/4 inch diameter thru-hole with a zinc-plated finish, represents a critical component in various mechanical linkages, particularly within industrial, automotive, and agricultural applications. This highly engineered component is meticulously designed and manufactured by Buyers Products, a reputable name known for its commitment to quality and adherence to stringent industry standards, including those set by the Society of Automotive Engineers (SAE). The designation "machine forged" underscores a manufacturing process that imparts superior material properties, including enhanced strength, durability, and resistance to fatigue, making it suitable for demanding operational environments.

A yoke end, fundamentally, is a mechanical connector designed to transmit tensile or compressive forces in a linear motion while allowing for angular misalignment. Its distinctive 'U' or 'fork' shape, comprising two parallel arms, accommodates a mating component—typically a clevis pin or a rod end—which passes through the thru-hole. The integration of an adjustable thread, in this case, a 1/4-28 NF (National Fine) thread, allows for precise length adjustment within a linkage system. This adjustability is crucial for achieving optimal operational geometry, compensating for manufacturing tolerances, and enabling fine-tuning of control mechanisms. The 1/4-28 NF thread pitch signifies 28 threads per inch, a fine thread specification known for its strong engagement, resistance to loosening under vibration, and suitability for applications requiring precise adjustment and secure fastening.

The physical specifications provided offer a detailed insight into the design and dimensions of this particular yoke end. The "Hole Dia. (in.)" is specified as 0.250 inches (1/4 inch), confirming its compatibility with standard 1/4-inch clevis pins or other mating shafts. This precise diameter ensures a snug fit, minimizing play and maximizing the efficiency of force transmission. The "Center Hole to Neck (in.)" dimension of 1.250 inches defines the distance from the center of the clevis pin hole to the beginning of the threaded neck. This dimension is crucial for calculating the overall length of an assembled linkage and for ensuring proper clearance with surrounding components. The "Neck Dia. (in.)" at 0.438 inches (approximately 7/16 inch) refers to the diameter of the cylindrical portion of the yoke end before the thread begins. This provides the structural integrity necessary to withstand the applied forces without yielding or deforming. Being manufactured from "Forged Steel" further enhances these properties, offering a robust material solution that outperforms cast or machined-from-bar alternatives in terms of grain structure and resistance to impact and shock loads.

The exclusion of a "Clevis Pin Incl. (y/n)" indicates that while the yoke end is designed to accept a clevis pin, the pin itself is not supplied with the product. This allows for flexibility in selecting the appropriate pin material, length, and retaining mechanism (e.g., cotter pin, retaining clip) based on the specific application requirements. The "Thread Size (in.)" is clearly stated as 1/4-28, reinforcing its compatibility with corresponding internally threaded components. The "Base to Hole Center (in.)" dimension of 2.000 inches provides another critical measurement, defining the overall effective length from the base of the threaded section to the center of the clevis pin hole. This is vital for engineers performing kinematic analyses and designing linkage geometries. The "Inner Arm to Arm (in.)" of 0.281 inches (approximately 9/32 inch) specifies the clear internal width between the two arms of the yoke. This dimension is crucial for accommodating the thickness of the mating component that will be inserted between the arms, ensuring proper fit and freedom of movement without excessive lateral play. The "Height of Yoke Arm (in.)" at 0.438 inches indicates the vertical thickness of the arms, contributing to their bending strength and load-bearing capacity. The "Neck Length (in.)" of 0.750 inches specifies the length of the unthreaded cylindrical neck section, providing a robust transition zone between the threaded portion and the yoke arms. Finally, the "Width (in.)" of 0.625 inches (5/8 inch) provides the overall lateral dimension of the yoke end, important for clearance considerations in confined spaces.

The product title specifies "Zinc Plated," however, the specifications table lists "Plain" for the finish. This discrepancy is important to clarify, as the finish plays a crucial role in the component's performance and longevity. A zinc-plated finish, typically applied through electroplating, provides a sacrificial corrosion protection layer that significantly extends the lifespan of the steel component in environments exposed to moisture, chemicals, or atmospheric agents. Zinc acts as an anode, corroding preferentially to the underlying steel, thereby protecting the base metal. This finish also offers a degree of abrasion resistance and can enhance the aesthetic appeal of the component. A "Plain" finish, by contrast, implies no coating or surface treatment beyond the forging process, leaving the steel susceptible to rust and corrosion if not further treated or protected in its operational environment. For precision components like yoke ends, where surface integrity and smooth operation are paramount, zinc plating is often preferred for its protective qualities, especially in outdoor or challenging indoor environments. It is essential for users to confirm the actual finish based on their application requirements and the specific product offering, as the choice of finish directly impacts the product's environmental resilience and maintenance needs.

The application of these adjustable yoke ends is extensive. In automotive systems, they are frequently found in shifter linkages, throttle controls, brake mechanisms, and steering components, where precise adjustment and robust connections are paramount. Their ability to compensate for minor misalignments and provide fine-tuning is invaluable in achieving optimal vehicle performance and driver control. In industrial machinery, they are utilized in hydraulic and pneumatic cylinder linkages, conveyor systems, robotics, and various control rod assemblies. The forged steel construction ensures they can withstand the rigorous demands of continuous operation, heavy loads, and dynamic stresses common in industrial settings. Agricultural equipment also benefits from these components in linkages for implements, PTO (power take-off) systems, and steering mechanisms, where durability against harsh environmental conditions and mechanical shock is critical.

The adherence to SAE (Society of Automotive Engineers) standards is a hallmark of quality for Buyers Products. SAE standards encompass a wide range of engineering specifications, test methods, and recommended practices, particularly for automotive and aerospace industries. For mechanical components like yoke ends, adhering to SAE standards implies that the product meets specific criteria for material composition, mechanical properties (e.g., tensile strength, yield strength, hardness), dimensional tolerances, and manufacturing processes. This compliance assures engineers and end-users of the product's reliability, consistency, and interoperability with other standard components, reducing the risk of premature failure and ensuring predictable performance under specified load conditions. The "machine forged" manufacturing process is central to achieving these high standards. Forging, as a metalworking process, involves shaping metal by localized compressive forces. This process refines the grain structure of the steel, eliminating internal voids and defects, and aligning the grain flow with the component's shape. This results in superior strength-to-weight ratio, improved fatigue resistance, and enhanced impact strength compared to components produced by casting or machining from rolled bar stock. The subsequent machining ensures precise dimensional accuracy, particularly for critical features like the thread and the thru-hole.

The "Custom sizes and finishes are available" statement opens up possibilities for highly specialized applications. While the standard product offers robust performance, certain unique operational environments or integration requirements may necessitate variations. Custom sizing could involve altering the center hole to neck dimension, inner arm to arm width, or neck length to fit non-standard mating components or specific spatial constraints. Custom finishes could range from specialized paints or powder coatings for aesthetic or additional environmental protection, to more advanced coatings like nickel plating for enhanced corrosion resistance, hardness, or electrical conductivity, or even black oxide for a decorative finish with mild corrosion protection. This flexibility underscores Buyers Products' commitment to meeting diverse customer needs, from off-the-shelf reliability to tailor-made solutions for highly niche applications. Engineers and designers working on bespoke projects can leverage this option to integrate components that perfectly match their unique design parameters, optimizing performance and integration efficiency.

In summary, the Adjustable Yoke End with 1/4-28 NF thread and 1/4 inch diameter thru-hole, from Buyers Products, represents a robust and precisely engineered mechanical linkage component. Its construction from machine-forged steel, adherence to SAE standards, and potential for zinc plating (pending clarification on the finish discrepancy) ensure high strength, durability, and corrosion resistance. The detailed dimensional specifications provide engineers with all necessary data for integration into complex mechanical systems, facilitating accurate design and assembly. Its adjustability, owing to the fine thread, makes it an invaluable asset for achieving precise alignment and tuning in a multitude of demanding applications across the automotive, industrial, and agricultural sectors. The availability of custom options further extends its utility, making it a versatile solution for standard and specialized engineering challenges alike. This component stands as a testament to precision manufacturing and materials science, designed to deliver reliable performance in critical mechanical linkages where failure is not an option.
