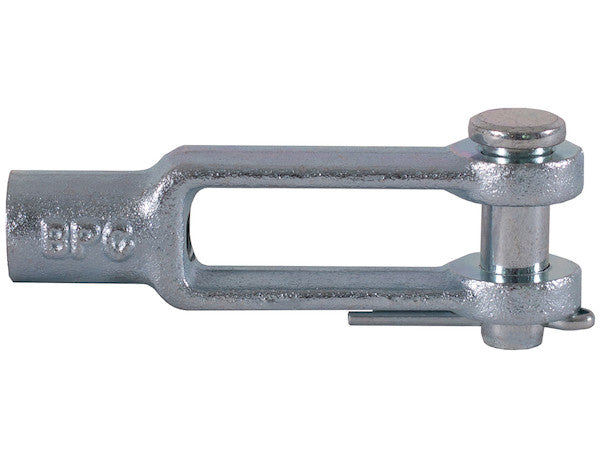

B27082AZKT - B27082AZ 1/4 Inch Clevis with Pin and Cotter Pin Kit-Zinc Plated

Buyers Products Clevis Rod End with Pin and Cotter Pin is used for pivot point linkages on air cylinders, shafts, rods, and other assemblies. The kit comes complete with a clevis pin and cotter pin for fast assembly. It is zinc-plated for corrosion resistance and comes in multiple sizes for a variety of applications.

Specifications

The Buyers Products B27082AZ 1/4 Inch Clevis with Pin and Cotter Pin Kit represents a meticulously engineered solution for demanding mechanical linkage applications. Designed for optimal performance, durability, and ease of assembly, this kit provides a critical pivot point for various industrial, commercial, and agricultural systems. The inclusion of a robust clevis pin and a reliable cotter pin ensures that mechanical connections are not only established swiftly but also maintained securely over extended operational cycles, even under challenging environmental and dynamic conditions. This comprehensive kit simplifies procurement and assembly processes, offering a ready-to-deploy component vital for numerous actuation and control mechanisms.

Advanced Engineering and Material Science

Forged Steel Construction: Unparalleled Strength and Durability

The foundation of the B27082AZ clevis's exceptional performance lies in its material composition: high-quality forged steel. Forging is a manufacturing process that involves shaping metal using localized compressive forces, typically performed with hammers or dies. Unlike casting or machining from plate stock, forging enhances the inherent strength and fatigue resistance of the metal. During the forging process, the internal grain structure of the steel is refined and aligned with the contour of the part. This optimized grain flow eliminates structural weaknesses such as voids, porosity, and inclusions, which are common in cast components, and ensures a superior strength-to-weight ratio. Forged steel possesses significantly higher tensile strength, yield strength, and impact resistance compared to its non-forged counterparts. This makes the B27082AZ clevis ideally suited for applications where dynamic loads, vibrations, and potential shock events are prevalent, safeguarding the integrity and longevity of the entire mechanical system. The decision to utilize forged steel is a testament to a commitment to engineering excellence, prioritizing maximum operational reliability and extended service life.

Superior Corrosion Protection: The Zinc Plating Advantage

To ensure the longevity and sustained performance of the clevis in diverse operational environments, the B27082AZ kit features a high-quality zinc-plated finish. Zinc plating is an electrochemical process that deposits a thin layer of zinc onto the steel substrate, providing a robust sacrificial barrier against corrosion. When exposed to corrosive elements such as moisture, humidity, road salts, or industrial chemicals, the zinc coating preferentially oxidizes, thereby protecting the underlying steel from rust and degradation. This sacrificial protection mechanism is particularly effective in extending the lifespan of components in outdoor applications, marine environments, and systems exposed to varying weather conditions. Beyond corrosion resistance, the zinc plating imparts an aesthetically pleasing, bright finish, which also contributes to reduced friction during assembly and operation. This protective layer adheres to stringent industrial standards, ensuring consistent quality and performance across all units. The choice of a clear zinc finish maintains the metallic appearance while offering critical environmental resilience, reducing maintenance requirements and the total cost of ownership over the product's operational lifetime.

Precision Dimensional Control and Functional Geometry

The meticulous engineering of the B27082AZ clevis is reflected in its precise dimensional specifications, each contributing critically to its functionality, compatibility, and performance within a mechanical linkage system. Understanding these dimensions is paramount for proper integration and optimal system design.

Core Geometric Parameters:

• Base to Hole Center (2.000 in.): This critical dimension defines the vertical distance from the clevis's mounting base to the center of the pivot hole. It is fundamental for establishing the effective lever arm and kinematic geometry of any attached rod or shaft. Precise control over this dimension ensures accurate articulation, predictable motion, and consistent force transmission within the system.
• Center Hole to Neck (1.250 in.): This measurement specifies the horizontal distance from the center of the clevis pivot hole to the beginning of the threaded neck. It dictates the overall reach and effective length of the clevis body, influencing clearances and the interaction with other components in complex assemblies.
• Height of Yoke Arm (0.438 in.): The height of the clevis's "yoke" or arms directly influences the structural rigidity and load-bearing capacity of the pivot point. A substantial arm height ensures that stresses are distributed effectively across the forged steel structure, preventing deformation or failure under compressive and tensile forces.
• Width (0.625 in.): This overall width dimension of the clevis body is crucial for determining the necessary mounting space and ensuring proper fit within confined mechanical envelopes.
• Inner Arm to Arm (0.281 in.): This vital clearance dimension dictates the maximum thickness of any mating component that can be inserted between the clevis arms for pivotal connection. Precision in this measurement guarantees proper fitment with connecting rods or brackets, minimizing lateral play and ensuring tight, responsive linkage operation.

Clevis Pin and Retention System:

The integrity of any clevis connection hinges on the quality and dimensions of its pin and retention mechanism. The B27082AZ kit includes a meticulously designed pin and cotter pin for a complete and secure assembly.

• Clevis Pin Diameter (0.250 in.): This dimension is the primary determinant of the clevis's load-carrying capability in shear. The 1/4-inch diameter pin, crafted from high-strength material, is engineered to withstand significant shear forces, making it suitable for applications requiring robust mechanical connections.
• Hole Dia. (0.250 in.): The pivot hole within the clevis arms is precisely machined to match the 0.250-inch clevis pin diameter, ensuring a snug fit that minimizes rotational slop while allowing smooth articulation. This tight tolerance reduces wear and enhances the precision of the linkage.
• Clevis Pin Head Diameter (0.375 in.) and Head Bevel Length (0.094 in.): The generous head diameter provides a large bearing surface, distributing axial loads effectively and preventing the pin from pulling through the clevis arms. The bevel length contributes to the secure seating of the pin head, enhancing overall structural stability and aesthetics.
• Bottom of Clevis Pin Head to Bottom of Pin (Maximum Usable Length) (0.797 in.): This specification defines the effective engagement length of the clevis pin, ensuring sufficient depth to pass through the clevis arms and the mating component, while leaving adequate projection for the cotter pin.
• Overall Pin Length (0.891 in.): The total length of the clevis pin, designed to accommodate the clevis arms, the attached component, and the cotter pin, ensuring secure retention without excessive protrusion.
• Clevis Pin Hole Dia. (0.500 in.) and Clevis Pin Hole Drill Number (49): These specifications pertain to the cross-drilled hole near the end of the clevis pin, designed to receive the cotter pin. The precise diameter and drill number ensure compatibility with standard cotter pins, providing a reliable and easily deployable secondary locking mechanism that prevents the clevis pin from dislodging due to vibration or axial loads. The inclusion of the cotter pin (Clevis Pin Incl. (y/n): Yes) makes this a ready-to-install solution.

Robust Threaded Connection for Integration:

The clevis rod end is designed for secure mechanical attachment to threaded rods or shafts, forming an integral part of an adjustable or fixed linkage system.

• Neck Dia. (0.438 in.) and Neck Length (0.750 in.): These dimensions specify the physical characteristics of the clevis's threaded stem. The neck's diameter provides sufficient material for robust threading, while its length ensures adequate thread engagement for secure fastening.
• Thread Size (1/4-28): The specification of a 1/4-28 thread denotes a Unified National Fine (UNF) thread series. UNF threads are characterized by a higher number of threads per inch compared to coarser threads of the same diameter. This finer pitch offers several advantages:
  • Increased Strength: Fine threads have a larger minor diameter, providing a greater cross-sectional area for stress distribution, which enhances their shear strength and resistance to stripping.
  • Improved Vibration Resistance: The smaller helix angle of fine threads makes them less prone to loosening under vibration, maintaining connection integrity in dynamic environments.
  • Finer Adjustment: The increased number of threads per unit length allows for more precise linear adjustment, crucial for fine-tuning linkage lengths in control systems.
  • Greater Load Distribution: More threads are engaged within a given length, distributing the load over a larger area, which reduces localized stress concentrations.
  This specific thread size ensures compatibility with standard industrial fasteners and components, facilitating easy integration into existing or new designs.

Manufacturing Refinements:

• Chamfer Angle (15) and Chamfer Length (0.063): Chamfers are angled surfaces at edges, rather than sharp corners. In the B27082AZ clevis, chamfered edges serve multiple purposes. They reduce stress concentrations, making the component less susceptible to fatigue failure, particularly in areas subjected to cyclic loading. Furthermore, chamfers facilitate easier and safer handling during assembly, preventing cuts or snags, and improve the overall aesthetic finish of the product.
• Color (Zinc) and Finish (Zinc Plated): As previously detailed, the zinc-plated finish not only provides critical corrosion resistance but also contributes to the visual identification and professional appearance of the component. The natural metallic gray tone of zinc, consistent across the product, signifies a uniform protective treatment.

Versatile Applications and Industry Integration

The B27082AZ 1/4 Inch Clevis Kit is a fundamental component across a broad spectrum of industries, owing to its robust construction, precise dimensions, and reliable performance. Its function as a pivot point linkage makes it indispensable in applications requiring controlled articulation and dependable force transfer.

• Industrial Automation and Machinery: Integral to the design of pneumatic and hydraulic cylinder linkages, control arm connections, and actuated valves. In industrial settings, these clevis kits are often found in robotic systems, material handling equipment, packaging machinery, and assembly lines, where consistent and precise motion is paramount.
• Agricultural Equipment: Used extensively in agricultural machinery for connecting implements, steering linkages, and hydraulic cylinder ends on tractors, harvesters, and specialized farm equipment. The demanding outdoor conditions in agriculture underscore the importance of the zinc-plated corrosion resistance.
• Transportation and Automotive: Applied in various non-critical suspension linkages, throttle control mechanisms, door latches, and accessory mounts in utility vehicles, trailers, and specialized automotive applications.
• Construction Equipment: Essential for articulating components in excavators, loaders, dozers, and other heavy machinery, providing robust connections for hydraulic cylinders, control levers, and safety mechanisms.
• Marine Applications: While zinc plating offers good protection, for direct saltwater exposure, additional coatings or stainless steel might be considered. However, for bilge systems, engine room linkages, or protected deck mechanisms, the B27082AZ provides reliable pivot points.
• HVAC Systems: Utilized in damper controls, valve linkages, and other actuated components within large-scale heating, ventilation, and air conditioning units.
• General Mechanical Assemblies: The versatility of the standard clevis design makes it a go-to component for custom fabrications, prototype development, and general repair work across various mechanical systems where a simple, strong, and reliable pivot connection is needed.

Installation and Maintenance Considerations

The design of the B27082AZ kit prioritizes ease of installation and minimal maintenance. The inclusion of the clevis pin and cotter pin in a single kit simplifies the assembly process, reducing the time and labor required for mechanical connections. When installing, it is crucial to ensure that the mating component fits properly within the inner arm-to-arm dimension (0.281 in.) and that the clevis pin (0.250 in. diameter) passes freely through all aligned holes. The cotter pin should then be fully inserted into the pin's cross-hole and its legs bent to secure the assembly, preventing axial dislodgement. Due to the high-strength forged steel and the protective zinc plating, the B27082AZ clevis requires little to no specific maintenance once installed correctly, beyond periodic visual inspection to ensure the cotter pin remains secure and there are no signs of abnormal wear or damage to the linkage components. Its robust construction ensures long-term operational reliability with minimal intervention.

Conclusion

The Buyers Products B27082AZ 1/4 Inch Clevis with Pin and Cotter Pin Kit stands as a testament to precision engineering and material excellence. From its robust forged steel construction and advanced zinc plating for superior corrosion resistance, to its meticulously controlled dimensions and reliable pin retention system, every aspect of this product is designed for optimal performance in demanding applications. Providing a complete, ready-to-install solution, it ensures fast, secure, and durable pivot point linkages for a wide array of industrial, commercial, and agricultural machinery. Investing in the B27082AZ clevis kit means choosing a component that offers unparalleled reliability, extends system lifespan, and contributes to the overall operational efficiency and safety of your mechanical assemblies. This product exemplifies a commitment to quality, delivering a critical component engineered to perform under pressure and endure over time.
