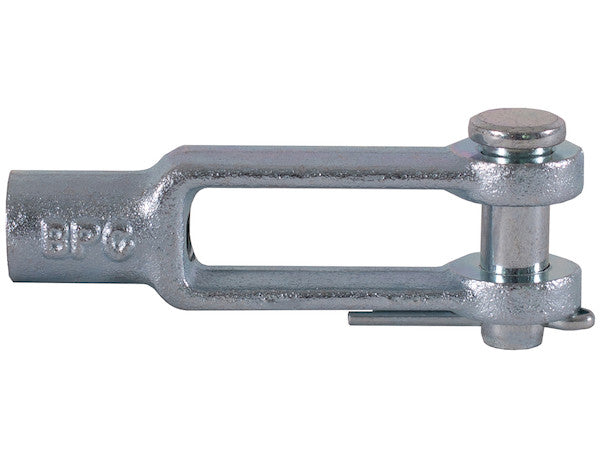

B27083A14ZKT - B27083A14Z 5/16 Inch Clevis with Pin and Cotter Pin Kit-Zinc Plated

Buyers Products Clevis Rod End with Pin and Cotter Pin is used for pivot point linkages on air cylinders, shafts, rods, and other assemblies. The kit comes complete with a clevis pin and cotter pin for fast assembly. It is zinc-plated for corrosion resistance and comes in multiple sizes for a variety of applications.

Specifications

Technical Overview: B27083A14Z 5/16 Inch Clevis with Pin and Cotter Pin Kit - Zinc Plated

The B27083A14Z Clevis Rod End with Pin and Cotter Pin Kit represents a meticulously engineered solution for robust mechanical linkages across a diverse range of industrial, mobile, and agricultural applications. Designed for critical pivot point connections, this assembly ensures reliable transfer of force and motion in dynamic systems such as air and hydraulic cylinders, control rods, and various mechanical actuators. The comprehensive kit approach, including the clevis rod end, a precisely matched clevis pin, and a secure cotter pin, streamlines installation and guarantees compatibility, offering a complete and immediately deployable linkage mechanism. Fabricated from high-strength forged steel and finished with a durable zinc plating, this component is engineered to withstand demanding operational environments while providing excellent resistance to corrosive elements.

Precision Engineering of the Clevis Rod End

The core of the B27083A14Z kit is the clevis rod end, a vital mechanical interface designed to convert linear motion into pivotal action. The design incorporates a bifurcated yoke, allowing for the insertion of a mating component, secured by a transverse clevis pin. This particular clevis features a threaded neck with a 1/4-28 thread size, enabling direct attachment to threaded rods, shafts, or other actuating mechanisms. The internal geometry of the yoke is precisely controlled, with an "Inner Arm to Arm" dimension of 0.344 inches and a "Height of Yoke Arm" of 0.500 inches, ensuring optimal fitment and minimizing play for the 5/16 inch clevis pin. The clevis arms are drilled with a "Hole Dia. (in.)" of 0.313 inches, precisely accommodating the nominal 5/16-inch (0.313-inch) diameter clevis pin. The "Base to Hole Center" measurement of 2.250 inches, coupled with a "Center Hole to Neck" distance of 1.438 inches and a "Neck Length" of 0.813 inches, defines the geometric characteristics crucial for calculating leverage, reach, and overall linkage kinematics within an assembly. The "Neck Dia. (in.)" of 0.500 inches further specifies the robust connection point of the clevis to its driving rod.

Material Science: Forged Steel for Superior Performance

The selection of forged steel as the primary material for the clevis rod end is a deliberate engineering choice driven by the need for exceptional strength, durability, and resistance to fatigue. Forging is a manufacturing process that involves shaping metal through localized compressive forces, typically using hammers or dies. Unlike casting or machining from bar stock, forging imparts a directional grain flow that conforms to the shape of the component. This optimized grain structure significantly enhances the material's mechanical properties, including tensile strength, yield strength, impact resistance, and fatigue life. The dense, non-porous microstructure achieved through forging virtually eliminates internal voids, shrinkage, and porosity often found in cast components, thereby ensuring consistent material integrity throughout the clevis. This inherent robustness makes forged steel clevises ideal for applications subject to high dynamic loads, shock, and vibration, where component failure could lead to significant operational downtime or safety hazards. The material's ability to withstand repeated stress cycles without material degradation is paramount for long-term reliability in demanding mechanical linkages.

The Integrated Clevis Pin: A Critical Shear Element

Central to the B27083A14Z kit's functionality is the inclusion of a specifically designed 5/16 inch clevis pin. This pin serves as the primary pivot axis, bearing the shear forces transmitted across the linkage. With a "Clevis Pin Diameter" of 0.313 inches, it is engineered for a precise, yet free-moving fit within the clevis arm holes. The "Overall Pin Length" is 1.063 inches, and the "Bottom of Clevis Pin Head to Bottom of Pin (Maximum Usable Length)" is 0.969 inches, providing ample engagement and secure retention. The "Clevis Pin Head Diameter" of 0.438 inches ensures a positive seating surface against one clevis arm, preventing axial movement in one direction. A "Clevis Pin Head Bevel Length" of 0.094 inches, along with a "Chamfer Angle" of 15 degrees and "Chamfer Length" of 0.078 inches, are indicative of design considerations for ease of insertion, minimizing sharp edges, and reducing stress concentrations. The critical feature for retention is a transverse hole drilled through the pin, indicated by "Clevis Pin Hole Drill Number 38", which corresponds to a drill diameter of approximately 0.1015 inches (2.58mm). The "Clevis Pin Hole Dia. (in.)" value of 0.594 inches is interpreted as the distance from the underside of the pin head to the center of this cotter pin hole, ensuring it is positioned correctly for secure cotter pin insertion across the mating component and clevis arms. The clevis pin's material is chosen to complement the forged steel clevis, typically being a hardened steel alloy capable of enduring significant shear and bending stresses without deformation or failure, thereby maintaining the structural integrity of the pivot point.

The Role of the Cotter Pin in Securing the Assembly

The kit is completed with a cotter pin, a deceptively simple yet critically important fastening element. Its primary function is to prevent the clevis pin from inadvertently disengaging from the clevis and the attached component. Once the clevis pin is inserted through the clevis arms and the mating part, the cotter pin is passed through the pre-drilled hole in the clevis pin. Its legs are then bent or spread apart, creating a positive lock that resists axial withdrawal. This mechanical interlock is essential in applications where vibration, dynamic loading, or rotational forces could otherwise cause the clevis pin to migrate out of position. Cotter pins are typically manufactured from low carbon steel for ductility, allowing them to be bent without fracturing during installation, and are often zinc-plated, aligning with the corrosion resistance of the overall kit. The proper installation of the cotter pin, by ensuring its legs are adequately spread, is a fundamental aspect of maintaining the safety and reliability of the entire linkage system.

Advanced Corrosion Protection: Zinc Plating

The B27083A14Z kit features a high-quality zinc-plated finish on all components, providing a robust layer of protection against environmental degradation. Zinc plating is an electrodeposition process where a thin layer of metallic zinc is applied to the surface of the steel components. This coating serves two primary functions: acting as a barrier and providing sacrificial galvanic protection. As a barrier, the zinc layer physically separates the base steel from corrosive elements such as moisture, oxygen, and various chemicals. More significantly, zinc functions as a sacrificial anode. If the coating is scratched or compromised, exposing the underlying steel, the zinc preferentially corrodes, protecting the steel from rust. This electrochemical protection mechanism is highly effective in prolonging the service life of the components, especially in outdoor or moderately corrosive environments. The "Color" specified as Zinc and "Finish" as Zinc Plated indicate a uniform, aesthetically pleasing, and functionally superior coating. Modern zinc plating often incorporates chromate passivation treatments, which further enhance the corrosion resistance and can impart different aesthetic finishes (e.g., clear, yellow, black chromate). This ensures the assembly maintains its structural integrity and functional appearance even after prolonged exposure to challenging conditions, reducing maintenance requirements and extending the operational lifespan of the entire system.

Application Engineering and Selection Criteria

When integrating the B27083A14Z clevis kit into an engineering design, several critical factors must be considered to ensure optimal performance and safety. Load analysis is paramount, encompassing tensile and compressive forces transmitted through the rod, as well as shear and bearing stresses on the clevis pin. Engineers must account for both static and dynamic loading conditions, with particular attention to fatigue analysis for applications involving repetitive stress cycles. The 5/16-inch pin diameter dictates the maximum shear capacity, which must exceed the expected operational loads by an appropriate safety factor. Bearing stress between the clevis pin and the clevis arms, as well as between the pin and the mating component, should be evaluated to prevent localized deformation or wear. Environmental factors such as operating temperature range, exposure to moisture, chemicals, or abrasive particles, and vibration levels must also be assessed. The zinc plating provides broad corrosion resistance but specific chemical environments may necessitate further material or coating considerations. Dimensional compatibility is another key aspect; the 1/4-28 thread size must match the connecting rod, and the "Inner Arm to Arm" dimension must accommodate the thickness of the mating component with appropriate clearance to allow for free pivot without excessive slop. Proper maintenance and inspection protocols, including periodic checks for wear, deformation, and corrosion, are vital for extending the lifespan and ensuring the continued reliability of the clevis assembly in any application.

Manufacturing Excellence: The Forging Advantage

The production of the clevis rod end through a forging process, rather than alternative methods like casting or machining from plate, offers distinct advantages that contribute significantly to the product's performance profile. Forging is celebrated for its ability to create components with superior mechanical properties by refining the grain structure of the metal. During the forging process, the metal's internal grain structure is aligned with the direction of the principal stresses the part will experience in service. This results in parts with enhanced strength, toughness, and resistance to fatigue and impact. Unlike casting, which can leave internal voids and inconsistencies, forging ensures a dense, uniform material free from porosity, contributing to predictable and reliable performance under load. Furthermore, the forging process typically reduces the need for extensive machining, leading to less material waste and often a stronger component due to work hardening. Strict quality control procedures, including material certification, dimensional verification, and non-destructive testing, are applied during the manufacturing of these forged steel components to ensure they meet the stringent performance requirements expected in demanding industrial environments.

Versatility Across Industries

The B27083A14Z Clevis Kit's robust design, high-strength forged steel construction, and corrosion-resistant zinc plating render it exceptionally versatile for a multitude of industrial sectors. In agricultural machinery, it provides reliable linkages for tractor implements, hydraulic cylinder connections, and steering mechanisms, enduring the harsh outdoor conditions and heavy loads common in farming operations. Construction equipment benefits from its durability in connecting hydraulic cylinders for excavators, loaders, and cranes, where consistent performance under extreme forces and environmental exposure is critical. Within industrial automation, these clevises are indispensable for connecting pneumatic and hydraulic cylinders to machinery components, forming precise and durable pivot points in automated assembly lines, material handling systems, and robotics. Automotive applications may include linkages for auxiliary systems, non-critical suspension components, or custom fabrication projects, leveraging its strength and compact design. While zinc plating offers good marine resistance for freshwater applications or sheltered saltwater environments, specific marine-grade coatings or stainless steel variants would be recommended for continuous saltwater immersion. Its standard design and robust construction also make it a go-to component for general mechanical engineering, prototyping, and heavy-duty repair and maintenance tasks across various commercial and utility vehicle applications.

Installation Best Practices and Maintenance

Proper installation and regular maintenance are crucial for maximizing the lifespan and operational reliability of the B27083A14Z Clevis Kit. When attaching the clevis rod end to a threaded rod, ensure adequate thread engagement to distribute loads effectively and prevent premature failure. The 1/4-28 thread size requires specific torque specifications; consult relevant engineering standards or manufacturer guidelines to prevent under-tightening, which can lead to loosening under vibration, or over-tightening, which can damage threads or induce unwanted stresses. During clevis pin insertion, ensure the pin passes smoothly through all mating components without undue force, indicating proper alignment and dimensional compatibility. The cotter pin must be securely inserted through the clevis pin's designated hole, and its legs bent outwards in opposite directions to create a positive, irreversible lock. Failure to properly spread the cotter pin legs can result in pin disengagement and potential catastrophic failure of the linkage. Regular visual inspections are recommended to check for signs of wear, deformation, corrosion, or loosening of components. Any observable damage, excessive play in the pivot, or compromised plating warrants immediate investigation and potential replacement to prevent operational failures and maintain system integrity.

Conclusion

The B27083A14Z 5/16 Inch Clevis with Pin and Cotter Pin Kit exemplifies a robust and technically sound solution for critical pivot point linkages. Its construction from forged steel ensures superior strength and fatigue resistance, while the zinc-plated finish provides essential corrosion protection, extending operational life in challenging environments. The comprehensive kit, including the precisely dimensioned clevis rod end, clevis pin, and cotter pin, offers a reliable and readily deployable assembly, simplifying procurement and installation for engineers and technicians. This product is a testament to meticulous design and material selection, engineered to deliver consistent performance and durability across a broad spectrum of industrial, agricultural, and mobile equipment applications, affirming its value as a foundational component in mechanical systems requiring dependable and long-lasting articulation.
