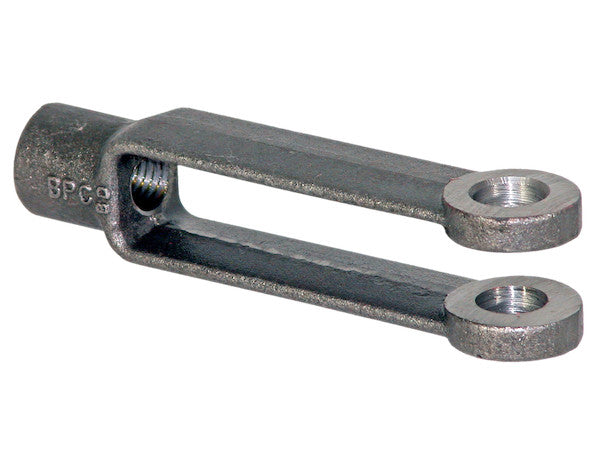

B27084A - Adjustable Yoke End 3/8-24 NF Thread And 3/8 Inch Diameter Thru-Hole

Adjustable Yoke Ends from Buyers Products are machine forged and meet SAE standards. Custom sizes and finishes are available.

Specifications

Advanced Technical Overview: Adjustable Yoke End 3/8-24 NF Thread And 3/8 Inch Diameter Thru-Hole

The Adjustable Yoke End, featuring a 3/8-24 NF thread and a 3/8-inch diameter thru-hole, is a critical component in mechanical linkage systems demanding precision, robust performance, and reliable adjustability. Engineered by Buyers Products, this component is machine forged from high-grade steel, ensuring exceptional strength, durability, and compliance with stringent SAE standards. This detailed description explores the technical specifications, inherent advantages, and diverse applications, providing a comprehensive understanding for engineers, designers, and procurement specialists. Its adjustability, combined with precision threading and bore, positions this yoke end as indispensable in demanding industrial, agricultural, and automotive environments.

Detailed Explanation of Core Features

Adjustable Mechanism

The "Adjustable Yoke End" provides crucial linkage length modification. Its threaded shank mates with a corresponding female thread, allowing precise rotation to fine-tune overall linkage length. This feature is paramount for exact alignment, tensioning, or stroke calibration in throttle controls, braking systems, and steering mechanisms, compensating for manufacturing tolerances or wear. Post-installation adjustment significantly reduces assembly time and simplifies maintenance, optimizing system performance.

Thread Specification (3/8-24 NF)

The 3/8-24 NF thread designation specifies a nominal major diameter of 3/8-inch and 24 threads per inch (TPI) from the National Fine (NF) series. NF threads offer superior strength, enhanced resistance to vibration loosening, and finer adjustment compared to National Coarse (NC) series. Increased thread engagement distributes load over a greater area, strengthening the joint and reducing stripping risk under high tensile loads. The finer pitch provides greater mechanical advantage for higher clamping forces. In dynamic or vibratory applications, the shallower helix angle resists backing out, maintaining joint integrity. This widely recognized standard ensures broad compatibility.

Thru-Hole Specification (3/8 Inch Diameter)

The precise 0.375-inch (3/8-inch) diameter thru-hole accommodates a clevis pin, bolt, or similar fastener. This hole forms the pivotal connection point, enabling rotational movement or articulation. Accurate bore machining minimizes play and ensures smooth, efficient operation, providing a snug fit with standard 3/8-inch hardware. This prevents undesirable lateral movement and concentrates forces effectively. Its common diameter ensures interchangeability. Forged steel construction provides necessary strength around the hole to withstand shear and bearing stresses.

Manufacturing Excellence: Forged Steel and SAE Standards

Forging Process

Machine forging, the manufacturing process for this yoke end, shapes metal using localized compressive forces. Unlike casting or machining from bar stock, forging refines and aligns the metal's grain structure, creating a continuous flow that enhances strength, toughness, and fatigue resistance. Forged components exhibit higher tensile, impact, and shear strength. The absence of internal voids, porosity, and inclusions, common in casting, contributes to superior structural integrity. This ensures the Adjustable Yoke End withstands higher operational loads and rigorous conditions without fracture or deformation, extending service life in demanding applications.

SAE Compliance

Adherence to SAE (Society of Automotive Engineers) standards signifies engineering excellence and quality. SAE standards are globally recognized benchmarks for materials, dimensions, testing, and performance. For this yoke end, meeting SAE standards confirms design, manufacturing, and testing meet or exceed established industry specifications for strength, material composition, dimensional accuracy, and reliability. This assures consistent quality, interchangeability, and proven performance, providing confidence in the component's expected function.

Dimensional Analysis and Functional Implications

Each dimension in the specifications table is crucial for integration and performance.

Thread Size (3/8-24)

Defines threading parameters, directly impacting connection strength and adjustability, ensuring compatibility with mating threaded rods.

Material (Forged Steel)

A deliberate engineering choice for superior mechanical properties. Steel's balance of strength, ductility, and hardness is maximized by forging, creating uniform grain flow, enhancing resistance to impact, fatigue, and wear under dynamic loads.

Neck Length (0.438")

This 0.438-inch unthreaded portion immediately preceding the yoke arms provides clearance for wrenching or acts as a stop. It contributes to structural stability before the yoke arms.

Center Hole to Neck (1.625")

At 1.625 inches, this critical dimension measures from the clevis pin hole center to the threaded neck's start. It's fundamental for determining the yoke end's working length and overall linkage assembly calculation, ensuring proper alignment, clearance, and operational stroke.

Neck Dia. (0.625")

The 0.625-inch diameter of the unthreaded shank ensures strength and compatibility. A robust neck diameter ensures the transition from thread to yoke arms withstands bending moments and shear stresses.

Height of Yoke Arm (0.625")

Each 0.625-inch arm height dictates vertical extent, influencing rigidity and force distribution. Taller arms offer greater resistance to bending and buckling in high-load applications and affect clearance.

Base to Hole Center (2.500")

This 2.500-inch measurement from the threaded section end to the thru-hole center offers another vital length reference for design and assembly. It helps calculate component position based on threaded rod engagement depth.

Clevis Pin Incl. (No)

Explicitly stating no clevis pin is included informs purchasers to source it separately, allowing selection of appropriate material, finish, and locking mechanism tailored to their application.

Type (Standard)

Indicates adherence to common industry design conventions and dimensions, implying broad applicability and easy integration without custom interfaces, simplifying design and procurement.

Width (0.875")

The overall 0.875-inch width is critical for spatial clearances in crowded mechanical assemblies, ensuring fit and full range of motion.

Hole Dia. (0.375")

The precise 0.375-inch (3/8") hole diameter is crucial for secure, low-play pivotal connection with standard clevis pins or bolts.

Inner Arm to Arm (0.438")

This 0.438-inch internal clearance between yoke arms accommodates the thickness of mating components (e.g., lever, bracket). Precise inner arm distance minimizes lateral play and ensures proper alignment, preventing undue stress.

Finish (Plain)

A "plain" finish means the forged steel is supplied without surface coatings. While post-processing for corrosion resistance may be needed, it ensures critical dimensions remain within tight tolerances. It also allows flexibility for further machining, welding, or custom finishing treatments.

Material and Finish Nuances

Forged steel provides exceptional mechanical strength, boasting high yield strength for stress resistance without permanent deformation, and high ultimate tensile strength for substantial pulling forces before fracturing. Its inherent toughness resists impacts and vibrations. The plain finish, while versatile, requires end-users to consider the operational environment. In corrosive or outdoor applications, plain steel will oxidize, necessitating additional protective coatings (zinc plating, powder coating, hot-dip galvanization) for long-term corrosion resistance and extended service life. The plain condition supports these custom finish applications.

Applications and Industries

This robust, adjustable yoke end serves diverse demanding applications across numerous industries:

• Agricultural Machinery: Essential for control linkages in tractors, harvesters, and plows, ensuring precise tool adjustment and durable connections in harsh conditions (e.g., depth control, throttle, three-point hitch).
• Industrial Equipment: Used in heavy machinery, conveyor systems, automation, and production lines for motion control, sensing, and positioning. High load capacity and fine adjustment are critical for efficiency and precision (e.g., valve actuators, robotic arms).
• Construction Equipment: Integral to excavators, bulldozers, and cranes for hydraulic cylinder linkages, steering, and control rods. Forged steel provides resilience against extreme forces and abrasive environments.
• Automotive and Transportation: Found in custom builds, off-road vehicles, and specialized transport for braking, steering, or suspension systems.
• Marine Applications: With appropriate coatings, applicable in boat steering, engine controls, and other marine mechanical systems (non-direct saltwater).
• Material Handling: Employed in forklifts and stackers for precise, safe lifting and moving mechanisms.
• General Mechanical Linkages: Suitable for any robust, adjustable, clevis-style connection for push-pull rods, tensioning devices, or articulation points.

Advantages and Benefits for the User

• Precision Adjustability: Threaded design allows fine-tuning for accurate system calibration and wear compensation.
• Exceptional Durability: Machine forged from high-grade steel, offering superior strength, fatigue resistance, and impact toughness.
• SAE Standard Compliance: Guarantees adherence to recognized industry benchmarks for quality and performance.
• Versatile Compatibility: Common 3/8-24 NF thread and 3/8-inch thru-hole ensure broad compatibility.
• Optimized Performance: Precision machining and robust material reduce play and enhance load distribution for reliable operation.
• Cost-Effectiveness: Longevity and robust design minimize replacements and maintenance, offering long-term value.
• Flexibility for Customization: Plain finish and custom size availability support tailored solutions.

Installation and Maintenance Considerations

Proper installation maximizes performance. The threaded shank must be fully and securely engaged, potentially with threadlocker. The clevis pin, through the 3/8-inch thru-hole, requires a suitable retaining mechanism (e.g., cotter pin) to prevent dislodgement. Regular inspection for wear, especially at the pin hole and threads, is recommended. For corrosive environments, a protective coating or regular lubrication is necessary for rust prevention and smooth operation. Any signs of cracking, excessive wear, or deformation necessitate immediate replacement.

Customization and Support

Buyers Products offers "Custom sizes and finishes" beyond standard lines. This includes variations in thread pitch/diameter, thru-hole sizes, neck lengths, or specific surface treatments like zinc plating, powder coating, or heat treatments. Clients with bespoke specifications are encouraged to contact Buyers Products' engineering team for customized solutions ensuring optimal performance and longevity.

Conclusion

The Adjustable Yoke End with a 3/8-24 NF thread and a 3/8-inch diameter thru-hole from Buyers Products exemplifies precision, durability, and versatility. Its machine-forged steel construction, SAE standard adherence, and meticulously defined dimensions make it ideal for critical mechanical linkages across demanding industries. From agricultural to heavy industrial equipment, its fine adjustment capabilities, robust load-bearing, and resistance to environmental stressors make it invaluable. Choosing this Adjustable Yoke End ensures long-term reliability and performance, backed by Buyers Products' engineering expertise.
