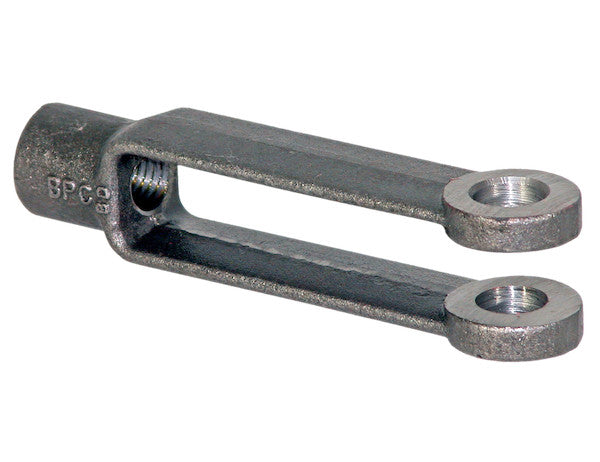

B27084A14Z - Adjustable Yoke End 1/4-28 NF Thread And 3/8 Inch Diameter Thru-Hole Zinc Plated

Adjustable Yoke Ends from Buyers Products are machine forged and meet SAE standards. Custom sizes and finishes are available.

Specifications

Center Hole to Neck (in.)	1.625 "
Inner Arm to Arm (in.)	0.438 "
Neck Dia. (in.)	0.625 "
Finish	Zinc Plated
Hole Dia. (in.)	0.375 "
Base to Hole Center (in.)	2.500 "
Clevis Pin Incl. (y/n)	No
Type	Standard
Height of Yoke Arm (in.)	.625
Material	Forged Steel
Neck Length (in.)	0.438 "
Width (in.)	0.875 "
Thread Size (in.)	1/4-28

Advanced Technical Overview: Precision Adjustable Yoke End for Critical Linkage Systems

The Adjustable Yoke End, featuring a 1/4-28 NF Thread and a 3/8 Inch Diameter Thru-Hole with a durable Zinc Plated finish, is a foundational component in mechanical engineering. Manufactured by Buyers Products, this component is engineered for robust and precise linkage applications, ensuring reliability and longevity across industrial and automotive environments. Its construction from machine-forged steel, coupled with adherence to stringent SAE standards, underscores its suitability for demanding operational conditions where safety, precision, and durability are paramount.

Thread Specification and Adjustable Functionality

The core of this component's adjustability lies in its precisely engineered 1/4-28 NF (National Fine) thread. This fine thread series offers distinct advantages: a higher thread count (28 threads per inch) provides finer incremental adjustments in linkage length, critical for precise alignment and optimal operational parameters. The increased contact surface area within the fine thread profile also contributes to higher tensile strength and improved load distribution, making it more resistant to shear forces and fatigue under dynamic loads compared to coarse threads. Engineers leverage this adjustability to compensate for manufacturing tolerances, system wear, or fine-tune linkage kinematics. The 1/4-inch nominal diameter ensures broad compatibility with mating threaded rods. The threaded neck, with a length of 0.438 inches and a nominal diameter of 0.625 inches before the thread, ensures robust connection and stable adjustment.

Thru-Hole Design for Articulation

The integral 3/8 inch (0.375") diameter thru-hole serves as the primary pivot point for connecting the yoke end to components like clevis pins, bolts, or shafts. This precisely machined hole ensures smooth, consistent articulation, minimizing friction and wear. Accurate hole diameter is crucial for limiting play and maintaining system responsiveness. The thru-hole design facilitates single or double shear connections, with load capacity determined by pin material, yoke arm shear strength, and application specifics. The inner arm-to-arm dimension of 0.438 inches accommodates specific mating components, preventing excessive lateral movement or binding. The yoke arm height of 0.625 inches directly contributes to the shear strength and bending resistance of the arms, ensuring structural integrity under operational stresses. The absence of an included clevis pin offers flexibility for designers to select a pin tailored to specific application requirements.

Forged Steel: Material Strength and Integrity

Forged steel is the material of choice for this adjustable yoke end due to its superior mechanical properties, essential for components under high stress and dynamic loads. The forging process refines the steel's grain structure, aligning it with the part's contour. This significantly enhances strength, toughness, and fatigue resistance by:

• Providing a superior strength-to-weight ratio.
• Improving fatigue resistance through mitigated stress concentration points.
• Increasing impact strength and resistance to sudden shock loads.
• Enhancing ductility, offering a safety margin against brittle failure.
• Ensuring consistency and reliability by eliminating internal porosity and defects.

These attributes make forged steel ideal for critical linkage components requiring long-term performance and minimizing premature failure.

Machine Forging for Precision Manufacturing

The "machine forged" designation signifies high precision and consistency in manufacturing. This method, utilizing automated equipment and specialized dies, yields:

• High dimensional accuracy and tight tolerances, crucial for interchangeability.
• Repeatable mechanical properties and dimensional conformity across batches.
• Optimized material utilization, minimizing waste.

This rigorous approach ensures each yoke end meets specified geometric and material standards, directly contributing to the reliability and performance of systems where they are integrated. The consistent base-to-hole center dimension of 2.500 inches, combined with a total width of 0.875 inches, exemplifies this precision.

Zinc Plating for Corrosion Protection

The Zinc Plated finish provides essential corrosion protection, extending the component's operational life. Zinc plating deposits a thin layer of zinc onto the steel, offering sacrificial protection: zinc corrodes preferentially, safeguarding the underlying steel even if the coating is scratched. Key benefits include:

• Effective corrosion resistance against rust and atmospheric conditions in moderate environments.
• Cost-effectiveness as a protective finish.
• Aesthetic appeal with a bright, clean appearance.
• Moderate abrasion resistance.

Engineers should assess environmental conditions, as highly aggressive environments may require supplementary or alternative coatings beyond standard zinc plating.

SAE Standards: A Commitment to Quality

Adherence to "SAE standards" signifies a robust commitment to quality, performance, and compatibility. SAE (Society of Automotive Engineers) standards establish benchmarks for materials, dimensions, testing, and performance for components across automotive, aerospace, and commercial vehicle industries. For a yoke end, SAE compliance typically covers:

• Dimensional tolerances for interchangeability.
• Material composition and mechanical properties.
• Performance testing to validate operational envelopes.
• Integrated quality control in manufacturing.

Specifying SAE-compliant components simplifies design, reduces failure risks, and ensures seamless integration into systems designed to similar industry benchmarks. This is critical in safety-sensitive applications where component failure has severe consequences.

Dimensional Specifications and Integration Impact

Each dimension of this Adjustable Yoke End is critical for precise mechanical design and successful system integration:

• Center Hole to Neck (1.625"): Fundamental for calculating effective adjustable rod assembly length, influencing leverage and kinematics.
• Inner Arm to Arm (0.438"): Defines maximum thickness of mating components, preventing binding or excessive lateral play.
• Neck Dia. (0.625"): Provides structural integrity to the shank, contributing to bending and shearing resistance.
• Hole Dia. (0.375"): Specifies clevis pin diameter, directly impacting load transfer and joint fit.
• Base to Hole Center (2.500"): Critical for installation clearances and component envelope within confined spaces.
• Height of Yoke Arm (0.625"): Directly relates to shear strength and bending resistance, impacting load capacity.
• Neck Length (0.438"): Provides a non-threaded shoulder for jam nut bearing, preventing thread damage and stress concentrations.
• Width (0.875"): Overall lateral dimension, crucial for clearance within operational space.

These precise specifications enable engineers to confidently integrate this yoke end, understanding its exact fit, function, and performance characteristics.

Versatile Applications Across Industries

The versatility and robustness of this adjustable yoke end make it indispensable across diverse industries:

• Automotive & Heavy Truck: Shifter linkages, throttle controls, clutch mechanisms, steering/suspension components.
• Agricultural Equipment: Tractor linkages, implement control arms, hydraulic cylinder connections.
• Construction Machinery: Excavator attachments, boom linkages, hydraulic controls.
• Industrial Machinery & Automation: Control linkages, conveyor systems, robotics, valve actuators.
• Marine Applications: Steering systems, engine controls, where corrosion resistance is critical.

Its adjustability accommodates assembly variations, facilitates calibration, and allows for field adjustments, making it adaptable to diverse engineering challenges.

Engineering Benefits and Strategic Value

Selecting this Adjustable Yoke End offers significant benefits for system performance and operational efficiency:

• Precision & Control: Fine 1/4-28 NF thread enables micro-adjustments for exacting alignment.
• Durability & Longevity: Machine-forged steel and zinc plating ensure extended service life under stress and in corrosive environments.
• Guaranteed Reliability: SAE standards and rigorous manufacturing ensure consistent, predictable performance.
• Seamless Integration: Standardized dimensions simplify design and assembly.
• Reduced Total Cost of Ownership: High quality and durability lead to fewer replacements and lower maintenance.
• Optimized Performance: Provides a stable, adjustable, robust connection, enhancing overall mechanical system efficiency.

This product is engineered to enhance the performance, reliability, and service life of any mechanical linkage system.

Advanced Integration Considerations

When incorporating this yoke end, engineers should consider:

• Load Path Analysis: Analyze axial, radial, and shear loads, ensuring clevis pin and yoke arm shear strength are adequate for dynamic conditions.
• Mating Components: Use a precisely matched 1/4-28 NF threaded rod with sufficient engagement; employ a jam nut to prevent loosening in vibrating environments.
• Environmental Resilience: Assess harsh environments for potential need of supplementary protection beyond zinc plating, inspecting for corrosion.
• Vibration Mitigation: Though fine threads resist loosening, use thread-locking compounds or robust locking mechanisms for severe vibration.
• Lubrication Strategy: Implement proper lubrication for the clevis pin joint to minimize friction, wear, and extend life.
• Assembly Torque: Strictly adhere to recommended torque for the threaded shaft and jam nut to prevent thread damage or premature loosening.
• Clearance & Articulation Angle: Ensure sufficient clearance for yoke arms and mating components throughout the full range of motion.

Addressing these factors maximizes performance and longevity for critical mechanical systems.

Buyers Products: Excellence and Custom Solutions

Buyers Products' Adjustable Yoke End exemplifies their commitment to engineering excellence. The "Custom sizes and finishes are available" note highlights their capability to meet unique project requirements. This flexibility allows for tailored solutions for non-standard dimensions, extreme environmental demands, or specific material needs. Collaborating with Buyers Products ensures even challenging design specifications are met with the same high level of quality, precision, and adherence to industry standards, reinforcing their position as a trusted partner for robust mechanical components.

Conclusion: A Foundation for Reliable Mechanical Systems

This Adjustable Yoke End from Buyers Products is a meticulously engineered component for reliable and precise mechanical linkages. Its machine-forged steel construction, protective zinc plating, and adherence to SAE standards ensure durability, fatigue resistance, and corrosion protection. The fine 1/4-28 NF thread provides crucial adjustability, while the precisely machined 3/8-inch thru-hole guarantees a smooth, secure pivot point. Ideal for demanding environments like heavy construction, industrial machinery, or agricultural equipment, it delivers consistent, reliable performance. This yoke end embodies robust construction, engineering precision, and strategic adjustability, making it an optimal choice for engineers seeking components that enhance efficiency, safety, and longevity in their mechanical designs. Selecting this Buyers Products yoke end is an investment in quality, precision, and enduring operational excellence.
