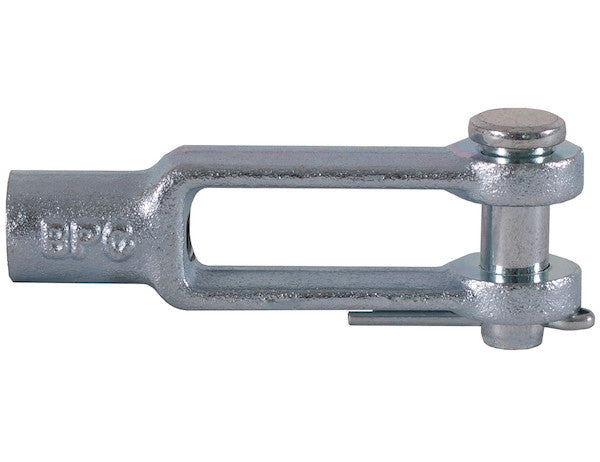

B27086A38ZKT - B27086A38ZY 1/2 Inch Clevis with Pin and Cotter Pin Kit-Zinc Plated

Buyers Products Clevis Rod End with Pin and Cotter Pin is used for pivot point linkages on air cylinders, shafts, rods, and other assemblies. The kit comes complete with a clevis pin and cotter pin for fast assembly. It is zinc-plated for corrosion resistance and comes in multiple sizes for a variety of applications.

Specifications

Technical Overview: B27086A38ZY 1/2 Inch Clevis with Pin and Cotter Pin Kit-Zinc Plated

The B27086A38ZY Clevis with Pin and Cotter Pin Kit represents a meticulously engineered solution for establishing robust and reliable pivot point linkages across a diverse spectrum of mechanical and structural applications. Designed for optimal performance in demanding environments, this kit integrates precision manufacturing with high-grade materials and a protective zinc plating to ensure longevity, operational efficiency, and resistance to environmental degradation. Its primary function is to facilitate the transfer of linear or rotational motion between interconnected components, serving as a critical juncture in the kinematic chain of various assemblies, including air cylinders, hydraulic shafts, control rods, and general mechanical apparatuses.

Component Analysis and Engineering Principles

The Forged Steel Clevis Body

At the core of this assembly is the clevis body, a robust, U-shaped component expertly manufactured from forged steel. Forging is a manufacturing process that involves shaping metal using localized compressive forces, typically applied by hammers or dies. This process is chosen for critical components due to its ability to enhance the material's strength, toughness, and ductility by refining the grain structure and eliminating internal voids or porosity often found in cast or machined components. The resulting forged steel exhibits superior fatigue strength and impact resistance, making it ideally suited for applications where dynamic loads and cyclic stresses are prevalent.

The clevis body features two parallel arms, or "yokes," which are designed to encapsulate the eye of an opposing rod or component, thus forming a secure pivot point when integrated with the clevis pin. The intricate geometry of the clevis body is defined by several critical dimensions, each contributing to its structural integrity and functional compatibility. The "Inner Arm to Arm" dimension of 0.563 inches dictates the maximum width of the component it can accommodate. The "Height of Yoke Arm" at 0.813 inches ensures sufficient material thickness to withstand the shear forces exerted by the clevis pin, as well as the tensile or compressive loads transmitted through the linkage. The central "Hole Dia." of 0.500 inches is precisely bored to receive the corresponding 0.500-inch clevis pin, ensuring a controlled fit that minimizes play while allowing for free rotational movement. The "Base to Hole Center" dimension of 3.000 inches and "Center Hole to Neck" of 1.875 inches are critical for accurate design integration, dictating the overall length and positioning relative to the threaded neck. The "Neck Dia." of 0.813 inches and "Neck Length" of 1.125 inches provide a strong attachment point, further reinforced by a 3/8-24 thread size, allowing for secure fastening to a variety of rods or shafts. Chamfer angles of 15 degrees and a chamfer length of 0.109 inches at critical edges are incorporated not only for aesthetic finish but also to prevent stress concentrations and facilitate assembly.

The Precision-Machined Clevis Pin

The clevis pin, with its precisely machined 0.500-inch diameter, is the linchpin of the clevis assembly, literally and figuratively. It serves as the primary load-bearing element that withstands shear forces and facilitates the pivotal action. Manufactured from high-strength steel, the pin is engineered to resist deformation under significant operational stresses. The "Overall Pin Length" of 1.540 inches and a "Bottom of Clevis Pin Head to Bottom of Pin (Maximum Usable Length)" of 1.359 inches ensure adequate engagement through the clevis arms and the linked component, while providing sufficient protrusion for the cotter pin. The "Clevis Pin Head Diameter" of 0.625 inches and "Head Bevel Length" of 0.156 inches provide a secure stop against one clevis arm, preventing the pin from sliding out prematurely. A crucial feature for secure retention is the "Clevis Pin Hole Dia." of 0.938 inches, prepared with a "Clevis Pin Hole Drill Number" of 29, which is designed to accommodate the cotter pin. The precise concentricity and surface finish of the pin are paramount for minimizing friction during articulation and distributing loads evenly across the contact surfaces, thereby prolonging the lifespan of the entire assembly.

The Essential Cotter Pin

The cotter pin, included as an integral part of this kit, provides a simple yet highly effective mechanism for securing the clevis pin within the assembly. Typically made from a ductile low-carbon steel, cotter pins function by being inserted through the designated hole in the clevis pin and then spreading their prongs to prevent accidental dislodgement. This ensures that the clevis pin remains in place, maintaining the integrity of the pivot point even under conditions of vibration, dynamic loading, or intermittent motion. The inclusion of the cotter pin in the kit underscores the commitment to providing a complete, ready-to-assemble solution that prioritizes safety and operational reliability.

Advanced Corrosion Protection: Zinc Plating

The B27086A38ZY Clevis Kit features a high-quality zinc-plated finish, a critical engineering decision that significantly enhances the product's durability and extends its service life. Zinc plating is an electrochemical process where a thin layer of zinc is deposited onto the surface of the steel components. This metallic coating serves as a sacrificial layer, providing galvanic corrosion protection. In the presence of an electrolyte (such as moisture), the zinc preferentially corrodes before the underlying steel, thereby protecting the base metal from rust and degradation. This protective mechanism is particularly vital for components exposed to outdoor elements, high humidity, or corrosive industrial environments.

Modern zinc plating typically utilizes trivalent chromium passivation to further improve the corrosion resistance, offering a superior protective barrier compared to older hexavalent chromium processes, while also adhering to stricter environmental regulations. The zinc coating not only guards against corrosion but also offers a measure of abrasion resistance and contributes to the aesthetic appeal of the component. The specified "Color: Zinc" and "Finish: Zinc Plated" guarantee a consistent and professional appearance, which can be important for overall equipment presentation. The robust corrosion resistance ensures that the mechanical integrity and functional performance of the clevis assembly are maintained over prolonged periods, reducing the need for frequent maintenance or premature replacement.

Mechanical Performance and Application Considerations

Load Bearing and Stress Distribution

The design of the B27086A38ZY clevis assembly is optimized for handling complex load conditions. The clevis pin is primarily subjected to shear stress, where the force is applied perpendicular to the pin's axis, attempting to cut it. The dual shear plane created by the two arms of the clevis significantly enhances the pin's load-carrying capacity compared to a single shear configuration. The clevis arms themselves, particularly the "Height of Yoke Arm," are engineered to resist bending moments and localized bearing stresses where they interface with the clevis pin. The forged steel construction ensures that both the clevis body and, implicitly, the high-strength steel pin can withstand these forces without yielding or fracturing under their specified load limits. Engineers must consider the ultimate tensile strength, yield strength, and shear strength of the materials when calculating the maximum permissible load for any specific application.

Fit, Tolerance, and Articulation

The precise dimensional control, especially between the 0.500-inch clevis pin diameter and the 0.500-inch hole diameter, is crucial. In practice, a slight clearance fit (e.g., a few thousandths of an inch) is typically engineered to allow for ease of assembly and free rotation without excessive play. This controlled clearance minimizes wear due to rubbing and ensures smooth articulation of the pivot point. Any deviation from these specified tolerances could lead to binding, accelerated wear, or, conversely, excessive looseness that compromises the structural integrity and precision of the linkage. The chamfers on the clevis body and the bevel on the pin head also play a role in guiding components into place during assembly and reducing potential stress concentration points.

Dynamic Applications and Fatigue Life

In applications involving repetitive motion or cyclic loading, the fatigue life of the clevis and pin becomes a critical design parameter. The use of forged steel for the clevis body and a high-grade steel for the pin provides superior resistance to fatigue crack initiation and propagation. The smooth, zinc-plated surfaces also contribute by reducing surface imperfections that could act as stress concentrators. Proper selection of this clevis kit for applications with known load cycles and amplitudes is essential to ensure long-term reliability and prevent catastrophic failure due to material fatigue.

Versatility Across Industries

The B27086A38ZY 1/2 Inch Clevis Kit's robust design and meticulous engineering make it an invaluable component across a broad spectrum of industrial and commercial sectors. Its fundamental role as a pivot point linkage means it finds application wherever controlled articulation or motion transfer is required. Common applications include:

• Hydraulic and Pneumatic Systems: Utilized as rod ends for cylinders, converting linear motion into pivotal movement for actuators in machinery such as presses, lifts, and automated manufacturing lines.
• Agricultural Equipment: Essential for connecting various implements, linkages, and control arms on tractors, plows, cultivators, and harvesting machinery, where durability and resistance to harsh outdoor conditions are paramount.
• Heavy-Duty Vehicle Applications: Employed in suspension linkages, steering mechanisms, and control rods for commercial trucks, construction equipment, and utility vehicles, ensuring reliable operation under severe stress and vibration.
• Industrial Automation and Robotics: Providing critical pivot points in robotic arms, conveyor systems, and material handling equipment, enabling precise and repeatable movements.
• Marine Environments: While zinc plating offers good protection, for direct exposure to saltwater, further protective measures or alternative materials might be considered, but for many on-deck or protected marine applications, its corrosion resistance is beneficial.
• General Mechanical Linkages: From gate hinges and brake linkages to custom machinery and structural assemblies, the clevis offers a straightforward and strong connection solution.

The availability of "multiple sizes" as mentioned in the initial description highlights the adaptability of this product family to various load requirements and dimensional constraints, with this specific B27086A38ZY model offering a 1/2-inch pin diameter for medium-duty applications requiring precise and strong connections.

Installation, Maintenance, and Quality Assurance

Installation of the B27086A38ZY Clevis Kit is designed for simplicity and efficiency. The clevis body, with its 3/8-24 threaded neck, can be securely attached to a compatible rod or shaft. The opposing component, typically an eye-end or similar feature, is then positioned between the clevis arms, aligning its bore with the 0.500-inch holes in the clevis. The clevis pin is inserted through these aligned holes, and finally, the cotter pin is installed through the clevis pin's designated hole and its prongs spread to ensure positive retention. Proper torque application for the threaded connection of the clevis neck is essential to prevent loosening under operational loads.

Regular maintenance involves periodic inspection of the clevis assembly for signs of wear, deformation, corrosion, or looseness. The zinc plating, while highly effective, should be visually checked for any breaches or significant degradation in particularly aggressive environments. The clevis pin and its associated bores should be examined for ovality or galling, which could indicate excessive wear or insufficient lubrication in high-cycle applications. The cotter pin should also be checked for bending or fracture. Prompt replacement of any compromised components is crucial to maintain the safety and integrity of the mechanical linkage.

The manufacturing process adheres to stringent quality assurance protocols, ensuring that each B27086A38ZY kit meets the specified dimensional tolerances and material properties. Compliance with relevant industry standards (e.g., ASME, ASTM) for materials, finishes, and dimensions is implicitly upheld, guaranteeing a product that performs reliably under its intended conditions. The robust construction and protective finish underscore a commitment to delivering components that offer exceptional operational life and dependable performance, thereby minimizing downtime and maximizing productivity for end-users.

Conclusion

The B27086A38ZY 1/2 Inch Clevis with Pin and Cotter Pin Kit is a testament to precision engineering and material science. Its forged steel construction, meticulously machined components, and advanced zinc plating converge to create a highly durable, corrosion-resistant, and reliable pivot point linkage solution. Designed to meet the rigorous demands of industrial, agricultural, and heavy-duty applications, this kit ensures secure and efficient transfer of motion, enhancing the functionality and longevity of the assemblies it serves. The comprehensive design, ease of assembly, and commitment to quality make it an indispensable component for engineers and technicians seeking robust mechanical connections.
