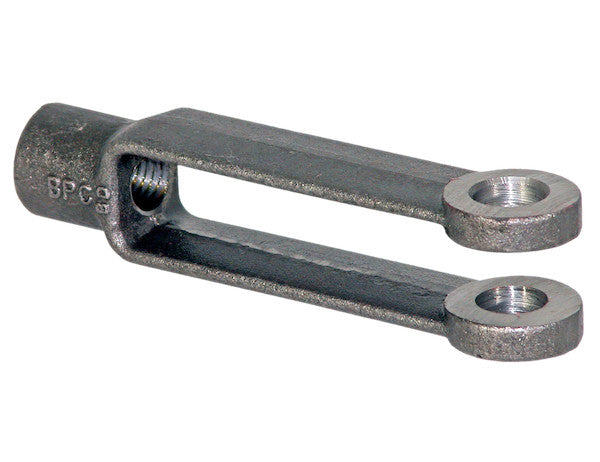

B27087ANFZ - Adjustable Yoke End 5/8-18 NF Thread And 5/8 Inch Diameter Thru-Hole Zinc Plated

Adjustable Yoke Ends from Buyers Products are machine forged and meet SAE standards. Custom sizes and finishes are available.

Specifications

The Adjustable Yoke End, featuring a 5/8-18 NF thread and a 5/8 inch diameter thru-hole with a zinc-plated finish, represents a critical component in mechanical linkage systems requiring precise adjustability and robust construction. Manufactured by Buyers Products, these yoke ends are engineered through a meticulous machine forging process, ensuring superior material integrity and dimensional accuracy. This method of production is paramount for components subjected to dynamic loads and repetitive stress cycles, guaranteeing an extended service life and consistent operational performance.

Adherence to SAE (Society of Automotive Engineers) standards is a cornerstone of this product's design and manufacturing philosophy. SAE standards are globally recognized benchmarks for quality, safety, and interchangeability in the automotive and related industries. By meeting these rigorous specifications, this Adjustable Yoke End assures compatibility with a vast array of existing systems and components, simplifying integration and reducing potential complications during assembly or maintenance. This commitment to standardization underscores Buyers Products' dedication to providing reliable and industry-compliant solutions.

Technical Overview and Design Principles

The core function of a yoke end, also commonly referred to as a clevis or rod end, is to provide a pivotal connection point within a mechanical linkage. It facilitates the transmission of linear or rotational motion while accommodating angular misalignment. This particular model, designated as an "Adjustable Yoke End," distinguishes itself through its threaded neck, allowing for precise length adjustment within a linkage system. This adjustability is crucial in applications where fine-tuning of component spacing, stroke length, or alignment is required to achieve optimal system performance.

The specified 5/8-18 NF thread refers to a 5/8-inch nominal diameter, 18 threads per inch, National Fine thread series. The NF thread series is characterized by a finer pitch compared to the National Coarse (NC) series, offering several distinct advantages. A finer pitch provides greater resistance to loosening under vibration, finer adjustment capabilities, and often higher shear strength due to a larger minor diameter for a given nominal size. This makes the 5/8-18 NF thread ideal for applications demanding secure fastening and precise linear positioning, such as in control linkages, hydraulic cylinder connections, and articulated joints in machinery.

The 5/8 inch (0.625") diameter thru-hole is designed to accommodate a corresponding clevis pin, bolt, or shaft. The precision of this bore diameter is critical for minimizing play and maximizing the efficiency of force transmission. Excessive clearance can lead to wear, noise, and reduced accuracy in the linkage, while insufficient clearance can impede assembly or cause binding. The specified tolerance for this thru-hole ensures a proper fit with standard 5/8-inch diameter pins, facilitating smooth articulation while maintaining structural integrity.

Material Science and Manufacturing Process

The material of choice for this Adjustable Yoke End is forged steel. Forging is a manufacturing process that involves shaping metal through localized compressive forces using hammers or dies. This process results in a material with a refined grain structure, which is significantly stronger and tougher than cast or machined components of the same material composition. The benefits of forged steel in this application are numerous:

• Enhanced Strength-to-Weight Ratio: Forged steel exhibits superior tensile strength, yield strength, and fatigue resistance, allowing for lighter designs that can withstand higher loads.
• Improved Ductility and Toughness: The forging process eliminates internal voids and porosity, enhancing the material's ability to deform plastically without fracturing, which is vital for components experiencing shock loads.
• Superior Fatigue Resistance: The aligned grain flow inherent in forged parts resists crack initiation and propagation, leading to a much longer fatigue life, especially under cyclic loading conditions.
• Cost-Effectiveness: While the initial tooling cost for forging can be higher, the reduced material waste, superior mechanical properties, and extended service life often result in a lower overall cost of ownership.

The machine forging process utilized by Buyers Products further refines these advantages. Machine forging ensures high precision and repeatability in the manufacturing process, resulting in consistent part geometry and mechanical properties across batches. This is critical for maintaining tight tolerances specified in the product's design, such as the inner arm to arm dimension of 0.688 inches and the center hole to neck distance of 3.688 inches, ensuring reliable performance and interchangeability.

Surface Treatment: Zinc Plating

The zinc-plated finish is a crucial aspect of this Adjustable Yoke End's long-term durability and performance, especially in environments prone to corrosion. Zinc plating is an electrochemical process where a thin layer of zinc is deposited onto the surface of the steel component. This coating serves as a sacrificial layer, protecting the underlying steel from oxidation and rust. When exposed to corrosive elements, the zinc corrodes preferentially, thereby preserving the integrity of the steel. Key benefits of zinc plating include:

• Corrosion Resistance: Provides excellent protection against rust in various atmospheric conditions, extending the component's lifespan and reducing maintenance requirements.
• Abrasion Resistance: While not as hard as some other coatings, zinc plating offers a degree of protection against minor abrasions.
• Aesthetic Appeal: The bright, silvery appearance of zinc plating provides a clean and professional look.
• Cost-Effective Protection: Zinc plating is a relatively economical method of corrosion protection, offering a good balance of performance and cost.

The suitability of zinc plating makes this yoke end ideal for outdoor applications, agricultural equipment, industrial machinery, and automotive systems where exposure to moisture, road salts, or other corrosive agents is a concern. The specified finish ensures that the component maintains its structural and aesthetic qualities over time, reducing the need for premature replacement.

Dimensional Specifications and Their Implications

The detailed specifications provided are not merely descriptive; they define the functional envelope and interchangeability of the Adjustable Yoke End. Each dimension plays a vital role in its application:

• Inner Arm to Arm (0.688"): This critical dimension dictates the maximum width of the component that can be accommodated between the yoke arms. It ensures proper fitment with associated components like clevis pins or connecting rods, preventing binding or excessive lateral movement.
• Thread Size (5/8-18 NF): As discussed, this specifies the threading for attachment to a rod or shaft, crucial for precise length adjustment and secure fastening.
• Hole Dia. (0.625"): The diameter of the thru-hole, precisely matching 5/8 inch, is essential for a snug fit with a corresponding clevis pin, minimizing play and optimizing load transfer.
• Material (Forged Steel): Confirms the robust construction and superior mechanical properties derived from the forging process.
• Center Hole to Neck (3.688"): This dimension defines the distance from the center of the clevis pinhole to the point where the threaded neck begins. It is crucial for calculating the effective length of the linkage and ensuring proper geometric alignment within the system.
• Neck Length (1.250"): The length of the threaded portion, providing the range of adjustment for the overall linkage length. A longer neck allows for greater adjustment capability.
• Height of Yoke Arm (1.063"): This measurement contributes to the overall strength and rigidity of the yoke arms, impacting their ability to withstand bending and shear stresses.
• Width (1.375"): The overall width of the yoke end, providing an indication of its footprint and space requirements within an assembly.
• Finish (Zinc Plated): Specifies the corrosion-resistant surface treatment.
• Base to Hole Center (4.938"): This dimension provides a reference from the end of the threaded neck to the center of the clevis pinhole, useful for overall length calculations and system design.
• Neck Dia. (1.063"): The diameter of the unthreaded portion of the neck, which contributes to the neck's bending strength and provides a robust transition to the threaded section.
• Type (Standard): Indicates that this is a commonly available configuration, simplifying selection and replacement.

Applications and Versatility

The inherent design features and robust construction of this Adjustable Yoke End make it suitable for a wide spectrum of applications across various industries:

• Automotive and Transportation: Used in steering linkages, throttle controls, brake systems, gear shift mechanisms, and various suspension components in trucks, trailers, and specialized vehicles. The adjustability allows for precise calibration and alignment.
• Agricultural Machinery: Critical in implements like cultivators, plows, and harvesters for connecting hydraulic cylinders, control rods, and pivot points. Its robust forged steel construction and zinc plating are essential for enduring harsh outdoor conditions.
• Industrial Equipment: Found in packaging machinery, conveying systems, material handling equipment, and robotics where reliable and adjustable mechanical linkages are required for motion control and precise positioning.
• Construction Equipment: Integral to the functionality of excavators, loaders, and cranes for connecting hydraulic cylinders, steering mechanisms, and control levers, where high strength and resistance to environmental factors are paramount.
• Marine Applications: While direct immersion is not recommended without additional sealing, the zinc plating provides a good degree of protection in humid or saltwater spray environments for components above the waterline, such as in steering and engine controls.
• General Engineering: Utilized in custom machinery builds, jig and fixture design, and prototyping where a strong, adjustable pivot point is needed.

Maintenance and Longevity

While designed for durability, proper installation and periodic inspection contribute significantly to the longevity and safe operation of the Adjustable Yoke End. Key considerations include:

• Correct Torque Application: When attaching the threaded neck to a corresponding rod, ensuring the correct torque specification is applied prevents both over-tightening (which can damage threads or deform components) and under-tightening (which can lead to loosening under vibration).
• Appropriate Pin Selection: The use of a clevis pin with the correct diameter (5/8 inch) and material strength is crucial. The pin should fit snugly within the thru-hole without excessive play. If a clevis pin is not included, careful selection is necessary.
• Lubrication: In applications with frequent articulation, applying appropriate grease or lubricant to the clevis pin and clevis hole can reduce friction, minimize wear, and extend service life, though this specific product does not explicitly state inclusion of lubrication points.
• Environmental Protection: While zinc plated, severe or prolonged exposure to highly corrosive agents might warrant additional protective measures or more frequent inspection.
• Regular Inspection: Periodic checks for wear, corrosion, thread damage, and structural integrity of the yoke arms are recommended, especially in high-stress or critical applications. Any signs of fatigue, cracking, or deformation should prompt immediate replacement.

Customization and Product Support

Buyers Products emphasizes the availability of custom sizes and finishes, highlighting their capability to meet specific project requirements beyond the standard offering. This flexibility is invaluable for OEMs (Original Equipment Manufacturers) and specialized applications where standard dimensions or finishes may not suffice. The ability to request custom solutions demonstrates a commitment to comprehensive customer support and engineering adaptability.

In summary, the Adjustable Yoke End with 5/8-18 NF Thread and 5/8 Inch Diameter Thru-Hole, Zinc Plated, from Buyers Products, is a meticulously engineered component. Its foundation in machine forged steel, adherence to SAE standards, precise dimensional specifications, and protective zinc plating ensure high performance, reliability, and longevity across a diverse range of demanding mechanical applications. Its adjustability provides a critical advantage for fine-tuning and optimizing linkage systems, making it an indispensable component for engineers and manufacturers seeking robust and adaptable connection solutions.
