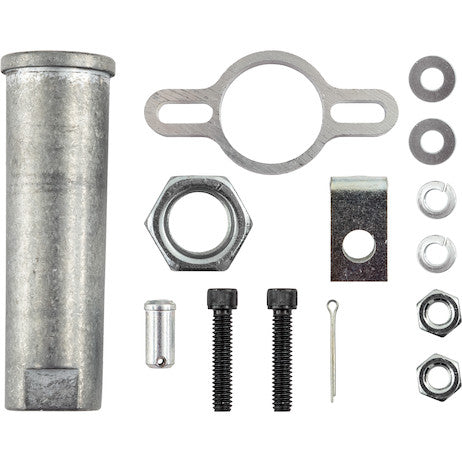

B303034 - Rex Roth 30-S2 MP18 Remote Valve Control Connection Kit

Buyers Products Remote Valve Cable Control Connection Kit connects a cable directly to the valve spool and is available for various makes of valves.

Specifications

Advanced Engineering for Precision Control: The Rexroth 30-S2 MP18 Remote Valve Control Connection Kit

The Rexroth 30-S2 MP18 Remote Valve Control Connection Kit, a specialized offering from Buyers Products, represents a critical interface component designed to bridge the gap between human operators and sophisticated hydraulic systems. In the realm of mobile and industrial hydraulics, the precise and reliable manipulation of valve spools is paramount for optimal machinery performance, operator safety, and operational efficiency. This kit is meticulously engineered to provide a robust, direct, and highly responsive connection from a remote cable control system to the valve spool of the renowned Rexroth 30-S2 MP18 hydraulic valve, ensuring seamless integration and superior operational characteristics.

Understanding the Rexroth 30-S2 MP18 Hydraulic Valve

At the heart of this connection kit's utility lies its dedicated compatibility with the Rexroth 30-S2 MP18 valve. Rexroth, a Bosch company, is a global leader in drive and control technologies, and their valves are synonymous with quality, durability, and high performance in demanding applications. The 30-S2 MP18 is typically a directional control valve, crucial for directing the flow of hydraulic fluid to various actuators within a system. These valves often feature multiple spools, each controlling a specific function (e.g., raising an arm, extending a cylinder, rotating a motor). The design of such valves prioritizes precise spool movement to achieve nuanced control over hydraulic functions, making the integrity of the mechanical connection from the control input to the spool absolutely vital.

The internal architecture of the 30-S2 MP18, like many high-performance hydraulic valves, relies on finely machined spools that slide within a valve body. The position of these spools dictates the path of hydraulic fluid, thereby controlling the speed, direction, and force of an attached actuator. Any play, friction, or inefficiency in the connection mechanism between the operator's input and the spool can lead to degraded control, delayed responses, and ultimately, compromise the overall performance and safety of the machinery. The Buyers Products connection kit is specifically tailored to counteract these potential issues by providing a direct, low-friction, and highly durable mechanical link.

The Imperative of Remote Valve Control in Modern Hydraulics

The demand for remote valve control has grown exponentially due to several critical factors:

1. Enhanced Operator Safety: Moving operators away from hazardous areas, such as directly adjacent to heavy machinery or high-pressure hydraulic lines, significantly reduces the risk of injury.
2. Improved Ergonomics and Comfort: Remote controls, often located in ergonomically designed cabins or control stations, reduce operator fatigue and stress, leading to higher productivity over extended shifts.
3. Increased Precision and Responsiveness: Modern cable control systems, when properly integrated, can offer a tactile and immediate connection to the valve, allowing operators to achieve fine motor control over complex tasks.
4. Flexibility in System Design: Remote control allows for greater freedom in machine layout, enabling hydraulic components to be placed in optimal positions for performance and maintenance, regardless of operator station proximity.
5. Environmental Adaptability: Operators can work from climate-controlled environments, protecting them from extreme weather, dust, noise, and vibration.

For these reasons, the engineering of the connection kit must not merely facilitate a link but ensure that this link preserves the inherent precision and responsiveness of both the control input and the hydraulic valve itself.

Anatomy of the Rexroth 30-S2 MP18 Remote Valve Control Connection Kit

The Buyers Products connection kit is not just a collection of parts; it is a precisely engineered system designed for specific functionality and longevity. Key components include:

1. The Control Cable

The core of any remote mechanical control system is the cable. This kit utilizes high-performance push-pull control cables, which are distinct from simple wire ropes. These cables are designed to transmit both tensile (pull) and compressive (push) forces efficiently over long distances with minimal friction and backlash. A typical high-quality control cable consists of:

• Inner Member (Core): Often made from high-strength stainless steel wires, precisely wound to resist stretch and compression. The core is often coated with a low-friction polymer (e.g., PTFE or similar synthetic material) to ensure smooth movement within the conduit.
• Outer Member (Conduit/Casing): This acts as a guide and protective sheath for the inner member. It typically comprises a spirally wound flat or round wire, providing crush resistance and flexibility. This is often encased in a robust, weather-resistant polymer jacket (e.g., polyethylene, PVC, or a specialized blend) that protects against abrasion, chemical exposure, UV radiation, and moisture ingress.
• End Fittings: Permanently attached to both ends of the cable, these fittings are engineered to interface securely with the controller and the valve spool. Their design is critical for transmitting forces accurately and absorbing potential misalignment without binding.

The selection of materials and construction methods for the cable is paramount to its performance. Stainless steel for the inner core provides corrosion resistance, crucial in outdoor and harsh industrial environments, while specialized polymer jackets ensure durability and maintain flexibility across a wide range of operating temperatures, typically from -40°C to +80°C or even higher for specialized applications. The minimal bend radius specifications of the cable are also important to ensure proper routing without causing undue friction or wear, which can lead to premature failure or increased operator effort.

2. Spool Connection Mechanism

This is the most critical interface on the valve side. The kit provides a robust, precision-machined linkage designed to directly engage with the specific geometry of the Rexroth 30-S2 MP18 valve spool. This mechanism typically features:

• Direct Coupling: A clevis, ball joint, or threaded rod interface that attaches securely to the valve spool's actuator pin or threaded bore. The design ensures a snug fit, minimizing play and maximizing force transfer efficiency.
• Material Strength: Components are typically constructed from high-strength steel alloys, often zinc-plated or similarly surface-treated for corrosion resistance. These materials are selected to withstand the continuous push-pull forces and potential side loads without deforming or fracturing.
• Adjustability: Often incorporates threaded sections or adjustable clevis designs to allow for precise setting of the neutral position of the spool relative to the control lever, compensating for manufacturing tolerances and ensuring optimal control resolution.
• Wear Resistance: Points of articulation are designed for long life, potentially incorporating self-lubricating bushings or hardened surfaces to minimize wear even under continuous cyclic operation.

The direct connection to the valve spool is a significant advantage. Unlike indirect actuation methods that might involve additional linkages or hydraulic pilots, a direct mechanical link provides immediate feedback and a more deterministic response, which is crucial for applications requiring high precision.

3. Controller Connection Interface

The kit is explicitly designed for compatibility with the B206 Series controllers. This implies a standardized and secure method for attaching the control cable to the controller's output lever or mechanism. The B206 Series controllers are known for their robust construction and ergonomic design, often featuring:

• Ergonomic Levers/Handles: Designed for comfortable and intuitive operation, minimizing operator fatigue.
• Robust Construction: Built to withstand demanding operational environments, including exposure to dust, moisture, and vibration.
• Precise Actuation: Engineered to provide smooth and consistent output motion, complementing the high-quality control cable.

The connection kit's interface to the B206 controller is typically a secure, quick-connect or bolt-on fitting that ensures a stable mechanical link, preventing accidental detachment and maintaining the integrity of the control input.

4. Mounting Hardware and Brackets

To ensure proper alignment and stable operation, the kit includes specialized mounting hardware. This may consist of:

• Cable Support Brackets: Designed to securely fasten the control cable conduit near the valve, preventing unwanted movement or stress on the spool connection. These are often made from heavy-gauge steel, offering rigidity and vibration resistance.
• Grommets and Seals: To protect cable entry points from dirt, moisture, and abrasive edges, enhancing cable longevity.
• Fasteners: High-grade bolts, nuts, and washers, often self-locking, to ensure that all components remain securely attached even under severe vibration or dynamic loads inherent in mobile equipment.

Proper mounting is crucial. Any slack or excessive movement in the cable or its conduit can translate into lost motion, hysteresis, and imprecise control at the valve spool.

Technical Specifications and Performance Considerations

While specific numerical values would depend on exact cable length and configuration, the design principles of this kit target several critical performance metrics:

• Force Transmission Efficiency: High efficiency means minimal operator effort is required to move the valve spool, even against significant hydraulic pressures. This is achieved through low-friction cable design and precise, anti-backlash end fittings.
• Minimal Hysteresis (Lost Motion): The difference in spool position when moving from one direction compared to returning from the opposite direction. The kit is engineered to minimize hysteresis through tight tolerances, robust connections, and high-quality cable construction, leading to superior control accuracy.
• Durability and Lifespan: Components are selected for their ability to withstand millions of cycles of operation. Materials are resistant to wear, fatigue, corrosion, and environmental degradation, ensuring a long operational life in harsh conditions.
• Temperature Range: Designed to operate reliably across a broad temperature spectrum, typical of heavy machinery and industrial environments (-40°C to +80°C is common, with some materials extending this further).
• Vibration and Shock Resistance: All connections and mounting points are engineered to maintain integrity under the constant vibration and occasional shock loads experienced by mobile hydraulic equipment.
• Ease of Installation and Adjustment: While a professional installation is recommended, the kit is designed for straightforward assembly and fine-tuning, reducing downtime and labor costs.

Installation Best Practices and Maintenance

To maximize the performance and longevity of the Rexroth 30-S2 MP18 Remote Valve Control Connection Kit, adherence to best practices during installation and ongoing maintenance is essential:

Installation:

1. Routing: The control cable should be routed with the largest possible bend radii to minimize friction and prevent kinking. Avoid sharp bends, especially near end fittings. Ensure the cable is clear of moving parts, heat sources, and abrasive surfaces.
2. Secure Mounting: All brackets and clamps must be securely fastened to the machine's frame, ensuring the conduit is firmly held at strategic points to prevent whip and maintain stability.
3. Lubrication (if applicable): While many modern control cables are designed for maintenance-free operation due to internal low-friction liners, check manufacturer guidelines. If lubrication is recommended, use specified lubricants.
4. Adjustment: Carefully follow instructions for adjusting the cable length and end fittings to achieve the correct neutral position for the valve spool and the desired stroke for full actuation in both directions. Ensure there is no binding throughout the entire range of motion.
5. Testing: After installation, thoroughly test the control system through its full range of motion, checking for smooth operation, responsiveness, and proper return to neutral.

Maintenance:

1. Routine Inspection: Periodically inspect the entire cable assembly, including end fittings, mounting brackets, and the cable jacket, for signs of wear, fraying, corrosion, or damage.
2. Cleanliness: Keep the cable and its connections free from excessive dirt, mud, and debris, which can accelerate wear or impede smooth operation.
3. Lubrication: If the cable design permits or requires it, periodic lubrication of the inner core can extend life and maintain smooth operation.
4. Tightness Checks: Verify that all fasteners remain tight, especially those securing the end fittings and mounting brackets.

Applications Across Industries

The Rexroth 30-S2 MP18 Remote Valve Control Connection Kit finds its application across a broad spectrum of industries where robust and precise hydraulic control is essential:

• Construction Equipment: Excavators, backhoes, bulldozers, loaders, and cranes rely on precise hydraulic control for digging, lifting, and grading. This kit ensures operators can finely manipulate attachments from the safety of the cab.
• Agricultural Machinery: Tractors, harvesters, and specialized farm implements use hydraulic power for operating plows, cultivators, sprayers, and material handling attachments. Reliable remote control enhances productivity and reduces operator strain.
• Utility Vehicles: Cherry pickers, boom trucks, and refuse vehicles depend on accurate hydraulic control for positioning personnel, lifting materials, and operating compaction mechanisms.
• Material Handling: Forklifts, telehandlers, and conveyors equipped with hydraulic functions benefit from the precise and responsive control offered by such a kit, improving operational safety and efficiency.
• Specialized Industrial Machinery: Any custom-built industrial equipment requiring remote manipulation of hydraulic actuators can integrate this kit to provide a reliable control interface.

The Buyers Products Advantage: Engineered Compatibility and Reliability

Choosing the Buyers Products Remote Valve Control Connection Kit specifically for the Rexroth 30-S2 MP18 valve and B206 Series controllers offers distinct advantages:

• Guaranteed Compatibility: The kit is not a generic solution but engineered to perfectly match the Rexroth 30-S2 MP18 valve, ensuring optimal mechanical fit, stroke compatibility, and force transmission. This eliminates guesswork and potential installation issues.
• System Integration: By specifying compatibility with B206 Series controllers, Buyers Products ensures that the entire control path, from operator input to valve spool, functions as a cohesive, high-performance system.
• Durability and Longevity: Leveraging high-quality materials and manufacturing processes, the kit is built to withstand the rigorous demands of continuous industrial and mobile hydraulic operations.
• Reduced Downtime: A reliable connection kit minimizes the risk of control system failures, leading to fewer interruptions in operation and lower maintenance costs over the equipment's lifespan.
• Enhanced Performance: By providing a direct, low-friction, and precise link, the kit contributes significantly to the overall responsiveness and accuracy of the hydraulic system, directly translating to improved machine performance and operator productivity.

In conclusion, the Rexroth 30-S2 MP18 Remote Valve Control Connection Kit from Buyers Products is more than just an assembly of components; it is a meticulously designed engineering solution that elevates the functionality, safety, and longevity of hydraulic systems utilizing the specified Rexroth valve. Its robust construction, precise mechanical linkages, and dedicated compatibility make it an indispensable component for any application demanding reliable and accurate remote control over critical hydraulic functions.
