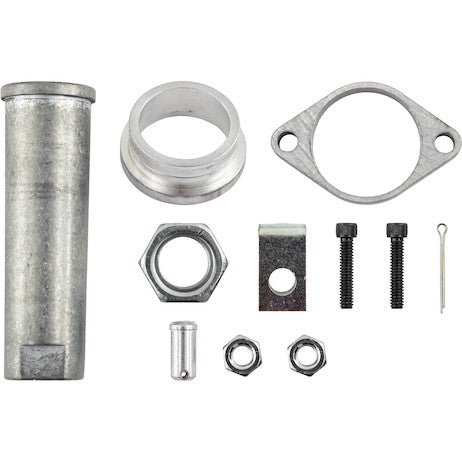

B303418F - Commercial A20 Front Entry Remote Valve Control Connection Kit

Precision Mechanical Control for Commercial A20 Front Entry Valves: An In-Depth Technical Overview

In the demanding world of hydraulic systems for commercial and industrial machinery, control mechanism precision, reliability, and durability are paramount. The Commercial A20 Front Entry Remote Valve Control Connection Kit offers a purpose-engineered solution for robust, accurate remote operation of Commercial A20 series hydraulic directional control valves, specifically those with a front-entry spool configuration. Meticulously crafted by Buyers Products, a leader in high-quality components for work trucks and hydraulic applications, this kit ensures seamless compatibility and optimal performance when paired with B206 Series controllers. For engineers, fleet managers, and technicians aiming to maximize operational efficiency, safety, and equipment longevity, understanding the technical aspects of this kit, its integration with the A20 valve, and its role in a hydraulic circuit is crucial. This description details the engineering principles, material science, functional advantages, and application considerations that define this critical component, underscoring its value in demanding commercial environments.

The Foundational Role of Remote Valve Control in Hydraulic Systems

Hydraulic systems power countless heavy-duty applications—construction, agriculture, refuse management, and material handling—enabling precise control of immense forces. Central to these systems are hydraulic directional control valves, governing fluid flow to actuators. Often, direct manual valve access is impractical, unsafe, or ergonomically difficult, making remote valve control systems indispensable. While electronic and pilot-operated hydraulic remote controls offer advanced features, mechanical cable-based systems, like this connection kit, provide a straightforward, highly reliable, and cost-effective alternative, favored for simplicity and resilience in harsh conditions. This kit leverages these advantages, creating a direct, positive-displacement link between operator input and the valve's spool.

Dissecting the Commercial A20 Front Entry Directional Control Valve

The "Commercial" brand is synonymous with robust, dependable hydraulic components, and their A20 series directional control valves exemplify this. The A20 is a monoblock or sectional valve widely used in applications needing moderate to high flow rates and pressures, such as dump bodies, snowplows, cranes, and agricultural implements. Designed for continuous duty, these valves are known for sturdy construction and adaptable configurations. Key characteristics include:

• Spool Design: A20 valves feature precisely ground, hard-chromed spools within a honed valve body bore. Spool contours and lands meticulously direct hydraulic fluid flow in specific patterns (e.g., raise, lower, hold, neutral) based on axial position.
• Pressure Relief: Integrated main pressure relief valves protect the system from over-pressurization.
• Flow Rating: A20 valves are generally rated for flow rates suitable for mobile equipment, offering ample capacity for demanding operations.
• Construction: Often high-strength cast iron, providing excellent rigidity and resistance to wear.

The Engineering of the Connection Kit: Bridging Controller and Spool

The Commercial A20 Front Entry Remote Valve Control Connection Kit is an assembly of meticulously designed components engineered to translate the linear motion of a remote control cable directly into the axial movement of the A20 valve's spool. The kit's primary function is to provide a secure, low-friction, and durable mechanical interface. Key aspects of its engineering include:

• Spool Interface Mechanism: At the core of the kit is the direct connection to the valve spool. This involves a precisely machined fitting or clevis that attaches securely to the end of the valve spool. This interface is critical, as it must withstand repetitive cycles of push-pull force without deforming or loosening. Materials are selected for their high tensile strength and resistance to fatigue.
• Cable End Termination: The kit includes a specific termination point for the remote control cable. This typically involves a threaded rod or a ball joint mechanism that accepts the inner wire of the push-pull cable. The design ensures that the cable's linear force is efficiently transferred to the spool interface without any loss due to angular misalignment or excessive play.
• Mounting Bracketry and Hardware: To secure the cable's outer conduit firmly to the valve body, the kit incorporates robust mounting brackets and associated hardware. These brackets are engineered to align the cable perfectly with the spool's axis of travel, minimizing friction and ensuring smooth operation. The bracketry must be rigid enough to prevent flexing under load, which could otherwise introduce hysteresis or reduce the precision of control. Materials are often high-strength steel, frequently coated or plated for corrosion resistance, given the kit's likely exposure to environmental elements in commercial applications.
• Sealing and Protection: While the kit primarily focuses on mechanical linkage, consideration for protecting the connection from ingress of dirt, moisture, and debris is often integral to its design. This might involve gaiters or protective boots that shield the moving parts of the connection from contaminants, thereby extending the lifespan of the components and maintaining smooth operation.

Seamless Integration with B206 Series Controllers

The specified compatibility with Buyers Products B206 Series controllers is a critical design feature that underscores the holistic approach to hydraulic control systems. B206 Series controllers are known for their ergonomic design, robust construction, and suitability for heavy-duty mobile applications. These controllers typically take the form of single-axis levers or multi-axis joysticks, providing an intuitive interface for the operator. The connection kit is designed to perfectly mate with the cable output of a B206 Series controller, ensuring a direct and positive linkage. When combined, the B206 controller and this connection kit form a complete mechanical remote control system characterized by:

• Ergonomics and Operator Comfort: B206 controllers are designed with operator comfort in mind, reducing fatigue during long shifts. The smooth, consistent action enabled by the connection kit complements this, ensuring that minimal force is required to actuate the valve.
• Durability: Both the B206 controllers and the connection kit are built to withstand the rigorous conditions of commercial use, including exposure to vibrations, temperature extremes, and corrosive agents. This synergistic durability ensures the integrity of the control pathway.
• Precision and Tactile Feedback: The mechanical linkage provides excellent tactile feedback to the operator, allowing for precise metering of hydraulic flow. The direct connection facilitated by the kit minimizes "slop" or play, translating even small movements of the control lever into immediate spool displacement.
• Ease of Installation and Maintenance: Designed as a system, the controller and connection kit are engineered for straightforward installation. This reduces labor time and complexity, a significant advantage in field installations or maintenance operations. Similarly, maintenance is simplified, typically involving routine inspection and occasional lubrication of the cable and connection points.

Installation Considerations and Best Practices for Optimal Performance

Proper installation of the Commercial A20 Front Entry Remote Valve Control Connection Kit is crucial for achieving its intended performance and longevity. While the kit itself is designed for ease of integration, attention to detail during installation can significantly impact the system's responsiveness and overall lifespan. Key considerations include:

• Cable Routing: The path of the remote control cable from the B206 controller to the A20 valve must be carefully planned. Sharp bends should be avoided, as they increase friction within the cable conduit and can lead to premature wear or binding. Long, sweeping curves are ideal. The cable should also be routed away from heat sources, moving parts, and areas where it might be pinched or abraded.
• Secure Mounting: Both the controller and the cable's conduit connection points must be securely mounted to stable structures on the vehicle or machinery. Any movement or flexing of these mounting points can introduce play into the system, degrading control precision. The kit's specific bracketry for the A20 valve ensures a rigid attachment, but the overall system integrity depends on proper installation of all components.
• Alignment: Precise alignment of the cable with the valve spool's axis of travel is paramount. The front-entry design of the A20 valve means the connection kit is tailored to achieve this alignment optimally. Any angular misalignment at the connection point will increase friction, operational effort, and wear on the spool and cable ends.
• Adjustment and Calibration: Many cable control systems allow for fine adjustment of cable tension or throw. Once installed, the system should be carefully calibrated to ensure the full stroke of the valve spool corresponds accurately to the full range of motion of the B206 controller. This prevents either over-travel (which can damage the valve or cable) or under-travel (which limits valve performance).
• Protection from Elements: While the components are rugged, additional protection for exposed cable ends and connection points from road salt, dirt, water, and UV radiation can significantly extend their service life, particularly in outdoor mobile applications.

Performance Characteristics and Operational Advantages in Commercial Environments

Properly integrated, the Commercial A20 Front Entry Remote Valve Control Connection Kit delivers critical performance characteristics and operational advantages for demanding commercial and industrial settings:

• Exceptional Durability and Reliability: Inherently robust, mechanical cable systems outperform electronic systems susceptible to EMI, moisture, or complex wiring. A well-engineered cable system offers consistent performance in harsh conditions. High-strength materials and precise manufacturing ensure this kit withstands vibrations, shocks, temperature fluctuations, and continuous heavy equipment use.
• Direct and Responsive Control: The direct mechanical linkage provides immediate, predictable feedback without signal processing or hydraulic pilot delays. Operators achieve fine metering and quick, decisive actions, crucial for tasks needing high dexterity and immediate response, like fine grading or precise crane boom positioning.
• Enhanced Operator Safety: Remote operation allows operators to remain in a safe, enclosed cab, away from moving machinery, high-pressure lines, and potential hazards. This significantly mitigates risks, fostering a safer work environment.
• Cost-Effectiveness and Simplified Maintenance: Mechanical cable controls are often a more cost-effective solution than sophisticated electronic or hydraulic pilot systems, both initially and long-term. Troubleshooting is straightforward, replacement components are less complex and readily available, and routine maintenance primarily involves inspection and lubrication.
• Reduced Operator Fatigue: When installed and adjusted correctly, the connection kit's low-friction design ensures minimal resistance, even under pressure. This reduces physical effort and operator fatigue during extended periods, enhancing productivity and comfort.
• Versatility Across Applications: Due to the widespread use of Commercial A20 valves, this kit applies across diverse industries: municipal fleets (snowplows, refuse trucks), construction equipment (loaders, excavators), agricultural machinery, and industrial equipment requiring reliable, direct hydraulic control.

Maintenance, Longevity, and System Support

To ensure the extended lifespan and continuous peak performance of the Commercial A20 Front Entry Remote Valve Control Connection Kit, a proactive approach to maintenance is recommended. While the kit is engineered for durability, regular inspections can identify potential issues before they escalate. Key maintenance practices include:

• Routine Visual Inspection: Periodically check the cable for signs of fraying, cracking, or damage to the outer conduit. Inspect all connection points for loosening, corrosion, or wear. Pay close attention to the junction where the cable enters the connection kit on the valve side and where it attaches to the B206 controller.
• Lubrication: Although many modern push-pull cables are designed to be low-maintenance, specific moving parts within the connection kit (e.g., pivot points, clevis pins) may benefit from periodic lubrication with a suitable grease or dry lubricant, especially in environments prone to dust or moisture. Refer to manufacturer guidelines for recommended lubricants and frequency.
• Tightness Checks: All mounting bolts and fasteners should be checked periodically for proper torque. Vibrations inherent in mobile equipment can cause fasteners to loosen over time, leading to play in the control system.
• Environmental Protection: Ensure any protective boots or seals are intact to prevent the ingress of contaminants. Replace damaged seals promptly.

Conclusion: Unlocking Peak Performance with Engineered Precision

The Commercial A20 Front Entry Remote Valve Control Connection Kit from Buyers Products is more than just an accessory; it is a meticulously engineered system component critical for achieving optimal control, safety, and longevity in hydraulic applications utilizing Commercial A20 Front Entry valves and B206 Series controllers. Its design reflects a deep understanding of hydraulic principles, mechanical linkage requirements, and the harsh realities of commercial operating environments. By providing a direct, low-friction, and highly durable connection between the operator's input and the valve spool, this kit facilitates responsive and precise hydraulic control, enhances operator safety through remote positioning, and contributes to the overall reliability and efficiency of heavy equipment. For professionals seeking an uncompromising solution for their hydraulic control needs, this connection kit offers a compelling combination of robust construction, engineered compatibility, and tangible operational benefits, making it an indispensable asset in modern hydraulic systems. Its integration ensures that the full potential of Commercial A20 valves can be realized, delivering consistent, powerful, and controlled performance where it matters most.
