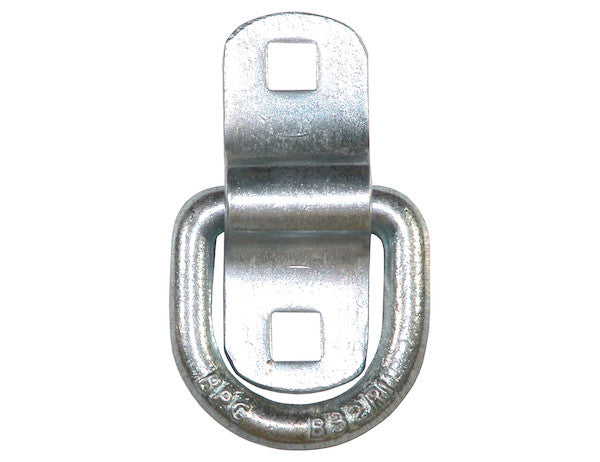

The Heavy Duty Rope Ring with Bracket from Buyers Products carries a working load limit of 2,000 lb and comes complete with a bolt-on bracket for interior use. The forged steel rope ring and bracket are zinc-plated for corrosion resistance. The ring provides sturdy holding power for your tools and equipment. Rope rings are not approved for lifting.
Specifications
| Min. Breaking Strength (lbs) | 6,000 |
|---|---|
| Mount Type | Surface |
| W.L.L. (lbs) | 2,000 |

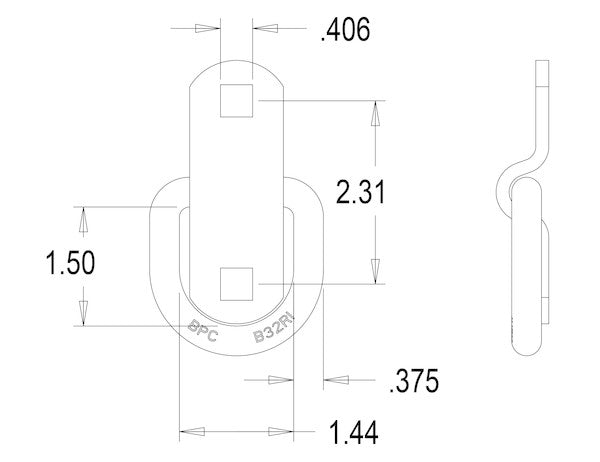

Technical Overview: 3/8 Inch Forged D-Ring with Surface Mounted 2-Hole Mounting Bracket, Zinc Plated
The 3/8 Inch Forged D-Ring with Surface Mounted 2-Hole Mounting Bracket, Zinc Plated, represents a robust and reliable solution for cargo securement and equipment organization across a multitude of industrial, commercial, and recreational applications. Engineered by Buyers Products, this heavy-duty rope ring with an integrated bracket is meticulously designed to provide superior holding power, ensuring the stability and safety of tools, equipment, and various cargo items during transit or storage. This comprehensive technical description will delve into the material science, manufacturing processes, performance characteristics, application considerations, and maintenance protocols associated with this critical component.
Material Science and Manufacturing Excellence
At the core of this product's exceptional performance is its material composition and manufacturing methodology. Both the D-ring and its accompanying mounting bracket are constructed from forged steel. Forging is a metalworking process that involves shaping metal using localized compressive forces. This process is critical because it refines the grain structure of the steel, eliminating internal voids and increasing material density. The result is a component with significantly enhanced strength, toughness, and fatigue resistance compared to cast or machined alternatives. Specifically, forged steel exhibits superior directional strength, meaning its mechanical properties are optimized along the principal stress axes, which is crucial for components subjected to dynamic loads inherent in cargo securement.
The D-ring, with its 3/8 inch nominal diameter, undergoes a precise forging process to achieve its characteristic D-shape. This geometry is not arbitrary; it is optimized to provide a wide, smooth bearing surface for straps, ropes, or chains, minimizing wear and tear on the securement medium while distributing load forces efficiently. The 3/8 inch dimension refers to the material thickness of the ring itself, indicating a substantial cross-section capable of withstanding significant tensile and shear stresses.
Following the forging process, both components undergo a zinc-plating treatment. Zinc plating (also known as galvanization when applied in a molten bath, but in this context, it refers to electroplating) is a highly effective method for enhancing corrosion resistance. This process involves electrochemically depositing a thin layer of zinc onto the steel substrate. Zinc acts as a sacrificial anode, meaning it corrodes preferentially to the underlying steel when exposed to moisture, oxygen, and other corrosive agents. This galvanic protection mechanism significantly extends the lifespan of the D-ring and bracket, making them suitable for environments where exposure to humidity, road salts, or mild chemicals is common. The zinc layer also provides a hard, abrasion-resistant surface, further protecting the underlying steel from mechanical damage. The consistent application of this coating ensures uniform protection across all surfaces, including intricate contours.
Performance Characteristics and Load Ratings
The performance specifications of this D-ring assembly are paramount for safe and effective operation. The product is rated with a Working Load Limit (W.L.L.) of 2,000 lb (907 kg). The W.L.L. is a critical safety parameter, representing the maximum load that the D-ring assembly is designed to safely support under normal operating conditions. This value incorporates a safety factor, which is the ratio of the Minimum Breaking Strength (M.B.S.) to the W.L.L. In this instance, the Minimum Breaking Strength is specified at 6,000 lb (2,721 kg). This yields a safety factor of 3:1 (6,000 lb / 2,000 lb = 3). A 3:1 safety factor is a common and robust industry standard for non-lifting cargo securement applications, providing a substantial margin against unforeseen overloads, shock loads, or material fatigue over time. It is imperative that users never exceed the stated W.L.L., as doing so compromises the integrity of the securement system and poses significant safety risks.
It is crucial to reiterate the explicit disclaimer: "Rope rings are not approved for lifting." This distinction is vital in cargo securement and material handling. Lifting operations involve dynamic forces, overhead loads, and specific regulatory requirements (e.g., ASME B30 standards) that differ from those for tie-down applications. Components designed for lifting typically have more stringent design criteria, higher safety factors (often 4:1 or 5:1), and specific certifications. Utilizing this D-ring for lifting purposes could lead to catastrophic failure, severe injury, or property damage.
Mounting and Installation
The D-ring assembly features a surface-mounted 2-hole mounting bracket. The "surface mounted" designation indicates that the bracket is designed to be attached directly to a flat surface, such as the floor or sidewall of a trailer, truck bed, or cargo van, or within a workshop or garage. This simplifies installation by eliminating the need for recessed pockets or complex structural modifications. The two-hole configuration provides a stable and secure attachment point, distributing the load across two fasteners, thereby reducing localized stress concentrations on the mounting surface. The spacing and diameter of these holes are engineered to accommodate standard fasteners, typically bolts, nuts, and washers, which should be chosen based on the mounting substrate's material and thickness to ensure adequate pull-out strength and shear resistance.
Proper installation is critical to achieving the specified W.L.L. and ensuring the long-term reliability of the D-ring. The following considerations are paramount:
- Substrate Material and Thickness: The mounting surface must be sufficiently strong and thick to withstand the loads applied to the D-ring. For vehicle applications, this often means attachment to structural members, crossmembers, or reinforced flooring. Plywood floors, for example, may require backing plates or attachment to underlying steel components.
- Fastener Selection: High-grade steel bolts (e.g., Grade 5 or Grade 8) with appropriate diameter and length should be used. The use of locking nuts (e.g., nylon insert lock nuts or all-metal prevailing torque nuts) or thread-locking compounds is recommended to prevent fasteners from loosening due to vibration. Washers should be used under both the bolt head and nut to distribute clamping force and prevent damage to the bracket or mounting surface.
- Torque Specifications: Fasteners must be torqued to the manufacturer's specified values for the chosen bolt grade and diameter. Under-torquing can lead to loosening and failure, while over-torquing can strip threads or weaken the fasteners.
- Load Distribution: When multiple D-rings are used, they should be strategically placed to distribute cargo loads evenly and prevent excessive stress on any single tie-down point.
- Inspection: Before initial use and periodically thereafter, all mounting hardware should be inspected for tightness, corrosion, and signs of wear or damage.
Applications and Versatility
The inherent strength, corrosion resistance, and straightforward mounting of this 3/8 Inch Forged D-Ring make it exceptionally versatile across a wide spectrum of applications:
- Transportation and Logistics: Indispensable in trailers (enclosed, utility, flatbed), pickup truck beds, cargo vans, and recreational vehicles (RVs) for securing motorcycles, ATVs, UTVs, snowmobiles, furniture, appliances, construction materials, and general cargo. It provides reliable anchor points for ratchet straps, cam buckle straps, ropes, and bungee cords.
- Marine Industry: While primarily designed for interior use, its zinc plating offers protection in humid environments. It can be used in boat trailers, utility boats, and docks for securing equipment, lines, or fenders (though direct saltwater exposure would require more advanced corrosion protection like hot-dip galvanization or stainless steel).
- Agricultural Equipment: Useful on farm trailers, utility vehicles, and within barns or storage facilities for tying down equipment, tools, and supplies.
- Commercial and Industrial Settings: Ideal for workshops, warehouses, and factories for organizing tools, securing equipment to mobile carts, or creating temporary tie-down points.
- Off-Road and Recovery: Can be installed on off-road vehicles as auxiliary tie-down points for tools, spare tires, or recovery gear, though not intended as primary recovery points which require specialized shackles.
- Home and Garage: Excellent for creating organized storage systems in garages, sheds, or utility trailers, helping to prevent items from shifting or falling.
The "interior use" recommendation in the current description primarily pertains to the limitations of standard zinc plating in harsh, prolonged outdoor exposures, particularly direct weather elements or highly corrosive industrial atmospheres. For applications demanding superior long-term outdoor durability, alternatives such as hot-dip galvanizing, stainless steel, or specialized powder coatings might be considered, although the zinc plating on this product offers substantial protection for general-purpose applications and intermittent outdoor exposure.
Maintenance and Longevity
Despite its robust construction and corrosion protection, proper maintenance is essential to maximize the lifespan and ensure the continued safe operation of the D-ring assembly:
- Regular Inspection: Periodically inspect the D-ring and bracket for signs of wear, damage, deformation, cracks, or excessive corrosion. Pay close attention to the pivot point of the D-ring and the mounting holes of the bracket.
- Corrosion Monitoring: While zinc plating offers excellent protection, localized damage to the coating (e.g., from impact or abrasion) can expose the underlying steel to corrosion. If surface rust appears, it should be addressed promptly by cleaning the area and applying a cold galvanizing compound or rust-inhibiting paint.
- Fastener Integrity: Routinely check the tightness of the mounting fasteners. Vibration during transit can cause fasteners to loosen over time. Re-torque to specifications as needed.
- Cleanliness: Keep the D-ring and bracket free from dirt, debris, and abrasive materials that could accelerate wear or obscure damage.
- Load Practices: Always use appropriate securement methods and never exceed the W.L.L. Avoid sharp edges or abrasive surfaces that could damage straps or the D-ring itself. Ensure the load is distributed evenly across multiple tie-down points if necessary.
- Replacement: Any D-ring or bracket showing signs of significant wear, deformation, cracking, or severe corrosion should be immediately removed from service and replaced. Attempting to repair a compromised tie-down point is not recommended.
Technical Summary and Conclusion
The 3/8 Inch Forged D-Ring with Surface Mounted 2-Hole Mounting Bracket, Zinc Plated, from Buyers Products, represents a meticulously engineered and highly reliable component for cargo securement. Its construction from forged steel ensures superior mechanical properties, including a Minimum Breaking Strength of 6,000 lb, which translates to a robust Working Load Limit of 2,000 lb with a critical 3:1 safety factor. The zinc-plated finish provides essential corrosion resistance, extending the product's service life in various operational environments, particularly for interior applications.
The surface-mounted, two-hole bracket design facilitates straightforward installation, requiring only appropriate fasteners and a suitable structural substrate. Its versatility makes it an indispensable asset across transportation, industrial, agricultural, and recreational sectors. Emphasizing its specific designation for tie-down purposes and explicitly prohibiting its use for lifting operations underscores the manufacturer's commitment to safety and adherence to industry standards.
By understanding the technical specifications, proper installation procedures, and recommended maintenance practices, users can leverage this D-ring assembly to achieve optimal cargo security, enhance operational efficiency, and ensure compliance with safety protocols. This product stands as a testament to practical design, durable materials, and reliable performance in demanding applications.
