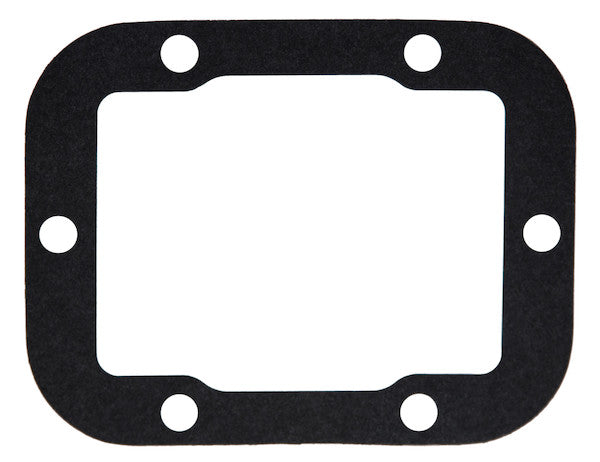

B35P92 - 0.020 Inch Thick 6-Hole Gasket For 1000 Series hydraulic Pumps

The 6 Hole Gasket from Buyers Products is ideal for mounting a Buyers Products PTO on your engine. The paper gasket is available in a .010 in. or .020 in. thickness or can be stacked to meet your needs. Note: Buyers Products PTOs can be custom-ordered for your specific vehicle and application. Contact Customer Service for assistance in selecting the correct PTO.

Specifications

The 0.020 Inch Thick 6-Hole Gasket for 1000 Series hydraulic pumps represents a critical component in ensuring the operational integrity and longevity of hydraulic systems. Engineered with precision and manufactured from specialized materials, this gasket is designed to create a robust, leak-free seal between the hydraulic pump and its mating surface, which often includes a Power Take-Off (PTO) unit, an adapter plate, or another component within the power transmission train. The specific dimensions, material composition, and configuration of this gasket are meticulously selected to meet the demanding requirements of high-performance hydraulic applications, particularly those utilizing 1000 Series hydraulic pumps.

Engineering Precision: The Role of Gaskets in Hydraulic Systems

Gaskets are static seals that serve the fundamental purpose of preventing leakage of fluids or gases between two mating surfaces, typically flanges or housings, under compression. In hydraulic systems, where fluids operate under significant pressure and often varying temperatures, the effectiveness of a gasket directly impacts the system's efficiency, reliability, and safety. A poorly sealed connection can lead to fluid loss, air ingress, contamination, reduced system pressure, and ultimately, catastrophic component failure. The 0.020-inch thick 6-hole gasket is a testament to precision engineering, designed to address these challenges effectively.

Material Science: Understanding the Paper Gasket

When the term "paper gasket" is used in an industrial context, it refers not to conventional writing paper, but to a highly engineered composite material. These specialized gaskets are typically manufactured from a blend of cellulose fibers, synthetic fibers (such as aramid or carbon fibers for enhanced strength), and elastomeric binders (like NBR - Nitrile Butadiene Rubber, SBR - Styrene Butadiene Rubber, or acrylics). Fillers such as clay, mica, or mineral particles are often incorporated to improve specific properties like compressibility, chemical resistance, and temperature stability. The manufacturing process usually involves a calendering or beater-addition method, where the fibers, binders, and fillers are formed into sheets under pressure and heat, creating a dense, resilient, and dimensionally stable material.

Key Properties of Engineered Paper Gasket Materials:

• Fluid Compatibility: Engineered paper gaskets are formulated to exhibit excellent resistance to a wide range of hydraulic fluids, including mineral-based oils, synthetic lubricants, and some biodegradable fluids. The binder material plays a crucial role in preventing swelling, degradation, or dissolution when exposed to these chemicals.
• Temperature Stability: While not suited for extreme high-temperature environments, these gaskets are designed to operate reliably within the typical temperature ranges experienced by 1000 Series hydraulic pumps, which can vary from sub-zero starting conditions to sustained operating temperatures up to 80-100°C (176-212°F).
• Compressibility and Recovery: A critical characteristic is the gasket's ability to compress under bolt load and conform to minor imperfections or surface irregularities on the mating flanges. Simultaneously, it must possess sufficient recovery (or resilience) to maintain sealing force even if the flange experiences slight movement or thermal expansion/contraction. This ensures a consistent seal over time.
• Creep and Relaxation Resistance: Over extended periods under constant compression and temperature, some gasket materials can exhibit creep (permanent deformation) or stress relaxation (reduction in sealing force). High-quality engineered paper gaskets are designed to minimize these effects, maintaining their sealing integrity throughout their service life.
• Cost-Effectiveness: Compared to more exotic gasket materials like spiral wound or metal jacketed gaskets, engineered paper gaskets offer a highly cost-effective solution for applications where their performance characteristics are suitable, providing excellent value without compromising reliability.

Dimensional Precision: The 0.020 Inch Thickness and 6-Hole Configuration

The Significance of 0.020 Inch Thickness:

The specified thickness of 0.020 inches (approximately 0.508 mm) is not arbitrary; it is carefully selected to optimize the gasket's performance for the intended application. Gasket thickness is a critical parameter that influences several aspects of sealing:

• Conformability: A thicker gasket generally has a greater ability to conform to surface imperfections and minor misalignments between flanges. The 0.020-inch thickness strikes an optimal balance, providing sufficient conformability without being excessively thick, which could lead to extrusion or reduced sealing stress.
• Sealing Stress Distribution: The thickness impacts how the bolt load is distributed across the gasket material. An appropriate thickness ensures that the gasket experiences uniform compression and achieves the necessary sealing stress without being over-compressed or crushed, which can compromise its long-term integrity.
• Tolerance Stacking: In mechanical assemblies, cumulative tolerances can create small gaps between components. A gasket of precise thickness helps to bridge these gaps, ensuring proper alignment and preventing direct metal-on-metal contact which could lead to wear or vibration.
• Accommodation of Thermal Expansion: In systems with fluctuating temperatures, components expand and contract. The gasket's thickness and material properties allow it to absorb some of this differential movement, maintaining a seal despite dynamic conditions.

The availability of a 0.010-inch option and the possibility of stacking gaskets further highlights the engineering flexibility. A 0.010-inch gasket might be preferred for tighter tolerance applications or where less flange separation is desired. Stacking gaskets, while generally not the primary recommendation for critical seals due to increased potential for multiple leak paths, can be a practical solution for specific installation challenges such as adjusting shaft protrusion or accommodating an unusually large gap due to worn components or custom modifications. However, such practices should always be thoroughly evaluated and ideally guided by manufacturer recommendations or expert consultation.

The 6-Hole Configuration:

The 6-hole design refers to the specific bolt pattern engineered to precisely match the flange of 1000 Series hydraulic pumps and their corresponding mounting surfaces. This configuration is standardized to ensure compatibility across various manufacturers of hydraulic components that adhere to common industry mounting standards (e.g., SAE, ISO, or proprietary standards specific to gear pump series). The precision of the hole alignment is paramount:

• Accurate Centering: The holes ensure the gasket is accurately centered on the flange, preventing misalignment that could lead to uneven compression, gasket extrusion, or obstruction of fluid passages.
• Even Bolt Load Distribution: A symmetrical 6-hole pattern facilitates even distribution of bolt load around the sealing area, which is crucial for achieving uniform sealing stress and preventing localized over- or under-compression.
• Ease of Installation: A precisely cut 6-hole gasket simplifies installation, reducing the risk of errors and ensuring a quick and efficient assembly process.

Application Focus: 1000 Series Hydraulic Pumps

The "1000 Series" nomenclature typically refers to a family of hydraulic pumps, often external gear pumps, known for their robust construction, reliable performance, and versatility across a wide range of mobile and industrial applications. These pumps are workhorses in heavy-duty environments, commonly found in:

• Mobile Equipment: Dump trucks, refuse compactors, snowplows, salt spreaders, cranes, agricultural machinery (tractors, combines), construction equipment (excavators, loaders).
• Industrial Applications: Material handling systems, small presses, lubrication systems, power units for various machinery.

1000 Series pumps are designed to operate at moderate to high pressures (typically up to 2500-3000 PSI or 170-200 bar) and deliver consistent flow rates. The demanding nature of these applications requires sealing solutions that can withstand continuous vibration, pressure pulsations, temperature fluctuations, and exposure to various environmental contaminants. The 0.020-inch thick 6-hole gasket is specifically engineered to meet these challenges, providing a durable and reliable seal that contributes to the overall efficiency and lifespan of the hydraulic pump.

Interfacing with Power Take-Off (PTO) Units:

Many 1000 Series hydraulic pumps are driven by a Power Take-Off (PTO) unit, which mechanically connects to the vehicle's transmission or engine and transmits power to the hydraulic pump. The gasket described is often installed at the interface between the PTO and the hydraulic pump, or in some configurations, between the PTO and the engine/transmission casing. Its primary function at this critical junction is to prevent the leakage of hydraulic fluid from the pump's inlet or outlet ports, or internal leakage within the PTO unit if it contains a wet clutch or lubrication system. A secure seal here ensures that the hydraulic system maintains optimal pressure and flow, preventing power loss and operational inefficiencies.

Installation Best Practices for Optimal Performance

The performance of any gasket is not solely dependent on its material and design, but also on correct installation procedures. Adhering to best practices is crucial for achieving a long-lasting, leak-free seal:

• Surface Preparation: Both mating flange surfaces must be meticulously cleaned and free from old gasket material, grease, oil, dirt, burrs, scratches, or any foreign particles. A clean, flat surface is essential for proper gasket seating and compression.
• Gasket Inspection: Before installation, visually inspect the gasket for any defects such as tears, cuts, creases, or manufacturing imperfections. Damaged gaskets should never be used.
• Proper Alignment: Carefully align the gasket with the bolt holes and fluid passages on both flanges. The 6-hole design aids in this, but manual verification is important to ensure no pinching or tearing occurs during assembly.
• No Gasket Dressings (Unless Specified): Generally, dry installation is recommended for engineered paper gaskets. Gasket compounds, sealants, or grease can interfere with the gasket's ability to compress and conform correctly, potentially leading to creep, extrusion, or premature failure. Only use specified gasket dressings if explicitly recommended by the pump or PTO manufacturer.
• Bolt Torque and Pattern: Always follow the manufacturer's recommended bolt torque specifications. Use a calibrated torque wrench and apply torque in a controlled, sequential pattern (e.g., a star pattern for 6 bolts) to ensure even compression across the gasket surface. Tighten bolts gradually in multiple passes (e.g., 30%, 60%, 100% of final torque) to allow the gasket material to compress uniformly.
• Avoid Over-tightening: Over-tightening can crush the gasket material, leading to extrusion, loss of recovery, and compromised sealing. It can also stretch or break bolts.
• Retorquing: For critical applications or after initial system operation (especially after thermal cycling), retorquing the bolts after a short period (e.g., 24 hours or after first operational cycle) can be beneficial. Gasket materials can settle or relax slightly, and retorquing helps to maintain the desired sealing stress.

Advantages and Reliability of Buyers Products Gaskets

Buyers Products is renowned for supplying high-quality components for the work truck and hydraulic industries. Their gaskets are manufactured to stringent quality control standards, ensuring:

• Consistent Quality: Each gasket meets precise dimensional tolerances and material specifications, providing reliable and predictable performance.
• Optimized Performance: The material composition and thickness are specifically chosen to offer optimal sealing characteristics for 1000 Series hydraulic pumps, balancing compressibility, chemical resistance, and durability.
• Reduced Downtime: By preventing hydraulic fluid leaks, these gaskets contribute to reduced maintenance, extended service intervals, and increased operational uptime for hydraulic systems.
• System Protection: A reliable seal prevents contaminants from entering the hydraulic system, protecting sensitive pump components and extending the life of the hydraulic fluid.
• Expert Support: As highlighted in the original description, Buyers Products offers customer service assistance for selecting the correct components and custom ordering PTOs. This level of support ensures that users can confidently specify the right gasket for their unique vehicle and application needs.

Conclusion

The 0.020 Inch Thick 6-Hole Gasket for 1000 Series hydraulic pumps is far more than a simple piece of material; it is a precisely engineered component essential for the reliable operation of heavy-duty hydraulic systems. Its specialized "paper" composition, precise 0.020-inch thickness, and standardized 6-hole configuration are all designed to create an enduring, leak-free seal under the challenging conditions typical of mobile and industrial hydraulic applications. By understanding the technical specifications, material properties, and correct installation procedures, operators and maintenance personnel can ensure that their 1000 Series hydraulic pumps continue to deliver optimal performance, minimizing downtime and maximizing productivity. For specific applications or complex installations, leveraging the expertise of Buyers Products' customer service ensures that the most appropriate sealing solution is always chosen, thereby safeguarding the integrity and efficiency of the entire hydraulic system.
