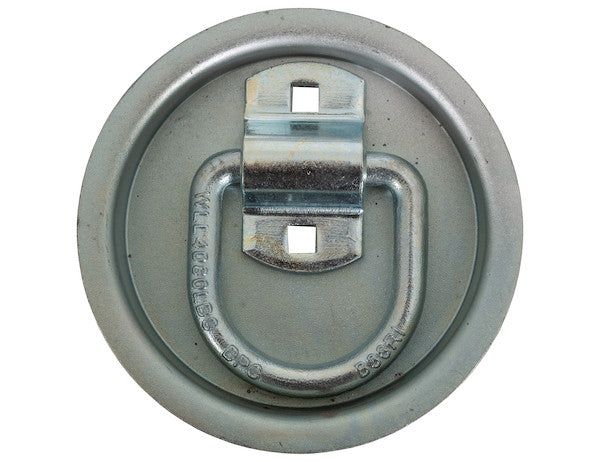

Secure your load with confidence using Bolt-On 1/2 Inch Forged D-Rings with Recessed Pan Mount from Buyers Products. The D-rings feature C-1045 forged steel construction and a working load limit of 4,080 lb. Mounting is easy with a two-hole recessed pan.
Specifications
| Min. Breaking Strength (lbs) | 12,240 |
|---|---|
| Mount Type | Recessed |
| W.L.L. (lbs) | 4,080 |
Advanced Engineering and Robust Performance: The 1/2 Inch Forged D-Ring with Recessed Pan Mount
In the demanding world of cargo securement, the integrity and reliability of every component are paramount. The 1/2 Inch Forged D-Ring with 2-Hole Mounting Bracket and Recessed Pan Mount from Buyers Products stands as a testament to advanced engineering, material science, and meticulous manufacturing processes, designed to provide unparalleled load securement for a diverse range of applications. This detailed exposition delves into the technical specifications, design philosophies, operational advantages, and critical safety considerations that define this superior cargo restraint solution.
Material Science Excellence: C-1045 Forged Steel Construction
The foundation of this D-ring's exceptional strength and durability lies in its C-1045 forged steel construction. C-1045 is a medium-carbon steel renowned for its robust mechanical properties, making it an ideal choice for high-stress applications in the transportation and industrial sectors. With a nominal carbon content of 0.45%, this alloy exhibits a superior balance of tensile strength, hardness, and wear resistance compared to lower carbon steels, while retaining sufficient ductility to resist brittle fracture under dynamic loads. Its chemical composition typically includes manganese to improve hardenability and strength, enhancing its utility in critical components.
The process of forging is critical to unlocking the full potential of C-1045 steel. Unlike casting or machining from plate, forging involves the application of compressive forces to shape the metal while it is in a solid state, typically at elevated temperatures. This mechanical working refines the grain structure of the steel, aligning the grains along the lines of maximum stress. This alignment creates a continuous grain flow, which significantly improves the steel's fatigue strength, impact resistance, and overall structural integrity. Internal voids, porosity, and other material defects commonly found in cast components are virtually eliminated through the forging process, resulting in a dense, homogeneous material with predictable and superior performance characteristics. This intrinsic material enhancement translates directly into the D-ring's impressive Minimum Breaking Strength (MBS) of 12,240 lbs and a Working Load Limit (WLL) of 4,080 lbs, ensuring a substantial margin of safety.
Furthermore, the forging process contributes to a superior strength-to-weight ratio, allowing for a component that is robust without being excessively heavy. The inherent resistance to deformation and elongation under specified loads ensures that the D-ring maintains its critical geometry and load-bearing capacity throughout its operational life. While C-1045 steel itself offers good wear resistance, the integral nature of a forged component means there are no welds in the primary load path that could introduce points of weakness, further enhancing its reliability and longevity in arduous environments. This commitment to superior material selection and processing underscores the product's suitability for demanding cargo securement tasks where component failure is not an option.
Precision Design: The 1/2 Inch D-Ring Geometry
The physical design of the D-ring, specifically its 1/2 inch diameter, is a carefully considered aspect that balances strength, versatility, and compatibility. A 1/2 inch stock diameter provides ample cross-sectional area to withstand significant tensile forces, directly contributing to the stated WLL. This dimension also ensures compatibility with a broad spectrum of industry-standard cargo securement devices, including various widths of ratchet straps, cam buckle straps, and chain hooks. The internal radius of the D-ring is optimized to minimize stress concentrations when used with webbing or chain links, preventing premature wear or damage to the tie-down equipment.
Crucially, the D-ring forms a continuous loop. This design choice, in conjunction with the forging process, eliminates the potential weaknesses inherent in welded or multi-component rings. Welds, even when expertly executed, can introduce heat-affected zones that alter the metallurgical properties of the parent material, potentially reducing fatigue life or creating localized stress risers. By utilizing a single, forged piece of C-1045 steel for the D-ring, the structural integrity is maximized across its entire circumference, ensuring uniform load distribution and predictable performance under stress. The smooth, radiused surfaces of the D-ring are also critical in preventing abrasion and fraying of synthetic webbing straps, thereby extending the life of the securement devices and maintaining the overall safety of the cargo system. This thoughtful design minimizes the risk of component failure and contributes significantly to the overall safety factor.
Integrated Securement: The Recessed Pan Mount with Two-Hole Bracket
The innovative mounting system is a distinguishing feature of this D-ring, offering significant advantages in both functionality and safety. The recessed pan mount design allows the D-ring assembly to be installed flush with the mounting surface, typically the floor of a trailer, truck bed, or cargo van. This flush installation offers several practical and safety benefits:
- Snag Prevention: By eliminating protrusions, the recessed design prevents the D-ring from catching on cargo, forklifts, or personnel during loading and unloading operations, thereby reducing the risk of damage to goods and potential injuries.
- Enhanced Cargo Space: The flush profile ensures that the D-ring does not impede the placement or movement of cargo, maximizing usable space and simplifying logistical processes.
- Protection from Damage: When not in use, the D-ring can be folded down into the recessed pan, shielding it from impact damage, debris, and environmental exposure. This protection significantly extends the operational lifespan of the D-ring.
- Aesthetics: The clean, flush appearance contributes to a professional and uncluttered cargo area.
The recessed pan itself is engineered to provide robust support for the D-ring, dispersing the load across a larger surface area of the vehicle's structure. This design not only enhances the strength of the anchor point but also protects the D-ring's pivot mechanism from contaminants and mechanical interference. The pan typically incorporates drainage features or is designed to minimize water collection, preventing potential corrosion issues in the mounting area.
The two-hole mounting bracket is integral to the secure and stable attachment of the D-ring assembly. Utilizing two mounting points, as opposed to a single central bolt, provides several critical structural advantages:
- Superior Stability: Two widely spaced mounting holes create a more stable connection, effectively resisting rotation and torsional forces that could compromise the anchor point. This is particularly important when loads exert forces at various angles.
- Enhanced Shear Strength: With two fasteners, the shear load is distributed, significantly increasing the overall shear strength of the attachment. This reduces the stress on individual bolts and the surrounding mounting surface.
- Optimized Load Distribution: The dual-point attachment helps to distribute the forces from the D-ring more evenly into the vehicle's structural members, minimizing localized stress concentrations that could lead to cracking or deformation of the mounting surface over time.
Installation necessitates careful consideration of the mounting surface. The underlying structure must possess sufficient strength and rigidity to support the specified WLL. For optimal performance and safety, it is highly recommended to use appropriate grade hardware (e.g., Grade 8 bolts for high-strength applications) and, where feasible, reinforce the mounting area with backing plates or washers on the underside of the floor. Proper torque specifications for the fasteners must be strictly adhered to, ensuring a secure and permanent installation that prevents loosening under vibration and dynamic loads. The material compatibility of the pan with the trailer or truck bed material should also be considered to prevent galvanic corrosion.
Performance Metrics: Working Load Limit (WLL) and Minimum Breaking Strength (MBS)
Understanding the performance metrics of the 1/2 Inch Forged D-Ring is critical for safe operation and compliance with regulatory standards. The product is rated with a Working Load Limit (WLL) of 4,080 lbs and a Minimum Breaking Strength (MBS) of 12,240 lbs.
Working Load Limit (WLL): The WLL represents the maximum static load that a component, when properly applied, is designed to sustain in regular service without permanent deformation or failure. This value is determined by applying a safety factor to the MBS. Adhering strictly to the WLL is not merely a recommendation but a critical safety mandate. Exceeding the WLL can lead to material fatigue, deformation, and catastrophic failure, posing severe risks to cargo, personnel, and equipment. The WLL takes into account various factors such as dynamic loading, environmental conditions, and long-term fatigue, providing a conservative estimate for safe operational capacity.
Minimum Breaking Strength (MBS): The MBS, also known as the Ultimate Breaking Strength (UBS) or Rated Capacity, is the minimum force that a new, unused component can withstand before fracturing or failing. This value is determined through destructive testing under controlled laboratory conditions. The MBS of 12,240 lbs for this D-ring highlights its inherent structural integrity and the robustness of its C-1045 forged steel construction.
Safety Factor: The relationship between WLL and MBS is defined by the safety factor, calculated as MBS / WLL. For this D-ring, the safety factor is 12,240 lbs / 4,080 lbs = 3:1. A 3:1 safety factor is a widely accepted industry standard for cargo securement components, indicating that the D-ring is designed to withstand three times its rated working load before catastrophic failure. This substantial safety margin accounts for unforeseen dynamic forces, shock loads, and potential material degradation over time, providing an essential buffer against failure. It is imperative to remember that the WLL of an entire cargo securement system is always limited by the component with the lowest WLL. Therefore, while this D-ring offers a high WLL, the user must ensure that all other components in the securement assembly (straps, chains, hooks, binders, and the mounting structure itself) meet or exceed the required load capacity.
Versatile Applications Across Industries
The robust design and impressive load ratings of the 1/2 Inch Forged D-Ring with Recessed Pan Mount make it an indispensable component across a broad spectrum of industries and applications. Its primary utility lies in heavy-duty cargo securement for:
- Commercial Transportation: Essential for flatbed trailers, dry vans, refrigerated trailers, and step-deck trailers, providing reliable anchor points for securing diverse freight ranging from heavy machinery and construction equipment to lumber, steel coils, and palletized goods.
- Utility and Service Vehicles: Ideal for utility trucks, service vans, and pickup truck beds, enabling the secure transport of tools, equipment, spare parts, and specialized gear.
- Recreational and Powersports Transport: Perfect for securing ATVs, UTVs, motorcycles, snowmobiles, and other recreational vehicles on open or enclosed trailers. The recessed design is particularly advantageous here, preventing damage to vehicle tires or suspension components.
- Marine Applications: Suitable for securing boats on trailers or within cargo vessels, though specific marine-grade finishes or materials may be considered for prolonged saltwater exposure.
- Agricultural Equipment: Providing securement for tractors, implements, and various agricultural loads on transport trailers.
- Military and Defense Logistics: Meeting stringent requirements for securing military equipment and supplies during transport.
Regardless of the application, the fundamental principle remains: to create a safe and stable tie-down point that prevents shifting, sliding, tipping, or falling of cargo during transit. Proper application involves using multiple D-rings in conjunction with appropriate tie-down straps or chains, ensuring that forces are balanced and the load is adequately restrained from movement in all directions.
Compliance, Maintenance, and Longevity
The use of high-quality cargo securement hardware like the Buyers Products D-ring is a cornerstone of compliance with national and international regulations, such as those set by the Federal Motor Carrier Safety Administration (FMCSA) in the United States, which mandate specific requirements for cargo securement. Utilizing components with clearly stated WLLs and an adequate safety factor ensures adherence to these critical safety standards, mitigating legal liabilities and enhancing operational safety.
To ensure maximum longevity and continuous safe operation, regular inspection and maintenance are crucial. Operators should routinely inspect D-rings for:
- Corrosion: While C-1045 steel is robust, exposure to moisture, road salts, and chemicals can lead to surface rust. Any significant corrosion should be addressed, and appropriate protective coatings (if applicable) maintained.
- Deformation: Any signs of bending, twisting, elongation, or cracking in the D-ring or the mounting pan indicate a compromised component that must be immediately removed from service and replaced.
- Wear: Excessive wear in the pivot points or the ring itself from constant friction with straps or chains can reduce the effective material thickness and thus the WLL.
- Fastener Integrity: Periodically check that mounting bolts are properly torqued and that the mounting surface remains structurally sound.
Adherence to these maintenance protocols, combined with the inherent quality of the C-1045 forged steel and recessed design, ensures that the 1/2 Inch Forged D-Ring will provide years of reliable, high-performance service, safeguarding cargo and enhancing overall transportation safety.
Conclusion: A Benchmark in Cargo Securement Technology
The 1/2 Inch Forged D-Ring with 2-Hole Mounting Bracket and Recessed Pan Mount from Buyers Products represents a pinnacle in cargo securement technology. Its foundation in C-1045 forged steel ensures superior strength, durability, and fatigue resistance, providing a robust solution capable of handling significant loads with an exceptional 3:1 safety factor. The meticulously engineered 1/2-inch D-ring design, free from load-path welds and optimized for compatibility, contributes directly to its 4,080 lb WLL and 12,240 lb MBS. The innovative recessed pan mount offers invaluable benefits, including snag prevention, cargo protection, and a clean, flush aesthetic, while the two-hole mounting bracket guarantees unparalleled stability and load distribution.
This product is not merely a component; it is an investment in safety, efficiency, and compliance. From heavy-duty commercial freight to recreational vehicle transport, its versatile application profile and adherence to rigorous performance standards make it the preferred choice for professionals who demand the utmost in reliability from their tie-down hardware. By integrating advanced material science with practical design and robust manufacturing, Buyers Products delivers a cargo securement solution that not only meets but exceeds the exacting requirements of modern transportation and logistics, providing users with absolute confidence in securing their valuable assets.
