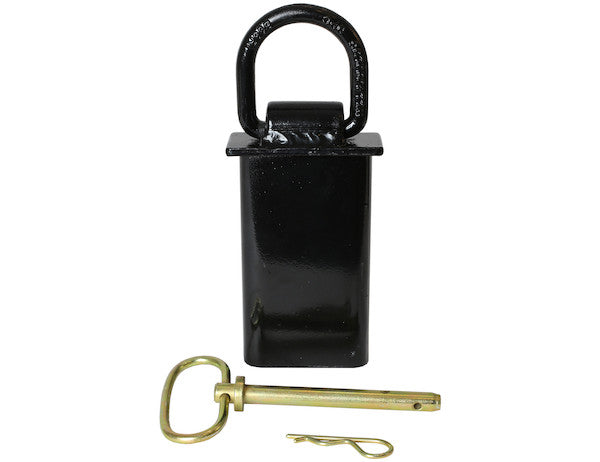

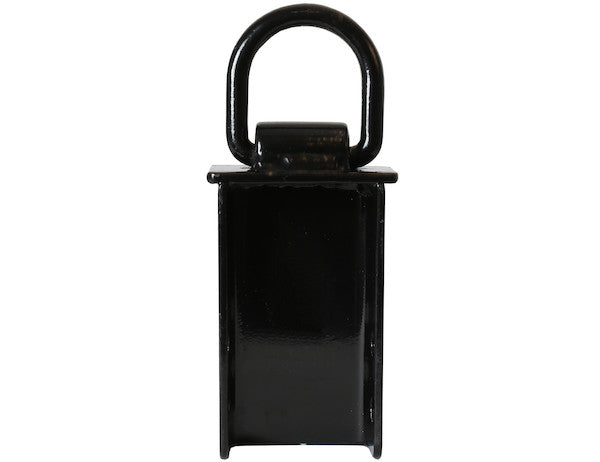

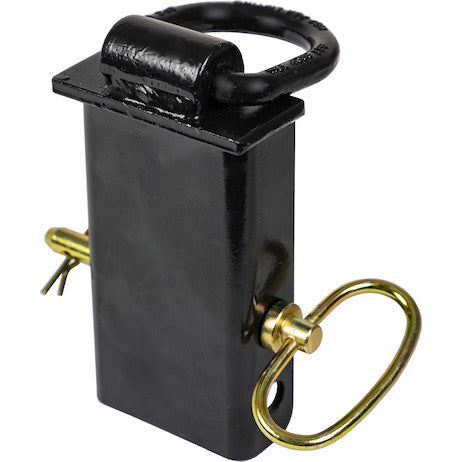

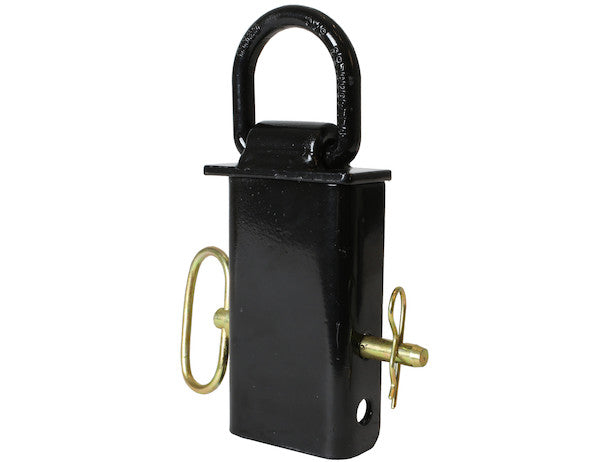

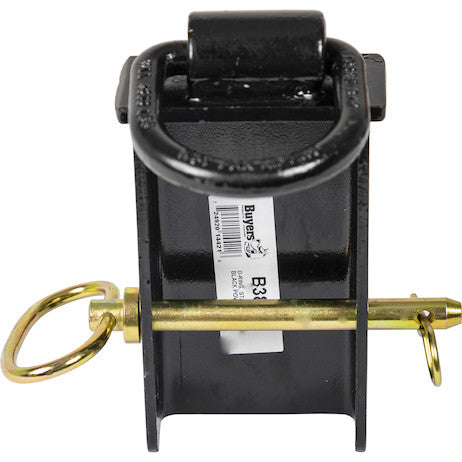

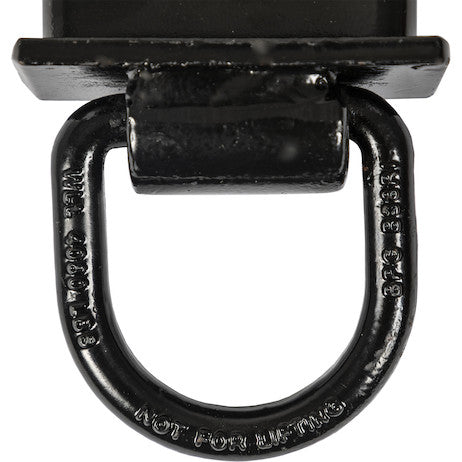

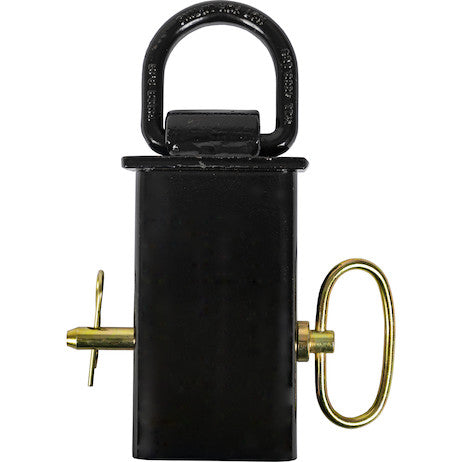

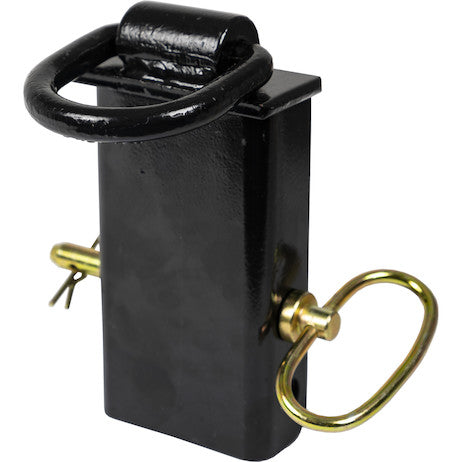

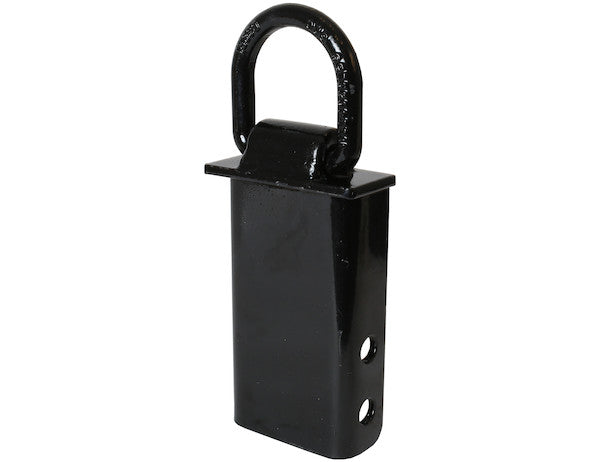

The Stake Pocket 1/2 Inch Forged D-Ring with 2-1/2 Inch I.D. from Buyers Products can be quickly drop-mounted into a stake body pocket as an anchor point for chains or straps. It features a sturdy, forged steel 1/2 in. D-ring with a 2-1/2 inch internal diameter, a black powder-coated finish, and a hitch pin with cotter. It fits conveniently in common flush and outside stake body pockets. D-rings are not approved for overhead use. Working Load Limit (W.L.L.) 4080 lbs.
Specifications
| Bracket Included (y/n) | No |
|---|---|
| Bracket Mounting Type | Stake Pocket |
| Inner Height (in.) | 2-1/2 |
| Inner Width (in.) | 2-3/8 |
| Mounting Hole Diameter | - |
| Mounting Hole Shape | - |
| Ring Dia.(in.) | 1/2 |
| W.L.L. (lbs.) | 4,080 |
Advanced Technical Overview: 1/2 Inch Forged Stake Pocket D-Ring with 2-1/2 Inch I.D.
The 1/2 Inch Forged Stake Pocket D-Ring with 2-1/2 Inch Internal Diameter from Buyers Products represents a critical component in the securement of cargo across a multitude of commercial and industrial applications. Engineered for robust performance and steadfast reliability, this D-ring offers an adaptable and high-strength anchor point for various tie-down methodologies, including chains and synthetic straps. Its design is predicated on rapid deployment and integration within standard stake body pockets, offering unparalleled versatility and operational efficiency for fleets, independent operators, and logistics professionals. This comprehensive description delves into the technical specifications, material science, operational benefits, and safety considerations that position this D-ring as an indispensable tool in modern cargo management.
Material Science and Forging Process: The Foundation of Strength
The integrity of any cargo securement device is intrinsically linked to its material composition and manufacturing process. This D-ring is constructed from forged steel, a deliberate choice that confers superior mechanical properties compared to alternative manufacturing methods such as casting or bending of sheet metal. Forging is a metallurgical process involving the shaping of metal by localized compressive forces using hammers or dies. This process results in a refined grain structure that follows the contour of the D-ring, significantly enhancing its strength, toughness, and ductility. Unlike cast components, which can exhibit internal voids or crystalline inconsistencies, forged steel is dense and free from such defects, leading to a higher resistance to fatigue, impact, and dynamic loading stresses inherent in cargo transport. The 1/2 inch ring diameter further contributes to this robustness, ensuring a substantial cross-sectional area capable of withstanding the specified Working Load Limit (W.L.L.) of 4080 lbs with a substantial safety factor. This material engineering ensures that the D-ring maintains its structural integrity even under repetitive stress cycles and challenging environmental conditions, providing a reliable and long-lasting anchor point.
Precision Engineering: D-Ring Dimensions and Compatibility

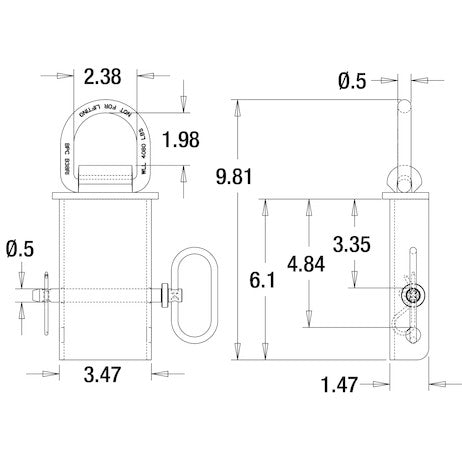

The specific dimensions of the D-ring are meticulously engineered to optimize both strength and functionality. With a 1/2 inch ring diameter, the D-ring offers a robust bearing surface that minimizes localized stress concentrations when under load, distributing forces effectively across the securement chain or strap. This dimension also ensures compatibility with a wide array of commonly used hooks and end fittings, including grab hooks, clevis hooks, and various types of strap hardware. The internal diameter (I.D.) of 2-1/2 inches is a critical specification for practical utility. This generous internal clearance facilitates easy and quick attachment and detachment of larger hooks and webbing, even when wearing gloves, which is a common scenario in field operations. The spacious I.D. prevents binding and ensures that the securing device can articulate freely, reducing wear on both the D-ring and the attached hardware. The careful balance between material thickness and internal dimensions ensures that the D-ring is not only strong but also highly ergonomic and efficient in real-world application, directly contributing to faster and safer load securement procedures.
The Stake Pocket Mounting Mechanism: Versatility and Rapid Deployment

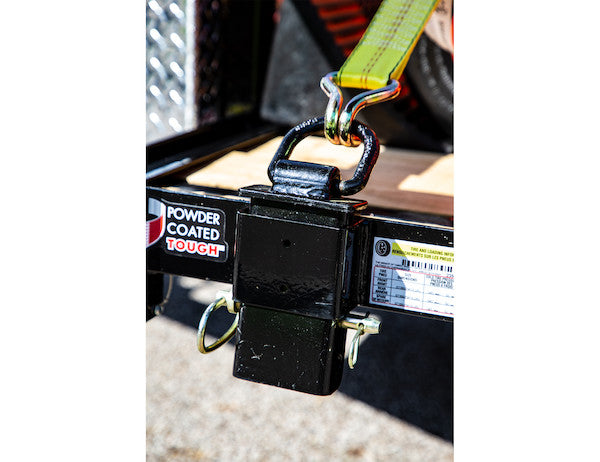

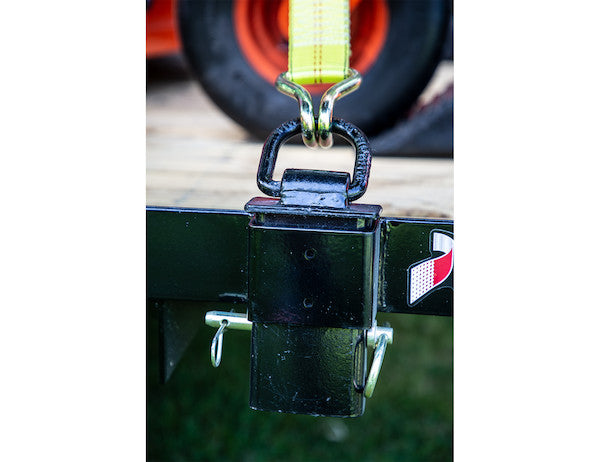

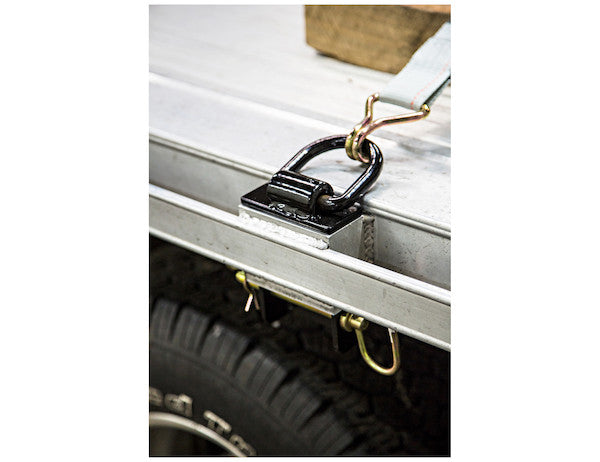

A defining feature of this product is its innovative stake pocket mounting system. Designed for rapid "drop-mounting" into existing stake body pockets, this D-ring eliminates the need for welding, drilling, or permanent modifications to the vehicle or trailer structure. This non-invasive installation approach preserves the structural integrity of the equipment and offers unparalleled flexibility in positioning anchor points. Stake body pockets are ubiquitous on flatbed trucks, utility trailers, and other commercial vehicles, making this D-ring a universally applicable solution for operators seeking adaptable securement options. The design accommodates both "common flush and outside stake body pockets," signifying a broad compatibility spectrum. The securement mechanism is further enhanced by the inclusion of a hitch pin with a cotter. This simple yet highly effective locking device ensures that once the D-ring assembly is seated within the stake pocket, it remains firmly in place during transit, resisting upward forces and vibrations. The cotter pin prevents accidental dislodgement of the hitch pin, providing an additional layer of security. This combination of ease of installation and robust locking makes the D-ring an exceptionally versatile and secure choice for dynamic load securement requirements.
Advanced Corrosion Protection: Black Powder-Coated Finish
Durability in demanding environments is paramount for cargo securement hardware. This D-ring features a black powder-coated finish, a high-performance coating system offering superior protection against the elements and operational wear. Powder coating is an advanced dry finishing process where finely ground particles of pigment and resin are electrostatically charged and sprayed onto the D-ring. The charged powder particles adhere to the electrically grounded surface until heated and fused into a smooth coating in a curing oven. This process creates a uniform, hard, and durable finish that is significantly more resistant to chipping, scratching, fading, and corrosion than conventional liquid coatings. In the harsh conditions encountered in commercial transport—exposure to road salt, moisture, chemicals, UV radiation, and abrasive forces—the powder coating acts as a robust barrier, preventing rust and degradation of the underlying forged steel. The aesthetic benefit of a professional black finish also contributes to maintaining the visual integrity of the equipment over time. This high-grade finish extends the operational life of the D-ring, reducing the frequency of replacements and contributing to a lower total cost of ownership.
Working Load Limit (W.L.L.) and Critical Safety Protocols
The Working Load Limit (W.L.L.) of 4080 lbs (approximately 1850 kg) is a critical safety parameter for this D-ring. The W.L.L. represents the maximum static load that should be applied to the D-ring under normal operating conditions. It is important to distinguish the W.L.L. from the ultimate breaking strength. Reputable manufacturers apply a significant safety factor—typically 3:1 or 4:1—when determining the W.L.L. This means the actual breaking strength of the D-ring is several times higher than its W.L.L., providing a substantial margin of safety against unforeseen dynamic loads, shock, or potential misuse. Adherence to the stated W.L.L. is not merely a recommendation but a fundamental safety requirement mandated by regulatory bodies such as the Department of Transportation (DOT) and the Federal Motor Carrier Safety Administration (FMCSA) for cargo securement. Overloading the D-ring beyond its W.L.L. compromises this safety factor and significantly increases the risk of component failure, leading to potential cargo loss, property damage, and severe injury. Operators must always ensure that the cumulative W.L.L. of all securement devices utilized exceeds the weight of the cargo being transported by an appropriate margin.
A crucial safety disclaimer associated with this product is that D-rings are "not approved for overhead use." This distinction is paramount. Cargo tie-down anchor points, while designed for robust horizontal or angular securement, are not engineered to withstand the complex forces associated with overhead lifting applications. Overhead lifting subjects components to dynamic shock loads, highly concentrated stress points, and often unforeseen multidirectional forces that require specific design criteria, higher safety factors, and dedicated certification standards (e.g., ASME B30.20 for Below-the-Hook Lifting Devices). Using a tie-down D-ring for overhead lifting tasks could result in catastrophic failure due to material fatigue, deformation, or brittle fracture under conditions for which it was not designed. Operators must strictly adhere to this warning to prevent severe accidents and ensure compliance with industrial safety regulations.
Versatile Applications Across Industries
The 1/2 Inch Forged Stake Pocket D-Ring with 2-1/2 Inch I.D. finds extensive application across a broad spectrum of industries where secure cargo transport is essential. Its adaptability makes it suitable for:
- Commercial Trucking and Logistics: Essential for securing general freight, palletized goods, and oversized loads on flatbed trailers and stake body trucks.
- Construction: Ideal for tying down heavy machinery, construction materials (lumber, rebar, pipes), tools, and equipment to job site trailers and service vehicles.
- Agriculture: Used for securing farming equipment, bales, livestock containment, and other agricultural implements during transport between fields or to market.
- Landscaping and Arboriculture: Provides secure anchor points for mowers, tree chippers, logs, and other heavy-duty landscaping equipment.
- Utilities: Supports the secure transport of power poles, transformers, conduit, and specialized utility equipment.
- Recreational Transport: While primarily commercial, its robust design can also benefit heavy-duty recreational applications for securing ATVs, UTVs, or other large recreational vehicles on trailers.
Operational Benefits and Economic Value Proposition
Investing in high-quality cargo securement hardware like the 1/2 Inch Forged Stake Pocket D-Ring offers tangible operational benefits and a compelling economic value proposition:
- Enhanced Safety: By providing a reliable and robust anchor point, the D-ring directly contributes to the prevention of cargo shifts or dislodgement, significantly reducing the risk of accidents, injuries, and liabilities associated with unsecured loads.
- Increased Efficiency: The "drop-mounted" design with a hitch pin and cotter allows for extremely fast deployment and repositioning of anchor points, minimizing loading and unloading times and maximizing fleet productivity.
- Flexibility and Adaptability: The non-permanent, repositionable nature of the stake pocket mount means that vehicles can be configured for different types of cargo as needed, without the commitment of fixed, welded-on anchor points.
- Regulatory Compliance: Utilizing certified securement devices with a clearly defined W.L.L. helps operators meet stringent cargo securement regulations (e.g., FMCSA Part 393.100), avoiding costly fines and ensuring legal operation.
- Durability and Longevity: The forged steel construction and black powder-coated finish ensure exceptional resistance to wear, corrosion, and environmental degradation, translating into a longer service life and reduced replacement costs.
- Reduced Cargo Damage: Securely fastened cargo is less prone to shifting, scuffing, or breakage during transit, protecting valuable goods and reducing claims.
Maintenance and Inspection Protocols
To ensure the continued safe and reliable performance of the 1/2 Inch Forged Stake Pocket D-Ring, adherence to a rigorous inspection and maintenance protocol is essential. Prior to each use, a thorough visual inspection should be conducted to check for any signs of wear, deformation, or damage. Key inspection points include:
- Ring Integrity: Look for cracks, excessive bending, twisting, or elongation of the D-ring itself. Any visible deformation indicates a compromised component that must be immediately removed from service.
- Finish Condition: While the powder coat is durable, significant chipping, peeling, or rust accumulation can indicate underlying material degradation or expose the steel to corrosion.
- Pin and Cotter: Ensure the hitch pin is straight, free from bends, and that the cotter pin is present, intact, and functions correctly to secure the hitch pin.
- Mounting Surface: Inspect the stake pocket for any damage or distortion that might compromise the D-ring's secure fit.
Conclusion
The 1/2 Inch Forged Stake Pocket D-Ring with 2-1/2 Inch I.D. from Buyers Products stands as a testament to robust engineering and practical design in cargo securement. Its forged steel construction, optimized dimensions, advanced corrosion protection, and innovative stake pocket mounting system collectively deliver a high-performance, versatile, and dependable anchor point. With a clear W.L.L. of 4080 lbs and explicit safety guidelines, this D-ring provides operators across diverse industries with a solution that enhances efficiency, ensures compliance, and most critically, upholds the highest standards of safety in cargo transport. It is an essential component for any professional demanding reliability and flexibility from their securement hardware.
