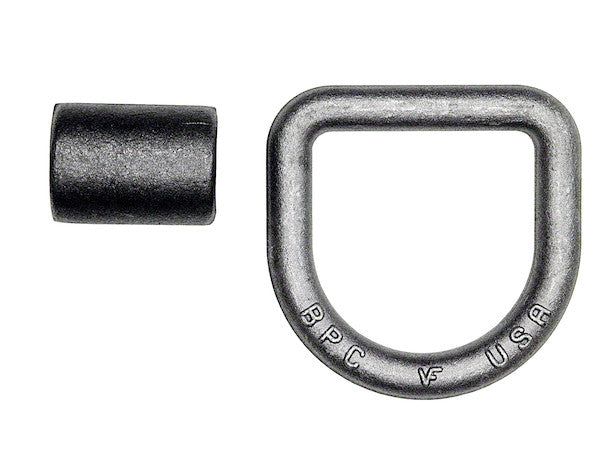

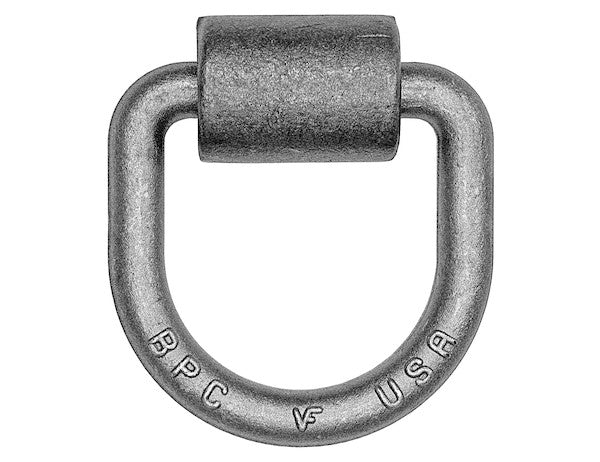

Secure a load with confidence using the 5/8 Inch Forged D-Ring from Buyers Products. It includes a weld-on mounting bracket made of AISI-1025 steel and has a working load limit of 6,130 lb. D-rings are not approved for overhead use.
Specifications
| Bracket Included (y/n) | Yes |
|---|---|
| Bracket Length (in.) | 1.625 |
| Bracket Mounting Type | Weld-On |
| Bracket Thickness | 0.438 |
| Bracket Width (in.) | 2.50 |
| Inner Height (in.) | 3.00 |
| Inner Width (in.) | 3.00 |
| Made in USA | Yes |
| Min Break Strength (lbs.) | 18,390 |
| Mounting Hole Diameter | - |
| Mounting Hole Shape | - |
| Ring Dia.(in.) | 5/8 |
| W.L.L. (lbs.) | 6,130 |
The Domestically Forged 5/8 Inch D-Ring with Weld-On Mounting Bracket represents a pinnacle of robust cargo securement technology, engineered for demanding applications where reliability and safety are paramount. This product is meticulously designed and manufactured in the USA, ensuring adherence to stringent quality controls and superior material standards. It stands as a critical component for professionals engaged in transportation, heavy equipment operation, and industrial applications requiring immovable anchor points for load stability.
At the core of this securement solution is the 5/8 inch D-Ring, distinguished by its forged construction. Forging is a metalworking process that involves shaping metal using localized compressive forces. Unlike casting, which involves pouring molten metal into a mold, or bending from flat stock, forging physically deforms the metal, improving its grain structure. This refinement results in a D-Ring with significantly enhanced strength, ductility, and resistance to fatigue. The forging process eliminates internal voids, cracks, and porosity often found in cast components, creating a uniform and dense material structure that can withstand extreme stresses and dynamic loads without catastrophic failure. This intrinsic material integrity is crucial for a component responsible for restraining heavy and potentially shifting cargo. The 5/8 inch diameter of the ring provides ample cross-sectional area, contributing directly to its impressive load-bearing capabilities. This dimension ensures compatibility with a wide range of common securement devices, including various sizes of hooks, chains, and straps, offering versatility in load handling scenarios.
Complementing the robust D-Ring is its integral weld-on mounting bracket, fabricated from AISI-1025 steel. AISI-1025 is a low-carbon steel known for its excellent weldability, good strength, and satisfactory ductility. Its chemical composition, primarily consisting of iron with approximately 0.25% carbon, along with trace amounts of manganese, silicon, and other elements, provides a balance of mechanical properties suitable for structural components that require secure attachment through welding. The choice of AISI-1025 steel for the bracket is deliberate, facilitating a strong and reliable metallurgical bond when welded to compatible substrate materials such as mild steel chassis, trailer frames, or equipment platforms. The material’s inherent toughness allows it to absorb and distribute forces effectively, preventing localized stress concentrations that could lead to premature failure. The bracket's dimensions – 1.625 inches in length, 2.50 inches in width, and a substantial 0.438 inch thickness – are engineered to provide a generous welding surface area and structural rigidity. This substantial base ensures that the forces exerted on the D-ring are efficiently transferred and dissipated into the underlying structure, minimizing the risk of bracket deformation or weld failure under heavy loads. The robust thickness also enhances the bracket's resistance to impact and abrasion in demanding operational environments.
The weld-on mounting type offers several distinct advantages over bolted or bolted-on alternatives. A properly executed weld creates a permanent, monolithic connection between the bracket and the vehicle or structure, eliminating the potential for loosening due to vibration, corrosion in fastener threads, or shear failure of bolts. This direct metallurgical bond ensures maximum load transfer efficiency and significantly reduces the profile of the attachment point, minimizing protrusion that could snag or be damaged. The absence of mounting holes means that the full integrity of the substrate material is maintained, as no material is removed, unlike drilling for bolts. However, the integrity of a weld-on application is highly dependent on the quality of the welding process. It is imperative that installation is performed by certified and experienced welders, adhering to industry best practices and standards such as those outlined by the American Welding Society (AWS). Considerations such as proper joint preparation, selection of appropriate filler metals, pre-heating, and post-weld inspection are critical to ensure the formation of a structurally sound and reliable weld. The substrate material to which the bracket is welded must also be assessed for its compatibility and structural capacity to support the rated loads.
The load capacity specifications for this D-Ring assembly are critical indicators of its performance and safety margins. It boasts a Working Load Limit (WLL) of 6,130 pounds (approximately 2,780 kg). The WLL is the maximum load that should ever be applied to the D-Ring when the D-Ring is new and in "as new" condition, and when the load is uniformly applied. It is a conservative rating that incorporates a substantial safety factor, typically 3:1 or 4:1 for cargo securement devices, providing a buffer against unexpected surges, dynamic forces, or minor variations in load distribution. This means that, theoretically, the D-Ring is designed to safely hold a static load of up to 6,130 lbs under normal operating conditions. Exceeding the WLL is strictly prohibited as it can compromise the structural integrity of the D-Ring and lead to failure, posing significant safety hazards and potential for cargo loss or damage. Understanding and respecting the WLL is fundamental to safe load securement practices.
Further reinforcing its safety credentials, the D-Ring assembly exhibits a Minimum Break Strength (MBS) of 18,390 pounds (approximately 8,340 kg). The MBS, also sometimes referred to as Ultimate Break Strength (UBS), represents the average force at which the D-Ring or its associated components are expected to yield or fracture under controlled testing conditions. The significant differential between the WLL (6,130 lbs) and the MBS (18,390 lbs) clearly illustrates the robust safety factor incorporated into the design – approximately 3:1. This substantial margin provides an essential layer of safety, ensuring that even under unforeseen circumstances, such as sudden impacts or extreme dynamic loading conditions that temporarily exceed the WLL, there is a considerable reserve of strength before catastrophic failure occurs. This engineering redundancy is vital for protecting both the cargo and the operators in demanding transportation environments.
A critical limitation explicitly stated for this product is that D-rings are not approved for overhead use. This advisory is paramount and must be strictly adhered to. D-rings designed for cargo securement, like this product, are engineered primarily for tension and shear forces associated with tying down cargo to a surface. Their design, material properties, and manufacturing processes are optimized for these applications, and they typically do not undergo the rigorous testing, certification, and material traceability requirements mandated for overhead lifting equipment. Overhead lifting devices, such as eye bolts or hoist rings, are subject to entirely different industry standards (e.g., ASME B30.20 for Below-the-Hook Lifting Devices or EN 1677 for Forged Steel Components for Slings) which account for dynamic shock loads, rotational forces, and potential for catastrophic failure with falling objects. Using a cargo securement D-ring for overhead lifting could lead to unforeseen failures due to inappropriate loading angles, twisting forces, or lack of proper certification, posing extreme risks to personnel and property. Therefore, this D-ring must only be utilized for its intended purpose: securing loads horizontally or vertically against a surface.
The "Made in USA" designation for this product signifies a commitment to superior manufacturing standards, quality control, and economic responsibility. Domestic production ensures direct oversight of the entire manufacturing process, from raw material sourcing to final forging and assembly. This facilitates immediate quality inspections, adherence to strict material specifications, and tighter tolerances than often found in offshore production. Furthermore, it implies compliance with North American labor laws, environmental regulations, and safety standards, contributing to a product that is not only physically robust but also ethically produced. Choosing domestically manufactured components like this forged D-ring often translates to greater consistency in product quality, improved supply chain reliability, and responsive technical support, all of which are critical factors for industrial and commercial users who depend on reliable equipment for their operations.

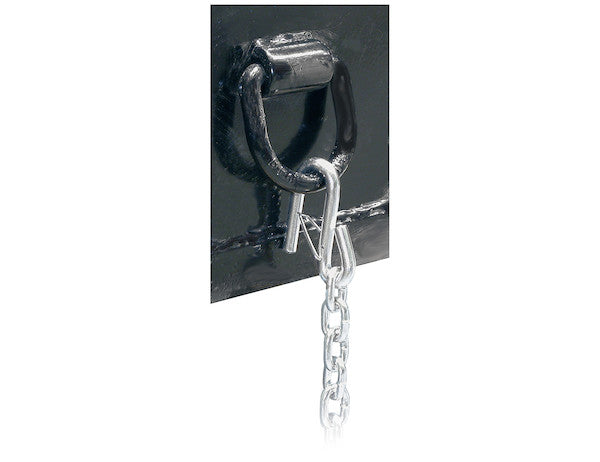

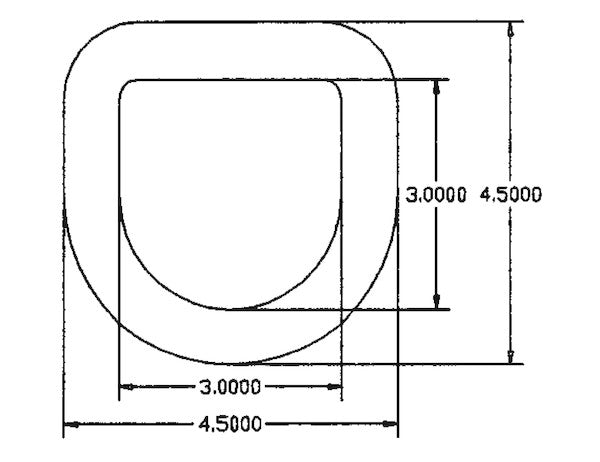

This Domestically Forged 5/8 Inch D-Ring with Weld-On Mounting Bracket is indispensable across a broad spectrum of industries and applications. In the transportation sector, it serves as a crucial anchor point on flatbed trailers, utility trailers, enclosed cargo trailers, and truck beds for securing heavy machinery, construction materials, agricultural equipment, vehicles, and general freight. Its weld-on design is particularly advantageous for permanent installations on custom trailers or specialized transport platforms where robust and fixed tie-down points are required. Beyond transportation, these D-rings find utility in industrial settings for anchoring equipment during maintenance, securing workpieces to jigs, or creating fixed points for safety barriers. The exceptional strength and durability derived from its forged construction make it suitable for environments where exposure to harsh weather, abrasion, and significant mechanical stress are routine. Its inner dimensions, 3.00 inches in both height and width, offer ample space for various hooks, chains, and straps, ensuring flexible and effective load securement configurations.
Proper usage and maintenance are paramount to maximize the lifespan and ensure the continued safe operation of this D-Ring assembly. Before each use, a thorough visual inspection should be conducted to check for any signs of wear, deformation, cracks, excessive corrosion, or damage to the weld joint. Any D-ring exhibiting such signs should be immediately removed from service and replaced. Overloading, sudden shock loads, or improper attachment methods can compromise the D-ring's integrity over time. Regular cleaning and application of protective coatings can help mitigate corrosion, especially in corrosive environments. Adherence to industry standards for cargo securement, such as those set by the Department of Transportation (DOT) or similar regulatory bodies, is essential. These regulations often specify the minimum number and strength of tie-down points required based on cargo weight and type, emphasizing the importance of correctly rated and installed components like this D-ring. Investing in high-quality, domestically forged securement hardware is an investment in safety, operational efficiency, and long-term reliability for critical load transportation and anchoring tasks.
