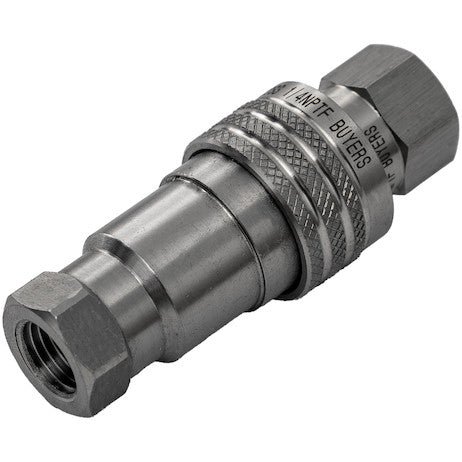

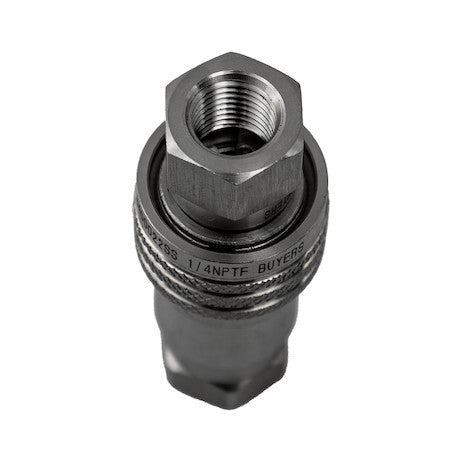

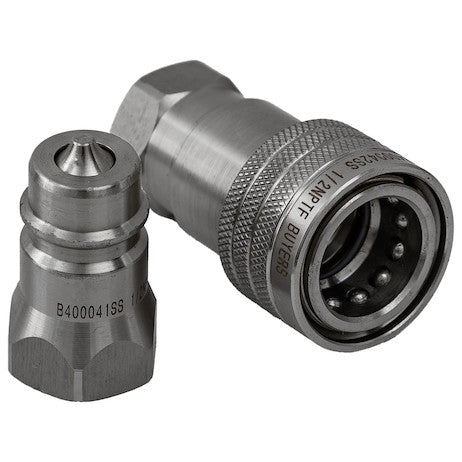

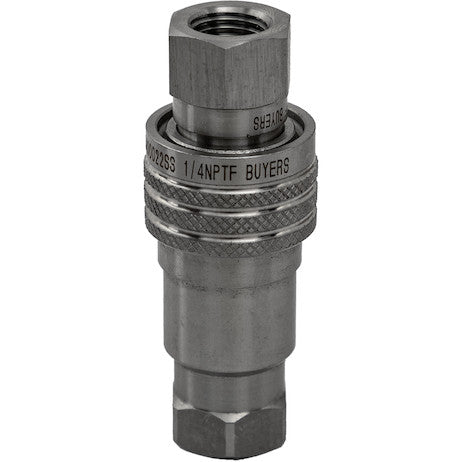

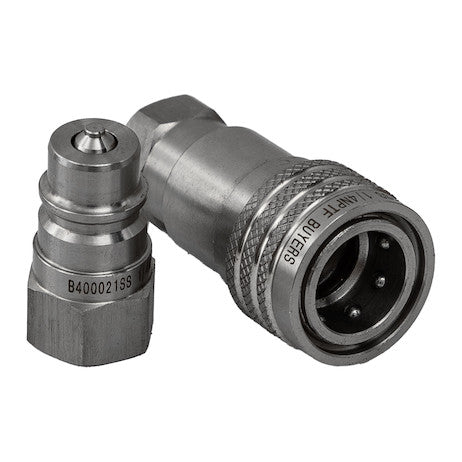

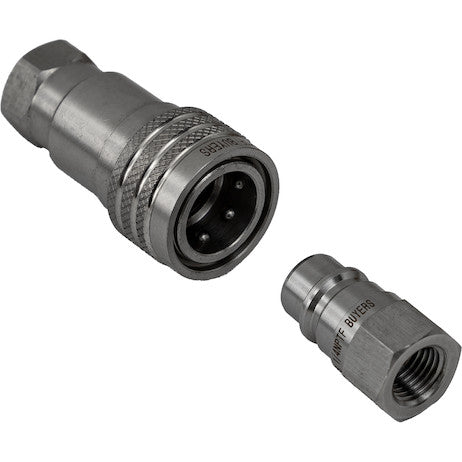

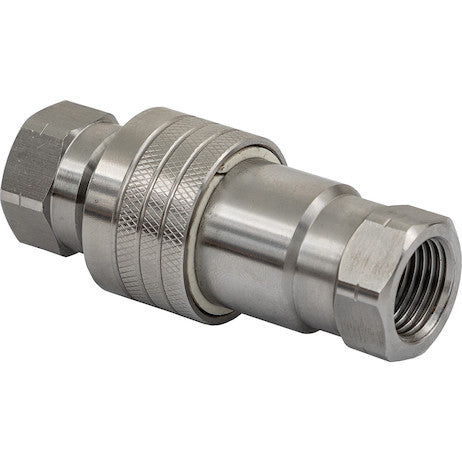

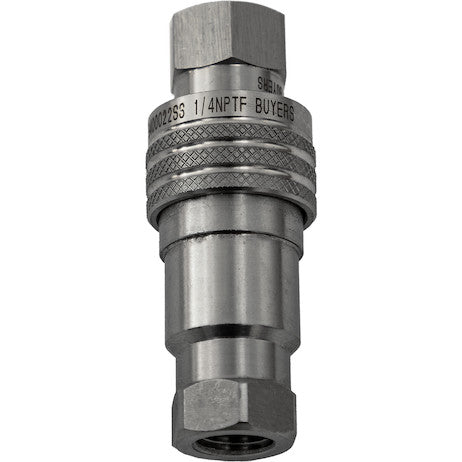

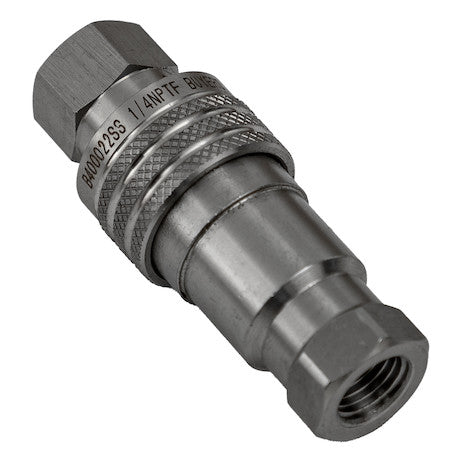

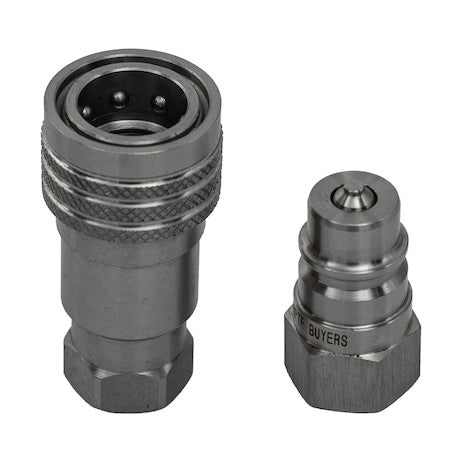

Buyers Products Stainless Steel Hydraulic Couplers are a general-purpose sleeve style coupler with poppet seal for a leak-free connection. The couplers are easy to connect when pressure has been relieved.
Specifications
| Color | Natural |
|---|---|
| Coupler Material | Stainless Steel |
| End (Male/Female/Full) | Male & Female Set |
| Flow Rate (GPM) | 4 |
| Size | 1/4 NPT |
Advanced Technical Overview: Stainless Steel Hydraulic Coupler Set (1/4in NPTF, 1/4in Body)
This detailed technical description elucidates the engineering principles, material science, and operational benefits associated with the Buyers Products Stainless Steel Hydraulic Coupler Set, specifically designed with 1/4in NPTF threads and a 1/4in body. This comprehensive analysis will cover the critical aspects that contribute to its robust performance, reliability, and suitability for demanding hydraulic applications.
Precision Engineering for Critical Hydraulic Connections
The core function of a hydraulic coupler is to provide a swift, secure, and leak-free connection within a hydraulic circuit, facilitating the transfer of pressurized fluid between components or systems. This particular coupler set, comprising both male and female components, embodies a general-purpose sleeve style design augmented by a highly effective poppet seal mechanism. Such a configuration is strategically chosen for its balance of ease of operation, sealing integrity, and broad applicability across various industrial and mobile hydraulic systems.
Material Selection: The Advantages of Stainless Steel (SST)
The selection of stainless steel as the primary material for this hydraulic coupler set is a paramount design decision, imparting a multitude of performance advantages over conventional carbon steel alternatives. Stainless steel, an alloy primarily composed of iron, chromium (typically 10.5% or more), and often nickel, molybdenum, or other elements, derives its superior properties from the formation of a passive, self-repairing oxide layer on its surface. This chromium-rich layer acts as an impervious barrier against corrosive agents, rendering the material inherently resistant to rust and degradation in aggressive environments.
Corrosion Resistance:
A fundamental benefit of stainless steel is its exceptional resistance to corrosion. In hydraulic systems, components are frequently exposed to moisture, chemicals, saline solutions, and other corrosive elements, particularly in marine, agricultural, chemical processing, and outdoor applications. Standard carbon steel components would rapidly succumb to rust, leading to material degradation, reduced functional lifespan, and potential system contamination from rust particles. Stainless steel, by contrast, maintains its structural integrity and aesthetic appeal, significantly extending the service life of the coupler and preserving the purity of the hydraulic fluid. For instance, in applications near saltwater or where de-icing chemicals are prevalent, stainless steel is not merely an option but a critical requirement for sustained operation.
Chemical Compatibility:
Hydraulic systems often utilize a wide range of hydraulic fluids, including mineral oils, synthetic fluids, and fire-resistant fluids, some of which may exhibit corrosive tendencies towards specific metals. Stainless steel offers broad chemical compatibility, reducing the risk of material degradation, swelling, or contamination caused by reactive interactions between the coupler material and the hydraulic fluid. This characteristic ensures that the coupler can be safely integrated into diverse fluid power systems without compromising fluid integrity or component longevity.
Strength and Durability:
While often associated with corrosion resistance, stainless steel also possesses excellent mechanical properties, including high tensile strength, yield strength, and hardness. These attributes contribute to the robust durability of the coupler, enabling it to withstand the significant internal pressures, external stresses, and vibrational forces inherent in hydraulic operations. The inherent toughness of stainless steel minimizes the risk of deformation, cracking, or fatigue failure, particularly under intermittent or shock loading conditions, thereby enhancing the overall safety and reliability of the hydraulic connection.
Temperature Stability:
Hydraulic systems can operate across a wide spectrum of temperatures, from sub-zero conditions in cold climates to elevated temperatures generated by fluid friction and ambient heat. Stainless steel exhibits excellent stability across a broad temperature range, maintaining its mechanical properties and corrosion resistance without significant degradation. This ensures consistent performance of the coupler, preventing issues such as material embrittlement at low temperatures or reduced strength and increased susceptibility to chemical attack at high temperatures.
Hygienic Properties:
The smooth, non-porous surface of stainless steel inhibits the adherence and proliferation of bacteria and other microorganisms, making it an ideal choice for applications requiring stringent hygiene standards, such as food processing equipment or pharmaceutical manufacturing. While not typically a primary concern for general industrial hydraulics, this characteristic underscores the material's versatility and suitability for sensitive environments.
Coupler Design: Sleeve Style with Poppet Seal
Sleeve Style Mechanism:
The designation "general-purpose sleeve style coupler" refers to a common and highly effective quick-disconnect design. In this configuration, the female coupler typically features an outer sleeve that, when retracted, allows for the insertion or removal of the male plug. Upon release, the sleeve slides forward, engaging a locking mechanism (often ball bearings or similar retention features) that secures the male plug within the female body. This design facilitates rapid and tool-free connection and disconnection of hydraulic lines, enhancing operational efficiency. The "general-purpose" aspect implies a broad compatibility with standard hydraulic systems where a balance of convenience, reliability, and cost-effectiveness is prioritized.
Poppet Seal Technology:
The incorporation of a "poppet seal for a leak-free connection" is a critical feature contributing to the integrity of the hydraulic circuit. A poppet valve, in the context of a coupler, consists of a mushroom-shaped sealing element (the poppet) that is spring-loaded against a mating seat within the coupler body. When the coupler is disconnected, the spring force drives the poppet against its seat, effectively blocking the fluid path and minimizing fluid loss (spillage). Upon connection, the male plug engages and displaces the poppet in both the male and female components, opening the flow path. The precision fit between the poppet and its seat, often assisted by an O-ring or similar elastomeric seal on the poppet face, creates a robust, positive shut-off, preventing fluid egress when disconnected and ensuring a continuous, leak-free flow path when connected. This design is highly reliable, offering excellent sealing performance under static and dynamic conditions, and is resistant to pressure surges and vibrations.
Connecting Under Pressure Considerations:
The specification "easy to connect when pressure has been relieved" highlights an essential operational characteristic inherent to many general-purpose poppet-style couplers. Residual pressure trapped within a hydraulic line can exert significant force against the poppet seals. Attempting to connect or disconnect a coupler under such conditions can be challenging, if not impossible, due to the hydraulic force resisting the mechanical action of engaging the coupler components. Moreover, forcing a connection under pressure can damage the internal sealing surfaces, deform the poppets, or compromise the integrity of the O-rings, leading to premature leaks or coupler failure. Therefore, the explicit instruction to relieve pressure before connection is not a limitation but a critical safety and maintenance protocol that ensures the longevity of the coupler and the safety of the operator. For applications where frequent connection under residual pressure is unavoidable, alternative designs such as non-spill, flat-face couplers with pressure eliminator valves might be considered, but for this general-purpose sleeve style with poppet seal, pressure relief is the recommended and safest practice.
Thread Specification: 1/4in NPTF (National Pipe Taper Fuel)
Understanding NPTF Threads:
The 1/4in NPTF thread specification is crucial for understanding the sealing mechanism and proper installation of this hydraulic coupler. NPTF stands for National Pipe Taper Fuel, a specialized variant of the National Pipe Taper (NPT) standard. The primary distinction of NPTF threads lies in their design to achieve a "dryseal" connection without the reliance on thread sealant compounds, although sealants are often still used for added assurance and ease of assembly. The taper of both the male and female threads (3/4 inch per foot, or 1 in 16 on the diameter) causes an interference fit as the threads are tightened. This metal-to-metal contact, particularly at the root and crest of the threads, forms the primary seal.
Dryseal Functionality:
The NPTF standard is specifically engineered to ensure that crests of the male thread physically crush into the roots of the female thread, and vice versa, creating a spiral line of contact that blocks the helical leak path inherent in standard tapered threads. This mechanical deformation, when correctly torqued, establishes a robust, pressure-tight seal that is highly effective in preventing fluid leakage, even under high hydraulic pressures. The 1/4in designation refers to the nominal pipe size, which is a standard identifier and not the actual measured diameter of the threads.
Importance of Proper Installation for NPTF:
For NPTF connections, proper installation is paramount to achieving the intended dryseal. This involves ensuring clean threads, correct alignment, and adequate tightening torque. Overtightening can cause thread galling or cracking, particularly with stainless steel, while undertightening will result in an insufficient seal. Despite the "dryseal" capability, the application of a high-quality thread sealant or PTFE tape is often recommended in hydraulic systems. This serves several purposes: it acts as a lubricant to aid in achieving proper torque and thread engagement, provides an additional layer of sealing against micro-leakage paths, and facilitates easier disassembly in the future.
Body Size: 1/4in Body and Flow Rate (4 GPM)
Significance of Body Size:
The "1/4in BODY" specification refers to the nominal size of the coupler's internal bore or flow path, which directly influences its flow capacity and pressure drop characteristics. A 1/4-inch body size categorizes this coupler as suitable for smaller hydraulic lines and circuits. The body size is a critical parameter in system design, as it dictates the maximum volume of fluid that can pass through the coupler within a given time frame without inducing excessive pressure drop or fluid velocity. Mismatched body sizes between components can lead to hydraulic inefficiencies, overheating, and potential damage to pumps and other equipment due to cavitation or starved flow conditions.
Flow Rate Performance (4 GPM):
The stated flow rate of 4 GPM (Gallons Per Minute) quantifies the volumetric flow capacity of the coupler under specified conditions (typically at a certain pressure drop, though not explicitly stated here). A 4 GPM flow rate indicates that this coupler is designed for applications involving relatively low to moderate fluid transfer volumes. This capacity is well-suited for auxiliary hydraulic functions, small actuators, hydraulic tools, test equipment, and other light to medium-duty applications where excessive flow rates are not required. It is important for system designers to ensure that the coupler's flow rate capability matches or exceeds the maximum anticipated flow requirements of the circuit to prevent detrimental pressure losses and maintain system efficiency. For a 1/4-inch body, a 4 GPM flow rate is a reasonable and efficient design point, balancing fluid velocity with acceptable pressure drop for general-purpose applications.
Pressure Considerations:
While specific pressure ratings are not provided in the current description, stainless steel components with 1/4-inch NPTF threads and body sizes are typically engineered to withstand considerable operating and burst pressures common in industrial hydraulic systems. The inherent strength of stainless steel contributes significantly to the coupler's pressure containment capabilities. However, users must always refer to the manufacturer's specific pressure ratings for safe operation, ensuring that the coupler's pressure capabilities align with or exceed the maximum anticipated system pressure, including potential pressure spikes.
Performance Characteristics and Applications
Optimal Performance Parameters:
This Stainless Steel Hydraulic Coupler Set is engineered for reliable performance across a range of operating conditions. The natural finish of the stainless steel requires no additional coating, further enhancing its corrosion resistance and simplifying maintenance. The male and female set ensures complete compatibility and ready integration into a hydraulic circuit, providing a complete solution for connection requirements.
Diverse Application Scenarios:
Given its material construction, thread type, body size, and flow capacity, this coupler set is ideally suited for a broad spectrum of applications, particularly those in challenging environments where durability and resistance to corrosive media are paramount:
- Marine and Offshore Equipment: Excellent for use on boats, docks, offshore platforms, and coastal machinery where saltwater exposure necessitates high corrosion resistance.
- Agricultural Machinery: Suitable for farm equipment and implements that operate outdoors and are exposed to weather, fertilizers, and other corrosive agents.
- Chemical Processing Plants: Ideal for systems handling various industrial chemicals, where resistance to aggressive fluids is crucial for safety and system longevity.
- Food and Beverage Industry: While requiring specific certifications for direct food contact, stainless steel’s hygienic properties and ease of cleaning make it suitable for hydraulic components in the vicinity of production lines.
- Construction Equipment: For auxiliary hydraulic lines on smaller construction vehicles, offering robust performance in harsh, dirty environments.
- Industrial Robotics and Automation: For compact hydraulic circuits requiring reliable connections and resistance to shop floor contaminants.
- Test Benches and Laboratory Equipment: Where precise, leak-free connections and material integrity are critical for accurate testing and sensitive operations.
- General Industrial Hydraulics: Any application where a durable, long-lasting, and corrosion-resistant quick-disconnect coupling is beneficial.
Installation, Maintenance, and Safety Protocols
Installation Best Practices:
Correct installation is fundamental to maximizing the performance and lifespan of the hydraulic coupler. Prior to installation, both the male and female components, along with the mating NPTF threads on the hydraulic lines, must be meticulously cleaned to remove any debris, metal shavings, or contaminants. Such foreign particles can compromise the dryseal integrity, damage internal seals, or contaminate the hydraulic fluid. When applying thread sealant or PTFE tape (recommended for NPTF despite its dryseal capability), care must be taken to apply it sparingly to the external threads of the male component, ensuring that no sealant enters the fluid path, which could lead to system contamination or valve malfunction. The components should be tightened to the manufacturer's recommended torque specifications using appropriate tools to achieve a secure and leak-free connection without overtightening, which could cause thread damage or stress cracks.
Routine Maintenance:
Regular inspection of the coupler set is vital for identifying potential issues before they escalate. This includes visual checks for signs of external corrosion, physical damage, leaks, or wear on the sleeve and poppet components. The integrity of the internal O-rings and seals should also be monitored, as these are subject to wear over time. Any signs of fluid leakage, difficulty in connecting/disconnecting, or unusual noise during operation warrant immediate investigation. Periodic cleaning of the coupler surface can prevent the accumulation of dirt and debris that could impede operation or accelerate corrosion. When disconnected, both the male and female ends should be protected with dust caps or plugs to prevent ingress of contaminants into the hydraulic system.
Safety Considerations:
Adherence to safety protocols is paramount when operating hydraulic systems. As explicitly stated, the coupler should only be connected or disconnected after system pressure has been fully relieved. Failure to do so can result in sudden fluid ejection under high pressure, leading to severe injury, and can also damage the coupler components. Operators must also ensure that the hydraulic fluid used is compatible with stainless steel and the internal seal materials to prevent chemical degradation. Personal protective equipment (PPE), including safety glasses and gloves, should always be worn during hydraulic system maintenance or operation. All maintenance and installation procedures should conform to industry best practices and applicable safety regulations.
Conclusion
The Hydraulic Coupler Set, constructed from stainless steel with 1/4in NPTF threads and a 1/4in body, represents a meticulously engineered solution for reliable hydraulic fluid transfer. Its robust material composition ensures exceptional corrosion resistance, chemical compatibility, and mechanical strength, making it ideally suited for demanding operational environments. The general-purpose sleeve style design, coupled with a precision poppet seal, provides a balance of operational efficiency and leak-free integrity, with the critical caveat of requiring pressure relief for safe and effective connection. The 1/4in NPTF threading guarantees a secure, dryseal connection, while the 1/4in body size and 4 GPM flow rate delineate its optimal application scope. This coupler set stands as a testament to thoughtful design, offering a durable, high-performance component essential for maintaining the operational efficiency and longevity of diverse hydraulic systems across various industries.
