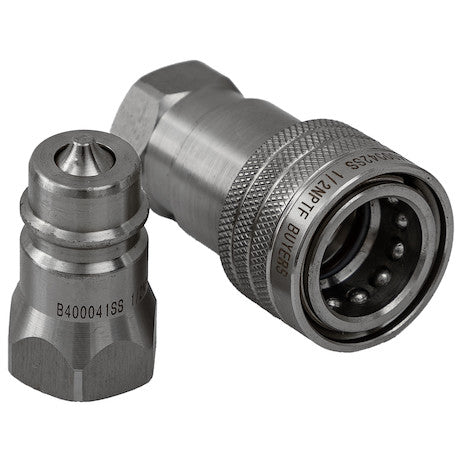

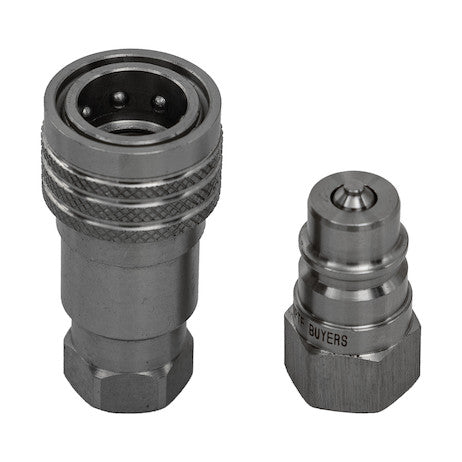

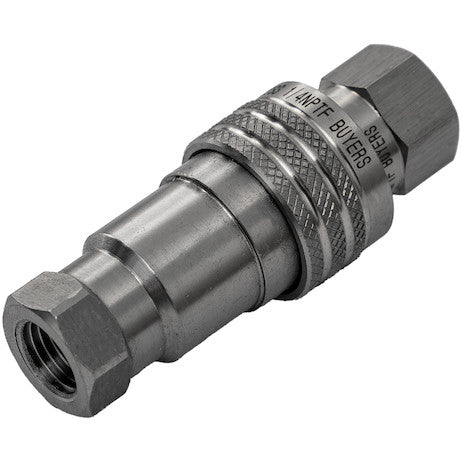

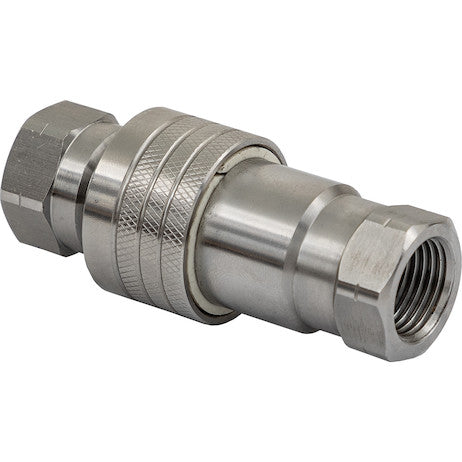

Buyers Products Stainless Steel Hydraulic Couplers are a general-purpose sleeve style coupler with poppet seal for a leak-free connection. The couplers are easy to connect when pressure has been relieved.
Specifications
| Color | Natural |
|---|---|
| Coupler Material | Stainless Steel |
| End (Male/Female/Full) | Male |
| Flow Rate (GPM) | 9 |
| Size | 3/8 NPT |
Technical Deep Dive: The Buyers Products Stainless Steel Hydraulic Coupler (Male, 3/8in NPTF, 3/8in Body)
In the demanding world of hydraulic systems, the integrity and reliability of every component are paramount. The Buyers Products Stainless Steel Hydraulic Coupler, specifically the male variant with a 3/8-inch NPTF thread and 3/8-inch body size, represents a pinnacle of engineering designed to meet the most rigorous operational requirements. This expanded technical overview delves into the intricate details, material science, design principles, and application benefits of this essential hydraulic component, providing a comprehensive understanding for engineers, procurement specialists, and system operators.
Unparalleled Material Durability: The Stainless Steel Advantage
The choice of stainless steel (SST) as the primary material for this hydraulic coupler is a critical factor in its superior performance and longevity. Unlike conventional carbon steel couplers, stainless steel offers a multitude of advantages that are indispensable in harsh operating environments. Typically, hydraulic couplers are manufactured from grades such as 304 or 316 stainless steel, renowned for their exceptional corrosion resistance. This characteristic is vital in applications exposed to moisture, aggressive chemicals, saltwater, or fluctuating temperatures, where oxidation and degradation of metallic components are significant concerns. Corrosion can lead to material weakening, microscopic pitting, and ultimately, catastrophic failure, compromising system integrity and operational safety. By utilizing stainless steel, the Buyers Products coupler effectively mitigates these risks, ensuring sustained performance and extended service life.
Beyond corrosion resistance, stainless steel boasts superior mechanical properties, including high tensile strength and ductility. These attributes enable the coupler to withstand the substantial internal pressures inherent in hydraulic systems, as well as external stresses such as vibration, shock loads, and abrasive contact. The inherent hardness of stainless steel also contributes to excellent wear resistance, particularly in dynamic connection points and sealing surfaces, maintaining precise tolerances over time. Furthermore, stainless steel exhibits excellent hygienic properties, making it suitable for applications where cleanliness and contamination prevention are critical, such as in food processing, pharmaceutical manufacturing, or medical equipment. Its non-reactive nature also ensures compatibility with a broad spectrum of hydraulic fluids, preventing material degradation or fluid contamination that could impair system efficiency or cause component damage. The natural aesthetic finish of stainless steel, often referred to as "Natural" in specifications, provides a clean, professional appearance that resists tarnishing, reflecting its robust internal quality.
Precision Engineering: Sleeve Style Operation and Poppet Seal Integrity
The operational mechanism of the Buyers Products hydraulic coupler is based on a general-purpose sleeve style design, which is widely recognized for its robust performance and user-friendly interface. This design facilitates efficient and reliable connection and disconnection of hydraulic lines. The sleeve mechanism typically involves a spring-loaded outer sleeve that, when retracted, allows the male and female halves of the coupler to engage or disengage. Upon release, the sleeve automatically springs back into position, securing the connection through a series of locking balls or pins that engage a groove in the mating half. This positive locking action ensures that the connection remains secure even under dynamic pressure fluctuations and vibrations, preventing inadvertent disconnections that could lead to fluid loss, system depressurization, and safety hazards.
Central to the leak-free performance of this coupler is its sophisticated poppet seal mechanism. A poppet seal is an internal valve that automatically closes when the coupler halves are disconnected, effectively sealing off both the male and female ports. This design prevents fluid leakage from the hydraulic lines and ingress of contaminants into the system when disconnected. When the male and female coupler halves are connected, the poppets are pushed open by the mating component, allowing unimpeded fluid flow. The precision engineering of the poppet and its mating seat ensures a tight, metal-to-metal seal or a combination of metal and elastomeric seals (O-rings, backup rings), which provides exceptional sealing integrity. The choice of elastomeric materials (e.g., Nitrile, Viton, EPDM) for seals is critical and depends on the operating temperature range, fluid compatibility, and pressure requirements, ensuring optimal performance across various applications. This dual sealing action—both internally when disconnected and externally when connected—underscores the coupler's commitment to maintaining system cleanliness and operational efficiency.
A notable feature highlighted in the product description is the "easy to connect when pressure has been relieved." This emphasizes a fundamental safety and operational principle in hydraulics. When a hydraulic line is under residual pressure, connecting or disconnecting couplers can be challenging, dangerous, and can damage the coupler or seals. Residual pressure creates resistance, making it difficult to fully seat the coupler halves, potentially leading to incomplete connections, fluid spray-out, or premature wear of components. By relieving system pressure before connecting or disconnecting, operators ensure smooth, safe, and secure engagement of the coupler. This design characteristic promotes safer work practices and extends the lifespan of the coupler by preventing damage from forced connections under pressure. The sleeve style mechanism inherently facilitates this process, allowing for straightforward operation once system pressure is normalized.
Understanding Threading and Body Size: 3/8in NPTF and 3/8in Body
The specific sizing and threading of a hydraulic coupler are crucial for proper system integration and leak-free performance. This coupler features a 3/8-inch NPTF thread and a 3/8-inch body size, each with distinct implications for its application.
3/8in NPTF (National Pipe Taper Fuel) Threading
NPTF is a standard U.S. taper pipe thread specifically designed to provide a dryseal connection without the need for additional sealant compounds (though sealants are often used for added security and ease of assembly/disassembly). The "F" in NPTF signifies "Fuel," indicating its suitability for applications where fluid containment and resistance to leakage are paramount, such as fuel lines, but more broadly, high-pressure hydraulic systems. The taper design means the threads narrow towards the end, creating an interference fit as the male and female threads are tightened. This mechanical interference between the crests and roots of the threads, combined with deformation of the thread material, creates a metal-to-metal seal that resists leakage. The 3/8-inch designation refers to the nominal pipe size, not the actual measured diameter of the threads, which is a common convention in pipe threading standards. The precise dimensions and taper angle (1°47'24" or 1.7899 degrees from the centerline) are strictly controlled by ANSI/ASME B1.20.3 standards, ensuring interoperability with other NPTF components. The integrity of an NPTF connection relies heavily on proper torqueing during installation to achieve the necessary thread deformation for sealing, yet avoiding over-torqueing which can damage threads or crack components. This thread type is favored in hydraulic applications due to its robust sealing capability and resistance to fluid migration along the helical path of the threads, a common issue with non-tapered threads.
3/8in Body Size
The "3/8-inch body" designation refers to the overall physical size of the coupler body, which typically correlates with the internal bore diameter and thus, the maximum flow capacity and pressure rating. The body size dictates the general dimensions of the coupler, influencing its compatibility with hydraulic hoses, valves, and other components in a system. While the NPTF thread connects the coupler to the system, the body size defines the component's internal architecture that governs hydraulic performance. A 3/8-inch body size is commonly used in medium-duty hydraulic circuits, offering a balance between compactness and sufficient flow capacity for many industrial, agricultural, and mobile equipment applications. The physical dimensions of the body also influence the ease of handling, installation space requirements, and overall robustness of the component within an assembly. It is critical to match the body size with the requirements of the hydraulic system to ensure optimal flow and pressure characteristics.
Optimized Flow Dynamics: 9 GPM Capacity
The specified flow rate of 9 Gallons Per Minute (GPM) for this hydraulic coupler is a critical performance metric. Flow rate defines the volume of hydraulic fluid that can pass through the coupler per unit of time without excessive pressure drop or turbulence. A 9 GPM capacity indicates that this coupler is designed for systems where moderate flow volumes are required, typical in many industrial and mobile hydraulic applications. Exceeding the recommended flow rate can lead to several undesirable effects: increased fluid velocity, which can cause excessive pressure drops across the coupler, leading to reduced system efficiency and power loss; increased fluid temperature due to heightened friction and turbulence; and potential cavitation, which can damage internal components and degrade hydraulic fluid. Conversely, using a coupler with an excessively high flow rate capacity for a low-flow system might result in an oversized component without significant performance benefits, potentially increasing cost and space requirements.
The internal design of the coupler, including the bore diameter, poppet mechanism, and flow passages, is optimized to facilitate smooth, laminar flow at 9 GPM, minimizing restrictions and pressure energy losses. Engineers carefully balance the need for robust construction with efficient fluid dynamics to achieve this capacity. For a 3/8-inch body and 3/8-inch NPTF connection, 9 GPM represents an appropriate and efficient flow capability, ensuring that the coupler does not become a bottleneck in the hydraulic circuit. When designing or maintaining hydraulic systems, it is essential to select components with flow ratings that meet or slightly exceed the maximum anticipated flow requirements of the specific circuit to ensure optimal performance, prevent overheating, and extend the lifespan of all hydraulic components.
Seamless Integration and Operational Efficiency
The design philosophy behind the Buyers Products Stainless Steel Hydraulic Coupler prioritizes seamless integration and enhanced operational efficiency. Its male configuration is standard for connecting to female counterparts on hoses or equipment, simplifying system assembly and modification. The consistent application of industry-standard threading (NPTF) ensures broad compatibility with a wide range of existing hydraulic components and systems, reducing the complexity and cost associated with specialized fittings. The general-purpose sleeve style, coupled with the poppet seal, ensures quick disconnect functionality without compromising fluid integrity. This quick-disconnect capability is invaluable in applications requiring frequent changes of attachments or tools, such as in agricultural machinery, construction equipment, or various industrial processes. The ability to quickly swap implements minimizes downtime, boosts productivity, and allows for greater versatility of equipment. The emphasis on easy connection after pressure relief further streamlines operations, promoting efficient workflow and reducing the physical effort required from operators.
Applications Across Diverse Industries
The robust construction and technical specifications of this stainless steel hydraulic coupler render it highly suitable for a broad spectrum of demanding applications:
- Agricultural Machinery: Farm equipment like tractors, harvesters, and implements often rely on hydraulics for movement and operation. Stainless steel's corrosion resistance is beneficial in outdoor environments exposed to weather, fertilizers, and pesticides.
- Construction Equipment: Excavators, loaders, and other heavy machinery operate in harsh conditions with dirt, debris, and varying temperatures. The durability and leak-free connection are critical for safety and sustained operation.
- Marine Applications: On vessels, docks, and offshore platforms, exposure to saltwater is constant. Stainless steel is imperative to prevent rapid corrosion and ensure reliable hydraulic functions in steering, winches, and lifting gear.
- Food & Beverage Processing: In environments requiring stringent hygiene standards, stainless steel is preferred due to its corrosion resistance, ease of cleaning, and non-contaminating properties. Hydraulic systems power conveyors, mixers, and processing equipment.
- Chemical & Pharmaceutical Industries: Handling aggressive chemicals necessitates materials that resist degradation. Stainless steel couplers ensure compatibility with a wide range of fluids and maintain system integrity in critical processes.
- Industrial Manufacturing: Hydraulic presses, robotic arms, and assembly lines often utilize couplers for quick tool changes or modular system designs. The reliability and durability of stainless steel enhance overall production efficiency.
- Mining and Quarrying: In highly abrasive and corrosive environments, the toughness of stainless steel provides the longevity needed for heavy-duty hydraulic power units and machinery.
The versatility derived from its material, design, and technical specifications makes this coupler a reliable choice for critical fluid power connections across a multitude of sectors where performance cannot be compromised.
Installation, Maintenance, and Longevity
Proper installation and routine maintenance are crucial to maximizing the longevity and performance of the Buyers Products Stainless Steel Hydraulic Coupler. When installing, it is imperative to use appropriate thread sealant (even with NPTF, an appropriate anaerobic sealant or PTFE tape can assist in achieving optimal sealing and prevent galling, especially with stainless steel) and to torque the connection to the manufacturer's specified value. Over-tightening can deform threads, crack the coupler, or induce stress corrosion, while under-tightening can lead to leaks. Ensure mating surfaces are clean and free of debris before connection. Regularly inspect the coupler for signs of wear, corrosion, or damage to the body, sleeve, and seals. Any visible signs of leakage, even minor weeping, warrant immediate attention, indicating potential seal degradation or a compromised connection. The poppet mechanism should also be checked for smooth operation. Replacement of seals, if serviceable, or the entire coupler, should be performed according to manufacturer guidelines or when significant wear is observed. Adhering to manufacturer-recommended hydraulic fluid cleanliness standards and filtration practices will also significantly extend the life of all hydraulic components, including couplers, by preventing abrasive particle wear and chemical degradation of seals.
Safety Protocols and Best Practices
Safety is a non-negotiable aspect of hydraulic system operation, and the design of this coupler inherently supports safer practices. The "easy to connect when pressure has been relieved" feature is a direct safety advantage, preventing the dangers associated with connecting or disconnecting under residual pressure. High-pressure hydraulic fluid can penetrate skin, causing severe injury or death. Always depressurize the hydraulic system completely before attempting any connection or disconnection. Use appropriate personal protective equipment (PPE), including safety glasses and gloves. Ensure that the coupler is fully engaged and locked before pressurizing the system. Regularly check the connections for leaks, which can indicate a faulty seal or an improperly torqued connection. Understanding the pressure ratings of the coupler and the overall system is also vital; never exceed the maximum operating pressure of any component. Training for operators on proper handling and maintenance procedures is also paramount to ensure safe and efficient use of hydraulic equipment.
Commitment to Quality and Performance
Buyers Products is renowned for its commitment to engineering excellence and manufacturing quality. This stainless steel hydraulic coupler is a testament to that commitment, crafted using advanced manufacturing techniques and subjected to rigorous quality control processes. From the selection of high-grade stainless steel raw materials to precision machining of intricate components, every stage of production is meticulously monitored. Testing protocols typically include pressure testing to ensure integrity against rated pressures, flow testing to confirm GPM capacity, and visual inspections for dimensional accuracy and finish quality. This dedication ensures that each coupler consistently meets or exceeds industry standards for performance, durability, and safety, providing end-users with a reliable solution that minimizes downtime and enhances overall system productivity.
Conclusion: A Benchmark in Hydraulic Connection Technology
The Buyers Products Stainless Steel Hydraulic Coupler, with its male 3/8-inch NPTF and 3/8-inch body specifications, stands as a premium solution for demanding hydraulic applications. Its core advantages stem from the inherent properties of stainless steel, providing exceptional resistance to corrosion, wear, and chemical degradation, while maintaining high mechanical strength. The intelligent design, featuring a general-purpose sleeve style and a high-integrity poppet seal, ensures quick, leak-free connections, contributing to operational efficiency and system cleanliness. The precise 3/8-inch NPTF threading guarantees robust sealing capabilities, and the 9 GPM flow rate supports optimized fluid dynamics for a wide array of medium-duty applications. From the unforgiving conditions of marine environments and agricultural fields to the sterile demands of food processing and chemical manufacturing, this coupler delivers consistent, reliable performance. By combining advanced material science with thoughtful engineering, Buyers Products offers a hydraulic coupler that not only meets but often exceeds the expectations of the most rigorous industrial and commercial users, representing a sound investment in the longevity, safety, and efficiency of hydraulic systems.
