Buyers Products Stainless Steel Hydraulic Couplers are a general-purpose sleeve style coupler with poppet seal for a leak-free connection. The couplers are easy to connect when pressure has been relieved.
Specifications
| Color | Natural |
|---|---|
| Coupler Material | Stainless Steel |
| End (Male/Female/Full) | Female |
| Flow Rate (GPM) | 9 |
| Size | 3/8 NPT |
The Buyers Products Stainless Steel Hydraulic Coupler, FEMALE, 3/8in NPTF, 3/8in BODY, is a testament to robust engineering and material science in fluid power connectivity. As a general-purpose, sleeve-style quick coupler, it is meticulously designed for a broad spectrum of industrial and mobile hydraulic applications. Constructed from premium stainless steel, it provides unparalleled durability and resistance to harsh environmental conditions. The integrated poppet seal ensures a reliable, leak-free connection, crucial for system integrity and operational efficiency. Engineered for safe operation, it requires system pressure relief for seamless connection, a standard practice safeguarding components and personnel. Its natural aesthetic underscores the material's inherent quality, aligning with demanding functional and environmental specifications.
Material Excellence: Stainless Steel Construction
The strategic selection of stainless steel as the foundational material for this hydraulic coupler is driven by a profound understanding of demanding operational environments. Stainless steel, recognized for its exceptional inherent corrosion resistance, high tensile strength, and superior fatigue life, offers significant advantages over conventional materials like carbon steel. Commonly, grades such as 304 or 316 stainless steel are employed for precision hydraulic components. Grade 304 provides excellent resistance to atmospheric, chemical, and industrial exposures, coupled with superb formability. For applications encountering more aggressive media, including chlorides and various acids, Grade 316, with its molybdenum content, offers enhanced corrosion protection. This material choice guarantees an extended service life, resisting pitting, crevice corrosion, and galvanic corrosion, which are common failure modes in less robust materials. Furthermore, stainless steel’s resistance to cavitation erosion, crucial in high-velocity fluid applications, and its ability to maintain mechanical properties across wide temperature ranges, ensure consistent performance. The material's hygienic properties also make this coupler suitable for sensitive sectors such as food processing and pharmaceuticals. The natural finish is a direct reflection of this quality, indicating an uncompromised material integrity.
Sleeve Style Operation and Benefits

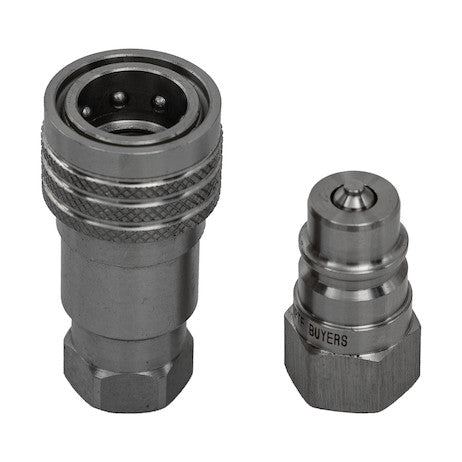

As a general-purpose sleeve style coupler, this product incorporates a widely adopted and proven mechanism for quick connection and disconnection. This design facilitates engagement by manually retracting a cylindrical sleeve on the female (socket) half, inserting the corresponding male (nipple) half, and then releasing the sleeve to lock the components together. An internal arrangement, typically involving spring-loaded ball bearings, secures the nipple within the socket, forming a robust mechanical interface. This method provides a balance of ease of use and secure locking, offering reliable resistance to accidental uncoupling under dynamic operational loads. Operators receive clear tactile feedback upon proper engagement, enhancing safety and operational confidence. The robust stainless steel construction of the sleeve ensures longevity and resistance to deformation, preserving the integrity of the coupling process over countless cycles and contributing to efficient preventative maintenance.
Precision Sealing: The Poppet Mechanism
The core of this coupler’s “leak-free connection” capability lies in its advanced poppet seal design. Poppet seals are integral valve elements, typically spring-loaded conical or spherical components, engineered to seat firmly against a corresponding valve seat within the coupler. When the male and female halves are separated, these poppets automatically close, providing positive shut-off and significantly minimizing fluid loss—a desirable "dry break" characteristic. Upon connection, the mating halves mechanically unseat the respective poppets, allowing unimpeded hydraulic fluid flow. The efficacy of this seal is largely dependent on the elastomer material, commonly Nitrile (Buna-N), Viton (FKM), or EPDM, which must be compatible with the hydraulic fluid, operating temperatures, and pressure range. This design is critical for maintaining system cleanliness by preventing contaminant ingress during connection/disconnection, thereby protecting sensitive hydraulic components and enhancing overall system efficiency and environmental compliance.
Operational Prerequisite: Pressure Relief for Connection
The specification stating "easy to connect when pressure has been relieved" highlights a fundamental operational guideline for this poppet-style hydraulic coupler. Hydraulic systems often retain residual pressure, which can exert substantial force against the internal poppet valves, making connection exceedingly difficult or impossible. Attempting to force a connection against trapped pressure risks damaging the coupler, seals, and potentially leading to a dangerous, uncontrolled release of high-pressure fluid. Therefore, depressurizing the specific hydraulic line or component segment is a mandatory safety and operational step. This typically involves activating a relief valve or cycling an actuator to dissipate residual pressure. While certain coupler types, such as flush-face designs, accommodate residual pressure connection, the inherent mechanism of poppet seals necessitates this preparatory step. Adherence to this procedure ensures smooth engagement, prolongs the coupler's lifespan, and significantly enhances operator safety by mitigating the risks associated with pressurized connections.
Female Coupler Configuration

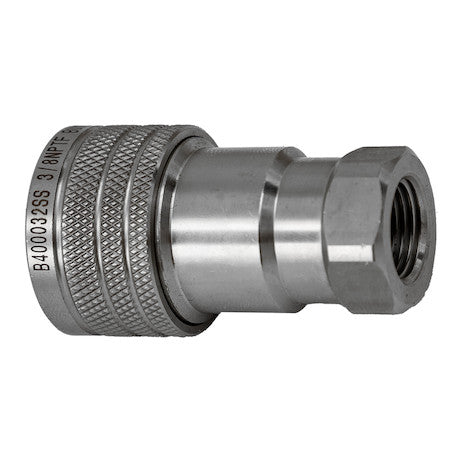

Designated as "Female," this coupler serves as the socket half of a quick-connect assembly. In typical hydraulic circuit configurations, the female coupler is often permanently mounted on a machinery chassis, a hydraulic manifold, or integrated into a hose reel. This fixed mounting provides a stable and easily accessible interface for connecting various hydraulic tools or interchangeable attachments equipped with corresponding male nipples. This configuration enhances versatility, allowing for rapid changeovers of hydraulic implements—a critical feature in sectors like agriculture and construction where operational flexibility is key. The female coupler's design integrates the primary locking mechanism and often the main poppet seal, making it a robust and critical component for fluid path control and secure connection.
3/8in NPTF Thread Technology
The "3/8in NPTF" designation specifies the nominal pipe size and thread standard for connecting this coupler into a hydraulic system. NPTF stands for National Pipe Taper Fuel, a variant of the widely recognized NPT (National Pipe Taper) standard. The defining characteristic of NPTF threads is their "dryseal" capability. Unlike standard NPT threads that rely on external thread sealant, NPTF threads are engineered to seal mechanically. During tightening, the crests of the male NPTF thread are designed to crush into the roots of the female NPTF thread, forming a metal-to-metal interference seal that theoretically eliminates the need for additional sealants. However, in high-pressure or vibration-prone hydraulic applications, a high-quality thread sealant or lubricant is often still recommended to facilitate assembly, prevent galling, and provide an additional layer of sealing security. The 3/8-inch nominal size denotes the internal diameter of the pipe or port, ensuring compatibility within the hydraulic plumbing. The thread's taper is fundamental to its self-sealing mechanism, creating a wedging action as it tightens. This precision threading is paramount for maintaining pressure integrity and preventing leaks from the connection point.
3/8in Body Size Significance
The "3/8in BODY" specification refers to the nominal body or envelope size of the coupler. This dimension is crucial for ensuring interchangeability and defining the overall physical footprint, flow capacity, and pressure rating characteristics of the quick coupler. Couplers with the same body size, often conforming to industry standards (e.g., ISO 7241-1, though not explicitly stated), are generally designed for compatibility, facilitating system flexibility and part sourcing. The body size directly influences the internal bore diameter, which in turn determines the maximum permissible flow rate and associated pressure drop. A 3/8-inch body size positions this coupler in the medium-duty range, making it suitable for a wide variety of mobile and industrial equipment applications characterized by moderate flow requirements and potentially constrained installation space. Correctly matching body sizes between male and female components is fundamental for proper connection and system functionality.
Flow Rate Performance: 9 GPM
The specified "Flow Rate (GPM): 9" is a critical performance parameter, indicating the maximum recommended volumetric flow rate in Gallons Per Minute that this coupled connection can efficiently handle with an acceptable pressure drop. Exceeding this 9 GPM rating can lead to detrimental effects within a hydraulic system, including increased pressure drop across the coupler, resulting in energy loss, heat generation, and reduced power at the actuator. Furthermore, higher flow velocities can induce turbulence, cavitation, and erosion, accelerating wear of internal components. This 9 GPM rating suggests the coupler is optimally suited for applications with moderate flow demands, making it ideal for auxiliary circuits or smaller hydraulic power units where efficiency and component longevity are paramount. Proper selection ensures the coupler does not become a flow bottleneck, maintaining system efficiency and minimizing operational costs.
Inherent Pressure Capability
While not explicitly listed, the pressure rating is an indispensable characteristic of any hydraulic coupler. Due to its robust stainless steel construction and poppet sealing mechanism, couplers of this body and thread size typically exhibit high working pressure ratings, often ranging from 3,000 to 5,000 psi (approximately 200 to 350 bar). This capability allows the coupler to safely contain the significant operating pressures common in modern hydraulic systems. It is imperative that the coupler's pressure rating consistently meets or exceeds the maximum anticipated system operating pressure, including any potential pressure spikes. A safety factor, typically a burst pressure four times the working pressure, ensures a critical margin against catastrophic failure. This inherent pressure capability is fundamental for both operational safety and overall system reliability, preventing dangerous leaks and ensuring consistent hydraulic power delivery.
Versatile Applications Spectrum
The Buyers Products Stainless Steel Hydraulic Coupler’s robust design and material composition render it exceptionally versatile for a broad spectrum of demanding applications across various industries. Its superior corrosion resistance makes it an exemplary choice for marine environments, including offshore equipment, dockside machinery, and various marine vessel hydraulics where constant exposure to saltwater and corrosive elements is a factor. In agriculture, where equipment faces harsh weather, chemicals, and fertilizers, the coupler provides enduring reliability for implements and sprayers. Construction equipment, operating in abrasive and dirty conditions, also benefits significantly from its durable construction. Furthermore, its inherent hygiene and chemical resistance extend its utility to food and beverage processing, pharmaceutical manufacturing, and chemical plants, where cleanliness, non-contamination, and resistance to caustic washdowns are paramount. Its 3/8in NPTF connection and 9 GPM flow rate make it suitable for auxiliary circuits and moderate flow applications within these diverse industrial and mobile contexts.
Installation and Longevity Best Practices
To ensure optimal performance and extend the service life of this hydraulic coupler, adherence to proper installation and maintenance procedures is crucial. During installation, the 3/8in NPTF threads must be carefully aligned to prevent cross-threading, which can irrevocably damage the threads. While NPTF threads are designed for dryseal, applying a high-quality thread sealant or PTFE tape specifically rated for hydraulic systems is recommended to enhance sealing integrity, particularly in high-pressure or vibration-prone circuits. Over-tightening must be avoided to prevent material distortion or cracking of the port. Regular inspections are vital: check for external leakage, physical damage to the coupler body or sleeve, and signs of wear or degradation on the internal poppet seals. Any observed damage or excessive wear warrants immediate replacement to prevent system failure. Maintaining system cleanliness by wiping mating surfaces and utilizing dust caps/plugs when disconnected is a simple yet effective preventative measure against contaminant ingress and premature wear.
System Compatibility and Standardization
While specific interchangeability standards (e.g., ISO 7241-1 Series A or B) are not explicitly detailed, the 3/8in body size is a widely recognized dimension in hydraulic quick coupler designs. This typically implies a degree of compatibility with other manufacturers' couplers of the same body size that adhere to common industry standards for general-purpose quick couplers. However, for critical systems, it is always recommended to verify interchangeability with the specific male nipple intended for use, ideally utilizing male components from Buyers Products or those explicitly confirmed compatible by the manufacturer. Mismatched coupler types or body sizes can lead to incomplete connections, substantial pressure drops, leakage, or outright mechanical incompatibility. The use of a standard thread form like 3/8in NPTF further contributes to broad compatibility with existing hydraulic plumbing infrastructure, simplifying system integration and maintenance.
Conclusion
In summary, the Buyers Products Stainless Steel Hydraulic Coupler, FEMALE, with its 3/8in NPTF connection and 3/8in body size, represents an exemplary choice for professional hydraulic applications demanding uncompromising reliability, corrosion resistance, and operational efficiency. Its premium stainless steel construction ensures exceptional longevity and integrity in the most aggressive environments. The precision-engineered poppet seal guarantees a consistently leak-free connection, minimizing fluid loss and preventing environmental contamination. Designed for straightforward connection once system pressure is relieved, it promotes safe operating practices and prolongs component life. With a robust 9 GPM flow rate capacity, it is optimally suited for a wide range of medium-duty hydraulic circuits. This coupler is more than a mere component; it is a strategic investment in system reliability, safety, and peak performance, embodying the rigorous engineering standards expected in contemporary fluid power solutions. Its blend of durable materials, intelligent design, and practical operational considerations positions it as an essential and highly dependable interface for dynamic hydraulic systems across countless industrial and mobile sectors.
