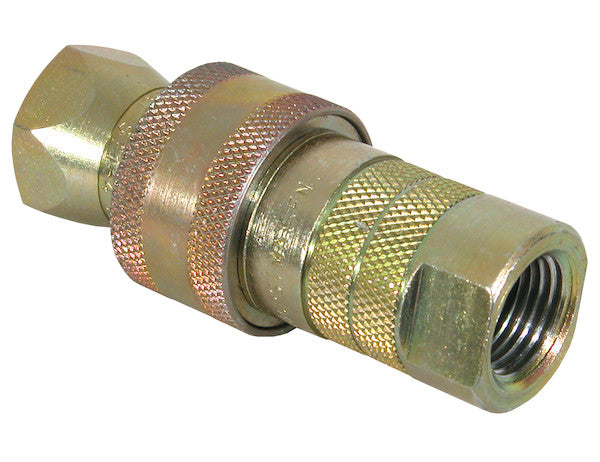

B40004 - 1/2 Inch NPTF Sleeve-Type Hydraulic Quick Coupler Assembly

The Sleeve-Type Hydraulic Quick Coupler from Buyers Products is a rugged coupler with a single acting sleeve design. It connects when a system is not operating or when pressure has been relieved. The coupler assembly is zinc-plated for corrosion resistance.

Specifications

Advanced Technical Overview: The Buyers Products 1/2 Inch NPTF Sleeve-Type Hydraulic Quick Coupler Assembly

In modern industrial, agricultural, and mobile hydraulic systems, the efficiency, reliability, and safety of fluid power connections are paramount. The Buyers Products 1/2 Inch NPTF Sleeve-Type Hydraulic Quick Coupler Assembly represents a meticulously engineered solution designed to meet these stringent demands. This comprehensive assembly, comprising both male and female components, facilitates rapid, secure, and leak-free connection and disconnection of hydraulic lines, significantly enhancing operational flexibility and reducing downtime in critical applications.

Precision Engineering and Core Functionality

At its heart, this quick coupler assembly is designed for optimal performance in dynamic hydraulic environments. The core function of a quick coupler is to allow operators to quickly attach and detach hydraulic hoses without the need for tools or complex procedures. This capability is crucial in applications where various implements or attachments are frequently swapped, such as on agricultural tractors, construction equipment, or municipal utility vehicles. The Buyers Products assembly excels in this regard, providing a robust interface for fluid transfer.

The Single-Acting Sleeve Mechanism

A defining characteristic of this coupler is its single-acting sleeve design. In a single-acting sleeve coupler, the connection process typically involves manually retracting a sleeve on the female coupler, inserting the male tip, and then releasing the sleeve to allow internal locking mechanisms (often ball bearings or similar retention devices) to secure the connection. This design is highly valued for its straightforward operation and robust mechanical lock. The "single acting" refers to the fact that only one component (the sleeve) requires manual manipulation for connection or disconnection, streamlining the user experience while maintaining a secure engagement.

The operational directive for this coupler specifies connection "when a system is not operating or when pressure has been relieved." This is a critical safety and functional feature. Hydraulic quick couplers, particularly those employing poppet or ball valves for sealing, can be exceedingly difficult or even impossible to connect under residual system pressure due to the force exerted on the internal valves. Attempting to connect under pressure can lead to premature wear of internal seals, damage to the valve components, or even hazardous fluid spray. The design ensures that operators adhere to best safety practices by confirming pressure relief, thereby extending the coupler's lifespan and safeguarding personnel. Internal valving, commonly either poppet or ball type, is designed to minimize fluid loss upon disconnection and prevent ingress of contaminants. When the male and female halves are connected, these valves open to allow unrestricted flow, and when disconnected, they automatically close to seal the respective lines.

The NPTF Thread Standard: Ensuring Dryseal Performance

The specification of a 1/2 Inch NPTF (National Pipe Taper Fuel) thread is central to the integrity of this coupler assembly. NPTF is a specific type of tapered pipe thread designed to create a metal-to-metal seal without the need for additional sealants like PTFE tape or liquid pipe dope, though their judicious use can sometimes provide an extra layer of security. This "dryseal" capability is achieved through a precise interference fit between the crests and roots of the mating threads, which deforms the metal slightly to create a seal. The taper of the thread (3/4 inch per foot, or approximately 1 degree 47 minutes angle from the centerline) ensures that as the male and female threads are tightened, the flanks compress against each other, forming a tight seal.

Understanding the distinction between NPT and NPTF is crucial. While NPT (National Pipe Taper) threads share the same basic taper angle and pitch, NPTF threads are manufactured to tighter tolerances at the crest and root. This allows them to effectively crush and seal, whereas standard NPT threads typically rely on a sealant for a leak-proof connection. For hydraulic applications where high pressures and varying temperatures are common, the inherent sealing capability of NPTF threads provides a significant advantage in reliability and reduced potential for leakage points. The 1/2-inch nominal size refers to the internal diameter of the pipe or fitting it is designed for, dictating the flow path and influencing the overall hydraulic capacity of the system segment where it is installed.

Material Science: Carbon Steel for Uncompromised Strength and Durability

The selection of Carbon Steel as the primary material for both the coupler body and wing components underscores the product's commitment to durability and performance under strenuous conditions. Carbon steel is a ferrous alloy primarily composed of iron and carbon (upally up to 2.1% by weight), often with other alloying elements in smaller quantities. Its widespread use in hydraulic components is attributed to several key properties:

• High Tensile Strength: Carbon steel exhibits excellent resistance to pulling forces, crucial for enduring the internal pressures common in hydraulic systems, which can often exceed several thousand PSI.
• Yield Strength: This material can withstand significant stress before permanent deformation occurs, ensuring the structural integrity of the coupler even under high working loads and pressure spikes.
• Fatigue Resistance: Hydraulic systems are subject to continuous pressure cycling and vibration. Carbon steel's inherent fatigue resistance ensures a longer operational life, resisting cracks and failure from repeated stress.
• Impact Resistance: In environments where mechanical shock or accidental impacts are possible, carbon steel offers robust protection against damage.
• Cost-Effectiveness: Relative to other high-strength alloys, carbon steel provides an excellent balance of performance and economic viability, making it a practical choice for industrial-grade components.
• Weldability: For components that might be integrated into more complex assemblies, carbon steel’s good weldability is an advantage.

The designation of "Wing Material: Carbon Steel" specifically highlights the rugged construction of the wings on the female coupler. These wings are typically designed to provide a secure grip for easier handling, especially when wearing gloves, and to offer additional leverage during coupling and uncoupling. Their construction from carbon steel ensures they can withstand repeated handling and potential impacts without deforming or breaking, contributing to the overall longevity and serviceability of the coupler.

Enhanced Protection: Zinc Plating for Corrosion Resistance

To further bolster the durability and extend the service life of the carbon steel components, the entire coupler assembly undergoes a zinc-plating process. Zinc plating is a sacrificial coating that provides superior corrosion resistance, particularly vital in outdoor or harsh operating environments where moisture, chemicals, or abrasive elements are prevalent. The mechanism of protection is twofold:

• Barrier Protection: The zinc layer acts as a physical barrier, preventing direct contact between the carbon steel substrate and corrosive agents.
• Sacrificial Protection (Galvanic Action): Zinc is more electrochemically active than steel. In the presence of an electrolyte (e.g., moisture), the zinc preferentially corrodes, sacrificing itself to protect the underlying steel. This sacrificial action continues even if the zinc coating is scratched or slightly damaged, as long as there is sufficient zinc present in the vicinity.

Zinc plating significantly delays the onset of rust and other forms of corrosion, which could otherwise compromise the coupler's aesthetic, functional integrity, and structural strength. This contributes to reduced maintenance requirements and ensures that the coupler maintains its operational effectiveness over an extended period, even when exposed to demanding conditions like road salts, agricultural chemicals, or industrial pollutants. Typically, clear chromate or yellow chromate passivation is applied over the zinc layer to enhance corrosion resistance and provide a more appealing finish.

Performance Metrics: Flow Rate and System Compatibility

The specified flow rate of 20 GPM (Gallons Per Minute) is a critical performance parameter, indicating the volume of hydraulic fluid the coupler can efficiently pass through without excessive pressure drop or turbulence. In hydraulic systems, flow rate directly correlates with the speed of actuators (e.g., cylinders extending/retracting, motors rotating). A 20 GPM rating suggests this coupler is suitable for a wide range of medium-duty to heavy-duty applications where significant power transfer is required.

When selecting a quick coupler, it is imperative to match its flow rate capacity with the maximum flow rate of the hydraulic pump and the requirements of the actuators. Using a coupler with an insufficient flow rating can lead to:

• Excessive Pressure Drop: Constriction within the coupler increases resistance to fluid flow, causing a drop in pressure downstream. This translates to reduced power available at the actuator and decreased system efficiency.
• Heat Generation: Increased turbulence and friction from restricted flow generate heat within the hydraulic fluid, which can degrade seals, accelerate fluid breakdown, and reduce overall system lifespan.
• Cavitation: Extreme pressure drops can lead to cavitation, where vapor bubbles form and collapse, causing noise, vibration, and significant damage to hydraulic components over time.

The 20 GPM rating for a 1/2-inch NPTF coupler suggests a well-balanced design, capable of handling robust hydraulic circuits without becoming a bottleneck. While not explicitly listed, a coupler of this size and flow capacity, constructed from carbon steel, would typically be rated for working pressures well into the thousands of PSI, aligning with common hydraulic system pressures (e.g., 2,500 PSI to 5,000 PSI or more, depending on the specific design and industry standards it adheres to). Operators should always confirm the exact pressure ratings from the manufacturer's data sheet to ensure compatibility with their system's maximum operating and burst pressures.

Furthermore, the coupler’s temperature range is an important consideration. Hydraulic fluid viscosity and seal material integrity are highly dependent on temperature. While not specified, typically, these couplers are designed to operate effectively across a broad temperature range, often from -40°F to 250°F (-40°C to 120°C), leveraging resilient seal materials like Nitrile (Buna-N) for general hydraulic oils or Viton (FKM) for higher temperatures or specific chemical compatibility requirements.

The Male & Female Set: Engineered for Seamless Integration

The offering of this product as a "Male & Female Set" ensures complete compatibility and optimal performance straight out of the box. Precision matching between the male tip (often referred to as the nipple) and the female coupler body is critical for creating a reliable hydraulic connection. This set is engineered to exact specifications to ensure:

• Leak-Free Seal: When connected, the internal valves and external sealing surfaces work in concert to prevent fluid escape.
• Minimal Pressure Drop: The internal flow paths of the male and female components are designed to align perfectly, minimizing turbulence and resistance.
• Secure Locking: The locking mechanism engages fully and securely, preventing accidental disconnections even under vibration or dynamic loads.
• Consistent Performance: Using a matched set from the same manufacturer eliminates potential tolerance issues that can arise when mixing components from different brands, which might adhere to slightly different interpretations of industry standards.

The specification "Wing Material: Carbon Steel" reinforces the robust nature of the female coupler, especially if it employs a wing-style design. Wings are ergonomic features, usually integrated into the body of the female coupler, that provide a larger surface area for gripping. This design is particularly prevalent in agricultural and heavy industrial applications where users often wear heavy gloves, or need additional leverage to connect/disconnect hoses, especially when the coupler may be slightly fouled with dirt or mud. The carbon steel construction of these wings ensures they are as durable and resistant to damage as the main coupler body, maintaining functionality and ease of use in challenging field conditions.

Durability, Reliability, and Operational Longevity

The designation of this as a "rugged coupler" is not merely descriptive but indicative of its design philosophy. It is built to withstand the punishing environments typical of heavy machinery and industrial applications. This includes:

• Resistance to Environmental Contaminants: The sealed design and robust construction minimize the ingress of dirt, dust, moisture, and other particulate matter that can damage internal components or contaminate hydraulic fluid.
• Vibration and Shock Resistance: The robust locking mechanism and heavy-duty materials ensure the connection remains secure even when subjected to continuous vibration or sudden shocks common in mobile equipment.
• Abrasion Resistance: External surfaces are designed to resist wear from continuous handling, dragging hoses, or contact with abrasive materials.
• Temperature Extremes: The materials and plating are selected to perform reliably across a broad range of operating temperatures, from freezing cold to intense heat, without compromising structural integrity or sealing capabilities.

This commitment to durability translates directly into enhanced reliability and an extended operational lifespan, reducing the total cost of ownership through fewer replacements and less maintenance.

Installation, Maintenance, and Safety Protocols

Proper installation and routine maintenance are crucial for maximizing the performance and longevity of any hydraulic component. For the Buyers Products 1/2 Inch NPTF Sleeve-Type Hydraulic Quick Coupler Assembly:

• Installation: When installing, ensure all connections are clean and free of debris. For NPTF threads, while designed for a dryseal, a minimal application of a high-quality, hydraulic-compatible thread sealant or PTFE tape can provide an extra layer of protection against leaks, especially in critical applications. Care must be taken not to over-tighten, which can deform the threads, or under-tighten, which can lead to leaks. Always use appropriate tools and ensure proper alignment.
• Maintenance: Regular inspection of the coupler assembly is recommended. Check for signs of wear, corrosion, or damage to the body, sleeve, and particularly the internal seals. Worn seals are the most common cause of leakage and should be replaced promptly. Keep the coupler faces clean when disconnected to prevent contamination of the hydraulic system.
• Safety: Adhering to the "connects when a system is not operating or when pressure has been relieved" guideline is paramount for safety. Before disconnecting, always depressurize the hydraulic lines to prevent fluid spray, which can cause severe injury. Proper handling also prevents accidental disconnections and ensures fluid containment, minimizing environmental impact and potential slip hazards.

Versatile Applications Across Industries

The robust design, 1/2-inch NPTF connection, 20 GPM flow rate, and single-acting sleeve mechanism make this quick coupler assembly exceptionally versatile for a multitude of demanding applications:

• Agriculture: Essential for quickly connecting and disconnecting hydraulic cylinders on farm implements such as plows, cultivators, loaders, balers, and seeders to tractors, significantly improving efficiency during planting, harvesting, and field maintenance.
• Construction: Used on various construction machinery like excavators, skid steers, backhoes, and compact loaders for attaching hydraulic breakers, augers, grapples, and other attachments, enabling rapid equipment reconfiguration on job sites.
• Industrial Manufacturing: Integrated into industrial power units, assembly lines, and heavy machinery for modular connections, allowing for flexible tooling changes and maintenance without extensive downtime.
• Utility and Municipal Services: Applied in utility vehicles, snowplows, salt spreaders, refuse trucks, and street sweepers, facilitating quick changeovers of hydraulic tools and attachments required for diverse seasonal or daily tasks.
• Material Handling: Employed in forklifts, telehandlers, and other lifting equipment that utilize hydraulic attachments for specialized material handling operations.

Its ability to reliably perform in these diverse and often harsh environments makes it a go-to solution for professionals seeking efficiency and durability.

The Buyers Products Advantage

As a product from Buyers Products, this hydraulic quick coupler assembly carries the lineage of a brand renowned for its commitment to quality, innovative design, and robust manufacturing standards in the truck and trailer equipment industry. Buyers Products understands the rigorous demands placed on equipment in commercial and industrial settings. This quick coupler reflects that understanding, offering:

• Proven Reliability: Built to Buyers Products' exacting standards, ensuring consistent performance and longevity.
• Expert Engineering: Designed with a deep understanding of hydraulic principles and real-world application challenges.
• Customer Confidence: Backed by a brand known for delivering dependable solutions to professionals across various sectors.

Choosing a Buyers Products quick coupler is an investment in a component that has been engineered to perform under pressure, day in and day out.

Conclusion: A Strategic Investment in Hydraulic System Efficiency

The Buyers Products 1/2 Inch NPTF Sleeve-Type Hydraulic Quick Coupler Assembly is more than just a fitting; it is a vital component engineered for maximum efficiency, safety, and durability in critical hydraulic applications. Its single-acting sleeve design ensures ease of use and secure connection, while the NPTF threading guarantees a robust, leak-free seal without relying solely on external sealants. Constructed from high-strength carbon steel and protected by corrosion-resistant zinc plating, this assembly is built to withstand the most challenging operational environments.

With a robust 20 GPM flow rate, it effectively supports medium to heavy-duty hydraulic systems, minimizing pressure drop and heat generation. As a complete male and female set, it offers guaranteed compatibility and seamless integration into existing or new hydraulic circuits. For industries ranging from agriculture and construction to industrial manufacturing and municipal services, this quick coupler provides an indispensable solution for rapid attachment changes, reduced downtime, and enhanced operational flexibility. Investing in the Buyers Products 1/2 Inch NPTF Sleeve-Type Hydraulic Quick Coupler Assembly is a strategic decision for any operation prioritizing reliability, performance, and long-term value in their hydraulic infrastructure.
