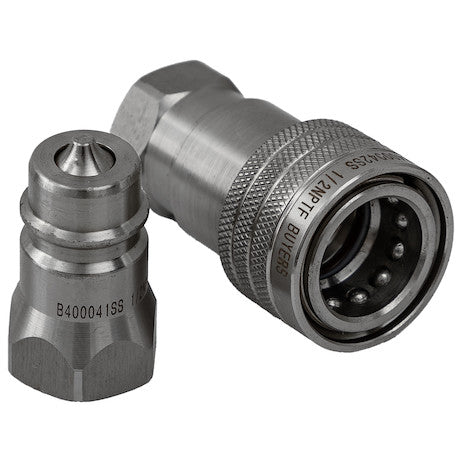

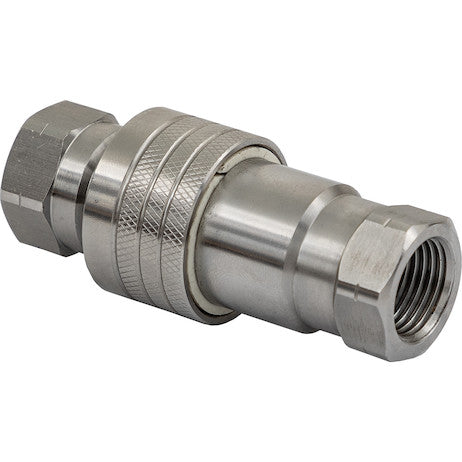

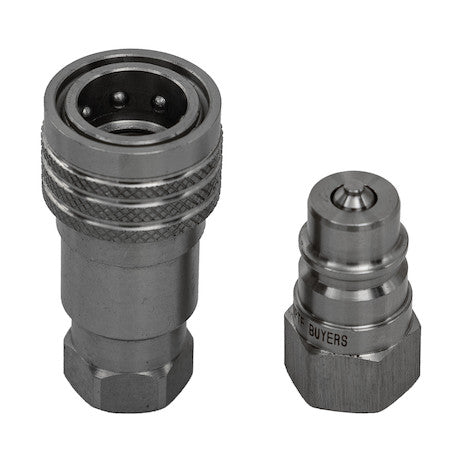

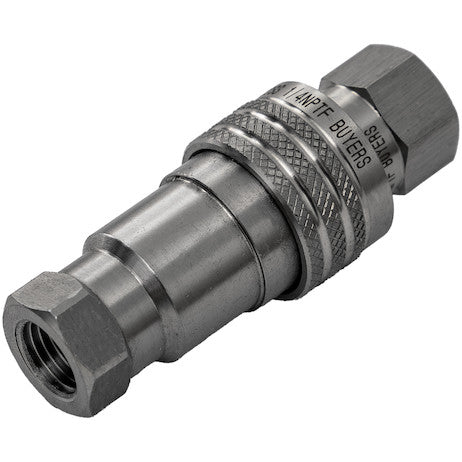

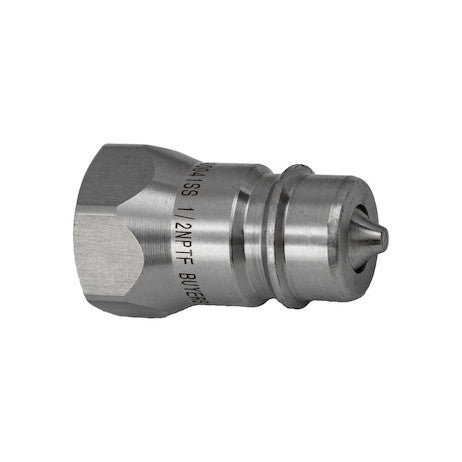

B400041SS - Hydraulic Coupler, MALE, SST, 1/2in NPTF, 1/2in BODY

Buyers Products Stainless Steel Hydraulic Couplers are a general-purpose sleeve style coupler with poppet seal for a leak-free connection. The couplers are easy to connect when pressure has been relieved.

Specifications

Advanced Technical Overview: Stainless Steel Male Hydraulic Coupler with 1/2in NPTF and 1/2in Body

In the demanding world of hydraulic systems, the integrity and efficiency of every component are paramount. The Hydraulic Coupler, MALE, SST, 1/2in NPTF, 1/2in BODY, represents a pinnacle of engineering excellence, designed to provide robust, reliable, and leak-free connections in a multitude of industrial and mobile applications. This comprehensive technical description delves into the specific attributes and advantages of this high-performance coupler, highlighting why it is an indispensable asset for critical hydraulic circuits.

The Foundational Importance of Hydraulic Couplers

Hydraulic systems are dynamic power transmission networks that rely on pressurized fluid to perform work. Essential to their modularity, versatility, and ease of maintenance are hydraulic couplers. These components facilitate the rapid connection and disconnection of hydraulic lines, enabling quick attachment changes for equipment, streamlining maintenance procedures, and enhancing operational flexibility. Without dependable couplers, the entire system can suffer from inefficiencies, fluid loss, contamination ingress, and potential safety hazards. This particular male coupler, meticulously engineered, addresses these challenges head-on by integrating superior material science with intelligent design principles.

Material Superiority: The Indisputable Advantage of Stainless Steel (SST)

The selection of Stainless Steel (SST) as the primary construction material for this hydraulic coupler is a critical design decision that imparts numerous operational benefits. Stainless steel, particularly grades commonly utilized in hydraulic applications (such as 304 or 316, known for their enhanced corrosion resistance), offers a spectrum of performance characteristics that significantly elevate the coupler's reliability and lifespan:

• Exceptional Corrosion Resistance: One of the foremost advantages of stainless steel is its inherent resistance to corrosion. Unlike standard carbon steel, SST forms a passive chromium oxide layer on its surface, which acts as a protective barrier against oxidation, rust, and chemical attack. This makes the coupler ideal for deployment in highly corrosive environments, including marine applications where saltwater exposure is constant, chemical processing plants dealing with aggressive fluids, outdoor machinery subjected to harsh weather, and areas prone to moisture and humidity. This resistance ensures structural integrity and prevents degradation that could lead to leaks or component failure, thereby safeguarding the hydraulic system and the surrounding environment from potential fluid spills.
• Superior Strength and Durability: Stainless steel possesses high tensile strength and excellent mechanical properties, allowing it to withstand the rigorous demands of high-pressure hydraulic operations and significant mechanical stresses. This inherent strength contributes to the coupler's resistance against fatigue, vibration-induced wear, and physical impact, ensuring long-term structural stability. Its robust nature minimizes the risk of deformation or cracking under extreme operating conditions, providing a steadfast connection point within the hydraulic circuit.
• Temperature Stability Across Wide Ranges: Hydraulic systems often operate in environments with fluctuating temperatures, from sub-zero conditions to elevated heat generated by fluid friction or ambient surroundings. Stainless steel maintains its mechanical properties and dimensional stability across an expansive temperature spectrum, ensuring consistent performance without embrittlement at low temperatures or significant loss of strength at high temperatures. This thermal resilience makes the coupler a reliable choice for diverse climates and demanding operational cycles.
• Enhanced Cleanliness and Hygienic Properties: The non-porous surface of stainless steel naturally resists the adhesion of contaminants and biological growth, making it exceptionally easy to clean and sanitize. This characteristic is particularly vital in industries such as food and beverage processing, pharmaceuticals, and any application where fluid purity and hygiene are paramount. The material's smooth finish also prevents the accumulation of particulate matter, which could otherwise enter the hydraulic fluid and cause premature wear to pumps, valves, and actuators. Furthermore, stainless steel's inertness means it typically does not leach impurities into the hydraulic fluid, preserving fluid quality over time.
• Chemical Compatibility: Stainless steel exhibits broad compatibility with a wide range of hydraulic fluids, including petroleum-based oils, synthetic lubricants, and some water-glycol solutions. This versatility ensures that the coupler can be integrated into various systems without concerns about material degradation or adverse chemical reactions that could compromise the fluid or the coupler itself.
• Longevity and Lifecycle Cost-Effectiveness: While the initial investment in stainless steel components might be higher than that for conventional materials, the significantly extended service life, reduced maintenance requirements, and avoidance of costly downtime due to corrosion or failure translate into a superior total cost of ownership. The durability of stainless steel components ultimately contributes to lower operational expenditures and greater system uptime.

Precision Threading and Optimal Sizing: The 1/2in NPTF and 1/2in Body

The specifications of the threading and body size are critical for proper integration and performance within a hydraulic system:

• 1/2in NPTF (National Pipe Taper Fuel) Thread: The designation NPTF is paramount for high-pressure hydraulic applications. Unlike standard NPT (National Pipe Taper) threads, which rely on a sealant to prevent leaks, NPTF threads are engineered for a "dryseal" connection. This means that the threads, when properly torqued, create a metal-to-metal interference fit that seals without the need for additional thread sealant. The precise taper (1° 47' on the diameter) of both the male and female threads ensures that crests of one thread crush into the roots of the mating thread, forming a robust mechanical seal. This feature is crucial in hydraulic systems where thread tape or liquid sealants could potentially break down, contaminate the fluid, and cause blockages in sensitive components like valves or orifices. The 1/2in nominal size refers to the approximate internal diameter of the pipe it's designed to connect to, not the actual thread diameter, aligning with standard pipe sizing conventions. Correct installation with appropriate torque is vital to achieve the intended dryseal performance and prevent damage to the threads.
• 1/2in Body Size: The body size of a hydraulic coupler refers to its overall physical dimension and is directly indicative of its capacity for fluid flow and pressure handling. A 1/2in body size positions this coupler as an ideal choice for a broad spectrum of moderate to high-flow hydraulic applications. This dimension is carefully calibrated to minimize pressure drop across the coupler when fluid is flowing at the rated capacity, thereby preserving system energy and maximizing the efficiency of hydraulic actuators. Choosing the correct body size is essential to prevent system cavitation (the formation of vapor bubbles due to low pressure), excessive heat generation, and undue strain on the hydraulic pump. The 1/2in body allows for the specified 20 GPM flow rate with optimal hydraulic characteristics, ensuring smooth and consistent operation.

Advanced Sealing and Connection: Sleeve Style with Poppet Seal Mechanism

This coupler incorporates a time-tested and highly effective connection and sealing mechanism:

• Sleeve Style Connection: The sleeve style mechanism is a widely recognized and robust method for quick connection and disconnection. On the male (or sometimes female) half of the coupler, a spring-loaded sleeve is present. To connect, the operator pulls back this sleeve, allowing the male and female coupler halves to fully engage. Once engaged, releasing the sleeve causes it to snap forward, locking the connection securely in place. This design provides a positive engagement feel and is highly resistant to accidental disconnections, even under vibration or dynamic loads. Its simplicity contributes to its reliability and ease of use in the field.
• Poppet Seal Technology for Leak-Free Performance: Central to the coupler's "leak-free connection" claim is its poppet seal design. Within each half of the coupler (both male and female), a spring-loaded poppet valve is integrated.
  • When disconnected: The springs firmly push the poppets against their respective seats, effectively sealing off the fluid passages in both the male and female halves. This design minimizes fluid loss upon disconnection, preventing spills and environmental contamination. Furthermore, it acts as a robust barrier against the ingress of external contaminants (dirt, dust, moisture) into the sensitive hydraulic system, thereby protecting internal components from wear and degradation.
  • When connected: As the male and female halves are coupled, they push against each other's poppets, causing the valves to retract against their springs. This action opens the fluid path, allowing unimpeded flow with minimal turbulence or pressure drop. The sealing integrity of poppet valves is exceptionally high, making them suitable for high-pressure applications where even minor leakage is unacceptable. They are less susceptible to damage from particle contamination compared to some other valve types, offering superior longevity and reliability.
• "Easy to connect when pressure has been relieved": This characteristic is fundamental to poppet-style couplers operating under pressure. While poppet seals provide excellent sealing integrity, they also mean that the poppets are held firmly against their seats by the system's internal pressure when the circuit is active. Attempting to connect or disconnect a coupler under residual hydraulic pressure would require an extremely high force to overcome the spring and the fluid pressure acting on the poppet, making it difficult, if not impossible, to achieve. More critically, it poses a significant safety risk to the operator and can cause severe damage to the coupler or the hydraulic system components. Therefore, the instruction to relieve pressure before connection is not merely a recommendation but a critical safety and operational prerequisite, ensuring effortless and safe coupling while preserving the integrity of the components.

Optimized Performance Metrics: Flow Rate and Pressure Dynamics

The specified 20 GPM (Gallons Per Minute) flow rate for this coupler is indicative of its design capacity and intended application:

• 20 GPM Flow Rate: A flow rate of 20 GPM signifies that this coupler is capable of efficiently handling a substantial volume of hydraulic fluid per minute. This capacity is well-suited for a wide array of mobile machinery and industrial equipment, including agricultural implements, construction vehicles, and various manufacturing processes where moderate to high fluid volumes are required to power actuators (cylinders, motors) at desired speeds. The coupler’s internal design, particularly its 1/2in body size and poppet configuration, is optimized to facilitate this flow with minimal internal resistance, thereby reducing pressure drop across the connection. Minimizing pressure drop is vital for maintaining system efficiency, as excessive drops lead to energy loss, heat generation, and reduced power available at the actuator.
• Implicit Pressure Rating: While a specific maximum operating pressure is not provided in the summary, the use of stainless steel and a 1/2in body size for a hydraulic application strongly implies a high-pressure rating. Stainless steel provides superior material strength, allowing for robust construction capable of withstanding the elevated pressures common in modern hydraulic circuits. Users should always refer to the manufacturer's complete specifications for the precise pressure ratings to ensure the coupler is matched appropriately to their system's maximum operating and burst pressures, thereby preventing catastrophic failure and ensuring operator safety.

Versatile Applications Across Demanding Industries

The robust construction, corrosion resistance, high-pressure capability, and leak-free design of this Stainless Steel Male Hydraulic Coupler make it an ideal choice for a diverse range of industries and applications:

• Agricultural Machinery: For tractors, harvesters, seeders, and various implements, where quick interchangeability of hydraulic attachments is essential, and equipment operates in harsh outdoor environments exposed to dirt, moisture, and fertilizers.
• Construction Equipment: Excavators, loaders, skid steers, and other heavy machinery benefit from durable couplers that can withstand intense vibrations, impacts, and exposure to adverse weather conditions, facilitating rapid tool changes on job sites.
• Industrial Hydraulics: In manufacturing plants, presses, automation lines, and power units, reliable connections are critical for continuous operation, minimizing downtime for maintenance and changeovers.
• Marine and Offshore Applications: Crucial for vessels, dockside equipment, and offshore platforms, where extreme corrosion from saltwater and harsh weather demands components with superior resistance and longevity.
• Chemical and Pharmaceutical Processing: Where exposure to corrosive chemicals and stringent hygiene standards are paramount, the stainless steel construction ensures both chemical compatibility and ease of sterilization.
• Food and Beverage Industry: For equipment requiring frequent wash-downs and adherence to sanitary regulations, the hygienic properties of stainless steel are invaluable in preventing contamination.
• Oil and Gas Exploration: In drilling operations, hydraulic power units, and remote equipment, the coupler's ability to perform reliably under high pressures and in challenging environmental conditions is highly valued.
• Mining: Heavy-duty mining equipment operates in abrasive and corrosive environments, demanding hydraulic components that offer exceptional durability and resistance to wear and tear.

Installation, Maintenance, and Safety Protocols

To maximize the performance, longevity, and safety of this hydraulic coupler, adherence to proper installation and maintenance practices is essential:

• Installation Best Practices:
  • Cleanliness: Before installation, ensure all connecting ports and the coupler itself are scrupulously clean and free of dirt, debris, or manufacturing residues. Contamination introduced during installation is a leading cause of hydraulic system failures.
  • Thread Preparation for NPTF: For NPTF threads, the primary seal is metal-to-metal. While designed for a dryseal, a liquid thread sealant specifically designed for hydraulic applications and compatible with hydraulic fluid can be used sparingly on the male threads to provide an additional layer of sealing security, especially if the mating female port is not also NPTF. Crucially, avoid using PTFE tape on internal NPTF threads, as small pieces can shear off and enter the hydraulic system, leading to blockages and component damage.
  • Proper Torque: Apply the correct torque specification recommended by the manufacturer to ensure an effective seal without over-tightening, which can deform the threads or crack the component, or under-tightening, which can lead to leaks.
  • Alignment: Always ensure the coupler halves are perfectly aligned before attempting connection to prevent cross-threading or damage to the sealing surfaces.
• Routine Maintenance:
  • Regular Inspection: Periodically inspect the coupler for any signs of wear, damage, corrosion, leaks, or deformation. Pay close attention to the sleeve mechanism and the sealing faces.
  • Cleanliness: Keep the external surfaces of the coupler clean, especially the connection points, to prevent dirt and dust from entering the system during coupling and uncoupling.
  • Replacement: Any coupler showing signs of significant wear, damage, or persistent leakage should be replaced immediately to prevent system failure, fluid loss, and safety risks.
• Safety Considerations:
  • Pressure Relief is Non-Negotiable: Always, without exception, relieve all residual hydraulic system pressure before attempting to connect or disconnect the coupler. Failure to do so can result in serious injury due to high-velocity fluid discharge or mechanical hazards, and it can irrevocably damage the coupler and system components.
  • Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety glasses and gloves, when working with hydraulic systems.
  • Fluid Compatibility: Verify that the coupler's materials, especially its seals, are compatible with the hydraulic fluid being used in the system to prevent material degradation and premature failure.

Conclusion

The Hydraulic Coupler, MALE, SST, 1/2in NPTF, 1/2in BODY, from Buyers Products is more than just a component; it is a critical investment in the reliability, efficiency, and safety of your hydraulic operations. Its meticulous design, featuring premium stainless steel construction, precision 1/2in NPTF threading, an optimized 1/2in body, and an advanced sleeve style with poppet seal mechanism, ensures superior performance in the most demanding environments. With a robust 20 GPM flow rate and inherent resistance to corrosion, high pressures, and temperature extremes, this coupler provides a leak-free, durable, and highly dependable connection solution. By understanding and adhering to the technical specifications and operational guidelines, professionals can leverage the full potential of this exceptional hydraulic coupler, ensuring long-term operational excellence and minimizing total cost of ownership in diverse industrial and mobile applications.
