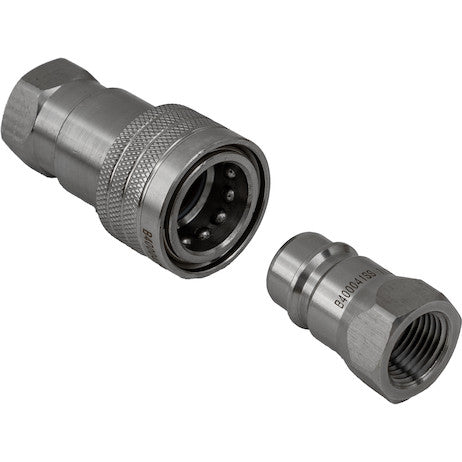

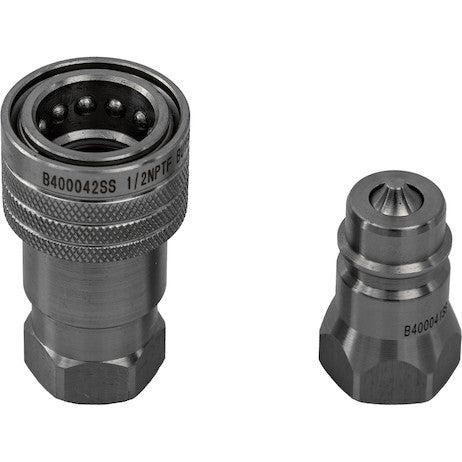

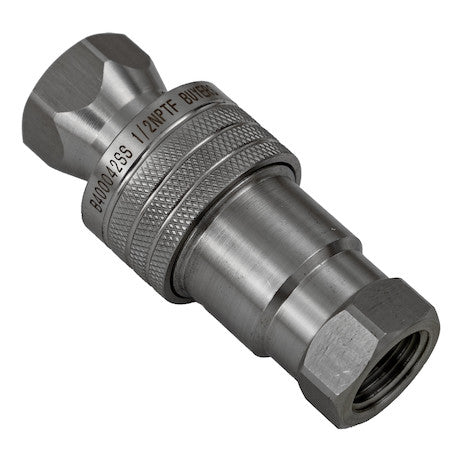

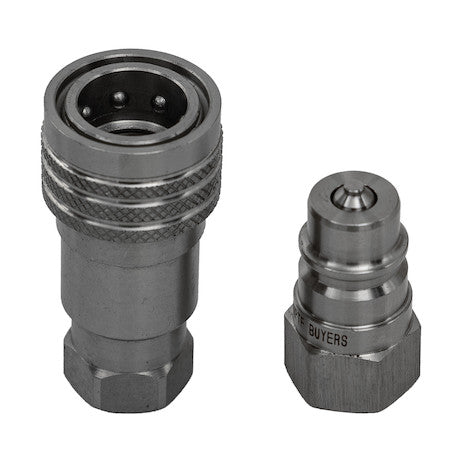

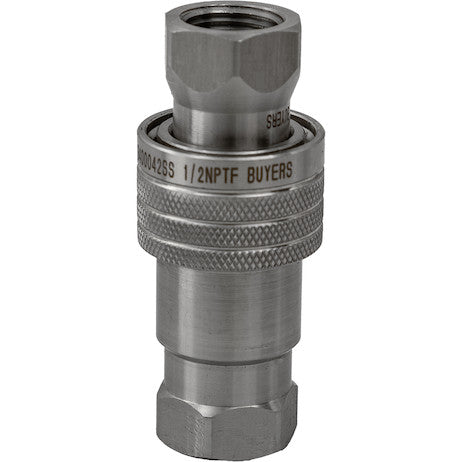

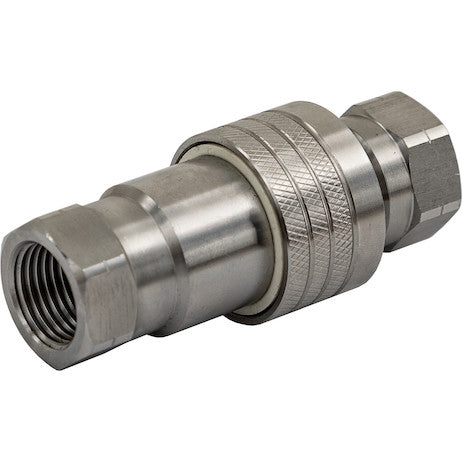

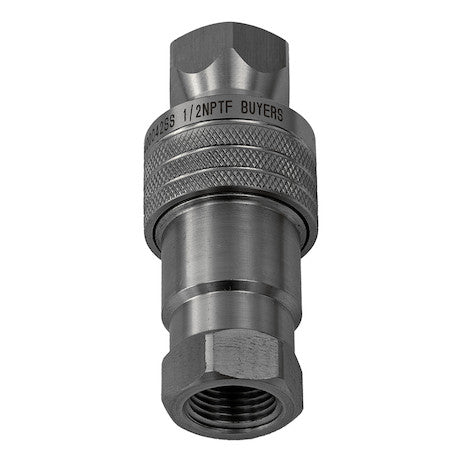

Buyers Products Stainless Steel Hydraulic Couplers are a general-purpose sleeve style coupler with poppet seal for a leak-free connection. The couplers are easy to connect when pressure has been relieved.
Specifications
| Color | Natural |
|---|---|
| Coupler Material | Stainless Steel |
| End (Male/Female/Full) | Male & Female Set |
| Flow Rate (GPM) | 20 |
| Size | 1/2 NPT |

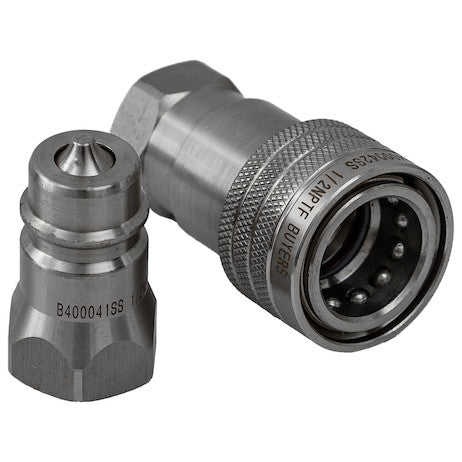

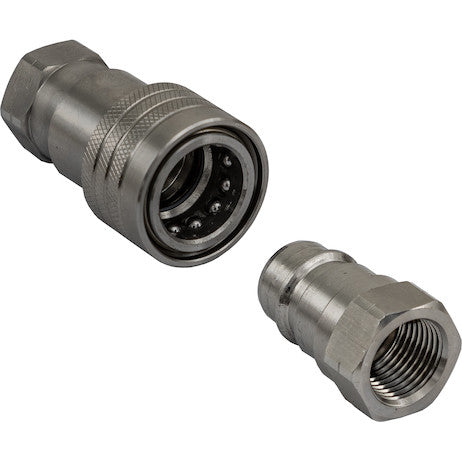

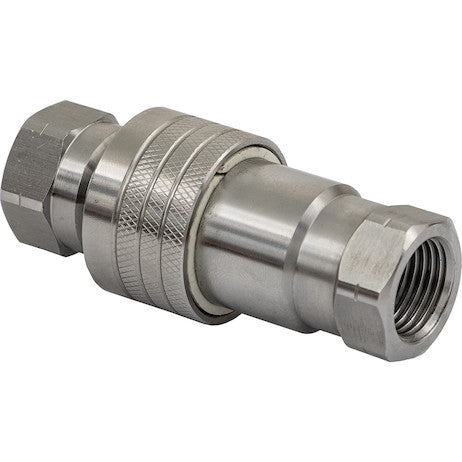

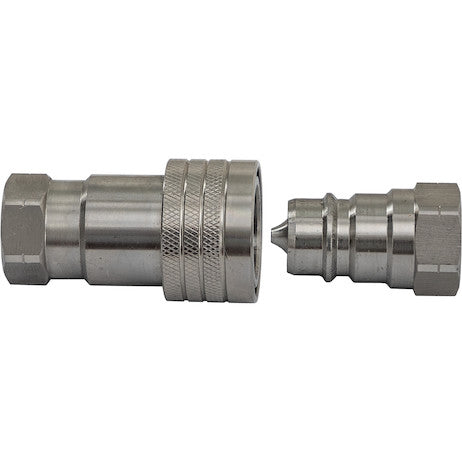

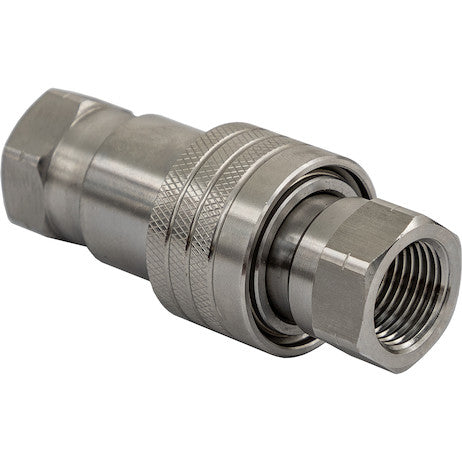

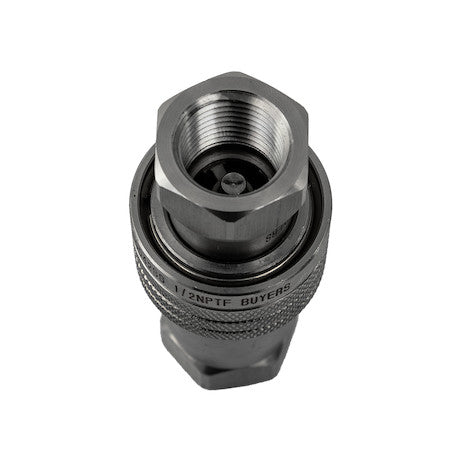

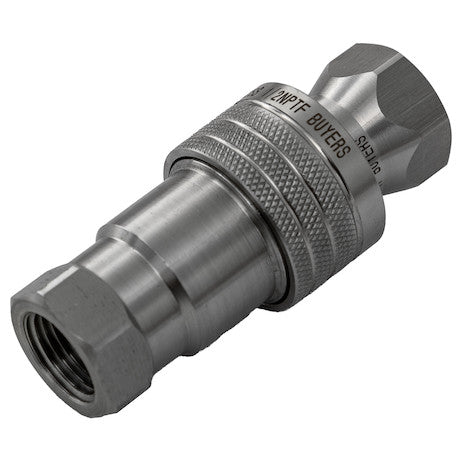

The Hydraulic Coupler Set from Buyers Products, engineered from robust Stainless Steel (SST) and featuring precision 1/2-inch NPTF threads with a 1/2-inch body, stands as a critical component for high-performance hydraulic systems. Designed for demanding applications, this set provides a reliable and efficient interface for hydraulic fluid transfer, ensuring operational integrity and extended service life. This detailed description explores the technical specifications, material advantages, design principles, and operational benefits that position this coupler set as an indispensable solution across various industrial and mobile hydraulic sectors.
Quick-disconnect hydraulic couplers are fundamental for modern hydraulic systems, significantly enhancing operational flexibility and reducing equipment downtime. This comprehensive set, including both male and female components, guarantees seamless compatibility and facilitates rapid, secure connections for a wide range of implements and circuit segments. The general-purpose sleeve style mechanism is celebrated for its intuitive operation, allowing operators to quickly and efficiently reconfigure hydraulic circuits. This ergonomic design not only boosts productivity but also contributes to a safer working environment by simplifying routine equipment changes and maintenance procedures.
The choice of Stainless Steel (SST) for these couplers is pivotal, offering superior performance in challenging operational environments. Stainless steel, particularly alloy grades selected for hydraulic applications, delivers exceptional mechanical strength, ductility, and resistance to corrosion, pitting, and crevice attack. Unlike conventional materials, SST maintains its structural integrity when exposed to aggressive chemicals, saltwater, extreme temperatures, and abrasive conditions, common in marine, offshore, chemical processing, and agricultural industries. This inherent material advantage minimizes component degradation, reduces maintenance frequency, and ensures long-term system reliability and safety, especially where fluid contamination or material breakdown could lead to catastrophic system failures or environmental concerns.
Central to the coupler's secure sealing is the 1/2-inch NPTF (National Pipe Taper Fuel) threading standard. NPTF threads are specifically engineered to create a mechanical seal through an interference fit between the tapered male and female threads, effectively crushing together as they are tightened. This precision design, where the "F" denotes "Fuel" or "Fine," ensures a dry, pressure-tight connection without obligatorily requiring additional sealants, though their use is often recommended for enhanced security. This self-sealing capability is paramount in hydraulic systems where maintaining fluid containment and preventing leakage are critical for efficiency and environmental protection. The 1/2-inch nominal pipe size ensures broad compatibility with standard hydraulic hoses and ports, streamlining integration into existing infrastructure.
The 1/2-inch body size is meticulously engineered to optimize flow characteristics and pressure handling for a diverse range of hydraulic applications. This specific dimension facilitates a robust continuous flow rate of 20 Gallons Per Minute (GPM), a capacity well-suited for medium-duty hydraulic machinery. The internal geometry of the 1/2-inch body minimizes fluid turbulence and hydraulic pressure drop, ensuring efficient power transfer to actuators without excessive energy loss or heat generation. This balance of compact physical footprint and high-flow capability makes the coupler set ideal for agricultural machinery, construction equipment, industrial test stands, and mobile hydraulic systems requiring dependable fluid dynamics and consistent power delivery.
The poppet seal mechanism is central to this coupler set's leak-free design and operational integrity. Poppet valves achieve positive shut-off, with a spring-loaded poppet blocking fluid flow when disconnected, effectively preventing spills and air ingress. Upon connection, mating poppets retract, allowing unimpeded fluid passage. This design significantly reduces fluid loss during disconnection, minimizing environmental impact and maintaining system cleanliness. High-quality elastomeric seals, selected for compatibility with various hydraulic fluids and operating temperatures, are critical to the poppet's long-term performance and reliability. The natural stainless steel finish underscores the material integrity, devoid of coatings that might degrade or flake.
The general-purpose sleeve style offers a reliable and user-friendly locking mechanism. Its spring-loaded outer sleeve on the female coupler retracts for connection, then slides forward to securely lock the male and female halves. This positive locking prevents accidental disconnection from vibration or pressure spikes, ensuring safe operation. Critically, the design mandates "easy connection when pressure has been relieved." This is a fundamental safety and functional principle. Attempting to connect or disconnect under residual pressure is exceptionally difficult and hazardous, risking internal damage, seal compromise, or dangerous fluid release. Strict adherence to system depressurization protocols is therefore essential for operator safety and component longevity.
The robust design and stainless steel construction make this coupler set highly versatile across numerous demanding applications. In agriculture, it facilitates quick implement changes on tractors, enhancing efficiency during planting and harvesting seasons. For construction, it enables rapid attachment swaps on excavators, loaders, and other heavy equipment, optimizing on-site productivity. Industrial environments, including manufacturing plants and test facilities, benefit from the modularity and swift servicing capabilities these couplers provide for hydraulic power units and machinery. Furthermore, the inherent corrosion resistance of stainless steel makes this set ideal for marine, offshore, and municipal applications, such as waste management vehicles or utility equipment, where exposure to harsh elements is routine. The provision as a "Male & Female Set" simplifies procurement and guarantees immediate compatibility for integration into diverse hydraulic circuits.
Precision engineering and stringent manufacturing processes underpin the durability and reliability of this hydraulic coupler set. Components are machined from high-grade stainless steel with exceptional accuracy, ensuring tight tolerances for critical mating surfaces, poppets, and locking mechanisms. This meticulous attention to detail minimizes wear, optimizes sealing integrity, and ensures consistent performance throughout the coupler's operational lifespan. Surface treatments are applied to enhance corrosion resistance and reduce friction, contributing to smoother operation. Comprehensive quality control checks are performed at various stages of production to verify adherence to design specifications, including pressure ratings, flow rates, and cycle endurance. Compliance with recognized industry standards (e.g., ISO, SAE) assures interchangeability and performance consistency, cementing the product's position as a dependable choice for demanding hydraulic applications.
Optimal performance and extended service life necessitate correct installation and diligent maintenance. Before installation, all hydraulic lines and fittings must be meticulously cleaned to prevent system contamination. For 1/2-inch NPTF connections, applying a high-quality, hydraulic-compatible thread sealant or PTFE tape to the male threads is recommended to enhance the leak-proof seal and prevent galling. Fittings should be tightened to manufacturer-specified torque values; improper torque compromises seals or damages components. Regular visual inspection for wear, corrosion, or damage, especially to seals and the locking sleeve, is crucial. Worn seals require prompt replacement. When disconnected, couplers should always be protected with dust caps or plugs from contaminants and stored in a clean, dry location to preserve integrity.
Safety is paramount in hydraulic system operation. The directive for "easy connection when pressure has been relieved" is critical. Operators must rigorously follow lockout/tagout procedures and ensure complete system depressurization before connecting or disconnecting. High-pressure hydraulic fluid poses severe risks, including fluid injection injuries and uncontrolled releases, causing significant harm to personnel and equipment. Appropriate Personal Protective Equipment (PPE), such as safety glasses, gloves, and protective clothing, is mandatory. Users must remain cognizant of the system's operational limits, including maximum working pressure and temperature, to prevent conditions leading to coupler failure or dangerous fluid expulsion. The robust engagement design minimizes risks of accidental disengagement under operational loads when properly secured.
In conclusion, the Buyers Products Hydraulic Coupler Set, defined by its Stainless Steel construction, 1/2-inch NPTF threading, and 1/2-inch body, offers an exemplary solution for demanding hydraulic applications. Its material composition ensures exceptional resistance to corrosion and mechanical stresses, guaranteeing longevity and reliability. The precision 1/2-inch NPTF threads create a secure, leak-free connection, while the 20 GPM flow rate supports efficient fluid transfer. Combining a user-friendly sleeve style with a positive poppet seal, this set minimizes fluid loss and prevents contamination. Emphasizing the critical need for system depressurization prior to connection, it underscores a commitment to both operational efficiency and safety. This coupler set stands as a testament to superior engineering, providing a durable, high-performance interface for dynamic hydraulic systems across diverse industries, thereby enhancing productivity and ensuring operator well-being.
