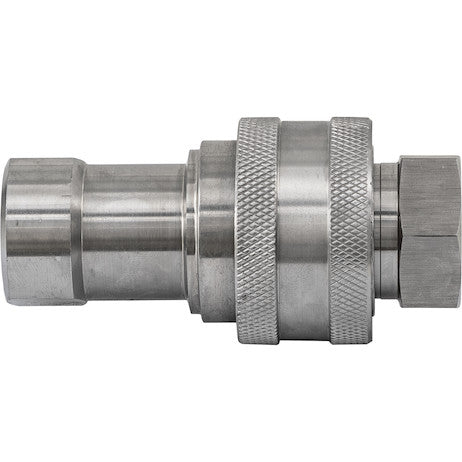

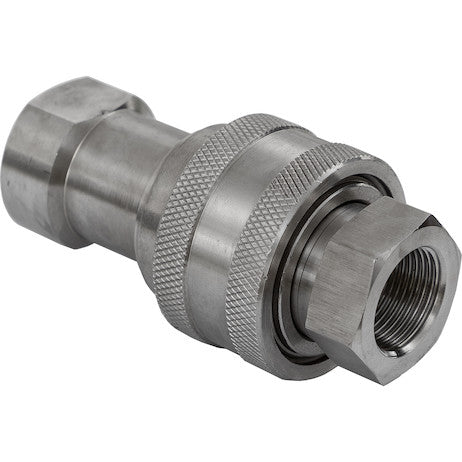

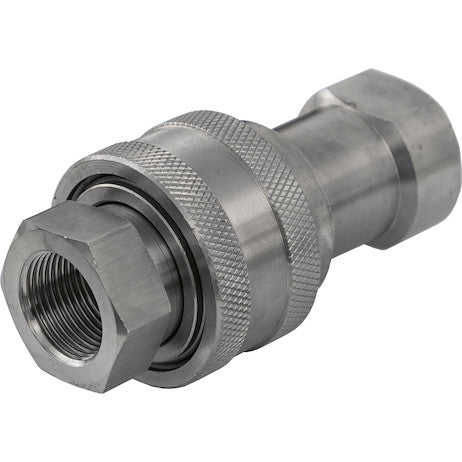

B40005 - 3/4 Inch NPTF Sleeve-Type Hydraulic Quick Coupler Assembly

The Sleeve-Type Hydraulic Quick Coupler from Buyers Products is a rugged coupler with a single acting sleeve design. It connects when a system is not operating or when pressure has been relieved. The coupler assembly is zinc-plated for corrosion resistance.

Specifications

Advanced Technical Overview: 3/4 Inch NPTF Sleeve-Type Hydraulic Quick Coupler Assembly

The Buyers Products 3/4 Inch NPTF Sleeve-Type Hydraulic Quick Coupler Assembly represents a pinnacle of fluid power connection technology, meticulously engineered for demanding hydraulic applications where robust performance, efficient fluid transfer, and dependable mechanical integrity are paramount. This comprehensive assembly, comprising both male and female components, is designed to facilitate swift and secure connections in hydraulic circuits, significantly enhancing operational flexibility and reducing downtime associated with equipment changeovers or maintenance. Its specialized sleeve-type mechanism, combined with a precise NPTF thread standard and corrosion-resistant construction, ensures optimal performance across a broad spectrum of industrial, agricultural, and mobile hydraulic systems.

Understanding the Sleeve-Type Coupling Mechanism

At the core of this quick coupler's design is the single-acting sleeve mechanism, a robust and proven solution for hydraulic connections. Unlike ball-locking or push-pull designs that may offer connection under residual pressure, the sleeve-type coupler typically requires the system to be depressurized or operating at negligible pressure for safe and effective engagement or disengagement. This characteristic, explicitly stated as "connects when a system is not operating or when pressure has been relieved," is not a limitation but a design feature that contributes to its inherent durability and safety profile under specific operational protocols.

The operational principle involves an external sleeve on the female coupler that must be manually retracted to allow the male plug to be inserted. Once the male plug is fully seated, the sleeve is released, engaging a locking mechanism (often a series of balls or dogs) that securely retains the male plug. The requirement for depressurization prior to connection is critical to prevent several issues:

• Preventing Seal Damage: High internal pressure during connection can deform or extrude the O-rings and other sealing elements, leading to immediate leakage or premature failure.
• Ensuring Full Engagement: Residual pressure can create back pressure, hindering the full insertion of the male plug into the female coupler, resulting in an incomplete and unstable connection susceptible to accidental disconnection.
• Safety: Connecting or disconnecting pressurized hydraulic lines poses significant safety risks, including fluid injection injuries, sudden hose whip, and uncontrolled fluid discharge. The sleeve-type design encourages adherence to best practices for system depressurization.

The single-acting nature implies that the sleeve only needs to be manipulated in one direction (retracted) for connection, simplifying the process while maintaining a secure lock. This mechanism is highly regarded for its resistance to accidental disengagement, as the sleeve must be intentionally pulled back to release the connection, making it suitable for applications where vibration or external forces are present.

The Significance of NPTF Threading and 3/4 Inch Sizing

The "NPTF" designation refers to National Pipe Taper Fuel, a specific type of pipe thread known for its dryseal capabilities. Unlike standard NPT (National Pipe Taper) threads which require a sealant (such as PTFE tape or pipe dope) to achieve a leak-free connection, NPTF threads are designed to create a metal-to-metal seal through controlled deformation of the threads during assembly. This "dryseal" feature is achieved by carefully controlling the crest and root truncation and the angle of the taper, ensuring that the roots of the male thread interfere with the crests of the female thread, and vice versa. This interference fit, combined with the taper, provides an intrinsically robust seal against fluid leakage, even under significant pressure. While NPTF threads are engineered for dryseal, the application of a suitable hydraulic thread sealant is often recommended for added security, especially in dynamic systems or those experiencing pressure fluctuations.

The 3/4 inch size refers to the nominal pipe size, indicating the approximate inside diameter of the pipe or port the coupler is designed to connect to. In hydraulic systems, the size of the coupler directly impacts the flow characteristics, pressure capacity, and overall system efficiency. A 3/4 inch NPTF coupler is a common size for medium to heavy-duty applications, balancing sufficient flow capacity with a manageable physical footprint. The tapered design of NPTF threads ensures that as the male and female components are tightened, the threads progressively wedge together, creating a tight seal. Proper torque application during installation is crucial to achieve this seal without over-tightening and damaging the threads or coupler body.

Robust Construction: Carbon Steel and Zinc Plating

The choice of materials is fundamental to the durability and performance of any hydraulic component, and this Buyers Products coupler exemplifies engineering excellence with its carbon steel construction for both the coupler body and wing material. Carbon steel is a ferrous alloy widely utilized in hydraulic applications due to its superior mechanical properties:

• High Tens Tensile Strength and Yield Strength: Carbon steel exhibits excellent resistance to deformation under high static and dynamic loads, making it ideal for components subjected to the intense pressures found in hydraulic systems.
• Durability and Wear Resistance: Its inherent hardness and strength provide exceptional resistance to wear, abrasion, and fatigue, ensuring a long service life even in harsh operating environments.
• Cost-Effectiveness: Carbon steel offers an optimal balance of performance and economic viability, making it a practical choice for mass-produced industrial components.

To further enhance the longevity and reliability of the coupler assembly, it undergoes a zinc-plating process. Zinc plating is a common and effective method for providing sacrificial corrosion protection to steel components. The process involves electrodepositing a thin layer of zinc onto the surface of the carbon steel. Zinc acts as a sacrificial anode, preferentially corroding before the underlying steel when exposed to corrosive elements like moisture, salts, and certain chemicals. This galvanic protection significantly extends the service life of the coupler, maintains its aesthetic appearance, and prevents the formation of rust that could compromise seals, hinder operation, or lead to structural failure. The zinc plating ensures that the coupler maintains its functional integrity even when exposed to challenging environmental conditions typical of outdoor machinery and industrial settings.

Optimized Fluid Dynamics: 45 GPM Flow Rate

The specified flow rate of 45 GPM (Gallons Per Minute) is a critical performance parameter for this hydraulic quick coupler assembly. This metric indicates the maximum volumetric flow of hydraulic fluid that the coupler is designed to handle efficiently without experiencing excessive pressure drop or turbulence. A 45 GPM rating for a 3/4 inch NPTF coupler signifies its capability to support a wide range of hydraulic systems that demand substantial fluid transfer rates, directly impacting the speed and power of hydraulic actuators.

In hydraulic system design, minimizing pressure drop across components is paramount for maximizing efficiency and preventing energy losses. A well-designed quick coupler, such as this one, aims to provide an unobstructed flow path to reduce turbulence and associated energy dissipation. Excessive pressure drop can lead to:

• Reduced System Efficiency: More energy is converted into heat rather than useful work.
• Slower Actuator Speeds: The effective pressure available to cylinders and motors is diminished.
• Heat Generation: Increased fluid temperature can degrade hydraulic fluid, damage seals, and shorten the lifespan of system components.
• Cavitation: Extreme pressure drops can cause vapor bubbles to form and collapse, leading to component erosion and noise.

The 45 GPM rating indicates that the internal geometry of the coupler is optimized for this flow, ensuring that hydraulic fluid can pass through with minimal resistance. This makes it suitable for applications where machinery relies on rapid cycling, powerful movements, and continuous operation, such as in construction equipment, agricultural implements, and material handling systems. Proper system design involves matching the coupler's flow rate capabilities with the overall system flow requirements to ensure balanced performance.

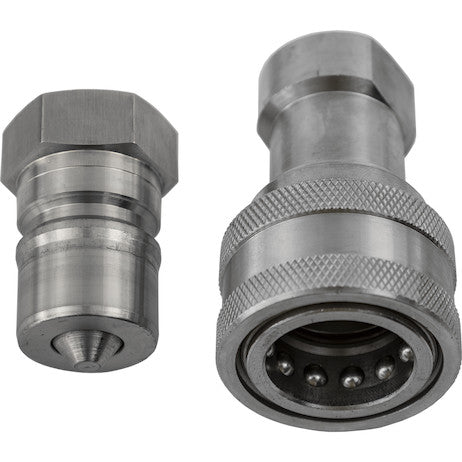

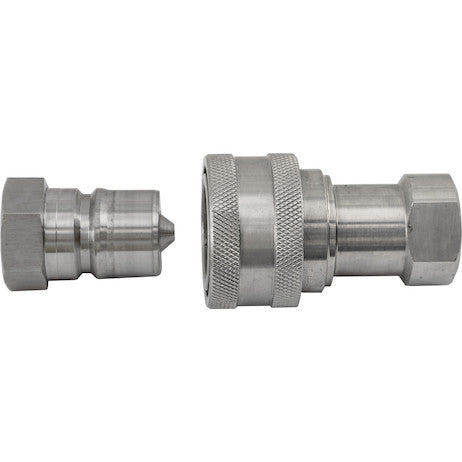

The Advantage of an Assembly: Male & Female Set

Providing the quick coupler as a complete "Male & Female Set" is a significant advantage, ensuring optimal compatibility and performance from the outset. When quick couplers are purchased as an assembly, it guarantees that the male plug and female coupler are manufactured to precise tolerances designed to mate perfectly. This eliminates the common issues that can arise when attempting to mix and match components from different manufacturers or even different production batches. Potential problems avoided by using a matched set include:

• Incompatibility: Even couplers with the same nominal size and type can have subtle dimensional differences that prevent proper engagement or lead to an insecure connection.
• Leakage: Mismatched tolerances can result in inadequate sealing, leading to external fluid leaks or internal cross-port leakage.
• Premature Wear: Imperfect mating surfaces can cause accelerated wear on seals and metal components, reducing the lifespan of the coupler.
• Reduced Performance: Suboptimal connections can lead to increased pressure drop, reduced flow, and overall degradation of system efficiency.

By offering a complete assembly, Buyers Products ensures that users receive a ready-to-install solution that meets stringent quality and performance standards, guaranteeing reliable and leak-free operation when correctly installed and maintained.

Installation and Maintenance Protocols

Proper installation and routine maintenance are critical for maximizing the lifespan and performance of the 3/4 Inch NPTF Sleeve-Type Hydraulic Quick Coupler Assembly. Adherence to best practices will prevent operational issues, enhance safety, and minimize system downtime.

Installation Procedures:

• System Depressurization: Absolutely essential. Ensure all hydraulic pressure in the lines to be connected is relieved. This may involve cycling control levers, operating bleed valves, or allowing the system to cool down if thermal expansion is a factor.
• Cleanliness: Before installation, ensure all threads and internal components of the coupler and the hydraulic lines are free from dirt, debris, metal shavings, or foreign particles. Contaminants can damage seals, clog filters, and compromise the integrity of the hydraulic system.
• Thread Sealant: Although NPTF threads are designed for dryseal, applying a high-quality hydraulic-specific thread sealant (e.g., PTFE tape rated for hydraulic applications or liquid pipe sealant) is strongly recommended on the male pipe threads connected to the system. Apply sealant carefully to avoid internal contamination.
• Torque Application: Tighten the coupler components to the manufacturer's specified torque values. Over-tightening can damage threads, distort components, and compromise the seal. Under-tightening can lead to leaks.
• Alignment: Ensure proper alignment of the male plug and female coupler during connection to prevent cross-threading or undue stress on the components.

Maintenance Practices:

• Regular Inspection: Periodically inspect the coupler assembly for any signs of wear, corrosion, physical damage, or fluid leakage. Pay close attention to the condition of the seals.
• Cleaning: Keep the external surfaces of the couplers clean, especially the mating faces. Dust, dirt, and grime can be introduced into the hydraulic system during connection.
• Seal Replacement: Over time, seals (O-rings, backup rings) will degrade due to fluid exposure, temperature cycles, and wear. Replace worn or damaged seals promptly with appropriate replacement kits.
• Protection: When couplers are disconnected, use dust caps or plugs to protect the open ports from contamination. This is especially important for equipment used in dirty or dusty environments.
• Storage: Store spare couplers and assemblies in a clean, dry environment to prevent premature degradation.

Safety Considerations in Hydraulic Systems

Working with hydraulic systems involves inherent risks, and quick couplers, while facilitating connections, must be handled with appropriate safety measures. The high pressures involved can be extremely dangerous. Key safety considerations include:

• Fluid Injection Injury: Hydraulic fluid under high pressure can penetrate skin, leading to severe injuries that may require immediate medical attention. Always depressurize lines before handling.
• Hose Whip: A disconnected pressurized hose can whip violently, causing injury or damage.
• Thermal Expansion: Fluid in a closed hydraulic system can expand significantly with temperature increases, leading to dangerously high pressures. Always allow systems to cool and relieve pressure before opening.
• Component Failure: Using damaged, worn, or incompatible couplers can lead to sudden component failure, fluid release, and uncontrolled machinery movement.

Adhering to the manufacturer's guidelines, proper system depressurization, and using appropriate Personal Protective Equipment (PPE) are non-negotiable for safe operation.

Diverse Applications

The 3/4 Inch NPTF Sleeve-Type Hydraulic Quick Coupler Assembly is ideally suited for a wide array of applications across various industries:

• Agricultural Machinery: Tractors, harvesters, planters, balers, and various implements utilize quick couplers for interchangeable hydraulic attachments (e.g., front-end loaders, plows, cultivators).
• Construction Equipment: Excavators, backhoes, skid steers, bulldozers, and compact track loaders rely on quick couplers for connecting hydraulic hammers, augers, grapples, and other attachments.
• Industrial Hydraulics: Manufacturing facilities use these couplers in power units, presses, material handling systems, and assembly lines where modularity and quick changeovers are beneficial.
• Forestry Equipment: Log splitters, wood chippers, and harvesting machinery often incorporate quick couplers for external hydraulic connections.
• Mobile Hydraulics: Any mobile equipment requiring external hydraulic power or quick interchangeability of hydraulic tools benefits from the robustness and efficiency of this coupler type.

Conclusion

The Buyers Products 3/4 Inch NPTF Sleeve-Type Hydraulic Quick Coupler Assembly stands as a testament to meticulous engineering and robust construction, providing a reliable and efficient solution for critical hydraulic connections. Its single-acting sleeve mechanism, designed for secure engagement under depressurized conditions, coupled with the self-sealing characteristics of NPTF threads, ensures a leak-free and durable connection. The use of carbon steel for exceptional strength and zinc plating for superior corrosion resistance guarantees extended operational life even in the most demanding environments. With a substantial 45 GPM flow rate, this coupler supports high-performance hydraulic systems, facilitating rapid fluid transfer and efficient power delivery. As a complete male and female set, it ensures perfect compatibility and streamlined integration into existing or new hydraulic circuits. For professionals seeking a dependable, high-integrity hydraulic quick coupler assembly that prioritizes safety, durability, and operational efficiency, this product represents an optimal choice, engineered to meet the rigorous demands of modern fluid power applications.
