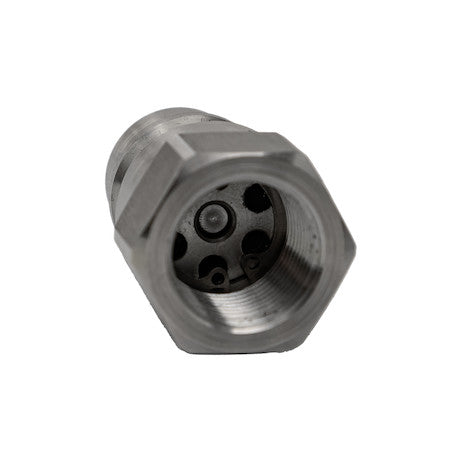

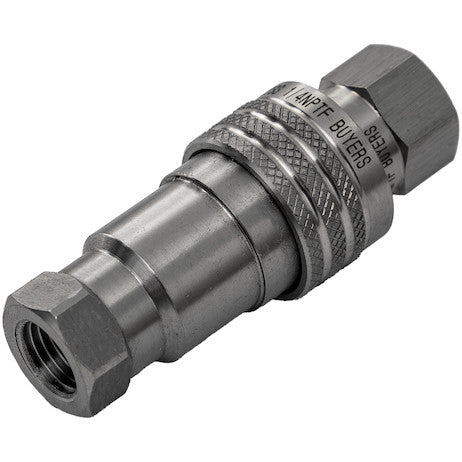

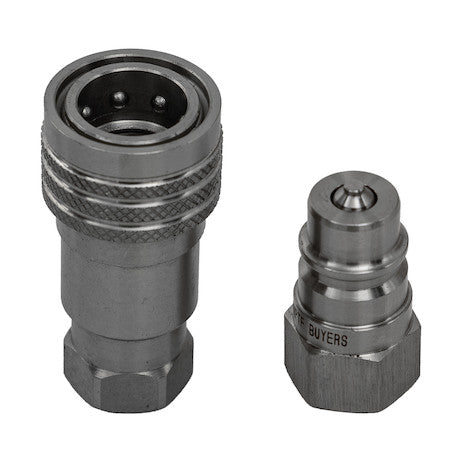

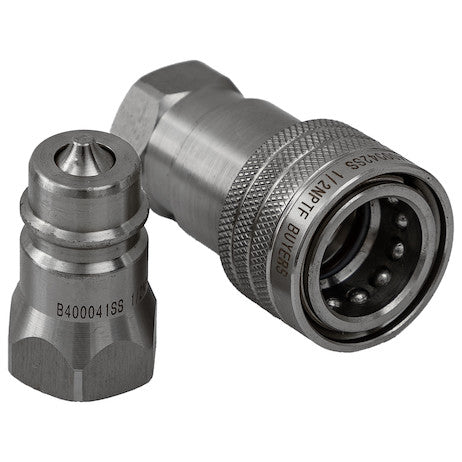

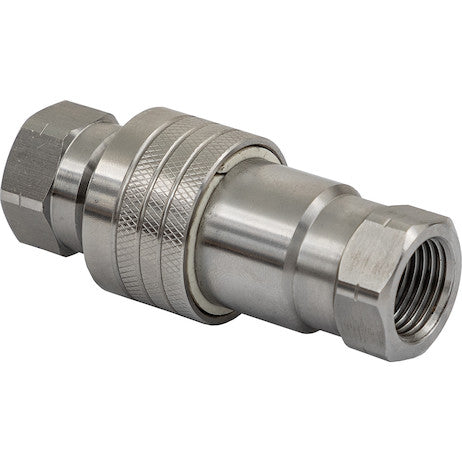

Buyers Products Stainless Steel Hydraulic Couplers are a general-purpose sleeve style coupler with poppet seal for a leak-free connection. The couplers are easy to connect when pressure has been relieved.
Specifications
| Color | Natural |
|---|---|
| Coupler Material | Stainless Steel |
| End (Male/Female/Full) | Male |
| Flow Rate (GPM) | 40 |
| Size | 3/4 NPT |
The Buyers Products Stainless Steel Hydraulic Coupler, specifically the MALE, SST, 3/4in NPTF, 3/4in BODY model, represents a pinnacle of fluid transfer technology, meticulously engineered for demanding hydraulic applications. This component is far more than a simple connection point; it is a critical interface designed to ensure the integrity, efficiency, and safety of hydraulic systems across a diverse range of industries. Its robust construction and precise design specifications cater to professionals requiring reliable performance in challenging operational environments.
At its core, a hydraulic coupler serves as a quick-connect mechanism for hydraulic lines, enabling swift and secure attachment and detachment of hoses, tools, or system components. The primary objective is to facilitate maintenance, equipment changes, or mobility without the need for specialized tools or extensive downtime. This particular model, being a general-purpose sleeve style coupler, exemplifies versatility and widespread utility.
Advanced Design and Sealing Technology: Sleeve Style with Poppet Seal
The choice of a sleeve-style coupler mechanism is central to its operational efficiency and ease of use. In a sleeve-style design, connection is achieved by simply pushing the male plug into the female socket, often with a spring-loaded outer sleeve on the socket that retracts and then snaps forward to lock the connection. This design is highly favored for its straightforward operation and robust mechanical engagement, providing a secure lock that resists accidental disconnections under typical operating conditions. The inherent simplicity of the sleeve-style engagement reduces the learning curve for operators and minimizes potential points of failure, contributing to greater system uptime.
Complementing the sleeve style is the integrated poppet seal technology, a crucial feature that guarantees a leak-free connection. Poppet valves consist of a spring-loaded disc or cone (the poppet) that seals against a mating seat within both the male and female halves of the coupler. When the coupler is disconnected, the poppets are pushed closed by internal springs and system pressure, effectively shutting off fluid flow from both sides. This dual shut-off capability is paramount in preventing fluid loss, air ingress, and contamination of the hydraulic system, which are common issues with lesser quality or simpler valve designs. Upon connection, the male plug pushes against the poppet in the female socket, and simultaneously, the socket's poppet pushes against the poppet in the male plug, allowing fluid to flow with minimal restriction. The precision engineering of these poppets, combined with high-quality elastomeric seals, ensures a tight, reliable seal even under significant pressure fluctuations and vibration, thereby preserving the integrity of the hydraulic circuit and protecting environmental cleanliness.
Superior Material Construction: Stainless Steel (SST)
The designation "SST" refers to Stainless Steel, a material choice that significantly elevates the performance envelope of this hydraulic coupler. Stainless steel is an iron alloy with a minimum of 10.5% chromium content, which imparts exceptional corrosion resistance. For hydraulic components, where exposure to various fluids, environmental conditions, and potential chemical agents is common, stainless steel is an invaluable material. The specific grade of stainless steel typically employed for such high-performance couplers, often 304 or 316, offers distinct advantages:
- Corrosion Resistance: Stainless steel forms a passive chromium oxide layer on its surface when exposed to oxygen, which acts as a protective barrier against rust and corrosion. This resistance is critical in outdoor applications, marine environments, chemical processing plants, and situations where the coupler may come into contact with corrosive hydraulic fluids or cleaning agents.
- Durability and Strength: Stainless steel possesses high tensile strength and excellent ductility, making it highly resistant to mechanical stresses, impacts, and fatigue. This inherent strength ensures a long operational life, even in rugged industrial or mobile hydraulic settings where components are subjected to constant wear and tear.
- Temperature Resilience: Stainless steel maintains its mechanical properties across a wide range of temperatures, from sub-zero conditions to elevated operating temperatures common in hydraulic systems. This stability prevents material degradation, embrittlement, or softening that could compromise the coupler's sealing and structural integrity.
- Chemical Compatibility: The inert nature of stainless steel makes it compatible with a broad spectrum of hydraulic fluids, including petroleum-based, synthetic, and biodegradable types, without adverse reactions that could degrade the fluid or the component itself. This is particularly important for specialized applications where fluid purity is critical.
- Hygienic Properties: In industries such as food processing, pharmaceuticals, or certain medical applications where hydraulic systems may be present, the smooth, non-porous surface of stainless steel resists bacterial growth and is easy to clean, meeting stringent hygiene standards.
The selection of stainless steel for the entire coupler body underscores a commitment to enduring quality and reliability, ensuring that the component can withstand the rigors of its intended service environment without premature failure.
Precision Threading and Sizing: 3/4in NPTF, 3/4in BODY
The specifications of "3/4in NPTF" for the thread size and "3/4in BODY" for the body size are critical technical parameters that define the coupler's interface and performance characteristics. NPTF stands for National Pipe Taper Fuel, a specific type of pipe thread designed for leak-free connections without the need for sealants, though sealants are often used for added assurance. Unlike standard NPT (National Pipe Taper) threads, NPTF threads are designed to create a mechanical seal by deformation of the threads themselves upon tightening. This "dryseal" feature is achieved by slightly truncating the crests and roots of the threads, allowing for metal-to-metal contact and interference fit as the threads are engaged. This intrinsic sealing capability is highly advantageous in hydraulic systems where preventing leaks is paramount for efficiency, safety, and environmental protection.
A 3/4-inch nominal pipe size indicates that the thread is designed to connect to pipes with an approximate internal diameter of 3/4 inch. While the actual dimensions are more complex due to the tapered nature, the 3/4-inch designation is a standard identifier for compatibility. This size is commonly found in medium-duty hydraulic circuits that require significant flow capacity without excessive bulk.
The "3/4in BODY" size refers to the overall physical dimension of the coupler's main housing. The body size dictates the internal fluid passage diameter and, consequently, influences the maximum flow rate and pressure handling capabilities. A larger body size generally correlates with higher flow rates and lower pressure drops across the coupler. In this case, a 3/4-inch body size, in conjunction with the 3/4-inch NPTF threads, ensures a coherent and optimized flow path, minimizing restrictions and turbulence that could degrade system performance or generate unwanted heat.
Optimized Flow and Connection Dynamics: 40 GPM Flow Rate and Pressure Relief
The specified flow rate of 40 Gallons Per Minute (GPM) is a significant performance metric for this coupler. This flow rate capability indicates that the coupler is engineered to efficiently handle substantial volumes of hydraulic fluid, making it suitable for applications that demand robust fluid transfer. When selecting a hydraulic coupler, it is crucial to match its flow rate capacity with the maximum flow rate of the hydraulic system to avoid excessive pressure drop across the connection. An undersized coupler can lead to inefficiencies, increased energy consumption, and potential system overheating due to resistance to fluid flow. The 40 GPM rating confirms that this Buyers Products coupler is designed for demanding applications where maintaining fluid velocity and system pressure is critical.
A key operational characteristic highlighted is the ease of connection "when pressure has been relieved." This is a fundamental safety and functional requirement for many hydraulic quick couplers. Connecting a coupler under residual system pressure can be extremely difficult, if not impossible, due to the hydraulic force acting against the poppet valves. Furthermore, attempting to force a connection under pressure can damage the coupler's internal components, seals, or even lead to dangerous fluid expulsion. Therefore, best practice dictates that system pressure be fully relieved on both sides of the connection before attempting to couple or uncouple. While some specialized "connect under pressure" couplers exist, the general-purpose nature of this model emphasizes the importance of proper system depressurization. This design choice contributes to the longevity of the coupler and the safety of the operator, preventing potential injuries from sudden fluid release or component failure.
Configuration and Versatility: Male End, General-Purpose Application
The "Male" end configuration signifies that this coupler is designed to be inserted into a corresponding female socket. In hydraulic systems, male and female designations are essential for ensuring correct mating and system design. Typically, the male plug is found on the hose or tool side, while the female socket is mounted on the machinery or manifold. This standardized approach simplifies system assembly, maintenance, and interchangeability of components.
Described as a "general-purpose" coupler, this model is inherently versatile and adaptable to a wide array of hydraulic applications. This implies that it is designed to meet the performance requirements of common hydraulic circuits, operating within typical pressure, temperature, and flow parameters found across various industries. While not explicitly engineered for extreme high-pressure surges or highly corrosive exotic fluids beyond stainless steel's capabilities, its general-purpose nature ensures broad applicability and reliability in standard industrial, mobile, and agricultural settings.
Applications and Industry Relevance
Given its technical specifications, this Stainless Steel Hydraulic Coupler finds extensive use across numerous sectors:
- Agriculture: Tractors, harvesters, planters, and other farm machinery frequently use hydraulic quick couplers for interchangeable attachments like plows, loaders, and sprayers. The stainless steel construction offers resilience against corrosive fertilizers, pesticides, and harsh outdoor elements.
- Construction: Excavators, loaders, bulldozers, and other heavy equipment rely on hydraulics for movement and operation of attachments. The durability of SST and the robust sealing mechanism are vital in dusty, muddy, and abrasive construction environments.
- Industrial Machinery: Manufacturing plants, automation systems, and material handling equipment often incorporate hydraulic circuits. The leak-free connection and ease of maintenance are beneficial for maintaining production uptime and safety within industrial facilities.
- Marine Applications: The inherent corrosion resistance of stainless steel makes this coupler ideal for boats, offshore platforms, and dockside equipment, where exposure to saltwater and high humidity would rapidly degrade lesser materials.
- Food & Beverage Processing: Where hygiene and corrosion resistance to cleaning agents are paramount, stainless steel couplers are indispensable for hydraulic systems in food processing machinery, ensuring product safety and operational cleanliness.
- Chemical Processing: For handling certain non-aggressive or mildly corrosive chemicals, the chemical compatibility of stainless steel can be a significant advantage, providing a safe and reliable connection point.
- Mobile Hydraulics: Any vehicle or equipment that uses hydraulics on the go, from municipal service vehicles to specialized utility trucks, can benefit from the quick connect/disconnect feature for various tools and accessories.
Installation, Maintenance, and Longevity
Proper installation and routine maintenance are crucial for maximizing the lifespan and performance of any hydraulic coupler. During installation, it is imperative to apply appropriate torque to the NPTF threads to ensure a proper dryseal without over-tightening, which can damage the threads. While NPTF is designed for dry sealing, a small amount of compatible thread sealant (e.g., PTFE tape or liquid sealant) is often recommended to fill any microscopic voids and provide an extra layer of leak protection, especially in critical applications. It is essential to ensure that the threads are clean and free of debris before connection.
Regular inspection for signs of wear, damage, or corrosion is recommended. Worn seals, bent poppets, or damaged threads can compromise the leak-free integrity. While stainless steel is highly corrosion-resistant, aggressive chemicals or prolonged exposure to certain conditions can still cause surface degradation. Cleaning the coupler connections periodically and lubricating the sleeve mechanism with a compatible hydraulic fluid or grease can help maintain smooth operation and extend seal life. Always ensure that the system pressure is fully relieved before attempting to disconnect or connect, as emphasized in the product description, to prevent damage and ensure operator safety.
Conclusion
The Buyers Products Stainless Steel Hydraulic Coupler, MALE, SST, 3/4in NPTF, 3/4in BODY, is an exceptionally well-engineered component designed to meet the rigorous demands of modern hydraulic systems. Its combination of a robust sleeve-style mechanism, precise poppet seal for guaranteed leak-free operation, and superior stainless steel construction delivers unparalleled reliability and longevity. The 3/4-inch NPTF threading ensures a secure, dryseal connection, while the 3/4-inch body size and 40 GPM flow rate capacity are optimized for efficient fluid transfer in medium-duty to heavy-duty applications. By prioritizing safety through its pressure-relief connection design and offering broad versatility as a general-purpose male coupler, this product stands as an essential component for professionals seeking uncompromising performance and durability in their hydraulic infrastructure. Investing in such a high-quality coupler ensures not only operational efficiency but also enhanced safety and reduced maintenance costs over the system's lifetime.
