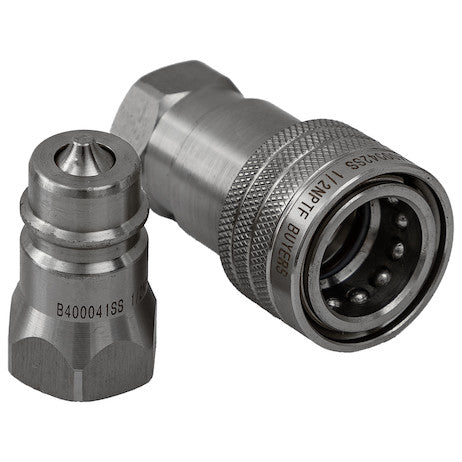

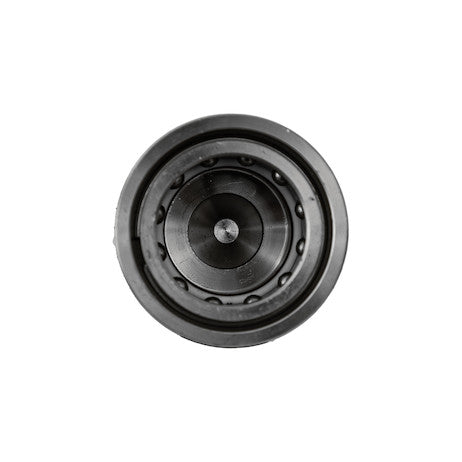

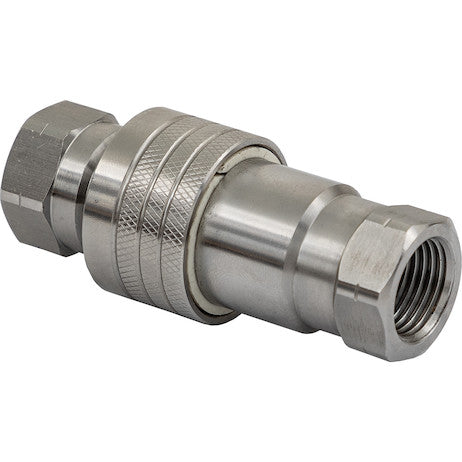

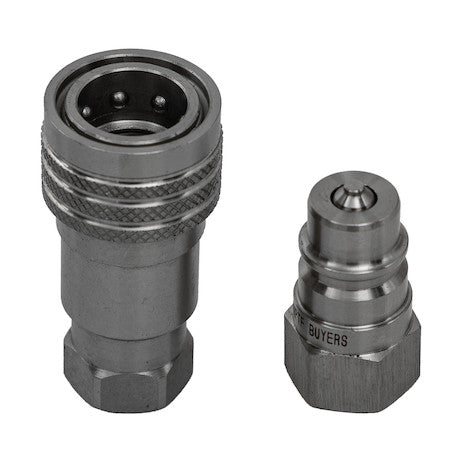

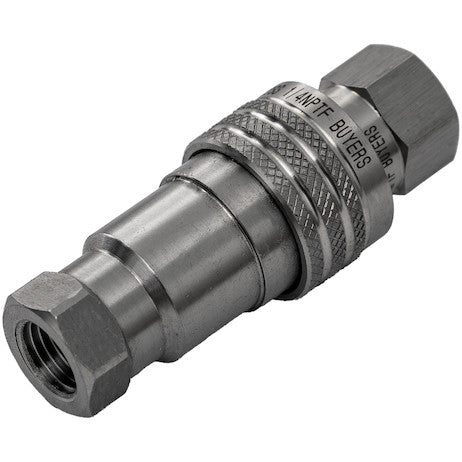

Buyers Products Stainless Steel Hydraulic Couplers are a general-purpose sleeve style coupler with poppet seal for a leak-free connection. The couplers are easy to connect when pressure has been relieved.
Specifications
| Color | Natural |
|---|---|
| Coupler Material | Stainless Steel |
| End (Male/Female/Full) | Female |
| Flow Rate (GPM) | 40 |
| Size | 3/4 NPT |
The Hydraulic Coupler, FEMALE, SST, 3/4in NPTF, 3/4in BODY from Buyers Products is an expertly engineered component for demanding hydraulic systems. Its high-grade Stainless Steel (SST) construction imparts exceptional resistance to corrosion, rust, and oxidation, making it ideally suited for harsh operating environments, including marine applications, chemical processing, and outdoor industrial settings where corrosive agents are present. The inherent strength and ductility of stainless steel enable the coupler to withstand high operating pressures and repetitive stress cycles without material degradation, ensuring a prolonged service life and consistent operational integrity. The natural finish of the stainless steel reinforces its quality.
This hydraulic coupler features a general-purpose sleeve style design, configured as a female end for compatibility with male hydraulic components. The sleeve mechanism allows easy connection and disconnection. A critical safety and operational characteristic is the necessity for pressure relief within the hydraulic system prior to engagement or disengagement. This design choice safeguards against uncontrolled fluid release and reduces wear on internal sealing components and mating surfaces. Depressurizing the system ensures a smoother, more reliable coupling process, extending the connection's lifespan and improving efficiency.
Central to the coupler’s leak-free connection is its poppet seal mechanism. This design incorporates a spring-loaded valve that closes upon disconnection, minimizing fluid loss and preventing contaminant ingress into the hydraulic circuit. During connection, the male coupling depresses the poppet valve, enabling fluid flow. This sealing method offers advantages, including resistance to extrusion under dynamic pressures and minimal air inclusion during coupling, vital for system integrity. The poppet seal's integrity is ensured by high-performance elastomers, typically Nitrile (Buna-N) for petroleum-based fluids, or Viton (Fluorocarbon) for enhanced temperature or chemical resistance.
The 3/4in NPTF threading is a key technical detail suitable for high-integrity hydraulic applications. NPTF (National Pipe Taper Fuel or Dryseal) threads are engineered to establish a mechanical metal-to-metal seal, eliminating the need for thread sealant compounds. This seal is achieved through an interference fit between the crests, roots, and flanks of the male and female tapered threads. The dryseal capability is crucial in hydraulic systems, where traditional sealants can degrade under high pressure, contaminate fluid, or cause failures. The tapered geometry also provides vibration resistance, maintaining seal integrity. The 3/4-inch nominal pipe size ensures a consistent flow path, complementing the coupler's flow rate capacity and contributing to system performance by mitigating cavitation and pressure drops.
With a 3/4in BODY size, this hydraulic coupler is engineered for medium to heavy-duty hydraulic systems, accommodating substantial fluid volumes and pressures. Body size influences internal bore diameter and the maximum achievable flow rate with minimal pressure drop. The specified flow rate of 40 Gallons Per Minute (GPM) indicates the coupler’s robust capacity for rapid and efficient fluid transfer. This high flow rate ensures hydraulic actuators receive fluid promptly, facilitating faster cycle times and improving operational efficiency. This capacity makes the coupler ideal for demanding applications like large agricultural implements, heavy construction machinery, and industrial power units, where continuous, high-volume fluid circulation is essential for optimal productivity.
While specific pressure ratings require manufacturer data, a 3/4-inch stainless steel hydraulic coupler of this design typically features a working pressure rating between 3,000 to 5,000 PSI (200 to 345 bar). This capability ensures safe and reliable operation across most industrial and mobile hydraulic systems. Temperature compatibility is broad; stainless steel construction with standard Buna-N seals allows operation from -40°F to +250°F (-40°C to +121°C), with specialized elastomers extending this range for extreme conditions. This wide operational window guarantees consistent performance, highlighting the coupler’s versatility and reliability in diverse application environments.
The versatility of this FEMALE Stainless Steel Hydraulic Coupler makes it a crucial component across many industries. In agriculture, it provides reliable connections for machinery exposed to corrosive fertilizers and challenging outdoor conditions. For construction, its robust design ensures continuous operation of heavy equipment in harsh, abrasive, and wet environments. The marine sector benefits from its superior saltwater corrosion resistance, making it ideal for hydraulic systems on vessels. Industrial manufacturing, material handling, and specialized applications like chemical processing or food and beverage facilities leverage stainless steel’s cleanliness and chemical inertness. This adaptability highlights its comprehensive utility in critical fluid power transfer.
Beyond its technical specifications, this coupler offers substantial performance advantages and long-term value. Its stainless steel construction ensures superior corrosion resistance and durability, leading to an extended service life and reduced total cost of ownership. The leak-free poppet seal and NPTF dryseal threads prevent hydraulic fluid loss, enhancing system efficiency, minimizing environmental impact, and reducing fluid replenishment. This precision engineering mitigates issues like cavitation and air entrapment, which can damage hydraulic pumps and cylinders. The design facilitates easier, pressure-relieved connection and disconnection, streamlining equipment changeovers and maintenance, maximizing operational uptime and productivity for critical applications.
Proper installation and maintenance are crucial for this hydraulic coupler's performance and longevity. During installation, ensure all 3/4in NPTF threads are clean and free from debris. While NPTF threads are designed for a dryseal, a minimal, hydraulic-compatible application of thread sealant or PTFE tape can offer added security in demanding applications, applied judiciously to prevent contamination. Adhering to specified torque values, from NPTF standards or manufacturers, is vital for a secure, leak-free connection without thread deformation. Regular visual inspections are recommended to identify wear, corrosion, or damage, especially to the poppet seal. Fluid leakage or debris ingress requires immediate investigation and remedial action. Proactive maintenance extends the service life of the coupler and the entire hydraulic system.
Safety is paramount in hydraulic system operations, and this coupler supports a safer working environment. The "easy to connect when pressure has been relieved" feature is a fundamental safety mechanism, preventing hazardous fluid release under high-pressure conditions, safeguarding operators. Operators must always verify that system pressure is safely relieved before any connection or disconnection. It is crucial to ensure the coupler’s pressure and temperature ratings equal or exceed maximum anticipated system operating conditions to prevent failures. Maintaining overall system cleanliness through consistent fluid filtration protects internal components and the entire hydraulic circuit from premature wear and damage. Adherence to these safety protocols, with the coupler's durable design, provides a reliable solution for critical fluid transfer.
In conclusion, the Buyers Products Female Stainless Steel Hydraulic Coupler, with its 3/4in NPTF connection and 3/4in BODY, and featuring a general-purpose sleeve style with a poppet seal, exemplifies advanced hydraulic engineering. Crafted from stainless steel, it offers superior corrosion resistance, high mechanical strength, and enduring durability. The 40 GPM flow rate, combined with NPTF dryseal threads and its robust poppet seal mechanism, guarantees efficient, leak-free fluid transfer even under demanding operational conditions. This coupler ensures a prolonged operational life and consistent, reliable performance across industrial, agricultural, construction, and marine sectors. For hydraulic systems where quality, reliability, and safety are non-negotiable, this coupler stands as a definitive choice, embodying engineering tailored for challenging fluid power requirements.
