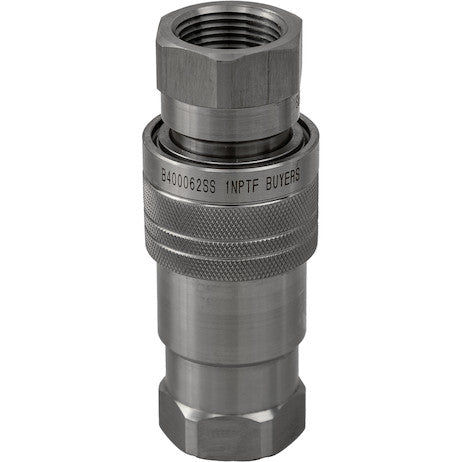

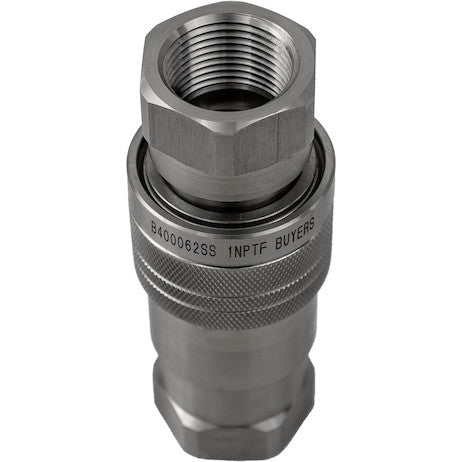

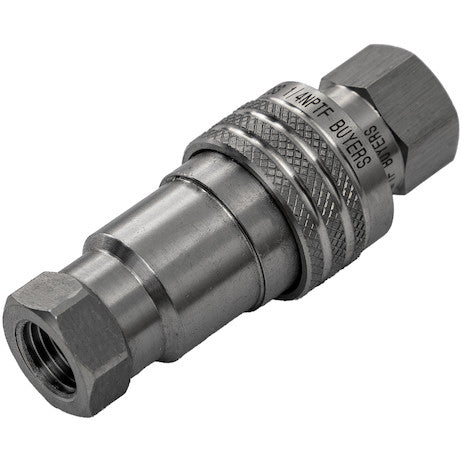

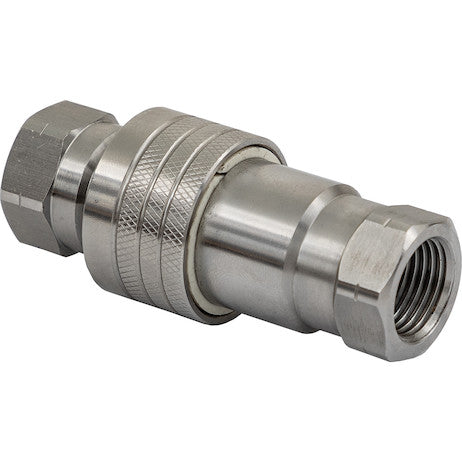

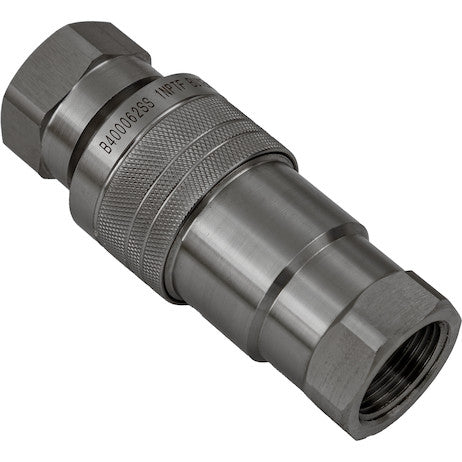

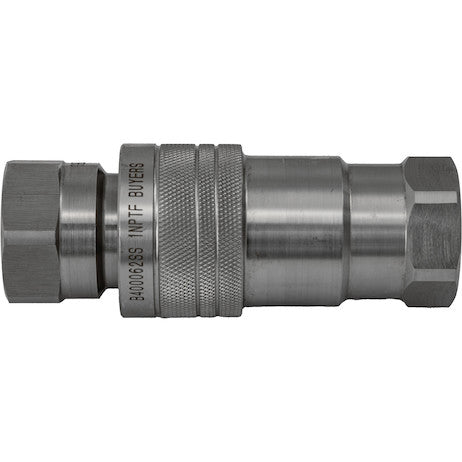

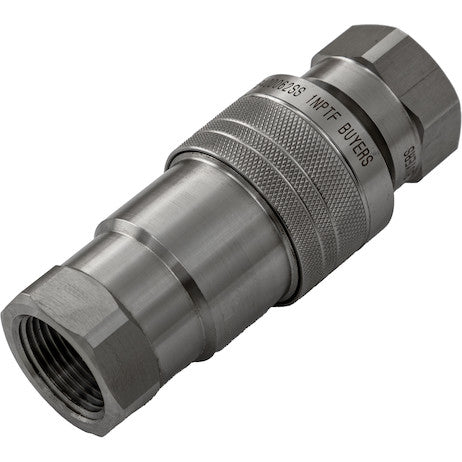

Buyers Products Stainless Steel Hydraulic Couplers are a general-purpose sleeve style coupler with poppet seal for a leak-free connection. The couplers are easy to connect when pressure has been relieved.
Specifications
| Color | Natural |
|---|---|
| Coupler Material | Stainless Steel |
| End (Male/Female/Full) | Male & Female Set |
| Flow Rate (GPM) | 75 |
| Size | 1 NPT |
In the realm of modern industrial and mobile hydraulic systems, the efficiency, reliability, and safety of fluid power connections are paramount. The Hydraulic Coupler Set, constructed from Stainless Steel (SST), featuring 1-inch NPTF threading and a 1-inch body size, represents a superior solution for a broad spectrum of demanding applications. This comprehensive quick-disconnect coupler set, designed and manufactured by Buyers Products, integrates advanced material science with precision engineering to deliver exceptional performance in environments where standard components fall short.
Precision Engineering for Demanding Environments: The Buyers Products Hydraulic Coupler Set
This Hydraulic Coupler Set is engineered for critical applications requiring robust, leak-free, and high-flow fluid transfer capabilities. As a general-purpose sleeve-style coupler, it facilitates rapid connection and disconnection of hydraulic lines, significantly reducing downtime during equipment changes or maintenance. The incorporation of a poppet seal ensures a consistently leak-free connection, safeguarding against fluid loss and environmental contamination. The design emphasizes ease of connection, particularly when system pressures have been neutralized, which is a critical operational safety feature.
Unrivaled Durability and Chemical Resistance: The Stainless Steel Advantage (SST)
The selection of Stainless Steel (SST) as the primary material for this hydraulic coupler set is a strategic choice, offering a multitude of benefits over traditional carbon steel alternatives. Stainless steel alloys, typically 304 or 316 grade for hydraulic components, provide exceptional resistance to corrosion, rust, and chemical degradation. This inherent material strength makes the coupler set indispensable in applications exposed to harsh elements such as saltwater, aggressive chemicals, high humidity, or extreme temperatures. Industries such as marine, offshore, chemical processing, food and beverage, pharmaceuticals, and wastewater treatment derive significant advantages from SST couplers, where hygiene, material purity, and resistance to corrosive media are non-negotiable.
Beyond its remarkable corrosion resistance, stainless steel exhibits superior mechanical properties, including high tensile strength and ductility. This translates to enhanced durability and longevity, allowing the couplers to withstand high operating pressures and repetitive stress cycles without material fatigue or failure. The smooth, natural finish of stainless steel not only contributes to its aesthetic appeal but also simplifies cleaning and sanitation processes, further cementing its suitability for sterile or sensitive environments. The ability of stainless steel to maintain structural integrity and sealing performance across a wide temperature range—from cryogenic conditions to elevated heat exposures—ensures consistent system operation regardless of ambient or fluid temperatures, making it a truly versatile and long-term investment in hydraulic infrastructure.
Optimized Flow Dynamics: 1-inch Body Size and 75 GPM Flow Rate
The 1-inch body size of this hydraulic coupler set is indicative of its design for high-volume fluid transfer applications. A larger body size inherently allows for greater fluid flow capacity, minimizing pressure drop across the connection point and optimizing the overall efficiency of the hydraulic system. With a substantial flow rate of 75 Gallons Per Minute (GPM), this coupler set is perfectly suited for heavy-duty machinery and industrial processes where rapid fluid movement is essential for achieving desired operational speeds and power outputs. Such high flow capabilities are critical in applications like large agricultural machinery, construction equipment (excavators, loaders), industrial presses, or any system requiring significant hydraulic horsepower.
Maintaining optimal flow is crucial for preventing system overheating, reducing energy consumption, and extending the lifespan of hydraulic pumps and other components. Excessive pressure drop caused by restrictive connections can lead to increased fluid temperatures, cavitation, and reduced system efficiency. The carefully engineered internal geometry of this 1-inch body coupler, combined with the poppet valve design, ensures that the 75 GPM flow rate can be achieved with minimal turbulence and energy loss. This translates directly into more responsive equipment operation, lower operating costs, and enhanced productivity for the end-user. The robust construction ensures that these high flow rates can be sustained even under dynamic operating conditions, providing consistent performance when it matters most.
Secure and Self-Sealing: Understanding 1-inch NPTF Threading
The integration of 1-inch NPTF (National Pipe Taper Fuel) threading is a critical feature that underscores the technical sophistication of this coupler set. NPTF threads are a specialized variant of the standard NPT (National Pipe Taper) thread, specifically designed to create a mechanical seal without the need for additional thread sealants. This "dry seal" capability is achieved through a controlled interference fit between the crests of the male thread and the roots of the female thread, coupled with the deformation of the thread flanks, ensuring metal-to-metal contact at the root and crest. This precise taper design eliminates the spiral leak path common in parallel threads or even standard NPT threads where sealants are relied upon.
The advantage of NPTF in hydraulic applications is multi-fold. Firstly, it provides a highly reliable and leak-proof connection, which is paramount in high-pressure fluid power systems where even minor leaks can lead to significant fluid loss, environmental contamination, and safety hazards. Secondly, the absence of thread sealant requirements simplifies installation, reduces assembly time, and eliminates the risk of sealant material shedding into the hydraulic system, which could potentially clog filters or damage sensitive components. Proper installation techniques, including correct torque application and careful alignment, are essential to achieve the intended self-sealing performance of NPTF threads. This thread standard ensures compatibility with a vast range of hydraulic components designed for the same specification, providing flexibility in system design and maintenance.
Advanced Sealing Mechanism: The Poppet Valve Design
At the heart of this coupler set's leak-free performance lies its advanced poppet valve design. A poppet valve consists of a cone-shaped or disc-shaped element (the poppet) that is spring-loaded and designed to seat firmly against a mating surface, forming a tight seal. When the male and female halves of the coupler are disconnected, the poppets in both halves automatically close, effectively sealing off the hydraulic lines. This critical feature prevents fluid spillage from the disconnected lines, minimizing environmental impact, reducing fluid loss, and preventing air or contaminants from entering the hydraulic system. The 'leak-free connection' highlighted in the initial description directly stems from the efficacy of this poppet seal.
During connection, the two poppets are pushed open by mutual contact, allowing unimpeded fluid flow. The precision engineering of the poppet and its seating surface ensures that full flow (75 GPM) is achieved with minimal restriction and pressure drop when connected. Upon disconnection, the spring-loaded poppets rapidly return to their closed positions, instantly sealing the lines. This mechanism is superior to simpler valve designs in terms of reliability, especially under varying pressure conditions, and its ability to withstand hydraulic shocks without compromise. The robust nature of the poppet valve makes it ideal for applications where frequent connection and disconnection cycles are common, ensuring consistent performance and system integrity over the long term.
Ergonomic Operation: The Sleeve Style Connection Method
The general-purpose sleeve-style design offers a straightforward and reliable method for coupling and uncoupling hydraulic lines. This mechanism typically involves a spring-loaded outer sleeve on the female coupler half. To connect, the operator simply retracts the sleeve, inserts the male coupler, and releases the sleeve. The sleeve then slides forward, engaging a locking mechanism (often ball bearings or similar retention features) that securely holds the male and female halves together. This intuitive design promotes quick and efficient operations, reducing the time and effort required for equipment changeovers or diagnostic procedures.
The simplicity of the sleeve-style operation contributes to its widespread adoption across various industries. It allows for a firm, positive connection that resists accidental disengagement during normal operation, even under vibration or moderate tensile loads. The design inherently protects the internal sealing components, such as the poppets, from external damage when disconnected. While robust, the sleeve mechanism is designed for ease of use, making it accessible even for operators wearing gloves, further enhancing its practical utility in diverse field environments. The natural finish of the stainless steel complements this design, providing a clean, professional aesthetic while also resisting wear and tear from frequent handling.
Operational Integrity: Connecting Under Residual Pressure and Best Practices
The specification stating that "The couplers are easy to connect when pressure has been relieved" is a crucial operational directive rooted in safety and system longevity. In many hydraulic quick couplers, particularly those employing poppet valves, residual pressure trapped within the hydraulic lines can make connection extremely difficult, if not impossible, due to the hydraulic force acting against the poppet and making it hard to seat properly. Attempting to force a connection under high residual pressure can lead to several undesirable outcomes: excessive wear on internal components, damage to the seals, premature failure of the coupler, or even dangerous fluid expulsion.
To ensure safe and easy connection, operators should always verify that pressure has been fully relieved from both the male and female lines before attempting to couple. This can typically be achieved by cycling system controls with the equipment turned off, utilizing integrated pressure relief valves on some hydraulic circuits, or employing specialized pressure-relief tools designed for couplers. Adhering to this best practice not only prolongs the life of the coupler and the entire hydraulic system but also significantly enhances operator safety by preventing sudden bursts of high-pressure fluid. The inherent design of this Buyers Products coupler allows for a smooth, low-effort connection once these crucial pressure relief protocols are observed, ensuring optimal performance and safety.

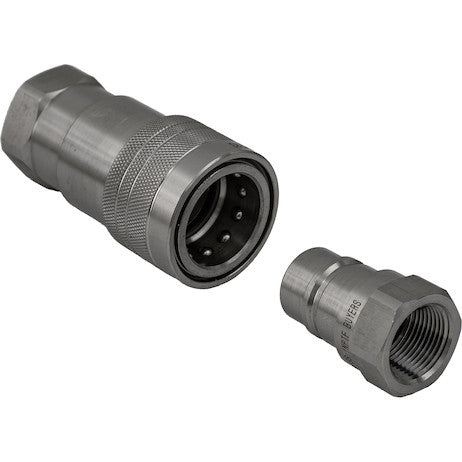

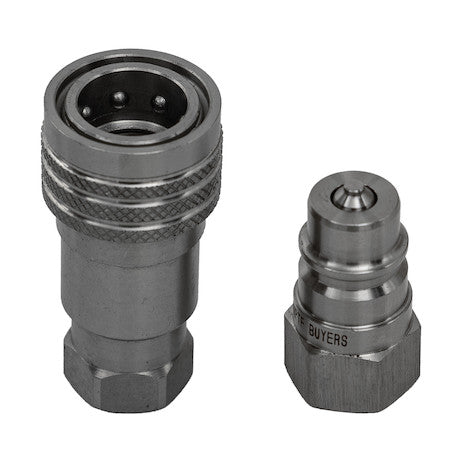

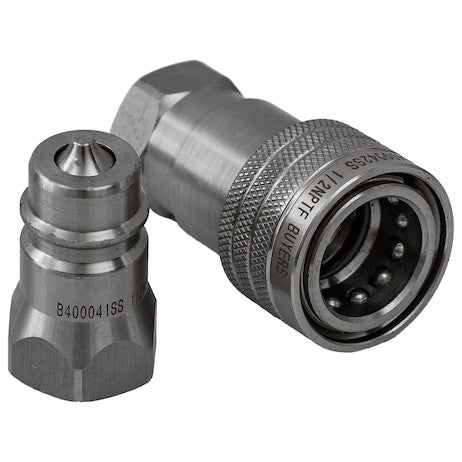

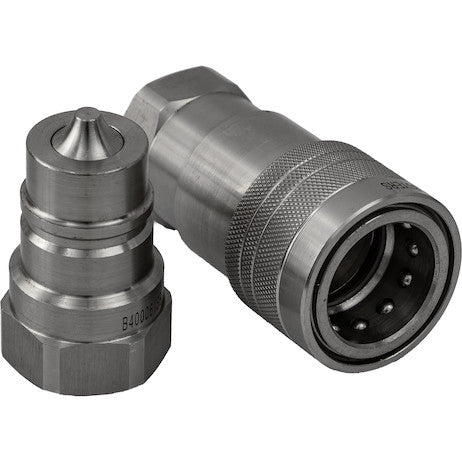

Comprehensive Compatibility: A Male and Female Set
Supplied as a complete male and female set, this product ensures immediate compatibility and simplifies procurement for end-users. This configuration eliminates the guesswork and potential for mismatching components, guaranteeing that both halves are perfectly engineered to integrate with each other. This holistic approach ensures optimal sealing, flow, and mechanical integrity from the outset, providing a reliable connection point ready for installation into any 1-inch NPTF hydraulic system. It streamlines inventory management and reduces the likelihood of ordering incorrect parts, ensuring that maintenance or new installations can proceed without delay.
Beyond Specifications: Performance Characteristics and Environmental Adaptability
While specific maximum operating pressure is not listed in the provided specifications, a 1-inch body stainless steel hydraulic coupler typically operates effectively within common industrial hydraulic pressure ranges, often exceeding 3,000 PSI (200 Bar), making it suitable for heavy-duty applications. The stainless steel construction also inherently contributes to excellent temperature resistance, allowing the coupler to maintain its integrity and sealing capabilities across a broad spectrum of operating temperatures. The poppet seals, though material not specified, are typically made from elastomers compatible with hydraulic fluids and operating temperatures, such as Nitrile (Buna-N), Viton (FKM), or EPDM, selected for their resilience and chemical resistance. This robust design ensures the coupler set can withstand significant vibration and shock, crucial for mobile equipment operating in rugged terrains or industrial machinery subjected to dynamic loads.
Fluid compatibility is another critical aspect. Stainless steel is inherently compatible with a wide array of hydraulic fluids, including petroleum-based hydraulic oils, water-glycol solutions, and many synthetic fluids. This broad compatibility reduces concerns when operating in diverse hydraulic systems or when switching between different fluid types. The 'Natural' color specification simply denotes the unpainted, polished finish of the stainless steel, which is advantageous for environments requiring high cleanliness, such as food processing, or where chemical resistance is paramount, as there is no coating to chip, peel, or degrade.
Diverse Industrial Applications
The robust design, high flow capacity, and stainless steel construction of this coupler set render it suitable for an extensive range of industrial and mobile hydraulic applications. These include, but are not limited to:
- Construction and Heavy Equipment: For excavators, bulldozers, loaders, and other heavy machinery operating in demanding outdoor environments, often exposed to dirt, mud, and water.
- Agricultural Machinery: On tractors, harvesters, and implements where quick attachment and detachment of hydraulic lines are frequent, often in corrosive environments like fertilizer applications.
- Marine and Offshore Systems: Essential for vessels, docks, offshore platforms, and subsea equipment where saltwater corrosion is a constant threat.
- Chemical and Petrochemical Processing: For transfer lines and equipment within facilities handling corrosive chemicals, requiring both high flow and material compatibility.
- Food and Beverage Processing: Where strict hygiene standards and resistance to cleaning agents are critical, benefiting from stainless steel's non-contaminating properties and ease of sanitation.
- Wastewater Treatment Plants: Operating in environments with high moisture and exposure to various chemicals, demanding superior corrosion resistance.
- Manufacturing and Industrial Automation: For robotic arms, presses, and material handling systems requiring reliable, high-speed fluid power connections.
- Municipal Services: On snow plows, street sweepers, and utility vehicles where equipment is exposed to road salts and varying weather conditions.
In each of these sectors, the unique combination of stainless steel durability, high flow capacity, and reliable poppet sealing ensures optimal performance, extended service life, and reduced maintenance costs.
Installation and Maintenance Protocols for Maximized Longevity
To maximize the operational life and performance of the Hydraulic Coupler Set, adherence to proper installation and maintenance procedures is crucial. When installing the 1-inch NPTF threads, it is essential to ensure that threads are clean and free of burrs or damage. While NPTF is designed for a self-sealing dry fit, using a minimal amount of hydraulic-grade thread sealant (compatible with the system fluid and components) on the male threads can sometimes be beneficial for added security, especially in high-vibration applications. However, care must be taken to prevent sealant from entering the fluid path. Proper torque specifications should always be followed to achieve the interference fit without over-tightening, which can distort threads or crack components. Hand-tightening followed by a specific number of turns with a wrench is a common method for tapered pipe threads.
Regular maintenance involves inspecting the couplers for any signs of wear, damage, or corrosion. The condition of the internal poppet seals should be periodically checked, as these elastomers are subject to degradation over time due to fluid compatibility, temperature cycles, and mechanical wear. Replacement of seals at recommended intervals is a proactive measure to prevent leaks. It is also vital to keep both coupler halves clean when disconnected, using dust caps or plugs to prevent ingress of dirt, moisture, or other contaminants into the hydraulic system. Contamination is a leading cause of hydraulic system failure, and quick couplers are a primary point of entry. Avoiding side loads or bending forces on the coupled lines will prevent premature wear on the coupler body and connections. Proper storage of disconnected couplers, especially in harsh environments, further ensures their readiness for deployment.
The Buyers Products Commitment to Quality and Performance
Buyers Products is renowned for its commitment to engineering excellence and manufacturing high-quality components for demanding industries. This Hydraulic Coupler Set embodies that commitment, delivering a product that meets stringent performance requirements. The rigorous selection of stainless steel, coupled with precision machining and assembly, results in a hydraulic connection solution that offers superior reliability and durability. By choosing Buyers Products, users invest in components that are designed to perform consistently, reduce operational disruptions, and contribute positively to the overall efficiency and safety of their hydraulic systems.
Conclusion: An Indispensable Component for High-Performance Hydraulic Systems
The Hydraulic Coupler Set, constructed from Stainless Steel with 1-inch NPTF threading and a 1-inch body, capable of handling 75 GPM, represents a pinnacle of hydraulic connection technology. Its unique combination of material robustness, advanced sealing, high flow capacity, and user-friendly operation makes it an indispensable component for any high-performance hydraulic system. From preventing corrosion in harsh marine environments to ensuring clean fluid transfer in hygienic processing plants, and facilitating efficient operations in heavy machinery, this coupler set offers a superior solution that enhances system reliability, minimizes downtime, and ultimately contributes to safer and more productive industrial operations. Investing in this Buyers Products coupler set is an investment in enduring quality and uncompromised hydraulic performance.
