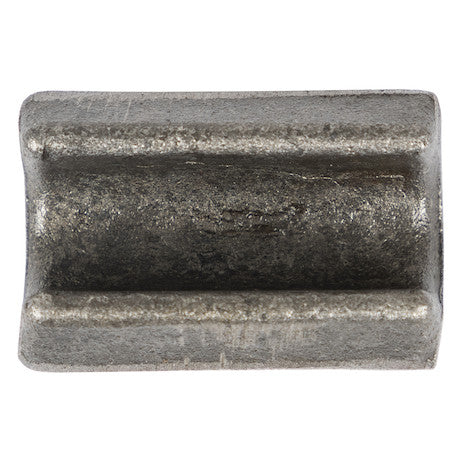

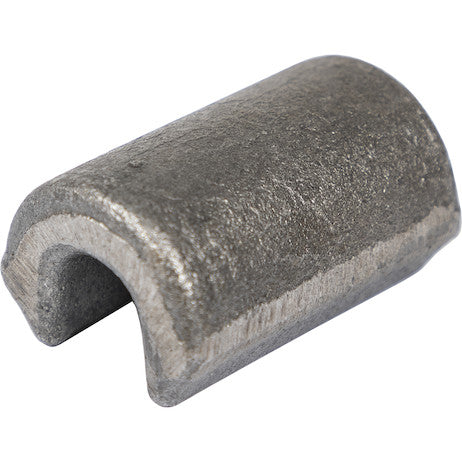

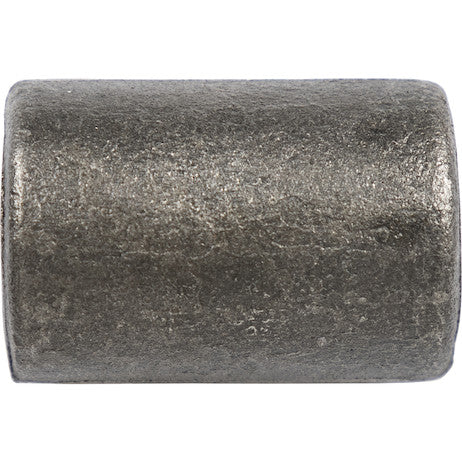

B40BF - Forged Bracket for B40 5/8 Inch D-Ring

Forged Weld-On Bracket for B40 5/8 Inch D-Ring

Specifications

Advanced Technical Overview: Forged Weld-On Bracket for B40 5/8 Inch D-Ring

This document provides a comprehensive technical description of the Forged Weld-On Bracket specifically engineered for compatibility with B40 5/8 Inch D-Rings. Designed for robust performance in demanding load securement and lifting applications, this bracket represents a critical component in systems requiring high strength, durability, and reliable attachment. The focus will be on its material science, manufacturing process, mechanical properties, design considerations, installation methodology, and application specific advantages.

1. Material Science and Forging Process

1.1. Material Selection

The foundation of this bracket's superior performance lies in its meticulously selected material. Typically, these brackets are manufactured from high-grade carbon or alloy steel, such as AISI 1045, 8620, or equivalent grades. The specific steel alloy is chosen based on a balanced requirement for tensile strength, yield strength, impact toughness, and weldability. For instance, AISI 1045 provides a good balance of strength and hardness after heat treatment, while 8620 offers excellent core strength and case hardenability, crucial for wear resistance in specific applications.

• Chemical Composition: The precise chemical composition of the chosen steel is critical. Key elements include Carbon (C) for strength and hardness, Manganese (Mn) for strength and workability, Silicon (Si) as a deoxidizer and strengthener, and trace amounts of Phosphorus (P) and Sulfur (S) strictly controlled to minimize embrittlement and hot shortness. Alloying elements like Chromium (Cr), Molybdenum (Mo), and Nickel (Ni) may be added to further enhance strength, toughness, hardenability, and corrosion resistance, depending on the specific application demands and environmental conditions.
• Microstructure: The desired microstructure of the steel, typically ferrite-pearlite in the as-forged condition, is optimized for subsequent heat treatment and mechanical properties.

1.2. The Forging Process

Forging is a manufacturing process that shapes metal by localized compressive forces using hammers, presses, or rolling machines. This process is paramount for producing components with superior mechanical properties compared to casting or machining from plate. For this weld-on bracket, closed-die forging (or impression-die forging) is typically employed.

• Initial Stock Preparation: High-quality steel billets or bars, cut to precise dimensions, are heated to their specific plastic deformation temperature (typically 1100-1250°C for steel). This heating must be uniform to prevent internal stresses and ensure consistent material flow.
• Impression Forging: The heated billet is placed between two dies (an upper and a lower die) containing cavities that precisely match the desired shape of the bracket. The upper die descends with immense force, causing the metal to flow and fill the die cavities. This process results in a component with a continuous grain flow, aligning with the contour of the part.
• Grain Flow Orientation: The primary advantage of forging is the creation of a refined and oriented grain structure. Unlike machined or cast parts where grain structures are random or interrupted, forging forces the metal's grain to follow the component's shape. This continuous grain flow significantly enhances the bracket's fatigue strength, impact resistance, and overall structural integrity, particularly at stress concentration points like radii and corners. This is crucial for load-bearing components like this bracket.
• Flash Removal: Excess material, known as flash, is squeezed out between the die halves. This flash is subsequently trimmed off in a separate operation.
• Post-Forging Cooling: Controlled cooling after forging is critical to prevent thermal stresses and undesirable microstructural changes. Depending on the material and desired properties, components may be air-cooled, normalized, or subjected to other specific cooling regimes.

2. Mechanical Properties and Performance Characteristics

The combination of superior material selection and the forging process imparts exceptional mechanical properties to the bracket, making it suitable for high-stress applications.

• Tensile Strength: The maximum stress the material can withstand while being stretched or pulled before breaking. For these forged steel brackets, tensile strengths typically range from 600 MPa (87 ksi) to over 1000 MPa (145 ksi) depending on the specific alloy and heat treatment.
• Yield Strength: The stress at which the material begins to deform plastically (permanently). This is a critical parameter for preventing permanent deformation under operational loads. Forged brackets often exhibit yield strengths exceeding 400 MPa (58 ksi).
• Hardness: Resistance to localized plastic deformation (e.g., indentation or scratching). Hardness values, often measured in Brinell (HB) or Rockwell (HRC), are tailored to prevent wear and deformation, while not compromising toughness.
• Impact Toughness: The ability of the material to absorb energy and deform plastically before fracturing. This is crucial for components subjected to sudden or dynamic loads, preventing brittle failure. Notched Charpy impact tests are commonly used to quantify this property. The forged grain structure significantly enhances impact toughness.
• Fatigue Strength: The ability of the material to withstand repeated cycles of stress without failure. The continuous grain flow of forged components drastically improves their fatigue life compared to cast or machined alternatives, especially in applications with cyclic loading.
• Load Rating: While the bracket itself does not have a standalone Working Load Limit (WLL) independent of the D-ring it supports, its design and material properties are engineered to exceed the WLL of the corresponding B40 5/8 Inch D-Ring with an appropriate safety factor (typically 4:1 or 5:1). This ensures that the bracket itself is not the weakest link in the securement system.

3. Design Considerations and Ergonomics

3.1. Geometry and Dimensions

The design of the forged bracket is optimized for secure attachment of a 5/8 inch D-Ring while facilitating efficient weld-on installation. Key geometric features include:

• Base Plate: A flat, robust base designed for maximal surface contact with the mounting substrate, ensuring a strong and stable weld. The thickness and area of the base are critical for distributing applied loads effectively and preventing localized stress concentrations in the substrate or the weld itself.
• Pin Boss / Eyelet: The integral component designed to receive the pin of the B40 5/8 Inch D-Ring. This section is engineered with sufficient material thickness and robust radii to withstand the shear and bending forces exerted by the D-Ring under load. The inner diameter of the eyelet is precisely machined or formed to ensure proper fitment with the 5/8 inch D-Ring pin, minimizing play and preventing premature wear.
• Radii and Fillets: All internal and external corners incorporate generous radii and fillets. This design choice is fundamental in reducing stress concentration points, which are common sites for fatigue crack initiation. The smooth transitions enhance the overall structural integrity and fatigue life of the component.
• Overall Profile: The compact and low-profile design minimizes protrusion from the mounting surface, reducing the risk of snagging or damage in active environments.

3.2. Fitment with B40 5/8 Inch D-Ring

The designation "For B40 5/8 Inch D-Ring" signifies a specific interface compatibility. The B40 D-Ring series typically refers to heavy-duty, forged D-rings designed for demanding applications. The 5/8 inch dimension refers to the diameter of the D-Ring's pin, which the bracket's eyelet is precisely sized to accommodate. This precise fitment is crucial for:

• Load Transfer Efficiency: Ensuring that the forces applied to the D-Ring are efficiently transferred through its pin to the bracket and subsequently to the mounting structure.
• Minimizing Wear: A snug fit prevents excessive movement, which can lead to wear between the D-Ring pin and the bracket's eyelet, prolonging the service life of both components.
• Preventing Accidental Dislodgement: While the D-Ring pin is typically secured, a proper fit prevents unwanted shifting during dynamic loading.

4. Installation Methodology: Weld-On Application

The "Weld-On" designation indicates that this bracket is intended for permanent attachment to a structural component via welding. This method offers unparalleled strength and integration into the host structure when executed correctly.

4.1. Welding Process and Recommendations

• Welding Procedure Specification (WPS): A formal WPS, compliant with relevant welding codes (e.g., AWS D1.1 for structural steel), should be followed. This specifies electrode type, welding process (e.g., Shielded Metal Arc Welding - SMAW, Gas Metal Arc Welding - GMAW), current, voltage, travel speed, and pre/post-weld heat treatment.
• Material Compatibility: The bracket's steel alloy is engineered to be readily weldable to common structural steels (e.g., A36, A572 Gr. 50). The filler metal selected must be compatible with both the bracket material and the base material to achieve a sound, strong weld. Low-hydrogen electrodes are often recommended to minimize hydrogen-induced cracking.
• Surface Preparation: The welding surfaces of both the bracket and the host structure must be clean, dry, and free from rust, paint, grease, or other contaminants. Proper surface preparation is critical for achieving good weld penetration and fusion.
• Preheating: Depending on the thickness of the bracket and the base material, and the carbon equivalent of the steels, preheating may be necessary to slow the cooling rate of the weld and heat-affected zone (HAZ), thereby reducing residual stresses and the risk of cracking.
• Weld Configuration: Full penetration fillet welds or groove welds are typically recommended around the entire periphery of the bracket's base plate to maximize strength and ensure complete fusion. The weld size and length should be specified to exceed the anticipated maximum loads.
• Post-Weld Inspection: Welds should be visually inspected for defects such as porosity, undercut, cracks, and inadequate fusion. Non-destructive testing (NDT) methods like magnetic particle inspection (MPI) or ultrasonic testing (UT) may be employed for critical applications to verify weld integrity.
• Qualified Welders: All welding should be performed by certified and qualified welders to ensure adherence to WPS and quality standards.

4.2. Advantages of Weld-On Installation

• Superior Strength: A properly executed weld creates a monolithic connection between the bracket and the substrate, offering greater strength and rigidity than bolted or riveted connections.
• Permanent Attachment: Ideal for applications where the securement point is intended to be a permanent fixture, eliminating concerns about loosening fasteners.
• Load Distribution: Welding allows for excellent distribution of loads over the contact area, reducing stress concentrations on the base material.
• Minimal Protrusion: Integrated weld-on brackets often have a lower profile than bolted alternatives, which can be advantageous in confined spaces or to prevent snagging.

5. Quality Assurance and Standards Compliance

The manufacturing and application of this forged bracket are governed by stringent quality control measures and industry standards to ensure safety and performance.

• Material Traceability: Raw material batches are typically accompanied by Mill Test Reports (MTRs) detailing their chemical composition and mechanical properties, ensuring full traceability from raw material to finished product.
• Dimensional Accuracy: Forged components undergo rigorous dimensional inspection to ensure they meet specified tolerances, particularly for critical interfaces like the D-ring pin eyelet.
• Mechanical Testing: Regular destructive testing (e.g., tensile tests, impact tests) on samples from production batches verifies consistency in mechanical properties.
• Non-Destructive Testing (NDT): Magnetic particle inspection (MPI) or dye penetrant inspection (DPI) may be used on finished brackets to detect surface or near-surface discontinuities that could compromise integrity.
• Industry Standards: While the bracket itself may not carry a direct WLL, its design and manufacturing often adhere to principles outlined in standards for lifting and securement hardware, such as those published by ASME (American Society of Mechanical Engineers), ASTM (American Society for Testing and Materials), and various international organizations. Compliance with such standards ensures that the product is manufactured to a recognized level of quality and safety.
• Safety Factors: The design incorporates appropriate safety factors (e.g., 4:1 or 5:1) relative to the ultimate tensile strength, ensuring that the bracket can safely withstand loads significantly higher than its rated working load without permanent deformation or failure.

6. Applications and Operational Environments

The Forged Weld-On Bracket for B40 5/8 Inch D-Ring is a versatile component found across a multitude of heavy-duty applications:

• Trucks and Trailers: Used as tie-down points on flatbed trailers, utility trailers, and specialized transport vehicles for securing cargo ranging from heavy machinery to construction materials. The weld-on nature provides permanent and robust attachment.
• Off-Road Vehicles and Equipment: Integrated into chassis and frames of recovery vehicles, ATVs, UTVs, and heavy construction equipment (e.g., excavators, bulldozers) for towing, lifting, or attachment points for implements.
• Marine Applications: Employed on docks, boats, and marine structures as mooring points, lifting eyes, or securement for cargo in harsh saltwater environments (though specific corrosion-resistant coatings or materials might be considered for extreme exposure).
• Industrial Machinery and Fixtures: Incorporated into custom machinery, workbenches, or fixtures as permanent attachment points for lifting, pulling, or anchoring purposes.
• Agricultural Equipment: Used on tractors, implements, and farm trailers for various towing and securement needs.

These brackets are designed to operate effectively in challenging environments, including exposure to varying temperatures, moisture, dirt, and vibrations. Their robust construction and material properties ensure long-term reliability under these conditions.

7. Maintenance and Longevity

While designed for minimal maintenance, periodic inspection is crucial for ensuring the continued safe operation of the bracket and the entire securement system.

• Visual Inspection: Regularly check for signs of wear, deformation (bending, stretching), cracks, corrosion, or damage to the weld joint. Any signs of significant damage warrant immediate replacement or professional assessment.
• Weld Integrity: Inspect the weld for cracks, porosity, or signs of fatigue.
• Compatibility: Ensure that only appropriately sized and rated B40 5/8 Inch D-Rings are used with the bracket.
• Protective Coatings: Depending on the application, the bracket may be supplied with a protective coating (e.g., paint, powder coat, galvanization) to enhance corrosion resistance. Any damage to this coating should be addressed to prevent rust.

Conclusion

The Forged Weld-On Bracket for B40 5/8 Inch D-Ring is a testament to precision engineering, advanced material science, and robust manufacturing processes. Its forged construction ensures superior strength, fatigue resistance, and impact toughness, critical attributes for components subjected to high and dynamic loads. Designed for permanent integration through welding, it provides an exceptionally strong and reliable attachment point for heavy-duty D-rings in a wide array of demanding industrial, transportation, and agricultural applications. Adherence to proper installation procedures and regular inspection ensures its longevity and continued safe operation, making it an indispensable component in critical load securement and lifting systems.
