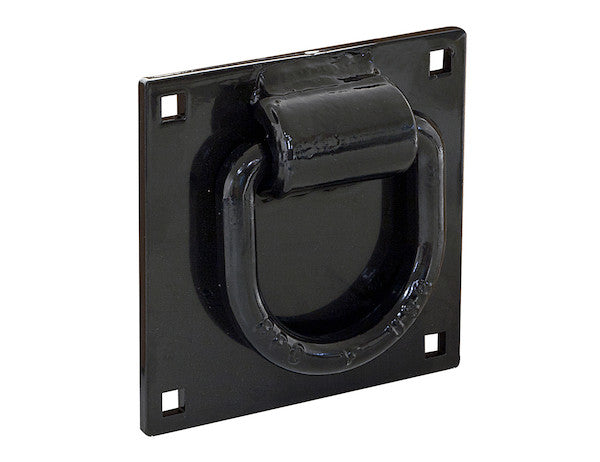

Buyers Products Bolt-On 5/8 Inch Forged D-Ring spreads the "pull" to the entire mounting plate instead of concentrating it on a single point. Its bolt-on design means you don't have to weld, so it's great for flat surfaces where welding is not an option. The 5/8 in. diameter D-ring comes with a forged mounting bracket welded onto a steel plate. A black powder-coated finish adds durability and corrosion protection. Mounting hardware and two back support bars are included. Be sure to check the capacity of the surface you are mounting prior to use. D-rings are not approved for overhead use.
Specifications
| Bracket Included (y/n) | Yes |
|---|---|
| Bracket Length (in.) | 6.00 |
| Bracket Mounting Type | 4-Hole |
| Bracket Thickness | 0.25 |
| Bracket Width (in.) | 6.00 |
| Inner Height (in.) | 3.00 |
| Inner Width (in.) | 3.00 |
| Min Break Strength (lbs.) | - |
| Mounting Hole Diameter | 0.375 |
| Mounting Hole Shape | Square |
| Ring Dia.(in.) | 5/8 |
| W.L.L. (lbs.) | - |
The 5/8 Inch Forged D-Ring With 4-Hole Integral Mounting Bracket represents a superior solution for critical cargo securement applications across various industries. Engineered for robust performance and designed for straightforward installation, this component offers an optimal balance of strength, durability, and user-friendliness. Its foundational design principle revolves around maximizing load distribution, thereby enhancing the integrity of the securement point and minimizing stress concentrations on the mounting surface.
At the core of this product's exceptional strength is the forging process applied to the D-ring. Forging is a manufacturing method that involves shaping metal using localized compressive forces. Unlike casting, which involves pouring molten metal into a mold, or machining from solid stock, forging reorganizes the internal grain structure of the metal, aligning it with the shape of the part. This metallurgical restructuring eliminates internal voids, porosity, and imperfections often found in cast components, resulting in a D-ring with significantly enhanced mechanical properties. Specifically, forging improves tensile strength, yield strength, and fatigue resistance, making the 5/8 inch D-ring exceptionally resilient under dynamic and static loads. The continuity of the metal's grain flow throughout the D-ring's curvature is crucial for absorbing impact forces and resisting deformation, which are common challenges in cargo securement where loads can shift or experience sudden accelerations/decelerations. This inherent strength ensures the D-ring maintains its structural integrity even in demanding operational environments.
The material composition of the D-ring and its mounting bracket is equally vital. Typically manufactured from high-grade carbon or alloy steel, these components are selected for their excellent strength-to-weight ratio and ability to withstand significant stresses. The 5/8 inch diameter of the D-ring provides substantial cross-sectional area, directly contributing to its load-bearing capacity. This dimension is carefully chosen to accommodate a wide range of securement devices, including heavy-duty straps, chains, and hooks, without compromising their functionality or creating points of weakness. The inner dimensions of the D-ring, specified at 3.00 inches in both height and width, ensure ample space for attaching multiple securement points or larger hooks, further enhancing versatility in various cargo configurations. This generous internal clearance prevents chafing or binding of tie-down equipment, extending the life of both the D-ring and the securement straps or chains.

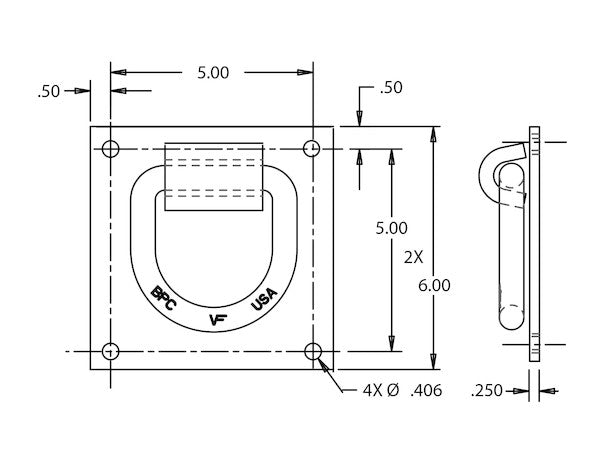

A defining feature of this product is its integral mounting bracket, which is robustly welded to the forged D-ring. This integral design is critical because it eliminates potential weak points that could arise from separate components joined by bolts or less substantial welds. The welding process is executed with precision, creating a seamless and high-strength bond that ensures the D-ring and its mounting plate act as a single, cohesive unit when subjected to tensile forces. The mounting bracket itself is a substantial 6.00 inches in length and 6.00 inches in width, with a thickness of 0.25 inches. These dimensions are not arbitrary; they are engineered to provide a broad footprint on the mounting surface. This large surface area is fundamental to the product's ability to "spread the pull" across the entire mounting plate, preventing concentrated stress at a single point, which is a common failure mode for smaller, less distributed attachment points. The 0.25-inch thickness of the bracket provides rigid support, resisting bending and deformation under heavy loads.
The 4-hole mounting configuration is another key engineering advantage. Instead of relying on one or two fasteners, the distribution of load across four strategically placed mounting holes significantly enhances the stability and security of the anchor point. Each mounting hole has a diameter of 0.375 inches and features a square shape, designed to accommodate carriage bolts or similar fasteners, which prevent rotation during installation and tightening. The use of four fasteners distributes the applied force more evenly into the underlying structure, drastically reducing the localized stress on each individual bolt and on the mounting surface material. This multi-point attachment minimizes the risk of pull-out or tearing of the substrate, especially when the D-ring is subjected to dynamic or eccentric loading, common during vehicle transport or industrial operations. The comprehensive nature of this mounting solution is a testament to its design for demanding applications where reliability is paramount.
The bolt-on design of this D-ring offers significant practical advantages over weld-on alternatives. Firstly, it eliminates the need for specialized welding equipment, qualified welders, and the associated time and costs. This makes installation faster, simpler, and accessible to a broader range of users. Secondly, bolt-on installation is ideal for surfaces where welding is either impractical or undesirable. This includes painted or coated surfaces, composite materials, or areas where heat from welding could damage sensitive components or create fire hazards. Furthermore, the bolt-on nature allows for easier repositioning or replacement of the D-ring if needed, offering greater flexibility in layout and maintenance. The included mounting hardware, typically comprising high-strength bolts, nuts, and washers, along with two back support bars, further enhances the integrity of the installation. The back support bars, often referred to as backing plates or reinforcement plates, are critical for distributing the compressive forces of the fasteners over an even larger area on the underside of the mounting surface. This prevents crushing or deformation of the substrate, particularly in applications involving thinner materials like trailer decking or truck beds, ensuring a secure and long-lasting attachment.
Durability is further enhanced by the black powder-coated finish. Powder coating is a highly resilient surface treatment process where dry powder is electrostatically applied to the D-ring and bracket, then cured under heat. This process creates a tough, continuous layer that is significantly more durable than conventional liquid paint. The black powder coat provides excellent resistance to corrosion, abrasion, chipping, and fading from UV exposure. In the challenging environments where these D-rings are typically deployed – exposed to road salts, moisture, dirt, chemicals, and extreme temperatures – this protective layer is crucial for extending the operational lifespan of the product. The robust coating ensures that the D-ring maintains its structural integrity and aesthetic appearance over prolonged periods, reducing maintenance requirements and preserving its functional reliability.
The versatile design of this 5/8 inch forged D-ring makes it suitable for an extensive array of applications. In the transportation industry, it is indispensable for securing heavy cargo on flatbed trailers, utility trailers, enclosed cargo trailers, and a variety of truck bodies, including stake body and rollback trucks. Its robust construction ensures that equipment such as construction machinery, agricultural implements, ATVs, motorcycles, and other large items remain firmly anchored during transit, preventing shifting and potential damage or accidents. Beyond vehicular applications, these D-rings are invaluable in industrial settings for securing machinery, tools, and materials within workshops, manufacturing facilities, or construction sites. They can be mounted to workbenches, equipment frames, or concrete floors to create stable anchor points for lifting, pulling, or simply holding items in place. In agricultural contexts, they provide reliable tie-down points on farm equipment and trailers. The ability to bolt the unit onto virtually any structurally sound flat surface greatly expands its utility, offering a dependable securement solution wherever a robust attachment point is required.
Proper installation and adherence to best practices are paramount to realizing the full performance and safety benefits of this D-ring. Before installation, it is imperative to thoroughly assess the structural capacity of the intended mounting surface. This involves evaluating the material thickness, substrate composition (e.g., steel, aluminum, wood), and any underlying reinforcement. The mounting surface must be flat, clean, and capable of safely supporting the anticipated loads without deformation or failure. When positioning the D-rings, strategic placement is crucial to achieve optimal load securement geometry, ensuring that tie-down angles provide maximum restraint and efficiency. While mounting hardware is included, installers should always ensure that fasteners are tightened to appropriate torque specifications to create a rigid and secure connection. The included back support bars must be utilized on the underside of the mounting surface to spread the load and prevent pull-through, especially on materials like wood decking or thinner metal panels. Regular inspection of the D-ring, mounting bracket, and fasteners is recommended to check for signs of wear, corrosion, damage, or looseness. Any compromised components should be immediately addressed or replaced to maintain operational safety.
A critical safety consideration, as explicitly stated, is that these D-rings are not approved for overhead use. This distinction is vital: D-rings designed for cargo securement are engineered to withstand horizontal or angular pulling forces associated with tie-down applications. They are manufactured and tested to different standards than those applied to overhead lifting equipment, which demands significantly higher safety factors and specific design features to handle dynamic lifting, shock loads, and potential catastrophic failure in a vertical plane. Attempting to use a cargo tie-down D-ring for overhead lifting tasks could lead to catastrophic failure, resulting in severe injury, fatality, or extensive property damage. Users must always select lifting hardware specifically designed and rated for overhead lifting operations, adhering strictly to relevant industry standards and manufacturer guidelines.
While specific Working Load Limit (WLL) and Minimum Break Strength (MBS) values for this particular D-ring are indicated as "-" in the provided specifications, these metrics are fundamental to understanding any tie-down component's capabilities and should be consulted from official product documentation or the manufacturer's website. The WLL represents the maximum static load that a component can safely support without permanent deformation, with a specified safety factor applied. The MBS, on the other hand, is the minimum force at which a component is expected to fail. For robust cargo securement, it is generally recommended that the combined WLL of all tie-down components exceeds the total weight of the cargo being secured. Compliance with industry standards, such as those set by the Federal Motor Carrier Safety Administration (FMCSA) in North America, or equivalent international regulations for cargo securement, often dictates minimum requirements for WLL and the number of tie-down points based on cargo weight and type. By utilizing a high-quality, properly rated D-ring like this one, users contribute to meeting these critical safety and regulatory compliance standards.
In conclusion, the 5/8 Inch Forged D-Ring With 4-Hole Integral Mounting Bracket stands as a testament to engineering excellence in cargo securement. Its robust forged construction, substantial integral mounting bracket with a 4-hole bolt-on design, and resilient powder-coated finish collectively deliver unparalleled strength, durability, and ease of installation. Designed to efficiently distribute immense loads and resist harsh environmental conditions, this D-ring provides a reliable and long-lasting anchor point for a multitude of industrial, commercial, and recreational applications. Emphasizing safety through proper installation and strict adherence to its intended use (not for overhead lifting), this product offers a high-performance solution for anyone requiring a dependable and heavy-duty tie-down point.
