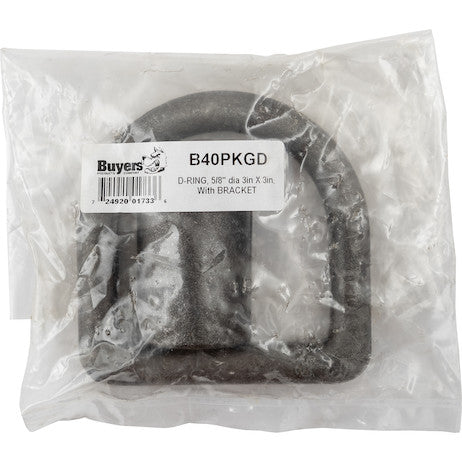

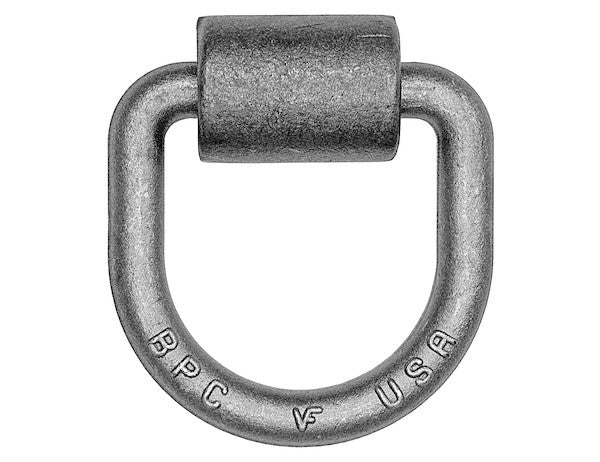

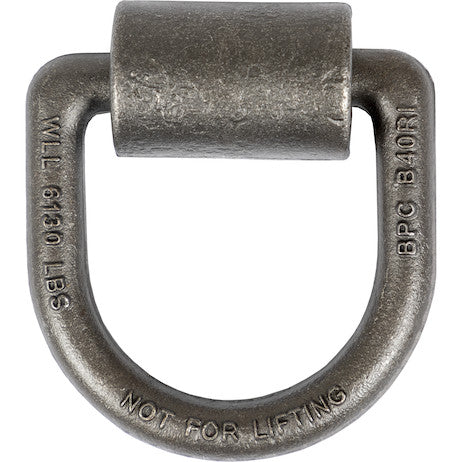

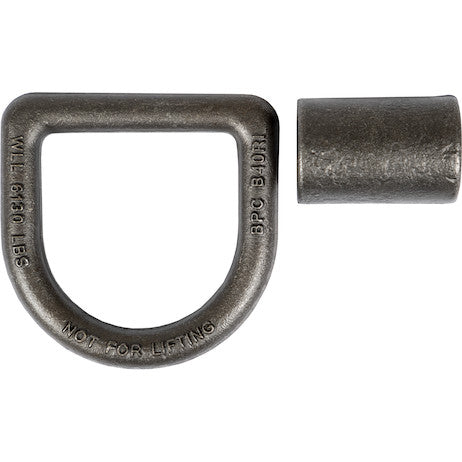

Secure a load with confidence using the 5/8 Inch Forged D-Ring from Buyers Products. It includes a weld-on mounting bracket made of AISI-1025 steel and has a working load limit of 6,130 lb. D-rings are not approved for overhead use.
Specifications
| Bracket Included (y/n) | Yes |
|---|---|
| Bracket Length (in.) | 1.625 |
| Bracket Mounting Type | Weld-On |
| Bracket Thickness | 0.438 |
| Bracket Width (in.) | 2.50 |
| Inner Height (in.) | 3.00 |
| Inner Width (in.) | 3.00 |
| Made in USA | Yes |
| Min Break Strength (lbs.) | 18,390 |
| Mounting Hole Diameter | - |
| Mounting Hole Shape | - |
| Ring Dia.(in.) | 5/8 |
| W.L.L. (lbs.) | 6,130 |
Advanced Technical Overview: 5/8 Inch Forged D-Ring with Weld-On Mounting Bracket
The 5/8 Inch Forged D-Ring with Weld-On Mounting Bracket from Buyers Products represents a pinnacle in robust cargo securement solutions, engineered for demanding applications across various industries. This product is meticulously designed to provide a highly reliable and permanent tie-down point, crucial for ensuring the stability and safety of heavy loads during transit or stationary operations. Its construction adheres to stringent quality standards, delivering a superior performance profile characterized by exceptional strength, durability, and a precise fit for professional installations.
Precision Engineering: The Forged D-Ring Component
At the core of this securement solution is the 5/8 inch diameter D-ring, a critical dimension that signifies its substantial load-bearing capacity. The term "forged" is not merely a descriptor but a testament to a manufacturing process that fundamentally enhances the material's structural integrity and mechanical properties. Forging involves shaping metal through localized compressive forces using hammers or presses. This process refines the metal's grain structure, aligning it with the shape of the D-ring, which eliminates internal voids and strengthens the material in critical stress areas. Unlike cast or machined components, forged steel exhibits superior tensile strength, yield strength, and fatigue resistance. This means the 5/8 inch forged D-ring is inherently more resilient against dynamic loads, impacts, and repetitive stress cycles, making it an indispensable component for heavy-duty cargo securement. The specified 5/8-inch diameter indicates a robust cross-section, providing ample material to distribute stress effectively under the Working Load Limit (WLL) and Minimum Break Strength (MBS).
Integral Weld-On Mounting Bracket: AISI-1025 Steel Composition
Complementing the forged D-ring is an integrated weld-on mounting bracket, a design choice that underscores permanence and maximum load transfer efficiency. This bracket is fabricated from AISI-1025 steel, a low carbon steel renowned for its excellent weldability, good strength, and toughness. AISI-1025 steel is characterized by a nominal carbon content of 0.25%, which strikes an optimal balance between hardness, strength, and ductility, making it highly suitable for structural components that require strong, reliable welds. The bracket's design ensures a secure, flush attachment to the structural frame of a trailer, flatbed, or other equipment. Its dimensions – a length of 1.625 inches, width of 2.50 inches, and a substantial thickness of 0.438 inches – provide a robust footprint for welding, maximizing the contact area and ensuring the integrity of the weld joint. This weld-on methodology provides a significantly stronger and more integrated connection compared to bolt-on alternatives, which can be susceptible to loosening, shearing, or fatigue failure over time. The solid bracket construction is crucial for efficiently transferring the applied load from the D-ring into the host structure, preventing localized stress concentrations that could compromise the securement system's effectiveness.
Performance Metrics: Working Load Limit (WLL) and Minimum Break Strength (MBS)
Understanding the load capacities of securement hardware is paramount for operational safety and compliance. This 5/8 Inch Forged D-Ring is rated with a Working Load Limit (WLL) of 6,130 lb, a critical specification that defines the maximum force or load that should be applied to the D-ring in normal service to ensure its longevity and structural integrity. The WLL incorporates a safety factor, typically ranging from 3:1 to 5:1, relative to the Minimum Break Strength (MBS). For this specific D-ring, the Minimum Break Strength is an impressive 18,390 lb. This MBS represents the ultimate load at which the D-ring is statistically expected to yield or fracture under controlled testing conditions. The ratio of MBS to WLL (18,390 lb / 6,130 lb ≈ 3:1) signifies a robust safety margin, providing critical protection against unforeseen shock loads, improper loading, or minor overloads. Adhering strictly to the WLL is not just a recommendation but a fundamental requirement for preventing catastrophic failures, protecting personnel, and safeguarding valuable cargo and equipment. It emphasizes the importance of selecting tie-down hardware that not only meets but often exceeds the anticipated operational loads.
Application Versatility and Industry Compliance
The inherent strength and permanent mounting capability of this 5/8 inch forged D-ring make it an ideal securement point for a broad spectrum of heavy-duty applications. Typical uses include, but are not limited to, flatbed trailers, utility trailers, cargo vans, industrial machinery, construction equipment, military vehicles, and marine transport platforms. In sectors governed by strict transportation regulations, such as those overseen by the Department of Transportation (DOT) and the Federal Motor Carrier Safety Administration (FMCSA) in the United States, proper cargo securement is a legal and safety imperative. These regulations often mandate specific aggregate working load limits for tie-down assemblies based on the cargo's weight and dimensions. Incorporating D-rings with a known and certified WLL, such as this product, enables operators and fleet managers to build compliant and secure tie-down systems. The robust construction ensures long-term reliability even in harsh operating environments, resisting corrosion, abrasion, and deformation under sustained stress. Its "Made in USA" designation further reinforces confidence in manufacturing quality, adherence to domestic standards, and reliable supply chain logistics.
Installation Protocols: Weld-On Mounting Best Practices
The weld-on mounting bracket necessitates professional installation to achieve its maximum rated performance. Proper welding techniques are critical to ensure that the weld joint itself is as strong, or stronger, than the parent materials. Key considerations for installation include:
- Surface Preparation: The mounting surface on the trailer or vehicle frame must be thoroughly cleaned, free of paint, rust, grease, and any other contaminants that could compromise weld integrity. Grinding to bare metal is often recommended.
- Material Compatibility: Ensure the base material to which the bracket is being welded is compatible with the AISI-1025 steel of the bracket. Low carbon structural steels are typically ideal.
- Welding Process and Consumables: Common welding processes such as Shielded Metal Arc Welding (SMAW), Gas Metal Arc Welding (GMAW/MIG), or Flux-Cored Arc Welding (FCAW) can be used. Selection of appropriate filler metal (e.g., E70XX series for SMAW or ER70S-6 for GMAW) is crucial for achieving high-strength welds.
- Preheating and Post-Weld Treatment: Depending on the thickness and composition of the base material, preheating may be necessary to prevent hydrogen cracking and ensure proper fusion. Post-weld cooling should be controlled to avoid rapid quenching, which can induce brittleness.
- Weld Configuration: Full penetration fillet welds or groove welds around the entire perimeter of the bracket are generally recommended to maximize load transfer and minimize stress concentrations. Weld size and length should be sufficient to meet or exceed the strength of the D-ring and bracket itself.
- Qualified Personnel: Welding should only be performed by certified and experienced welders who adhere to industry standards (e.g., AWS D1.1 for structural steel welding).
- Inspection: Post-weld inspection, including visual inspection for weld discontinuities (cracks, porosity, undercut) and potentially non-destructive testing (NDT) like dye penetrant or magnetic particle inspection, is advised to confirm weld quality and integrity.
Operational Safety and Limitations: Not Approved for Overhead Use
A critical safety disclaimer for this product is its explicit prohibition from "overhead use." This signifies that the D-ring is designed and rated exclusively for cargo securement applications where loads are primarily constrained horizontally or vertically downwards, acting in tension or shear within the plane of the tie-down point. It is strictly not to be used for lifting operations, suspension, or any application where a load is elevated and intended to be held above ground level, especially over personnel. Lifting hardware, such as specific lifting shackles, hoist rings, or eye bolts, are designed and tested to different, more rigorous standards (e.g., ASME B30.26) and incorporate higher safety factors for dynamic lifting conditions, potential shock loading, and the severe consequences of failure in overhead scenarios. Misapplication of cargo securement D-rings for overhead lifting tasks can lead to catastrophic failure, severe injury, or fatality, and is in direct violation of safety protocols and industry best practices. Users must always verify that all components in a lifting or securement system are appropriate for their intended application and rated accordingly.
Detailed Specifications Analysis
Each specification provided offers valuable insight into the product's design and performance:
- Bracket Included (y/n): Yes - This confirms the product is a complete assembly, ready for weld-on installation, simplifying procurement and ensuring component compatibility.
- Bracket Length (in.): 1.625 - This dimension defines the longitudinal extent of the mounting bracket, influencing the overall footprint and stability of the weld.
- Bracket Mounting Type: Weld-On - Emphasizes the permanent, high-strength attachment method, superior for heavy-duty, integrated securement points.
- Bracket Thickness: 0.438 - At nearly half an inch, this substantial thickness of the AISI-1025 steel bracket ensures high rigidity and resistance to deformation under load, crucial for maintaining weld integrity.
- Bracket Width (in.): 2.50 - The lateral dimension of the bracket, contributing to the overall surface area for welding and spreading the load effectively across the host structure.
- Inner Height (in.): 3.00 - This is the clear vertical opening within the D-ring. It dictates the maximum size of hooks, straps, or chains that can be easily attached, ensuring compatibility with standard securement hardware.
- Inner Width (in.): 3.00 - The clear horizontal opening within the D-ring, similarly determining the usability with various tie-down end fittings. The equal inner height and width (3.00 x 3.00 inches) provide a generous and versatile attachment point.
- Made in USA: Yes - A strong indicator of adherence to stringent manufacturing standards, quality control, and often, superior material sourcing and process integrity, offering enhanced reliability and traceability.
- Min Break Strength (lbs.): 18,390 - The absolute minimum force required to cause permanent deformation or failure. This high value, in conjunction with the WLL, underscores the substantial safety margin inherent in the design.
- Mounting Hole Diameter: - - As this is a weld-on bracket, there are no pre-drilled mounting holes, hence the "N/A" indication. This is expected for a product designed for permanent welded attachment rather than mechanical fastening.
- Mounting Hole Shape: - - Similarly, this field is not applicable for a weld-on component.
- Ring Dia.(in.): 5/8 - This refers to the material thickness or gauge of the D-ring itself, a direct determinant of its cross-sectional strength and load-bearing capacity. A 5/8 inch diameter forged steel ring is indicative of heavy-duty performance.
- W.L.L. (lbs.): 6,130 - The maximum permissible operational load, calculated with a substantial safety factor from the MBS, ensuring safe and reliable performance under intended use.
Maintenance and Longevity
While the 5/8 Inch Forged D-Ring and its weld-on bracket are designed for extreme durability, regular inspection is vital to ensure long-term performance and safety. Operators should routinely check for signs of wear, deformation, corrosion, or any damage to the D-ring and, critically, to the integrity of the weld joint. Hairline cracks in the weld, excessive pitting from rust, or deformation of the ring itself can compromise the entire securement system. Any visible damage warrants immediate replacement or re-welding by qualified personnel to maintain the product's rated capacity. Proper care, including occasional cleaning and protective coatings in highly corrosive environments, can extend the service life significantly, ensuring the D-ring continues to provide reliable cargo securement for years of demanding use.
Conclusion
The 5/8 Inch Forged D-Ring with Weld-On Mounting Bracket from Buyers Products stands as a testament to engineering excellence in cargo securement. Its combination of a forged D-ring for superior material strength and a robust AISI-1025 weld-on bracket for permanent, integrated attachment, delivers unmatched reliability. With a substantial Working Load Limit of 6,130 lb and a significant Minimum Break Strength of 18,390 lb, this component is an essential asset for professionals requiring the highest standards of safety and performance in heavy-duty transport and industrial applications. Designed and manufactured in the USA, it provides a dependable and compliant solution for securing critical loads, provided it is installed correctly and never used for overhead lifting applications.
