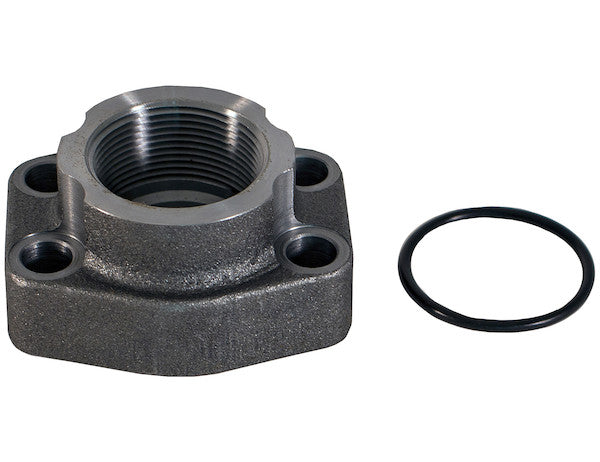

B431616U - 4 Bolt Flange 1 Inch Adapter Kit

The 4 Bolt Flange Adapter Kit from Buyers Products converts a split flange into NPT porting for hydraulic filter lines. Every kit comes complete with bolts, lock washers, and O-ring.

Specifications

The 4 Bolt Flange 1 Inch Adapter Kit from Buyers Products represents an indispensable component in the design, maintenance, and modification of hydraulic systems, offering critical adaptability for fluid conveyance. Engineered to convert a standardized split flange connection, specifically a 1-inch SAE J518 Code 61 type, into a National Pipe Taper (NPT) porting, this adapter facilitates seamless integration within diverse hydraulic circuits. Its primary utility lies in streamlining the connection of hydraulic filter lines, but its robust design and universal compatibility extend its application to a myriad of other hydraulic fluid transfer requirements across various industries. This product is provided as a complete kit, ensuring that installers have all necessary components—the adapter body, mounting bolts, lock washers, and an O-ring—for a secure, leak-free installation right out of the box, minimizing downtime and simplifying procurement.

Technical Overview and Design Principles

The fundamental purpose of this flange adapter is to bridge the interface between two distinct, yet commonly utilized, hydraulic connection methodologies: the SAE Code 61 flange connection and the NPT threaded connection. Each connection type possesses unique characteristics and advantages, and the ability to reliably interconnect them is paramount for system flexibility and repair. The adapter’s design is a testament to sound engineering practices, prioritizing durability, sealing integrity, and ease of installation.

Material and Finish: Carbon Steel with Plain Finish

The selection of carbon steel as the primary material for this adapter is a deliberate choice driven by the demanding operational environments inherent to hydraulic systems. Carbon steel offers a compelling balance of high tensile strength, excellent yield strength, and superior fatigue resistance, properties crucial for withstanding the significant internal pressures, external stresses, and dynamic loads common in hydraulic applications. This material's inherent hardness contributes to its resistance against wear and deformation, ensuring the longevity and structural integrity of the adapter even under continuous operational cycles and vibration. Its metallurgical properties allow for precision machining, which is essential for achieving the tight tolerances required for effective sealing surfaces and accurate thread profiles.

The "Plain" finish indicates that the carbon steel has not undergone any additional surface treatments such as plating (e.g., zinc, nickel) or painting. While a plain finish might imply a higher susceptibility to atmospheric corrosion in certain environments compared to coated alternatives, it offers distinct advantages. Firstly, it provides a cost-effective solution without compromising the material's mechanical strength. Secondly, for specific applications or in controlled environments, a plain finish allows for direct welding or facilitates custom surface treatments by the end-user, providing greater flexibility. In many hydraulic applications, particularly where the adapter is internal or protected, the plain finish is entirely adequate and performs reliably when proper fluid cleanliness and system maintenance are observed. It is crucial to note that the internal fluid path is generally protected from oxygen and external corrosive elements, mitigating concerns about internal corrosion.

Porting Specification: Side 1 - 1 NPT

Side 1 of the adapter features a 1-inch National Pipe Taper (NPT) threaded port. NPT is a widely recognized and utilized standard for tapered threads in North America, conforming to ANSI/ASME B1.20.1. The tapered design of NPT threads is inherently self-sealing. As the male and female threads are tightened, the flanks of the threads compress against each other, creating a mechanical seal. This metal-to-metal contact is further enhanced by the application of pipe sealant (thread compound or PTFE tape), which fills any helical leak paths that might otherwise exist. The 1-inch nominal pipe size corresponds to specific thread dimensions designed to accommodate fluid flow rates characteristic of main hydraulic lines or larger auxiliary circuits. NPT connections are favored for their simplicity, robust mechanical connection, and ability to handle moderate to high pressures without leakage, provided they are installed correctly with appropriate thread sealants and torque.

Flange Connection Specification: Side 2 - 1 (-16 CODE 61)

Side 2 of the adapter is designed to connect to a 1-inch split flange, specifically adhering to the SAE J518 Code 61 standard. The "(-16)" designation refers to the nominal size of the flange, correlating to a 1-inch nominal bore diameter. SAE J518 flanges are standardized connections for hydraulic fluid power systems, known for their superior performance in high-pressure applications and resistance to vibration-induced loosening. There are two primary pressure classes within the SAE J518 standard: Code 61 (Standard Duty) and Code 62 (Heavy Duty). This adapter is engineered for Code 61 flanges, which are suitable for a wide range of medium to high-pressure hydraulic applications, typically up to 3,000 PSI (210 bar), though specific ratings depend on the flange material and size. The "4-bolt" configuration is characteristic of these flanges, providing a robust and evenly distributed clamping force around the sealing area. Split flanges, as opposed to one-piece block flanges, offer significant advantages in terms of installation and maintenance. They allow for easier assembly and disassembly of piping in confined spaces, as the two halves can be positioned around a hose or tube fitting and then bolted together, without needing to slide components along the entire length of a pipe. This design also offers excellent vibration dampening and resistance to joint separation, crucial for maintaining system integrity in dynamic operational environments.

Style: FF (Flange to Female)

The "FF" style notation typically indicates that the adapter itself presents a flange connection (to mate with a male flange head on a hose or tube fitting) on one side and a female threaded port on the other. In the context of this specific product, "Side 2" is the flange connection designed to bolt into a component that accepts a flange (e.g., a pump port, valve block, or cylinder), while "Side 1" is the female NPT thread. This interpretation aligns with the conversion of a split flange connection point on an existing component into an NPT port. The adapter essentially *is* the block that the split flange halves clamp onto, with the NPT port being the outlet/inlet.

Comprehensive Kit Components

The inclusion of all necessary hardware—bolts, lock washers, and an O-ring—underscores the product's commitment to providing a complete, ready-to-install solution. Each component plays a vital role in ensuring a reliable and leak-proof connection.

• Bolts: These fasteners are typically high-strength alloy steel, designed to meet or exceed the rigorous requirements for hydraulic flange connections. They provide the clamping force necessary to compress the O-ring and create a secure mechanical joint between the adapter and the mating flange. The correct grade and material of bolts are paramount to withstand the significant preload and operational stresses without yielding or fracturing.
• Lock Washers: Included to prevent the bolts from loosening under dynamic conditions such as vibration, shock, or thermal cycling. Common types include split lock washers, which exert a spring action, or external/internal tooth lock washers, which bite into the mating surfaces to resist rotation. Their presence is critical in maintaining the integrity of the bolted connection over extended periods of operation, preventing catastrophic failures due to loosening.
• O-ring: The O-ring is the primary sealing element for the SAE flange connection. Typically made from an elastomer such as Nitrile (Buna-N), Viton (FKM), or EPDM, selected based on fluid compatibility, temperature range, and pressure requirements. For general hydraulic oil applications, Nitrile is a common and effective choice. The O-ring is compressed within a precisely machined groove (usually in the mating flange head or component port) when the adapter is bolted into place. This compression creates a radial seal that effectively contains the pressurized hydraulic fluid, preventing external leakage. The integrity of the O-ring is critical for system performance and environmental protection.

Applications and Versatility

The 4 Bolt Flange 1 Inch Adapter Kit finds extensive utility across a broad spectrum of industrial and mobile hydraulic applications where fluid power systems are integral. Its inherent ability to connect disparate porting types enhances system flexibility and simplifies maintenance and modification tasks.

• Hydraulic Filter Lines: As explicitly mentioned, this adapter is ideal for connecting hydraulic filter assemblies that may feature NPT ports to existing equipment with SAE Code 61 flange connections, or vice versa. This is crucial for maintaining fluid cleanliness, which is fundamental to the longevity and efficiency of hydraulic components.
• Industrial Machinery: In manufacturing plants, processing facilities, and automation systems, hydraulic power units often utilize a mix of connection standards. This adapter facilitates the integration of new or replacement components into existing hydraulic circuits.
• Heavy Equipment: Construction machinery, agricultural equipment, mining vehicles, and other heavy-duty mobile hydraulics are characterized by severe operating conditions, high pressures, and significant vibrations. The robust design of the flange connection, supported by the carbon steel adapter, ensures reliability in these demanding environments.
• Marine Applications: On vessels and offshore platforms, hydraulic systems are exposed to corrosive environments and continuous operation. The adapter provides a durable connection solution for steering systems, winches, and other hydraulic equipment.
• Power Generation: Hydraulic systems in power plants, including those for turbine control or auxiliary equipment, benefit from the secure and reliable connections offered by this adapter.
• System Upgrades and Retrofits: When upgrading older hydraulic systems or retrofitting new components with different porting standards, this adapter provides a straightforward and cost-effective solution, avoiding custom fabrication or extensive system redesign.
• Maintenance, Repair, and Overhaul (MRO): For MRO operations, having such adapters on hand allows technicians to quickly address unexpected connection requirements, minimizing equipment downtime.

Benefits and Advantages for System Integrity

The adoption of the 4 Bolt Flange 1 Inch Adapter Kit yields several significant benefits for hydraulic system design, operation, and maintenance:

• Enhanced System Adaptability: Provides critical flexibility in connecting components with different porting standards (SAE Code 61 flange to NPT), simplifying system design and modification.
• Superior Leakage Control: The combination of the robust O-ring seal for the flange connection and the tapered thread design with sealant for the NPT port ensures a highly reliable, leak-free fluid path, crucial for environmental protection and operational efficiency.
• High-Pressure Capability: Constructed from carbon steel and designed to conform to SAE J518 Code 61 standards, the adapter is inherently capable of withstanding the high operating pressures typical of modern hydraulic systems.
• Vibration Resistance: SAE flange connections are renowned for their excellent resistance to loosening under vibration and dynamic loads, a critical advantage in mobile and heavy industrial applications. The complete kit, with lock washers, further secures this resistance.
• Durability and Longevity: The use of carbon steel ensures exceptional strength and resistance to mechanical stress and wear, contributing to a prolonged service life even in arduous conditions.
• Simplified Installation and Maintenance: As a complete kit, all necessary components are provided, streamlining the installation process. The split flange design allows for easier assembly and disassembly compared to welded or continuously threaded connections.
• Cost-Effectiveness: By providing a standardized and readily available solution, the adapter eliminates the need for expensive custom machining or complex manifold designs when integrating components with different porting types.

Installation Best Practices

Proper installation is paramount to leveraging the full benefits of the 4 Bolt Flange 1 Inch Adapter Kit and ensuring a leak-free hydraulic system. Adherence to industry best practices and manufacturer guidelines is strongly recommended:

• Surface Preparation: Ensure that all mating surfaces on the adapter, the O-ring groove, and the component port are clean, free from debris, nicks, scratches, or burrs. Any surface imperfections can compromise the seal integrity.
• O-ring Placement: Carefully inspect the O-ring for any damage before installation. Lubricate the O-ring with a compatible hydraulic fluid or O-ring lubricant. Place the O-ring correctly within its designated groove, ensuring it is not twisted or pinched.
• Bolt Tightening Sequence: When bolting the adapter to the mating flange, utilize a crisscross or star pattern for tightening the four bolts. This ensures even compression of the O-ring and uniform distribution of stress across the joint, preventing uneven loading and potential leaks.
• Torque Specifications: Crucially, tighten the bolts to the torque specifications provided by the equipment manufacturer for the specific flange size and bolt grade. Over-tightening can damage threads or deform components, while under-tightening will result in insufficient O-ring compression and subsequent leakage. A calibrated torque wrench should always be used.
• NPT Thread Sealant: For the NPT connection, apply an appropriate hydraulic-compatible thread sealant (e.g., PTFE tape or liquid pipe dope) to the male NPT threads. Apply the sealant sparingly, ensuring it does not enter the fluid path to prevent system contamination.
• System Flushing and Testing: After installation, thoroughly flush the hydraulic system to remove any contaminants introduced during assembly. Pressurize the system and visually inspect all connections for leaks before putting the equipment into full operation.

Longevity and Maintenance Considerations

While the carbon steel construction offers inherent durability, proactive maintenance practices can further extend the service life of the adapter and the overall hydraulic system:

• Regular Inspection: Periodically inspect the adapter and its connections for any signs of leakage, corrosion, or mechanical damage. Pay particular attention to the O-ring area and the bolt heads.
• O-ring Replacement: O-rings are wear items. Over time, they can harden, crack, or lose their elastic properties due to temperature fluctuations, chemical exposure, or continuous compression. Replace O-rings during routine maintenance or at the first sign of leakage.
• Fluid Compatibility: Ensure that the hydraulic fluid used is compatible with the O-ring material to prevent degradation of the seal.
• Environmental Protection: Although the plain finish is robust, in highly corrosive external environments, consider applying a compatible protective coating or using additional shielding to mitigate surface rust.

Conclusion

The 4 Bolt Flange 1 Inch Adapter Kit from Buyers Products stands as a technically superior and highly practical solution for hydraulic system integration. Its meticulous design, utilizing robust carbon steel, adherence to critical industry standards like SAE J518 Code 61 and NPT, and provision as a complete installation kit, underscores its value. By enabling the seamless and reliable conversion between standardized split flange and NPT porting, this adapter significantly enhances the versatility, maintainability, and operational integrity of hydraulic circuits across a vast array of demanding applications. For engineers, system designers, and maintenance professionals, this adapter represents an essential component for achieving efficient, leak-free, and adaptable fluid power solutions.
