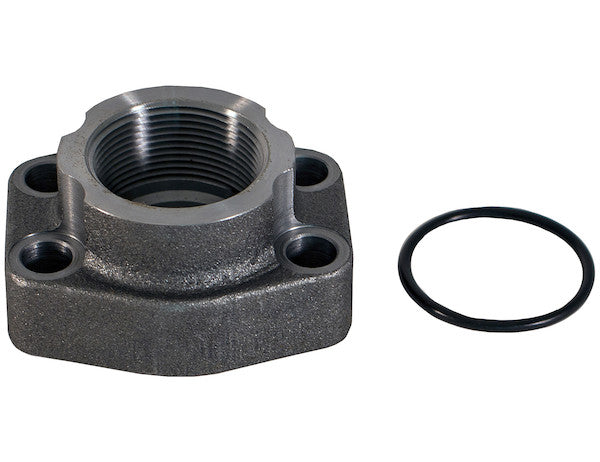

B432424U - 4 Bolt Flange 1-1/2 Inch Adapter Kit

The 4 Bolt Flange Adapter Kit from Buyers Products converts a split flange into NPT porting for hydraulic filter lines. Every kit comes complete with bolts, lock washers, and O-ring.

Specifications

Comprehensive Technical Overview: 4 Bolt Flange 1-1/2 Inch Adapter Kit

Introduction to Hydraulic System Interconnectivity

The operational integrity and efficiency of hydraulic systems are fundamentally reliant on the quality and compatibility of their interconnecting components. In fluid power applications, the ability to seamlessly integrate various elements – from pumps and motors to valves and filters – is paramount. The 4 Bolt Flange 1-1/2 Inch Adapter Kit represents a critical solution for achieving this interconnectivity, specifically designed to bridge the interface between SAE J518 Code 61 split flange connections and National Pipe Taper (NPT) threaded ports. This adapter kit is engineered to address the common challenge of converting a robust, high-pressure flange connection into a widely utilized threaded connection, offering unparalleled flexibility in hydraulic system design, modification, and maintenance.

At its core, this adapter serves as a vital transition piece, facilitating the flow of hydraulic fluid while maintaining system pressure and preventing leakage. Its primary application in hydraulic filter lines underscores its importance in ensuring fluid cleanliness, which is crucial for the longevity and performance of all hydraulic components. Contamination control is a cornerstone of hydraulic system reliability, and secure, leak-proof connections in the filtration circuit are non-negotiable. The comprehensive design, including all necessary mounting hardware – bolts, lock washers, and an O-ring – ensures a complete, ready-to-install solution, minimizing procurement complexities and enhancing installation efficiency.

Understanding SAE J518 Code 61 Split Flange Connections

The SAE J518 standard, also adopted as ISO 6162, defines robust hydraulic flange connections widely employed in heavy-duty and high-pressure hydraulic applications. These connections are characterized by their superior resistance to vibration, shock, and pressure pulsations, making them ideal for demanding environments where traditional threaded connections might fail or leak. The standard categorizes these flanges into two pressure series: Code 61 (Standard Duty) and Code 62 (Heavy Duty). This specific adapter kit is designed for Code 61 connections, which are suitable for working pressures up to 3000 PSI (200 Bar), depending on the specific size and material.

A split flange connection consists of a flanged port on one component (e.g., a pump, valve, or filter housing) and a mating flanged tube or hose assembly. The connection is secured by two split flange halves, which encompass the flanged end of the tube/hose and are bolted directly to the component's port. An O-ring is seated in a groove on the component's port face, providing the primary seal against fluid leakage. The "4 Bolt" designation in the product title refers to the four bolts used to secure the split flange halves, ensuring a uniform clamping force and a reliable, leak-free seal.

The "1-1/2 (-24 CODE 61)" specification on Side 2 of the adapter is critical. The "1-1/2" refers to the nominal size of the flange connection, corresponding to the diameter of the fluid passage. The "(-24)" is an industry-standard dash size, indicating the nominal tube O.D. or hose I.D. that would typically mate with this flange size, providing a clear reference for component compatibility within hydraulic systems. Code 61 explicitly defines the bolt pattern, bolt thread size, and O-ring groove dimensions for this pressure class, ensuring interchangeability and adherence to established industry norms. The robust nature of these connections makes them indispensable in applications requiring high mechanical integrity and resistance to external forces, such as in construction equipment, agricultural machinery, and industrial power units.

Exploring National Pipe Taper (NPT) Threaded Connections

On Side 1, this adapter features a 1-1/2 NPT port. NPT, or National Pipe Taper, is a widely adopted standard for tapered threads used to join pipes and fittings in fluid power and plumbing systems across North America. The tapered design of NPT threads means that as the male and female threads are tightened, they wedge together, creating a mechanical interference fit that, when augmented with a thread sealant (such as PTFE tape or pipe dope), forms a leak-resistant seal. This sealing mechanism is distinct from parallel thread connections, which typically rely on an O-ring or gasket for sealing.

The "1-1/2 NPT" designation indicates a nominal pipe size of 1.5 inches. It is crucial to understand that the nominal pipe size (NPS) does not directly correspond to the actual measured outside or inside diameter of the threads; rather, it is a convenient industry designator for referencing pipe and fitting sizes. The specific dimensions, taper per foot, pitch, and thread form for 1-1/2 NPT are meticulously defined by the ASME B1.20.1 standard. NPT connections are valued for their simplicity, widespread availability, and cost-effectiveness, making them a common choice for a vast array of fluid transfer applications. While NPT connections are generally suitable for a broad range of pressures, their sealing performance can be more susceptible to vibration and improper installation compared to flange connections, which is precisely why conversion solutions like this adapter are so valuable in hybrid hydraulic systems.

Operational Functionality and Application in Hydraulic Filter Lines

The core function of the 4 Bolt Flange 1-1/2 Inch Adapter Kit is to provide a reliable and efficient means of integrating components with different connection types within a hydraulic circuit. Specifically, it enables the connection of a component featuring a 1-1/2 inch Code 61 split flange port to a line or component requiring a 1-1/2 inch NPT threaded interface. This conversion is particularly beneficial in scenarios where system modifications are being made, replacement components have different porting standards, or when custom hydraulic systems are being assembled from a variety of commercially available parts.

The explicit mention of "hydraulic filter lines" highlights a critical application area. Hydraulic filters are essential for removing particulate contamination from the fluid, protecting sensitive components like pumps, valves, and cylinders from wear and premature failure. Filters are often connected into the system either in the return line, pressure line, or suction line, and their porting can vary. By utilizing this adapter, a filter housing equipped with a Code 61 flange port can be seamlessly integrated into a system primarily utilizing NPT pipe or hose assemblies. This ensures that the filtration circuit maintains its integrity, preventing bypass flow and ensuring that all fluid passes through the filter element. The robust nature of the flange connection on the adapter side provides a secure, vibration-resistant connection to the filter, while the NPT side allows for flexible plumbing with standard pipe and fittings.

Beyond filter lines, this adapter's utility extends to various other hydraulic system applications, including:

• Connecting pumps or motors with Code 61 flange ports to NPT manifold blocks or pipework.
• Integrating hydraulic valves with flange ports into NPT plumbing circuits.
• Facilitating repair or replacement of older components where original flange connections need to be adapted to modern NPT components or vice-versa.
• Custom machine building where designers require the flexibility to mix and match hydraulic components from different manufacturers or standards.
• Test bench setups where quick and reliable connections between varying port types are essential.

Material Science and Construction: Carbon Steel Durability

The selection of material for hydraulic components is paramount to their performance, longevity, and safety under demanding operating conditions. This adapter kit is manufactured from "Carbon Steel," a material renowned for its strength, ductility, and cost-effectiveness. Carbon steel, typically comprising iron with a carbon content up to 2.1% by weight, offers excellent mechanical properties suitable for high-pressure hydraulic applications. Its high tensile strength and yield strength ensure that the adapter can withstand the significant internal pressures and external forces encountered in hydraulic systems without deformation or failure.

The manufacturing process for such precision components typically involves processes like forging and subsequent CNC machining. Forging enhances the material's grain structure, improving its fatigue resistance and overall strength, making it ideal for components subjected to cyclic loading. Precision machining ensures that critical dimensions, such as the flange bolt pattern, O-ring groove, and NPT thread profile, adhere to strict tolerances, which is vital for proper fitment and sealing performance. The "Plain" finish indicates that the carbon steel has not undergone additional surface treatments like plating or coating. While this is cost-effective, it also implies that in environments prone to corrosion, users might consider applying external protective coatings or select components with inherent corrosion resistance if moisture or corrosive chemicals are present. For many indoor industrial hydraulic applications, a plain finish on carbon steel is entirely adequate.

Comprehensive Kit Components: Bolts, Lock Washers, and O-Ring

A significant advantage of this product is its designation as a "Kit," meaning it includes all essential ancillary components required for immediate and secure installation. This eliminates the need for separate procurement of fasteners and seals, simplifying the purchasing process and ensuring component compatibility.

• Bolts: Four high-strength bolts are included, corresponding to the "4 Bolt" flange design. These bolts are specifically selected for their tensile strength and thread pitch to match the Code 61 flange standard, ensuring a secure and durable connection between the adapter and the mating component. Proper torqueing of these bolts is crucial for achieving the specified clamping force and maintaining the integrity of the flange seal.
• Lock Washers: Accompanying the bolts are lock washers, typically split lock washers or helical spring lock washers. These are designed to prevent the bolts from loosening under dynamic loads, vibrations, and thermal cycling, which are common in hydraulic systems. By maintaining tension in the bolted joint, lock washers contribute significantly to the long-term reliability and leak-free performance of the connection.
• O-Ring: The included O-ring is the primary sealing element for the flange connection. It is designed to fit precisely into the O-ring groove on the mating Code 61 flange port. Typically made from Nitrile Butadiene Rubber (NBR, commonly known as Buna-N), this elastomer offers excellent resistance to hydraulic fluids, a wide operating temperature range, and good compression set characteristics. The O-ring creates an initial seal upon assembly and, under system pressure, is further energized to enhance its sealing capability, effectively preventing fluid escape at the flange interface. The quality and material compatibility of the O-ring are paramount for a leak-proof connection, making its inclusion in the kit a key benefit.

Detailed Technical Specifications Analysis

The provided specifications offer a precise technical description of the adapter kit, guiding engineers and technicians in proper selection and application:

• Finish: Plain: As discussed, this denotes uncoated carbon steel. While functional, consideration for environmental conditions and potential corrosion protection measures might be necessary for specific applications.
• Material: Carbon Steel: Provides the fundamental mechanical strength and durability required for hydraulic applications. The specific grade (e.g., 1018, 1045) would further define its exact properties, but standard carbon steel is robust.
• Shape: Flange Adapter: Describes the geometric form, indicating its purpose as an interface between different connection types, specifically from a flange to a threaded port.
• Side 1: 1 1/2 NPT: Confirms the male or female NPT thread size on one side of the adapter. Given the "FF" style (Flange to Female NPT), this adapter has a female 1-1/2 NPT port. This allows for direct connection of male NPT pipes, hoses, or fittings.
• Side 2: 1-1/2 (-24 CODE 61): Details the flange end of the adapter. It is designed to mate with a 1-1/2 inch nominal size Code 61 split flange port. The "-24" dash size specifies the typical tube/hose size associated with this flange, guiding compatibility.
• Style: FF: This abbreviation, in the context of hydraulic adapters, typically signifies "Flange to Female" or "Flange to Female Pipe Thread." It clarifies that the adapter itself presents a female NPT port after converting from the flange connection. This is crucial for selecting the correct mating threaded component (which would have a male NPT thread).

Installation Best Practices and Maintenance

Proper installation is critical for the reliable and leak-free operation of any hydraulic connection. For the 4 Bolt Flange 1-1/2 Inch Adapter Kit, adherence to established best practices is paramount:

1. Cleanliness: Ensure that both the adapter's flange surface, the O-ring groove, the O-ring itself, and the mating component's flange port are meticulously clean and free from any dirt, debris, burrs, or scratches. Contaminants can compromise the O-ring seal and lead to leakage.
2. O-Ring Placement: Carefully place the O-ring into the groove on the mating Code 61 port. A light coating of compatible hydraulic fluid on the O-ring can aid in assembly and initial sealing, preventing twisting or pinching.
3. Alignment: Align the adapter precisely with the mating flange port, ensuring the bolt holes are properly matched.
4. Bolt Installation: Insert the four bolts through the split flange halves (if applicable, or directly into the adapter/port if it's an integral flange) and into the threaded holes. Start all bolts by hand to prevent cross-threading.
5. Torqueing Sequence: Tighten the bolts gradually in a cross-pattern sequence. This ensures even clamping force across the flange face, preventing distortion and promoting a consistent seal. Consult SAE J518 or equipment manufacturer specifications for the precise torque values for 1-1/2 inch Code 61 flange connections. Overtightening can damage the O-ring or threads, while undertightening can lead to leaks.
6. NPT Connection: For the 1-1/2 NPT side, apply an appropriate thread sealant (e.g., PTFE tape or liquid pipe sealant) to the male NPT threads of the mating component. Tighten the NPT connection sufficiently to achieve a seal, but avoid excessive force which can crack the adapter or the mating component.
7. System Testing: After installation, perform a thorough system pressure test to check for any leaks before putting the equipment into full operation.

Routine maintenance should include periodic inspection of all hydraulic connections, including this adapter, for signs of leakage, corrosion, or damage. Worn O-rings should be replaced during service intervals or if leaks are detected, ensuring that only compatible replacement O-rings are used.

Advantages and Economic Impact

The deployment of the 4 Bolt Flange 1-1/2 Inch Adapter Kit yields significant advantages for hydraulic system operators and designers:

• System Flexibility: It allows for greater flexibility in system design and modification by enabling the integration of components with different porting standards. This is invaluable when working with diverse equipment manufacturers or legacy systems.
• Cost-Effectiveness in Repair and Upgrade: Rather than replacing an entire component or system section due to incompatible porting, this adapter offers a cost-effective solution for repairs, upgrades, or retrofits, reducing downtime and material costs.
• Enhanced Reliability: By providing a robust Code 61 flange connection to an NPT port, the adapter helps maintain the overall reliability of the hydraulic circuit, particularly in applications where vibration and pressure pulsations are a concern for traditional NPT connections.
• Leak Prevention: The combined sealing mechanisms of the O-ring for the flange and the tapered thread for the NPT side, along with the included high-quality fasteners, contribute to superior leak prevention, minimizing fluid loss and environmental contamination.
• Standardization and Compatibility: Adherence to SAE J518 and NPT standards ensures broad compatibility with a vast range of hydraulic components and facilitates easier sourcing of replacement parts.

Conclusion

The 4 Bolt Flange 1-1/2 Inch Adapter Kit is an indispensable component for professionals managing and designing hydraulic systems. Its precision engineering, robust carbon steel construction, and comprehensive inclusion of all necessary hardware underscore its value as a reliable, high-performance solution. By expertly converting a 1-1/2 inch Code 61 split flange connection to a 1-1/2 inch NPT port, it provides critical interconnectivity, particularly for hydraulic filter lines, thereby contributing significantly to fluid cleanliness, system longevity, and operational efficiency. This adapter kit empowers hydraulic engineers and technicians with the flexibility and confidence to build, modify, and maintain complex fluid power systems that meet the demanding requirements of modern industrial and mobile applications, ensuring both optimal performance and stringent safety standards.
