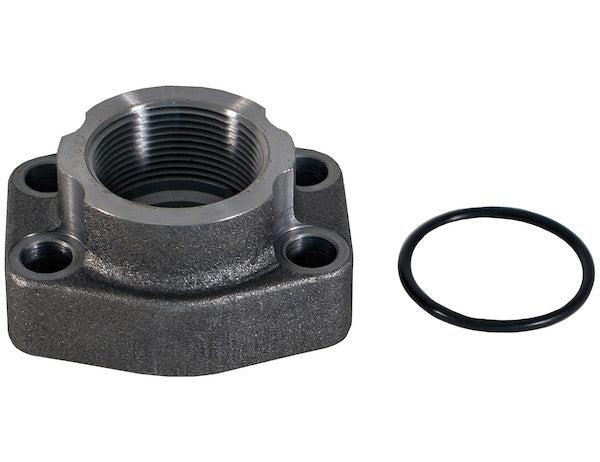

The 4 Bolt Flange Adapter Kit from Buyers Products converts a split flange into NPT porting for hydraulic filter lines. Every kit comes complete with bolts, lock washers, and O-ring.
Specifications
| Finish | Plain |
|---|---|
| Material | Carbon Steel |
| Shape | Flange Adapter |
| Side 1 | 2 NPT |
| Side 2 | 2 (-32 CODE 61) |
| Style | FF |
In the intricate world of hydraulic systems, the seamless and reliable interconnection of various components is paramount for optimal performance, efficiency, and safety. Hydraulic fluid power relies on controlled pressure and flow, making every connection point a critical juncture. The Buyers Products 4 Bolt Flange 2 Inch Adapter Kit stands as an essential solution for bridging common connectivity gaps, specifically engineered to convert a split flange connection into a National Pipe Taper (NPT) porting for robust integration into hydraulic filter lines and beyond. This expansion delves into the technical specifications, engineering principles, material science, and operational advantages that define this indispensable adapter kit, ensuring professionals understand its comprehensive value within complex fluid power architectures.
The core utility of this adapter kit lies in its ability to facilitate compatibility between two distinct yet widely utilized connection standards: the SAE J518 / ISO 6162 4-bolt flange and the NPT thread. The "2 Inch" designation across both connection types signifies a substantial flow capacity, suitable for demanding hydraulic applications where high volumes of fluid need to be transported efficiently. This precise sizing ensures that the adapter does not become a bottleneck in the hydraulic circuit, maintaining system integrity and performance.
Detailed Examination of the 4-Bolt Flange Connection: SAE J518 Code 61
The 4-bolt flange connection, specifically adhering to the SAE J518 standard (which is harmonized with ISO 6162), represents a cornerstone in high-pressure hydraulic connectivity. There are two primary pressure classes within this standard: Code 61 (3000 PSI series) and Code 62 (6000 PSI series). This particular adapter references "CODE 61," indicating it is designed for the 3000 PSI series, which covers a vast array of medium to high-pressure hydraulic applications. The "2 (-32 CODE 61)" specification on Side 2 of the adapter precisely defines the flange type and size it is designed to mate with. The "-32" typically refers to the dash size, which in this context corresponds to a 2-inch nominal pipe or tube size, further reinforcing the adapter's generous flow capacity.
The inherent strength of the 4-bolt flange connection lies in its design. Four bolts symmetrically spaced around the port opening provide a robust clamping force, distributing stress evenly and minimizing the risk of joint separation under dynamic pressure conditions, vibration, and thermal cycling. Unlike threaded connections which rely on thread engagement for sealing and mechanical retention, the flange connection utilizes an O-ring (included in the kit) seated in a precisely machined groove on the flange face. This O-ring provides a superior primary seal, creating a positive, elastomeric barrier against fluid leakage. This sealing mechanism makes flange connections exceptionally reliable for critical applications, particularly where system integrity under fluctuating pressures is paramount. Furthermore, flange connections are known for their ease of assembly and disassembly, offering maintenance flexibility without compromising system robustness or requiring specialized tools beyond standard wrenches and torque equipment.
Understanding the NPT Porting Standard: National Pipe Taper
On the other side, Side 1 of the adapter features a "2 NPT" port. NPT, or National Pipe Taper, is a widely recognized and extensively used thread standard in North America for general purpose pipe fitting and plumbing, including many hydraulic and pneumatic applications. The defining characteristic of NPT threads is their taper, meaning the diameter of the thread gradually decreases along its length. When a male NPT thread is screwed into a female NPT thread, this taper creates an interference fit, where the flanks of the threads deform to create a metal-to-metal seal. To achieve a leak-tight connection, thread sealants (such as PTFE tape or pipe dope) are almost always required to fill any helical leak paths that might otherwise exist. The "2 NPT" size designates a nominal pipe size of 2 inches, again indicating a significant flow pathway.
While NPT connections are ubiquitous and cost-effective, their primary sealing mechanism (metal-to-metal interference augmented by sealant) can be more susceptible to leakage in applications involving high vibration, significant thermal cycling, or very high pressures compared to elastomeric seals. However, their simplicity, widespread availability, and ease of field modification make them an attractive choice for many segments of a hydraulic system. The Buyers Products adapter skillfully bridges the gap, allowing for the integration of standard NPT components, like sensors, valves, or existing lines, into a system that predominantly uses the more robust flange connections for its main arteries, particularly for hydraulic filter lines where a secure and leak-free connection is crucial for maintaining fluid cleanliness and system longevity.
Engineering and Design of the Flange Adapter
The "Flange Adapter" shape indicates a purpose-built component designed specifically to transition between these two distinct connection methodologies. Crafted from "Carbon Steel," the adapter is engineered for structural integrity and longevity within demanding hydraulic environments. The design process for such an adapter involves precise dimensional matching to both the SAE J518 Code 61 flange standard and the NPT thread specification. This precision machining ensures not only perfect physical fit but also proper alignment of sealing surfaces, which is critical for preventing leaks. The interaction between the O-ring seal on the flange side and the tapered thread seal on the NPT side must be harmonized through meticulous design to guarantee a reliable, leak-proof transition point. The "Plain" finish implies that the carbon steel is untreated or unplated. This choice is often made to facilitate welding, allow for post-installation painting by the end-user, or to maintain cost-effectiveness where additional corrosion resistance treatments are not required or will be applied in situ.
Material Excellence: Carbon Steel
The selection of "Carbon Steel" as the material for this adapter kit underscores a commitment to durability and performance. Carbon steel is a preferred material in hydraulic component manufacturing due to its exceptional mechanical properties. It offers a high tensile strength, allowing it to withstand significant internal pressures without yielding or fracturing. Its inherent hardness and wear resistance contribute to the longevity of the component, even when subjected to continuous fluid flow and operational stresses. Furthermore, carbon steel exhibits excellent fatigue resistance, crucial for components exposed to the pulsating pressures and vibrations common in hydraulic systems. Its cost-effectiveness compared to more exotic alloys also makes it a practical choice for a wide range of industrial and mobile hydraulic applications. While the "Plain" finish implies a raw material state which may require additional corrosion protection in certain environments, the fundamental strength and resilience of carbon steel ensure the structural integrity of the adapter under specified operating conditions and compatibility with most standard hydraulic fluids.
Comprehensive Kit Components for Reliable Installation
The inclusion of "bolts, lock washers, and O-ring" in every kit is a critical detail that simplifies procurement and ensures a complete, reliable installation. Each component plays a vital role in the overall integrity of the connection:
- Bolts: These are the fasteners that provide the necessary clamping force to secure the flange connection. For hydraulic applications, these bolts are typically high-strength alloy steel (e.g., Grade 8) capable of withstanding the substantial pre-load required to create and maintain the O-ring seal, as well as resisting separation forces during operation. Proper bolt selection, including diameter, thread pitch, and length, is crucial for achieving the specified torque and ensuring the structural integrity of the joint.
- Lock Washers: Lock washers are indispensable for preventing the loosening of bolts due to vibration, thermal expansion and contraction, or dynamic loads. They work by introducing a spring-like action or friction against the fastener, maintaining the bolt's pre-load and ensuring the integrity of the flange seal over time. The absence of lock washers can lead to bolt relaxation, loss of clamping force, and ultimately, leakage or even catastrophic failure of the connection.
- O-ring: The O-ring is the primary sealing element for the flange connection. Typically made from an elastomeric material such as Nitrile (Buna-N) for general hydraulic fluid compatibility or Viton for higher temperature and chemical resistance, it is designed to seat snugly in the precisely machined groove on the flange face. When the bolts are torqued down, the O-ring is compressed, creating a positive, leak-proof seal against the mating flange surface. The correct material, durometer (hardness), and proper installation of the O-ring are paramount for a reliable, long-lasting connection in a hydraulic system.
Applications and Operational Benefits
The 4 Bolt Flange 2 Inch Adapter Kit finds its primary application in "hydraulic filter lines," a critical segment of any hydraulic system responsible for maintaining fluid cleanliness and preventing contamination. Clean fluid is essential for the longevity and performance of hydraulic pumps, valves, cylinders, and motors. By converting a robust flange connection to NPT, this adapter allows for flexible integration of various filtration components, pressure gauges, or auxiliary lines that may utilize NPT ports. Beyond filter lines, its utility extends to a wide array of hydraulic applications across diverse industries:
- Industrial Power Units: Connecting hydraulic components in manufacturing plants, processing facilities, and automation systems.
- Mobile Hydraulic Equipment: Essential in construction machinery, agricultural equipment, forestry machines, and material handling vehicles where robustness and resistance to vibration are key.
- Marine Hydraulic Systems: For steering, winches, and other deck machinery where reliable connections are vital in harsh environments.
- Test Stands and OEM Equipment: Providing flexibility in prototype development and custom machine building.
Key operational advantages derived from utilizing this adapter kit include:
- System Compatibility and Flexibility: It enables the seamless integration of components with different porting standards, allowing engineers to design more flexible and adaptable hydraulic circuits. This is particularly valuable when upgrading older systems or integrating custom components.
- Enhanced Leak Prevention: By utilizing the superior O-ring sealing mechanism of the SAE J518 flange, combined with a properly sealed NPT connection, the adapter significantly reduces the potential for costly and environmentally damaging hydraulic fluid leaks.
- Ease of Installation and Maintenance: The kit's comprehensive nature, including all necessary sealing and fastening components, streamlines installation. Flange connections are also inherently easier to assemble and disassemble than many threaded connections, simplifying maintenance and component replacement.
- Durability and Reliability: Constructed from carbon steel, the adapter is built to withstand the rigorous demands of hydraulic operations, ensuring long-term reliability and reducing the frequency of repairs or replacements.
- Optimized Flow: The 2-inch nominal size ensures ample flow capacity for most medium to high-flow hydraulic systems, preventing pressure drops and maintaining system efficiency.
Installation, Maintenance, and Best Practices
Proper installation and adherence to best practices are crucial to realizing the full benefits of the 4 Bolt Flange 2 Inch Adapter Kit. Key considerations include:
- Cleanliness: All connecting surfaces, including the O-ring groove and the NPT threads, must be absolutely clean and free from dirt, debris, or old sealant residue to ensure a perfect seal.
- O-ring Installation: The O-ring should be lightly lubricated with a compatible hydraulic fluid before installation to prevent pinching or damage during assembly and to facilitate proper seating. It must be correctly placed within its groove.
- Bolt Torquing: Flange bolts must be tightened to the manufacturer's specified torque values, typically in a cross-pattern sequence, to ensure uniform clamping force and proper O-ring compression. Overtightening can damage components, while undertightening can lead to leaks.
- NPT Sealant: For the NPT connection, an appropriate thread sealant (e.g., PTFE tape or liquid pipe sealant rated for hydraulic applications) should be applied correctly to the male threads to create a reliable seal.
- System Pressure Ratings: Always ensure that the pressure rating of the adapter and all connected components (hoses, pipes, valves) meet or exceed the maximum operating pressure of the hydraulic system.
In conclusion, the Buyers Products 4 Bolt Flange 2 Inch Adapter Kit represents a robust, technically sound, and indispensable component for modern hydraulic systems. Its ability to seamlessly convert between the high-integrity SAE J518 Code 61 4-bolt flange and the versatile 2-inch NPT port offers unparalleled flexibility for hydraulic engineers and technicians. Constructed from durable carbon steel and provided with all necessary hardware for a secure installation, this kit ensures system compatibility, significantly enhances leak prevention, and contributes to the overall reliability and efficiency of hydraulic circuits, particularly within critical applications such as hydraulic filter lines. It is a testament to precision engineering designed to meet the rigorous demands of industrial, mobile, and specialized fluid power applications.
