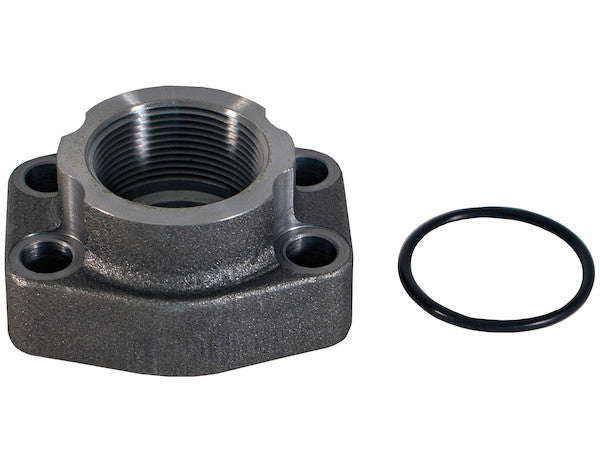

The 4 Bolt Flange Adapter Kit from Buyers Products converts a split flange into NPT porting for hydraulic filter lines. Every kit comes complete with bolts, lock washers, and O-ring.
Specifications
| Finish | Plain |
|---|---|
| Material | Carbon Steel |
| Shape | Flange Adapter |
| Side 1 | 2 1/2 NPT |
| Side 2 | 2-1/2 (-40 CODE 61) |
| Style | FF |
Advanced Technical Overview: 4 Bolt Flange 2-1/2 Inch Adapter Kit
In the realm of hydraulic systems, the integrity and adaptability of connections are paramount for maintaining operational efficiency, system reliability, and safety. The 4 Bolt Flange 2-1/2 Inch Adapter Kit, a meticulously engineered solution from Buyers Products, represents a critical component designed to bridge disparate connection methodologies within hydraulic circuitry. Specifically conceived to convert a standardized split flange interface into a National Pipe Taper (NPT) port, this adapter kit offers an indispensable utility for hydraulic filter lines and a myriad of other high-pressure fluid transfer applications. This comprehensive description will delve into the technical intricacies, material science, operational benefits, and application spectrum of this essential adapter kit, providing a profound understanding of its role in modern hydraulic engineering.
Understanding Flanged Connections in Hydraulic Systems
Flanged connections are a cornerstone of robust hydraulic systems, particularly in applications requiring high pressure, large flow rates, or where frequent disassembly for maintenance is anticipated. The 4-bolt flange design, specifically adhering to SAE J518 standards (also codified as ISO 6162-1 for Code 61 or ISO 6162-2 for Code 62), offers superior sealing capabilities and enhanced structural integrity compared to threaded connections for larger line sizes. The product's specification of "2-1/2 (-40 CODE 61)" denotes a nominal size of 2.5 inches and compliance with the SAE Code 61 pressure rating, which is typically for standard duty applications up to 3,000 PSI (210 bar). Code 61 flanges are characterized by their standard footprint and bolt pattern, ensuring interchangeability across a vast array of hydraulic components such as pumps, motors, valves, and cylinders. The split flange design, as opposed to a solid flange, facilitates easier assembly and disassembly in confined spaces by allowing the two halves to be placed around a flanged tube or hose end, then secured to the adapter block or port.
The principal advantage of flanged connections lies in their ability to distribute clamping force evenly over a large sealing area, minimizing stress concentrations and providing a highly secure, leak-resistant joint. This characteristic is particularly vital in dynamic hydraulic environments where pressure pulsations, vibration, and thermal cycling can compromise less robust connections. The O-ring seal, compressed between the flange face and the mating surface, forms the primary seal, offering excellent resilience and resistance to hydraulic fluids. The inclusion of a 4-bolt pattern provides ample clamping force to maintain this seal integrity even under demanding operational conditions.
The Versatility of NPT Porting
National Pipe Taper (NPT) threads are a widely recognized standard for connecting pipes and fittings in various industrial applications, including hydraulics. Characterized by their tapered design, NPT threads create a mechanical seal as the male and female threads are tightened, deforming slightly to form an interference fit. While less common for primary high-pressure connections in larger hydraulic lines compared to O-ring face seal (ORFS) or flange connections, NPT remains invaluable for auxiliary lines, instrumentation ports, drain lines, and, crucially, filter lines where adapters like this kit facilitate integration into systems primarily utilizing flanged connections. The specified "2 1/2 NPT" on Side 1 of the adapter indicates a robust connection point suitable for significant flow volumes.
The tapered nature of NPT threads, typically 1:16 taper (3/4 inch per foot), requires the use of thread sealant (such as PTFE tape or pipe dope) to fill the spiral leak path that would otherwise exist between the crests and roots of the mating threads. This ensures a leak-free seal. The ubiquity of NPT components makes them highly accessible and cost-effective for system design and maintenance. For hydraulic filter lines, the ability to seamlessly transition from a robust flanged connection on a main system component to a more conventional NPT connection for a filter housing or ancillary equipment streamlines system design, reduces complexity, and simplifies future maintenance or replacement of NPT-ported components.
Seamless Integration: The Adapter's Mechanism and Design
The core function of this adapter kit is to provide a reliable, high-pressure transition between a 2-1/2 inch SAE Code 61 split flange interface and a 2-1/2 inch NPT female port. The adapter itself is shaped to accommodate the specific bolt pattern and O-ring groove of the Code 61 flange on one side, while integrally machined with the NPT thread on the other. This dual-interface design ensures hydraulic continuity and structural integrity across the conversion point. The "Style: FF" designation, in this context, clarifies its role as a Flange to Female NPT adapter, precisely meeting the functional requirement of converting a flanged port into a female threaded port.
The precision machining of both the flange face, including the O-ring groove, and the NPT threads is critical. Any deviation can lead to improper sealing, potential leaks, and compromised system performance. The adapter's compact form factor is engineered to minimize space requirements while providing a robust connection, an important consideration in increasingly dense hydraulic power units and machinery.
Material Science: Carbon Steel (Plain Finish)
The selection of Carbon Steel as the primary material for this adapter kit underscores a commitment to strength, durability, and cost-effectiveness suitable for demanding hydraulic environments. Carbon steel, known for its high tensile strength and resistance to mechanical stress, is an ideal choice for components subjected to the high internal pressures and external forces inherent in hydraulic systems. Its inherent toughness allows it to withstand shock loads, vibrations, and temperature fluctuations without exhibiting brittle failure.
The specification of a "Plain" finish indicates that the carbon steel component is supplied without any additional surface coating, such as plating (e.g., zinc) or painting. While a plain finish might imply a susceptibility to surface corrosion in humid or corrosive environments, this choice often serves several practical purposes in industrial applications:
- Weldability: A plain carbon steel surface is ideal for applications where welding to other structural components might be required, as it eliminates the need for stripping off coatings.
- Cost-Effectiveness: Omitting a protective coating reduces manufacturing costs, translating into a more economical product for the end-user.
- User Customization: In many industrial settings, end-users may prefer to apply their own specialized coatings (e.g., specific paint colors, epoxy coatings for harsh chemical resistance, or anti-corrosion treatments) that are tailored to their unique operational environment. A plain finish provides a clean substrate for such custom applications.
- Internal Use: For components primarily installed within an enclosed hydraulic power unit or machinery where ambient corrosion is not a significant concern, a plain finish is perfectly adequate.
The Critical Kit Components: Bolts, Lock Washers, and O-Rings
The effectiveness and reliability of any flanged connection hinge not just on the main component but equally on its accompanying hardware. The inclusion of bolts, lock washers, and an O-ring in this kit from Buyers Products ensures that installers have all necessary elements for a complete, secure, and leak-free assembly immediately at hand.
- Bolts: The bolts provided are specifically selected to meet the strength requirements for securing a Code 61 flange connection. Typically, these would be high-strength alloy steel bolts, often specified to grades like SAE Grade 8 or metric Class 10.9, capable of withstanding the significant clamping forces necessary to maintain the integrity of the hydraulic seal under pressure. Proper torqueing of these bolts is critical, as undertorquing can lead to leaks and overtightening can deform components or stretch bolts beyond their elastic limit, compromising the joint.
- Lock Washers: Lock washers, such as split lock washers or conical spring washers, play a vital role in preventing fasteners from loosening due to vibration, thermal expansion/contraction cycles, or dynamic loading. By providing an increased friction force or a spring action, they maintain tension within the bolted joint, thereby enhancing the long-term reliability of the connection and preventing costly leaks or catastrophic failures.
- O-ring: The O-ring is the primary static seal for the flanged connection. For hydraulic applications, these O-rings are typically made from materials like Nitrile (Buna-N) for petroleum-based fluids or Viton (FKM) for higher temperature or specialized fluid compatibility. The O-ring is seated in a precisely machined groove on the flange face or the adapter, and upon compression by the mating flange, it forms a robust, resilient barrier against fluid leakage. The selection of the correct O-ring material and durometer (hardness) is critical for compatibility with the hydraulic fluid and the operating temperature range, ensuring long-term sealing performance.
Dimensional and Flow Considerations: The 2-1/2 Inch Specification
The "2-1/2 Inch" nominal size for both the flange and the NPT port is a significant indicator of the adapter's intended application in systems requiring substantial fluid flow. In hydraulic engineering, line sizing is paramount to minimize pressure drops, prevent cavitation, and ensure efficient power transmission. A 2-1/2 inch line can accommodate very high flow rates, making this adapter suitable for main return lines, suction lines to large pumps, or pressure lines feeding large actuators or filtration systems that demand considerable throughput.
For hydraulic filter lines, specifically, large diameter connections like 2-1/2 inches are often associated with high-capacity filters designed to handle the full flow of large hydraulic circuits, particularly on return lines where flow is highest but pressure is relatively low. The selection of a 2-1/2 inch NPT port ensures that the adapter does not become a bottleneck, allowing the filter to operate efficiently without inducing excessive pressure drop, which could negatively impact system performance or energy consumption.
Broadening Applications Beyond Filter Lines
While the initial description highlights hydraulic filter lines, the versatility of this 4 Bolt Flange 2-1/2 Inch Adapter Kit extends to a much broader spectrum of hydraulic applications:
- Pump & Motor Connections: Facilitating the connection of NPT-ported pumps or motors to flanged manifold blocks or system piping, especially in auxiliary pump circuits or low-pressure return applications.
- Valve Manifolds: Integrating NPT-ported valves or accessory blocks into larger flanged manifold systems, offering modularity and ease of component replacement.
- Cylinder Lines: Adapting large hydraulic cylinders with flanged ports to NPT-threaded hoses or pipes for specific applications where NPT might be preferred for ease of field maintenance or connection to existing infrastructure.
- Test Stands & Diagnostic Equipment: Providing convenient NPT ports for connecting pressure gauges, flow meters, or other diagnostic tools to flanged test points.
- Reservoir Connections: For large suction or return lines connecting to hydraulic reservoirs, allowing NPT components to be integrated into robust flanged reservoir ports.
- Mobile and Heavy Equipment: In construction, agricultural, and mining machinery, where robust and maintainable connections are essential, this adapter facilitates the integration of diverse hydraulic components.
- Marine & Offshore Hydraulics: Offering durable connections in harsh environments for various shipboard or platform hydraulic systems.
Key Advantages and Operational Benefits
The integration of the 4 Bolt Flange 2-1/2 Inch Adapter Kit into hydraulic systems offers a multitude of tangible benefits:
- Modularity and Flexibility: Enables hydraulic system designers and technicians to seamlessly integrate NPT-ported components into systems primarily designed around flanged connections, offering greater design flexibility and simplified component selection.
- Standardization: Promotes standardization by allowing the use of widely available NPT components with high-pressure SAE flanged interfaces, reducing the need for custom fabrication.
- Ease of Installation and Maintenance: The split flange design simplifies assembly in tight spaces, while the NPT connection allows for straightforward replacement or servicing of attached components. The complete kit ensures all necessary hardware is present, reducing installation time and potential errors.
- Reliability and Leak Prevention: The robust design, combined with the O-ring seal for the flange and the proper application of thread sealant for the NPT, ensures a highly reliable and leak-free connection, minimizing fluid loss and environmental contamination.
- Enhanced System Integrity: By providing a durable and secure connection point, the adapter helps maintain overall system integrity, contributing to consistent performance and extended operational life of hydraulic machinery.
- Cost-Effectiveness: Compared to designing bespoke solutions or using less common connection types, this standard adapter kit offers an economical and readily available solution for converting hydraulic interfaces.
Installation Best Practices for Optimal Performance
To ensure the maximum performance and longevity of the 4 Bolt Flange 2-1/2 Inch Adapter Kit, adherence to best installation practices is essential:
- Surface Preparation: Ensure that all mating surfaces (flange face, adapter, and the O-ring groove) are meticulously clean, free from dirt, debris, burrs, or scratches that could compromise the O-ring seal.
- O-ring Seating: Carefully place the O-ring into its designated groove. Ensure it is not twisted or pinched. A thin film of compatible hydraulic fluid or O-ring lubricant can aid proper seating and prevent damage during assembly.
- Bolt Tightening Sequence: When assembling the split flange to the adapter, tighten the bolts incrementally and in a cross-pattern sequence. This ensures even compression of the O-ring and uniform distribution of clamping force, preventing localized stress concentrations or uneven sealing.
- Torque Specifications: Always adhere to the manufacturer's recommended torque specifications for the bolts. Using a calibrated torque wrench is crucial. Undertorquing can lead to leaks, while overtorquing can damage bolts, flanges, or the adapter.
- NPT Thread Sealant: For the NPT connection, apply an appropriate hydraulic thread sealant (e.g., PTFE tape or liquid pipe sealant) to the male threads. Apply it judiciously, leaving the first one or two threads bare to prevent sealant material from entering the hydraulic system and potentially contaminating fluid or valves.
- System Flushing: After installation, it is good practice to perform a system flush to remove any potential contaminants introduced during assembly before bringing the system to full operational pressure.
- Leak Check: Once the system is pressurized, visually inspect all connections for leaks. Retighten as necessary, following the torque specifications.
Maintenance and Longevity
While the adapter kit is designed for durability, periodic inspection and maintenance contribute to its extended service life. Regularly check the flange connection for any signs of leakage, which could indicate a degraded O-ring or insufficient bolt torque. The O-ring, being a critical sealing element, should be replaced during any major disassembly or at predetermined service intervals, even if it appears to be in good condition. For the NPT connection, ensure thread sealant integrity. Given the plain carbon steel finish, if the adapter is exposed to corrosive environments, periodic inspection for rust and the application of protective coatings may be necessary to preserve its external appearance and prevent surface degradation.
Conclusion
The 4 Bolt Flange 2-1/2 Inch Adapter Kit from Buyers Products stands as an exemplary product in hydraulic system components, offering a robust, reliable, and technically sound solution for converting SAE Code 61 flanged ports to 2-1/2 inch NPT connections. Its carbon steel construction, precise machining, and inclusion of essential hardware underscore its engineering quality and fitness for demanding hydraulic applications. By enabling seamless integration, enhancing system flexibility, and upholding the highest standards of leak prevention and durability, this adapter kit is an indispensable asset for engineers and technicians striving for optimal performance and efficiency in complex hydraulic circuits, particularly within high-flow filter lines and diverse industrial machinery.
