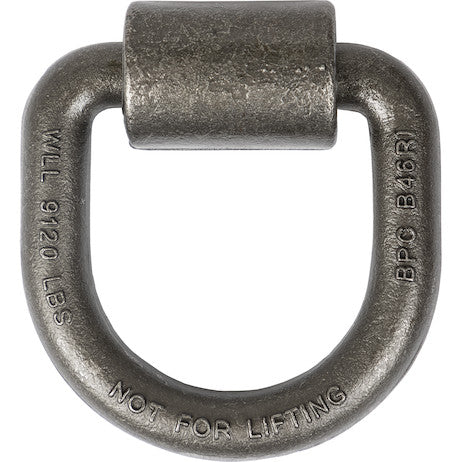

Secure a load with confidence using the 3/4 Inch Forged D-Ring from Buyers Products. The D-ring and included weld-on mounting bracket feature forged C-1045 steel construction for a working load limit of 9,120 lb. D-rings are not approved for overhead use.
Specifications
| Bracket Included (y/n) | Yes |
|---|---|
| Bracket Length (in.) | 1.625 |
| Bracket Mounting Type | Weld-On |
| Bracket Thickness | 0.375 |
| Bracket Width (in.) | 2.25 |
| Inner Height (in.) | 3.00 |
| Inner Width (in.) | 3.00 |
| Made in USA | Yes |
| Min Break Strength (lbs.) | 27,360 |
| Mounting Hole Diameter | - |
| Mounting Hole Shape | - |
| Ring Dia.(in.) | 3/4 |
| W.L.L. (lbs.) | 9,120 |
The Buyers Products 3/4 Inch Forged D-Ring with Weld-On Mounting Bracket represents a critical component in robust load securement systems for commercial, industrial, and heavy-duty transportation applications. Engineered for superior strength and durability, this product ensures the safe and reliable transport of valuable cargo, adhering to stringent performance standards. This comprehensive description delves into the technical specifications, material science, design principles, installation considerations, and operational guidelines that underscore the exceptional utility and safety profile of this essential tie-down anchor.
At the core of this D-ring's formidable strength is its construction from forged C-1045 steel. C-1045 is a medium carbon steel, meticulously selected for its optimal balance of high tensile strength, excellent wear resistance, and good toughness following proper heat treatment. Its chemical composition typically features a carbon content ranging from 0.43% to 0.50%, along with manganese (0.60-0.90%), and trace elements like silicon. This specific grade significantly surpasses the strength properties of lower carbon steels, making it the material of choice for demanding applications such as crankshafts, gears, heavy-duty bolts, and, crucially, high-stress load-bearing components like D-rings. The intrinsic mechanical properties of C-1045 steel, including typical tensile strengths of approximately 95,000 psi and yield strengths around 60,000 psi, are fundamental to the product's impressive 9,120 lb Working Load Limit (WLL), providing a robust foundation for secure cargo transport.
The manufacturing process of forging further elevates the performance characteristics of the D-ring and its accompanying bracket. Unlike casting or machining from plate, forging involves shaping the metal through localized compressive forces, which fundamentally refines and aligns the internal grain structure of the steel. This optimized grain flow follows the contours of the D-ring and bracket, eliminating internal voids, porosity, and microscopic imperfections that often act as stress concentrators in other manufacturing methods. The result is a densified, homogenous, and anisotropic structure that exhibits significantly enhanced impact strength, superior fatigue resistance, and increased overall structural integrity. The inherent ability of forged components to distribute stress more efficiently and resist crack propagation drastically reduces the likelihood of unexpected failure, even under dynamic and cyclical loading conditions. This metallurgical advantage directly contributes to the substantial Minimum Break Strength (MBS) of 27,360 lbs, ensuring an exceptionally high safety margin.

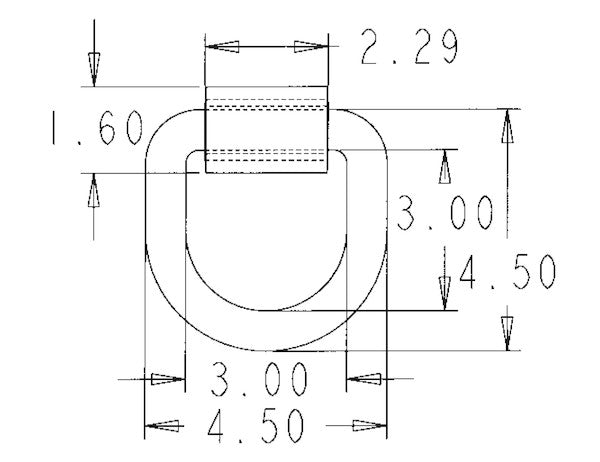

The design of the 3/4 inch D-ring itself is optimized for securement efficiency and compatibility. With an inner height of 3.00 inches and an inner width of 3.00 inches, the ring provides ample clearance for a wide array of securement devices, including various sizes of S-hooks, J-hooks, clevis hooks, and the webbing of heavy-duty ratchet straps and cam buckle straps. The 3/4-inch nominal ring diameter ensures robust material cross-section, providing high resistance to deformation and wear. The classic "D" shape is not merely aesthetic; it is geometrically ideal for distributing tension evenly across the securement point, particularly when forces are applied tangentially by a strap or chain. This design minimizes concentrated stress points, enhancing the longevity and reliability of the tie-down system.

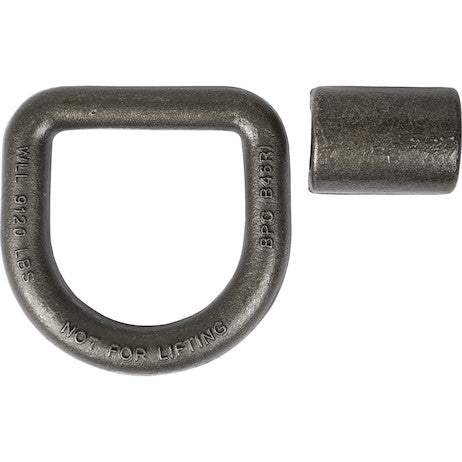

The accompanying weld-on mounting bracket is engineered to integrate seamlessly and durably with the D-ring. With a bracket length of 1.625 inches, a width of 2.25 inches, and a thickness of 0.375 inches, the design provides an optimized surface area for a permanent, high-strength weld connection to the vehicle or equipment chassis. The substantial thickness of 0.375 inches ensures that the bracket itself acts as a robust intermediary, capable of withstanding the full forces transferred from the D-ring to the base structure without compromise. This weld-on configuration offers distinct advantages over bolt-on alternatives, primarily a lower profile, reduced protrusion, and the highest possible level of structural integration and load transfer capability, making it exceptionally resistant to vibrations, impact, and shear forces commonly encountered during transport.
Proper installation of the weld-on bracket is paramount to realizing the product's full rated capacity and ensuring operational safety. Installation must be executed by a qualified and certified welder, strictly adhering to industry best practices and all applicable welding codes and safety protocols. The target mounting surface on the trailer, truck bed, or equipment must be meticulously prepared, ensuring it is free from paint, rust, grease, scale, or any other contaminants that could compromise weld integrity. Depending on the base material and ambient temperature, pre-heating of the weld area may be required to prevent cracking and ensure proper metallurgical fusion. Recommended welding processes include Shielded Metal Arc Welding (SMAW), Gas Metal Arc Welding (GMAW), or Flux-Cored Arc Welding (FCAW, which is typically self-shielded, but the other variants require gas protection), utilizing filler metals compatible with C-1045 steel and the parent metal of the structure. A continuous, full-penetration weld bead around the entire perimeter of the bracket is essential to maximize load transfer, distribute stress uniformly, and prevent localized stress concentrations. Following the welding process, a thorough visual inspection for any discontinuities such as cracks, undercut, porosity, or insufficient penetration is critical. For environments exposed to moisture, road salts, or chemicals, applying a suitable corrosion-resistant coating (e.g., industrial primer and topcoat paint, or galvanizing) to the exposed steel of both the D-ring and bracket post-installation is strongly recommended to ensure long-term durability and prevent premature degradation.
The performance metrics of this D-ring are defined by its Working Load Limit (WLL) and Minimum Break Strength (MBS). The WLL of 9,120 lbs represents the maximum force that the D-ring and bracket assembly can safely withstand under normal operational conditions without permanent deformation or structural fatigue. This rating is derived by applying a conservative safety factor to the MBS. The MBS of 27,360 lbs signifies the absolute minimum force at which the component is expected to fail. The ratio of MBS to WLL, which in this case is approximately 3:1 (27,360 lbs / 9,120 lbs = 3), is a critical engineering safety margin. This means the component is designed with a substantial reserve capacity, capable of withstanding three times its rated working load before catastrophic failure. This robust safety factor is indispensable for mitigating risks associated with dynamic loading, shock loads, sudden shifts in cargo, and unforeseen stresses during transit, providing users with unwavering confidence in their cargo securement. It is important to note that the WLL applies to the D-ring and bracket assembly only; the ultimate strength of the entire securement system is limited by its weakest component, including straps, chains, and the structural integrity of the mounting surface.
A paramount safety directive associated with this product is that "D-rings are not approved for overhead use." This distinction is critical and absolute. Equipment designed for overhead lifting, such as hoist rings or lifting eyes, is engineered to vastly different safety factors (often 4:1 or 5:1), subjected to rigorous proof-testing, and designed to manage complex, multi-directional stress profiles inherent in lifting operations. Tie-down D-rings, while exceptionally strong for securing loads horizontally or at an angle, are not designed or tested to accommodate the unique forces, stress concentrations, and severe consequences associated with lifting failures, which can result in catastrophic injuries, fatalities, and extensive property damage. Misapplication of this D-ring for any overhead suspension or hoisting activity invalidates all warranties and presents extreme safety hazards. Users must exclusively employ certified lifting apparatus for all overhead lifting operations, ensuring compliance with relevant safety standards such as ASME B30.26 (Rigging Hardware).
The versatility of this 3/4 inch forged D-ring makes it an indispensable component across a broad spectrum of heavy-duty applications. It is widely utilized in the transportation industry for securing diverse types of cargo on flatbed trailers, utility trailers, enclosed trailers, and commercial trucks. This includes agricultural machinery, construction equipment, industrial components, vehicles, and various bulk materials. Beyond transportation, these D-rings find utility in industrial settings for creating secure anchor points in workshops, factories, and warehouses for equipment tie-down, temporary anchoring, or fabricating custom load-bearing structures. Their robust nature also makes them suitable for specialized vehicles, emergency service apparatus, and off-road applications where securement points must withstand extreme conditions and dynamic forces. The compatibility with a wide range of securement hardware, from synthetic straps to heavy-duty chains, further enhances its adaptability.
Durability, longevity, and minimal maintenance are inherent advantages of this forged D-ring. The C-1045 steel provides excellent resistance to abrasion, impact, and deformation, ensuring a long service life even in demanding environments. While inherently strong, C-1045 steel is susceptible to rust without a protective coating. Therefore, as mentioned, applying an appropriate paint or other protective finish after welding is crucial for mitigating corrosion, especially in areas exposed to moisture, road salts, chemicals, or abrasive debris. Regular inspection of the D-ring and its weld connection is recommended as part of a routine maintenance schedule. Operators should look for any signs of cracks, excessive wear, deformation, or corrosion that could compromise the integrity of the securement point. Any damaged D-rings or compromised welds should be immediately taken out of service and repaired or replaced by a qualified professional to maintain safety standards.
The "Made in USA" designation for this D-ring underscores a commitment to superior quality, ethical manufacturing practices, and stringent quality control. Products manufactured domestically often adhere to higher material specifications, benefit from advanced manufacturing processes, and undergo more rigorous testing protocols compared to their international counterparts. This also ensures traceability of materials and processes, providing an added layer of confidence in the product's reliability and performance. Buyers Products, as a reputable manufacturer, consistently delivers high-quality solutions for the truck and trailer equipment industry, and this D-ring is a testament to their dedication to engineering excellence and customer safety. Their commitment ensures that this product not only meets but often exceeds industry expectations for strength and durability.
In conclusion, the 3/4 Inch Forged D-Ring with Weld-On Mounting Bracket from Buyers Products stands as an exemplary solution for robust cargo securement. Its construction from forged C-1045 steel, precise engineering, high Working Load Limit of 9,120 lbs, and substantial Minimum Break Strength of 27,360 lbs make it an incredibly reliable anchor point. When properly installed by a certified welder and used in accordance with the crucial safety directive against overhead lifting, this D-ring provides unparalleled security for a wide range of heavy-duty applications. Investing in this high-quality, American-made component ensures the safety of your cargo, adherence to industry best practices, and the long-term integrity of your securement infrastructure.
