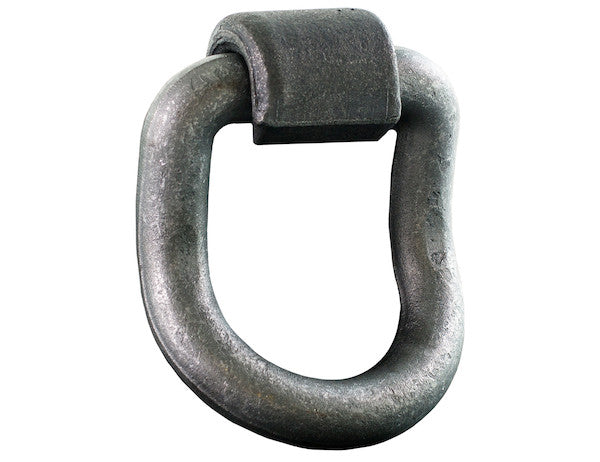

Secure your load with confidence using the Angled 1 Inch Forged D-Ring from Buyers Products. The D-ring has a 55° bend that makes it easier to secure and hook for various applications. The ring and mounting bracket feature forged C-1045 steel construction with a working load limit of 15,586 lb. A forged 3/8 in. thick weld-on mounting bracket is included. D-rings are not approved for overhead use.
Specifications
| Bracket Included (y/n) | Yes |
|---|---|
| Bracket Length (in.) | 2.125 |
| Bracket Mounting Type | Weld-On |
| Bracket Thickness | 0.50 |
| Bracket Width (in.) | 2.25 |
| Inner Height (in.) | 3.50 |
| Inner Width (in.) | 3.00 |
| Made in USA | Yes |
| Min Break Strength (lbs.) | 46,760 |
| Mounting Hole Diameter | - |
| Mounting Hole Shape | - |
| Ring Dia.(in.) | 1.00 |
| W.L.L. (lbs.) | 15,586 |
In the demanding world of heavy-duty cargo securement, the integrity and reliability of every component are paramount. Introducing the Domestically Forged 1 Inch Forged 55° Angled D-Ring with Weld-On Mounting Bracket from Buyers Products, a superior solution engineered to meet and exceed the rigorous requirements of professionals across various industries. This product represents the pinnacle of American manufacturing expertise, combining advanced metallurgical principles with precision engineering to deliver unparalleled strength, durability, and operational efficiency.
At the core of this D-ring's exceptional performance lies its "Domestically Forged" designation. This is not merely a label but a testament to a stringent manufacturing process conducted entirely within the United States. Domestic forging ensures meticulous quality control at every stage, from raw material sourcing to the final product inspection. Unlike imported alternatives that may suffer from inconsistent material quality or unreliable manufacturing standards, domestic production offers transparency, accountability, and adherence to the highest industrial specifications. This commitment to domestic manufacturing translates into a product characterized by superior metallurgical properties, dimensional accuracy, and consistent mechanical performance, all critical factors when securing valuable cargo under dynamic and often extreme conditions. Furthermore, supporting domestically forged products contributes to the national economy, strengthens local supply chains, and fosters innovation within American industries.
The forging process itself is a critical differentiator. Rather than casting or machining from plate steel, this D-ring and its mounting bracket undergo a hot forging process. In forging, metal is heated to a high temperature and then shaped using localized compressive forces, typically through hammering or pressing. This process refines the grain structure of the C-1045 steel, eliminating internal voids and porosity common in castings. The resulting fibrous grain flow is aligned with the part's contours, imparting significantly enhanced strength, impact resistance, and fatigue life. This improved microstructure makes the forged components inherently stronger and more resilient to the stresses of heavy loads, vibrations, and sudden impacts often encountered during transit. Forging also provides excellent ductility, reducing the risk of brittle fracture, a crucial safety consideration in load securement applications where failure can have catastrophic consequences.
The selection of C-1045 carbon steel for both the ring and the mounting bracket is deliberate and strategically chosen for its mechanical properties. C-1045 is a medium carbon steel known for its good balance of strength, hardness, and toughness. It offers a higher tensile strength and yield strength compared to lower carbon steels, making it ideal for high-stress applications like D-rings. After forging, C-1045 typically exhibits excellent wear resistance and the ability to withstand significant dynamic loading without permanent deformation or failure. While not inherently stainless, its robust nature, when combined with proper care and attention, ensures long-term performance even in challenging environmental conditions, particularly when considering its application in outdoor, industrial, and transportation settings.

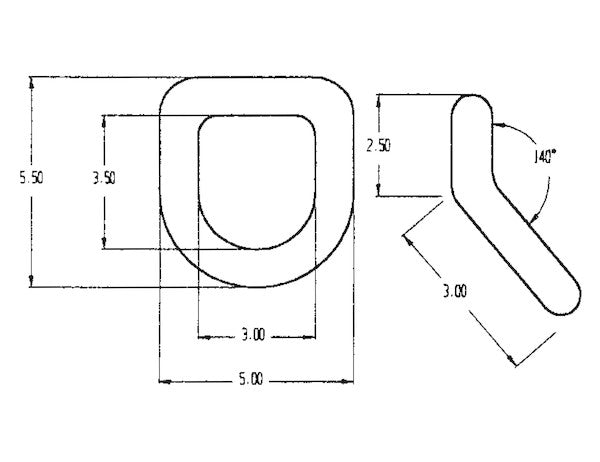

Precision engineering defines the physical attributes of this D-ring. With a robust 1.00-inch ring diameter, this D-ring provides substantial material cross-section to distribute load stresses effectively. The inner dimensions of the D-ring, measuring 3.50 inches in height and 3.00 inches in width, are meticulously designed to accommodate a wide range of securement devices, including heavy-duty chains, robust webbing straps, and various hooks and clevises. This generous internal clearance ensures easy attachment and detachment, enhancing operational efficiency while minimizing the potential for binding or wear on the securement hardware. The substantial dimensions reflect an engineering philosophy focused on maximizing the interface area for load distribution, thereby minimizing localized stress concentrations and extending the lifespan of both the D-ring and the attached securement components.
A key ergonomic and functional advantage of this D-ring is its innovative 55° angled bend. This specific angle is not arbitrary; it is the result of thoughtful design aimed at optimizing the geometry for real-world cargo securement scenarios. The 55° bend significantly facilitates the hooking and securing process, allowing for easier alignment and engagement of chains or straps, particularly in situations where access might be restricted or where the anchor point is at an awkward angle relative to the load. This unique angle reduces the strain on the securement device by providing a more direct line of pull, preventing kinks or undue bending of chains and straps that can compromise their integrity. By promoting a more natural and efficient connection, the 55° bend minimizes wear on securement hardware, enhances safety by ensuring proper engagement, and ultimately contributes to faster, more secure load strapping operations, thereby increasing overall productivity and reducing downtime.
The integration of the weld-on mounting bracket is central to the D-ring's superior load-bearing capability and versatile installation. The bracket, also forged from C-1045 steel, boasts a substantial thickness of 0.50 inches (or 1/2 inch), ensuring exceptional rigidity and strength at the attachment point. Its dimensions, 2.125 inches in length and 2.25 inches in width, provide ample surface area for a robust, permanent weld to the trailer frame, chassis, or any suitable structural member. Weld-on mounting offers several distinct advantages over bolt-on alternatives. Primarily, it creates a monolithic connection between the D-ring assembly and the underlying structure, distributing load forces over a larger area of the parent material and eliminating potential stress concentrators associated with drilled holes and fastener fatigue. This method provides superior shear and tensile strength, crucial for resisting the dynamic forces exerted by shifting loads.
For optimal performance and safety, the installation of the weld-on bracket must be performed by a qualified and certified welder in accordance with industry best practices and applicable welding codes. Proper surface preparation, selection of appropriate welding consumables, and execution of full penetration welds are critical to achieving the specified load ratings. The permanence of a welded connection also allows for greater flexibility in placement, enabling users to strategically position D-rings precisely where they are needed for optimal load securement, without being constrained by pre-drilled holes. This customizable placement is particularly beneficial in specialized transport applications where unique or oversized cargo requires unconventional securement points. The robust nature of the weld-on bracket ensures that the D-ring acts as an integral part of the vehicle’s load-bearing structure, providing unwavering confidence in secure cargo transport.
The performance metrics of this D-ring assembly underscore its heavy-duty capability. With a Working Load Limit (WLL) of 15,586 pounds (approximately 7.79 tons), this D-ring is engineered to handle substantial forces. The WLL is a critical safety parameter, representing the maximum static load that a component is designed to sustain in service without permanent deformation or damage, under defined operating conditions. This rating is not merely theoretical; it is derived from extensive testing and adheres to stringent industry standards for cargo securement. Complementing the WLL is an impressive Minimum Break Strength (MBS) of 46,760 pounds. The MBS, also known as Ultimate Breaking Strength (UBS), signifies the minimum force at which a new and unused component is expected to fail. The ratio of MBS to WLL provides the safety factor, which in this case is approximately 3:1 (46,760 lbs / 15,586 lbs ≈ 3.00). This safety factor of 3:1 is a recognized industry benchmark, indicating a robust design margin that accounts for unforeseen dynamic loads, wear, and potential misuse, thereby significantly enhancing safety and reliability in the field. Adherence to these strict performance specifications is crucial for compliance with various transportation regulations, including those set forth by the Department of Transportation (DOT) and the Federal Motor Carrier Safety Administration (FMCSA) for cargo securement on commercial vehicles.
The versatility of the Domestically Forged 1 Inch Forged 55° Angled D-Ring makes it indispensable across a multitude of heavy-duty applications. In the transportation sector, it serves as a foundational component for securing loads on flatbed trailers, lowboy trailers, car carriers, and enclosed freight vans. It is ideal for anchoring heavy machinery, construction equipment, agricultural implements, logging products, and oversized industrial components. Beyond road transport, these D-rings find utility in the construction industry for securing equipment on job sites, in marine environments for dock tie-downs or specialized vessel securement, and within industrial facilities for anchoring heavy workbenches, fixtures, or temporary structures. Their robust construction and high load limits make them suitable for securing loads during off-road transport, military logistics, and in any scenario demanding uncompromising strength and securement integrity. They function as a crucial interface point, effectively transferring the securing forces from chains, binders, and straps directly to the vehicle's frame, ensuring the cargo remains static and safe throughout its journey.
It is imperative to reiterate the critical safety notice: "D-rings are not approved for overhead use." This distinction is fundamental to safe operational practices. While these D-rings possess exceptional strength for cargo securement (horizontal or angular pull), their design and manufacturing process are optimized for dynamic cargo restraint, not for overhead lifting operations. Lifting applications involve different forces, safety factors, and potential failure modes, often requiring specialized hardware with specific certifications (e.g., ASME B30.26 for Rigging Hardware). Misusing a cargo securement D-ring for overhead lifting can lead to catastrophic failure, severe injury, or death. Users must strictly adhere to this guideline and use only equipment explicitly designed and rated for overhead lifting when performing such tasks. Beyond this, general best practices for load securement dictate regular inspection of D-rings for signs of wear, deformation, corrosion, or weld integrity issues. Any D-ring showing damage should be immediately removed from service. Proper load distribution, tensioning, and appropriate use of securing devices are also vital to maximize the safety and effectiveness of the D-ring assembly.
The enduring quality and longevity of this product are inherent to its domestic forging and C-1045 steel construction. Under normal operating conditions and with proper maintenance, these D-rings are designed to withstand years of demanding use. While C-1045 steel provides robust structural integrity, periodic inspection and cleaning are recommended, particularly in environments exposed to corrosive elements such as road salts, moisture, or industrial chemicals. Though not explicitly stated to be coated, standard industrial practices often involve priming or painting steel components for enhanced corrosion resistance. Even without a specific coating, the density and refined grain structure achieved through forging offer a level of inherent protection against minor surface corrosion, which can be further augmented by application-specific coatings or treatments as needed by the end-user or vehicle manufacturer. The reliability born from these manufacturing standards reduces maintenance frequency and replacement costs, contributing to a lower total cost of ownership over the product's lifespan.
In conclusion, the Domestically Forged 1 Inch Forged 55° Angled D-Ring with Weld-On Mounting Bracket from Buyers Products is more than just an attachment point; it is a meticulously engineered safety device. Its Made in USA pedigree, combined with the superior properties of forged C-1045 steel, a functional 55° angled design, robust weld-on mounting, and impressive WLL/MBS specifications, positions it as an industry-leading solution for critical cargo securement. For professionals who cannot compromise on safety, reliability, and performance, this D-ring offers the confidence that their valuable cargo will remain securely fastened, journey after journey. It represents a sound investment in operational integrity and safety, backed by American craftsmanship and rigorous quality standards.
