B50I - 1 Inch Forged Extended D-Ring with Weld-On Mounting Bracket

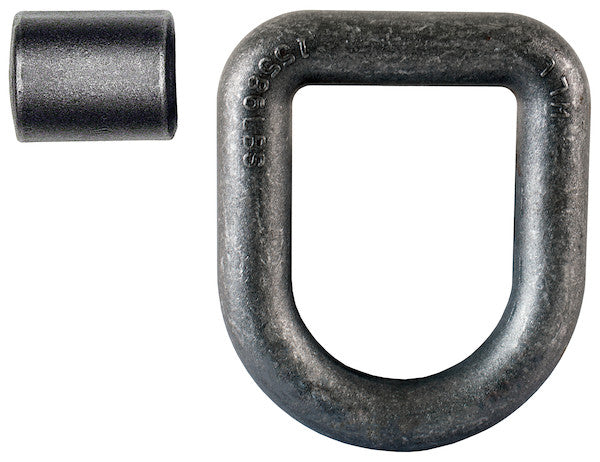

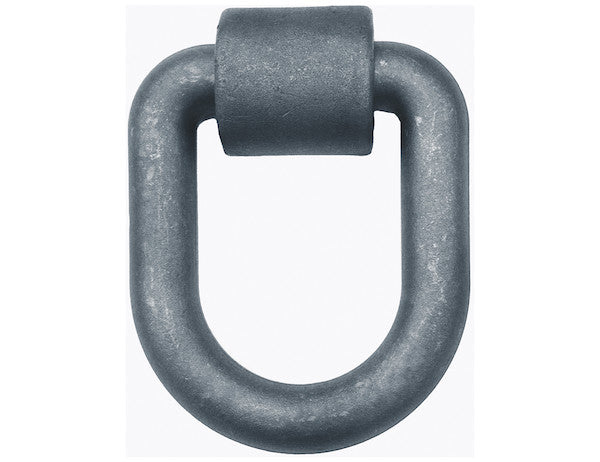

Secure your load with confidence using the sturdy Extended 1 Inch Forged D-Ring from Buyers Products. The slightly longer profile on this D-ring allows you to attach a range of larger ropes, chains, or straps. The ring has a working load limit of 15,586 lb. A forged 3/8 in. thick weld-on mounting bracket is included. D-rings are not approved for overhead use.

Specifications

Advanced Technical Overview: 1 Inch Forged Extended D-Ring with Weld-On Mounting Bracket

The 1 Inch Forged Extended D-Ring with Weld-On Mounting Bracket represents a critical component in heavy-duty load securement and transport applications, meticulously engineered for superior strength, durability, and versatility. Manufactured by Buyers Products, this robust D-ring assembly is designed to meet the rigorous demands of industrial environments, offering a reliable anchor point with a substantial Working Load Limit (WLL) of 15,586 lb and an impressive Minimum Break Strength (MBS) of 46,758 lb. This technical exposition delves into the material science, design principles, performance characteristics, application methodologies, and safety protocols associated with this essential piece of cargo control equipment.

Precision Forging: The Foundation of Unyielding Strength

At the core of this product's exceptional performance lies its forged construction. Forging is a manufacturing process that involves shaping metal through localized compressive forces, typically performed with hammers or dies. Unlike casting or machining, forging strategically aligns the internal grain structure of the metal, enhancing its mechanical properties significantly. Forging eliminates internal voids, gas pockets, and other defects commonly found in cast parts, resulting in a product with superior tensile strength, yield strength, fatigue resistance, and impact toughness.

Specifically, the 1-inch diameter of the D-ring, referring to the stock material thickness, indicates a substantial cross-section capable of bearing immense loads. The forging process ensures that this cross-section is free from stress risers and exhibits a uniform, refined grain flow that follows the contours of the D-ring. This optimized microstructure prevents the initiation and propagation of cracks under cyclic loading, significantly extending the service life of the component even in demanding applications characterized by dynamic forces and vibrations. The use of high-grade steel alloys, precisely selected for their metallurgical properties and heat-treatability, further enhances the material's resilience. Post-forging heat treatment, often involving quenching and tempering, refines the microstructure, achieving the optimal balance between hardness, strength, and ductility, critical for safety and longevity in heavy-duty tie-down applications.

Extended Profile Design for Enhanced Utility

A distinguishing feature of this D-ring is its "extended" profile, which refers to its larger internal dimensions compared to standard D-rings of similar material diameter. With an inner height of 4.00 inches and an inner width of 3.00 inches, this extended design offers a crucial advantage: increased versatility in accommodating a broader range of rigging hardware. Traditional D-rings, while strong, can sometimes limit the types or sizes of hooks, chains, straps, or ropes that can be securely attached. The generous internal clearance of this extended D-ring allows for easier connection of larger-gauge chain hooks, robust strap thimbles, or multiple webbing ends, without compromising the integrity of the connection or inducing premature wear on the securing elements.

This expanded accessibility not only facilitates quicker and more efficient load securement but also reduces potential interference issues that can arise with oversized rigging components. The design mitigates the risk of binding or improper seating of hooks, which could otherwise lead to uneven load distribution or accidental disengagement. The larger internal volume ensures that a variety of fastening methods, including those with substantial bulk or intricate locking mechanisms, can be readily integrated, thus enhancing the adaptability of the securement system to diverse cargo types and sizes.

Integrated Weld-On Mounting Bracket: Permanent and Secure Integration

The D-ring assembly includes a robust weld-on mounting bracket, engineered for permanent and high-strength attachment to structural components of vehicles, trailers, equipment frames, or industrial platforms. The bracket, specified with a thickness of 0.50 inches (or 3/8 inch in some descriptions, with the table providing the definitive 0.50 inches), is also forged, ensuring it possesses the same superior material characteristics as the D-ring itself. This forged construction of the bracket eliminates the weaker points often found in fabricated or bent plate brackets, providing a solid, monolithic base for welding.

The dimensions of the bracket – a length of 2.125 inches and a width of 2.25 inches – are carefully proportioned to provide an ample surface area for secure welding. This generous footprint allows for substantial weld beads, ensuring optimal fusion between the bracket and the host structure. Weld-on attachments are generally preferred in applications requiring the highest levels of structural integrity and permanence, where bolt-on alternatives might introduce additional points of failure, require periodic retorquing, or be susceptible to loosening under severe vibration or impact. Proper welding, performed by a certified welder according to American Welding Society (AWS) standards or equivalent, creates a metallurgical bond that integrates the D-ring assembly seamlessly into the transport or operational platform, making it an integral part of the load-bearing structure. This integration is crucial for maintaining a high safety factor under maximum load conditions.

Performance Metrics: WLL, MBS, and Safety Factor

The performance capabilities of this D-ring are defined by its Working Load Limit (WLL) and Minimum Break Strength (MBS). The WLL of 15,586 lb represents the maximum static load that can be safely applied to the D-ring in a specified direction under normal operating conditions. Adherence to this limit is paramount for preventing catastrophic failure and ensuring operational safety. The MBS of 46,758 lb indicates the minimum force at which the component is guaranteed to fail under controlled testing. The ratio of MBS to WLL defines the safety factor, which in this case is approximately 3:1 (46,758 lb / 15,586 lb ≈ 3.00). This 3:1 safety factor is a standard industry practice for cargo securement devices, providing a critical margin for error to account for unforeseen dynamic loads, shock loads, fatigue, and potential misuse beyond static conditions. Dynamic loads, such as those experienced during sudden braking, acceleration, or road irregularities, can momentarily exceed static loads, making a robust safety factor indispensable.

It is imperative to understand that exceeding the WLL, even for brief periods, significantly compromises the integrity of the D-ring and the entire securement system. Regular inspection and replacement of components showing signs of wear, deformation, or corrosion are essential to maintain the published WLL and the inherent safety factor. The inherent strength derived from the forging process directly contributes to these impressive WLL and MBS values, ensuring dependable performance over the long term.

Applications in Heavy-Duty Securement

The 1 Inch Forged Extended D-Ring with Weld-On Mounting Bracket finds extensive application across various sectors requiring reliable and robust cargo securement:

• Commercial Trucking and Flatbed Trailers: Essential for tying down oversized or heavy cargo such as construction equipment, machinery, building materials, and steel coils. Their weld-on nature provides permanent anchor points on trailer decks and rub rails.
• Agricultural Equipment Transport: Securing tractors, harvesters, and other heavy farm implements during transit, where stability and immovable anchor points are critical.
• Construction and Mining Vehicles: Used on excavators, bulldozers, loaders, and dump trucks for securing attachments, counterweights, or ancillary equipment, or as recovery points within design limits.
• Marine and Offshore Operations: Providing reliable tie-down points on vessels, barges, and offshore platforms for securing equipment, containers, or temporary structures against severe weather and dynamic sea conditions.
• Industrial Rigging (Non-Overhead): While explicitly not approved for overhead lifting, these D-rings are invaluable for securing equipment during movement within a facility, or for stabilizing large components during assembly or maintenance operations on the ground.
• Railroad Freight: Creating robust securement points on specialized railcars for unique cargo types.
• Custom Fabrication: Integrated into custom-built trailers, equipment skids, or specialized transport frames where permanent, high-capacity anchor points are required.

Installation Best Practices and Welding Considerations

The successful deployment of the 1 Inch Forged Extended D-Ring hinges on proper installation, particularly the welding process. Due to the high-strength nature of the component and the critical role it plays in load securement, welding must be executed by qualified personnel following established industry standards and best practices. Key considerations include:

• Surface Preparation: The mounting surface on the host structure must be thoroughly cleaned of paint, rust, grease, and other contaminants to ensure a sound, defect-free weld. Grinding to bright metal is typically recommended.
• Welding Process: Common processes such as Shielded Metal Arc Welding (SMAW), Gas Metal Arc Welding (GMAW/MIG), or Flux-Cored Arc Welding (FCAW) can be utilized, provided appropriate filler metals are selected. The filler metal should be compatible with both the D-ring bracket material and the host structure's material, typically matching or exceeding the base metal's tensile strength (e.g., E70XX series electrodes for mild steel applications).
• Weld Configuration: Full penetration fillet welds or groove welds around the entire perimeter of the bracket are generally required to achieve the published WLL. The weld leg length and throat thickness must be sufficient to transfer the full load into the supporting structure. Referencing AWS D1.1 (Structural Welding Code – Steel) or similar standards for structural welding is advisable.
• Preheating: Depending on the thickness and composition of the host material and ambient temperature, preheating may be necessary to prevent hydrogen-induced cracking and ensure proper fusion, particularly for thicker sections or high-strength steels.
• Post-Weld Inspection: After cooling, welds should undergo visual inspection for defects such as porosity, undercut, cracks, and incomplete fusion. For critical applications, non-destructive testing (NDT) methods like magnetic particle inspection (MPI) or ultrasonic testing (UT) may be employed to verify internal integrity.
• Structural Integration: The host structure itself must possess adequate strength and rigidity to support the D-ring's WLL. Welding a high-capacity D-ring to a weak or compromised structural member will negate the D-ring's inherent strength.

Safety Protocols and Operational Limitations

A critical safety caveat explicitly stated for this product is that "D-rings are not approved for overhead use." This limitation is paramount and must be strictly adhered to. D-rings designed for cargo securement, like this model, are engineered to handle tension forces in a primary horizontal or angular plane relative to the mounting surface, effectively anchoring a load against movement. They are typically not designed with the same safety factors, attachment mechanisms (e.g., swiveling components), or metallurgical properties required for lifting applications where the entire load is suspended vertically and dynamic shocks can be significantly different and more severe. Overhead lifting introduces complex stress vectors, potential for catastrophic consequences if failure occurs, and often necessitates specialized equipment designed and certified to ASME B30.26 (Rigging Hardware) or other relevant lifting standards, which explicitly cover lifting points, hoist rings, and other lifting accessories. Misusing this D-ring for overhead lifting could lead to structural failure of the D-ring, its weld, or the supporting structure, resulting in severe injury, fatality, or extensive property damage.

Beyond the overhead use restriction, general safety practices for cargo securement include:

• Load Distribution: Ensure loads are evenly distributed across multiple D-rings, and securement devices are tensioned appropriately to prevent load shift.
• Angle of Pull: Avoid excessively sharp angles of pull, as they can significantly reduce the effective WLL of the D-ring. Optimal performance is achieved when the pull is aligned with the plane of the D-ring.
• Protection: Protect straps, chains, and ropes from sharp edges on the cargo or D-ring itself to prevent abrasion and premature failure.
• Regular Inspection: Periodically inspect the D-ring and its weld for signs of wear, corrosion, deformation (bending, stretching), or cracks. Any indication of compromise warrants immediate removal from service and replacement.
• Training: Ensure all personnel involved in load securement are properly trained in safe practices, equipment inspection, and understanding of WLLs.

Maintenance and Longevity

While designed for extreme durability, routine maintenance can further extend the lifespan and ensure continued safe operation of the 1 Inch Forged Extended D-Ring. This includes:

• Visual Inspections: Before each use, visually inspect the D-ring and its weld for any visible damage.
• Cleaning: Keep the D-ring free of dirt, debris, and corrosive substances.
• Corrosion Protection: While typically made from robust steel, applying corrosion-resistant coatings or paints (if not already coated by the manufacturer) can protect against environmental degradation, especially in marine or high-humidity environments.
• Damage Assessment: Any D-ring showing signs of permanent deformation (e.g., elongated, bent, twisted), significant pitting from corrosion, or weld cracks must be immediately taken out of service. Attempting repairs on safety-critical components like D-rings is generally not recommended as it can compromise their engineered strength and safety factor.

Conclusion

The 1 Inch Forged Extended D-Ring with Weld-On Mounting Bracket from Buyers Products is a testament to superior engineering and manufacturing quality in the field of heavy-duty cargo securement. Its forged construction ensures unparalleled strength and fatigue resistance, while the extended profile enhances operational versatility. The robust weld-on bracket provides a permanent, high-integrity attachment point, reinforced by a substantial WLL and MBS with an appropriate safety factor. Adherence to strict installation procedures, understanding of its operational limitations—particularly the prohibition of overhead lifting—and diligent maintenance are critical for maximizing its performance and ensuring the safety of personnel and cargo. This product stands as an indispensable component for professionals requiring the utmost reliability in securing valuable and heavy loads across various demanding industrial and commercial applications.
