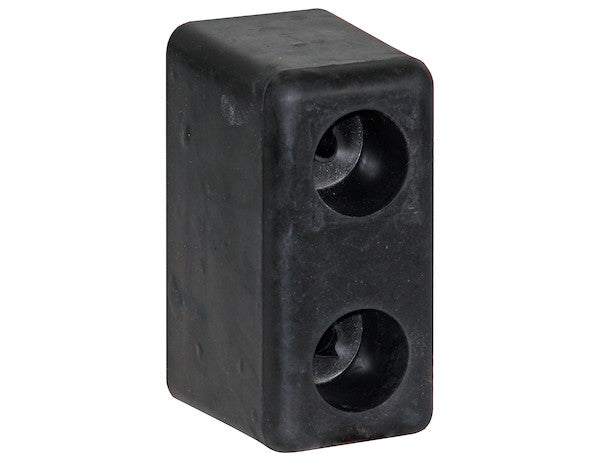

Buyers Products Molded Rectangular Rubber Bumpers help protect the rear of a truck or trailer when backing to a loading dock or delivery bay. Bumpers are an ideal addition to any piece of equipment that has a high frequency of contact, such as a loading dock or delivery bay. Our Rubber Bumpers are constructed from compression-molded rubber for high impact resistance and durability. Sold in pairs and available in various sizes.
Specifications
| Color | Black |
|---|---|
| Depth (in.) | 3.00 |
| Height (in.) | 6.00 |
| Hole Dia. | .66 |
| Material | Rubber |
| Mounting Holes Ctr to Ctr (in.) | 3-1/2 |
| Number of Mounting holes | 2 |
| Sold in Pairs (y/n) | Yes |
| Width (in.) | 2-1/2 |
Advanced Technical Overview: Buyers Products Molded Rectangular Rubber Bumper (2-1/2" W x 3" D x 6" H) - Set of 2
The Buyers Products Molded Rectangular Rubber Bumper, supplied as a set of two units, represents a critical component in the comprehensive strategy for asset protection and operational safety within demanding industrial and commercial environments. Engineered to mitigate the kinetic energy transfer associated with vehicular impacts, particularly during precise maneuvering activities such as backing large trucks and trailers into loading docks or delivery bays, these bumpers serve as a primary sacrificial layer designed to absorb and distribute mechanical stresses. Their robust construction and precise dimensional specifications (2-1/2 inches wide, 3 inches deep, and 6 inches tall) render them ideally suited for applications requiring substantial protective barriers against repetitive, low-speed collisions.
Material Science and Manufacturing Excellence: Compression-Molded Rubber
The selection of compression-molded rubber as the primary material for these bumpers is a deliberate engineering choice, reflecting a commitment to superior performance and extended service life. Rubber, as an elastomer, possesses unique viscoelastic properties, enabling it to deform under load and subsequently return to its original shape, a characteristic essential for impact absorption. The specific manufacturing process—compression molding—imparts several distinct advantages over other molding techniques.
Compression Molding Process
Compression molding involves placing a precisely measured amount of uncured rubber compound (pre-form) into an open, heated mold cavity. The mold is then closed, and hydraulic pressure is applied, forcing the rubber to conform to the mold's shape. Simultaneous application of heat initiates a vulcanization (curing) process, cross-linking the polymer chains and transforming the pliable raw rubber into a durable, resilient solid. This method is particularly advantageous for producing high-density, uniform parts with excellent mechanical properties. It minimizes the risk of internal voids or inconsistent material distribution, which can be prevalent in injection-molded counterparts, thus enhancing the bumper's structural integrity and impact resistance.
Properties of Industrial Grade Rubber
The rubber utilized in these bumpers is an industrial-grade compound, engineered for optimal performance in harsh operational conditions. Key properties contributing to its efficacy include:
- High Impact Resistance: The material's inherent elasticity and high Shore hardness allow it to absorb significant impact energy without fracturing, deforming permanently, or delaminating. This translates directly into superior protection for both the vehicle and the contact surface.
- Excellent Abrasion Resistance: Frequent contact with abrasive surfaces, such as concrete loading docks or rough vehicle chassis components, necessitates a material capable of withstanding wear and tear. The chosen rubber compound exhibits high resistance to surface attrition, preserving the bumper’s functional integrity over time.
- Durability and Longevity: Compression molding enhances the material’s structural density and minimizes internal weaknesses, contributing to exceptional longevity. The bumpers are designed to endure countless impact cycles, resisting cracking, tearing, and degradation associated with mechanical fatigue.
- Environmental Stability: These bumpers are formulated to exhibit resistance to common environmental stressors. While generic "rubber" is specified, industrial-grade compounds often incorporate additives to improve resistance to UV radiation, ozone degradation, moisture ingress, and temperature fluctuations. This ensures operational reliability across diverse climatic conditions, preventing premature hardening, softening, or surface cracking.
- Chemical Inertness: Exposure to common automotive fluids, road salts, and mild industrial chemicals is a consideration. The rubber formulation is designed to resist deterioration from such exposures, maintaining its physical properties and protective function.

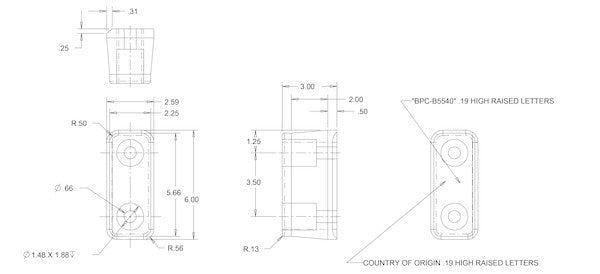

Engineered Dimensions and Geometric Design: 2-1/2" W x 3" D x 6" H
The specific dimensions of these molded rectangular rubber bumpers are critical to their performance and application versatility. Each bumper measures 2-1/2 inches in width, 3 inches in depth, and 6 inches in height, providing a substantial protective interface.
Optimal Contact Surface and Energy Dissipation
The rectangular geometry offers a large, flat contact surface, which is crucial for distributing impact forces over a wider area. When a truck backs into a loading dock, the force is not concentrated at a single point but rather spread across the bumper’s face. This distribution minimizes peak stress concentrations, protecting both the bumper itself from localized damage and the underlying structural components of the vehicle and the dock from excessive strain. The 3-inch depth provides ample material volume for controlled compression and energy absorption, allowing for significant deformation before the impact forces are fully transferred.
Vertical and Horizontal Protection
The 6-inch height is particularly advantageous, offering extended vertical coverage. This dimension ensures that the bumper can protect a wider range of vehicle rear profiles, accommodating variations in truck bed heights, trailer configurations, and loading dock elevations. It provides comprehensive protection for tailgates, rear lights, cargo doors, and other critical rear-facing components of vehicles, as well as the concrete ledges, steel frames, and building walls of loading docks. The 2-1/2 inch width ensures a compact yet effective footprint, suitable for mounting in various configurations without excessive protrusion.
Secure Mounting System: Two .66" Holes, 3-1/2" Center-to-Center
The effectiveness of any bumper is intrinsically linked to its secure attachment to the host structure. These bumpers feature two precisely engineered mounting holes, each with a diameter of 0.66 inches, spaced 3-1/2 inches apart center-to-center. This design facilitates a robust and stable installation.
Mounting Hole Specifications
- Hole Diameter (0.66 inches): This diameter is carefully chosen to accommodate standard industrial-grade fasteners, such as 5/8-inch (0.625-inch) bolts. The slight clearance ensures ease of installation while allowing for secure clamping when the fastener is torqued.
- Number of Mounting Holes (2): The use of two mounting points per bumper creates a strong, non-rotational attachment. This configuration effectively resists both direct compressive forces and shear forces that can arise from glancing blows or lateral movements during impact.
- Center-to-Center Spacing (3-1/2 inches): This spacing optimizes the load distribution across the mounting surface. It provides sufficient distance between fasteners to prevent material tearing under extreme stress while maintaining a compact footprint for versatile installation on vehicle frames or dock structures.
Installation Considerations
For optimal performance and longevity, proper installation is paramount. Compatible fasteners, typically grade 5 or grade 8 steel bolts (e.g., carriage bolts or hex head bolts) with appropriate washers and lock nuts, are recommended. The fasteners should be sufficiently long to pass through the bumper and the mounting substrate, allowing for full thread engagement. When mounting to vehicle frames (typically C-channel or I-beam profiles) or dock steel, drilling pilot holes of the correct diameter is essential. For concrete loading docks, wedge anchors or sleeve anchors paired with suitable bolts may be required. Adherence to manufacturer-recommended torque specifications for the chosen fasteners is crucial to ensure a permanent and vibration-resistant attachment, preventing loosening over time and maintaining the bumper's intended protective function.
Functional Mechanics: Kinetic Energy Dissipation and Structural Preservation
The primary function of the Buyers Products Molded Rectangular Rubber Bumper is the controlled dissipation of kinetic energy during impact events. Understanding the mechanics involved highlights the sophisticated engineering behind these seemingly simple devices.
Impact Dynamics
When a vehicle makes contact with the bumper, the kinetic energy of the moving mass is converted into various forms of energy. The rubber bumper undergoes elastic and plastic deformation, absorbing a significant portion of this energy. The viscoelastic nature of the rubber means that some energy is temporarily stored (elastic deformation) and then released as the bumper recovers its shape, while another portion is permanently converted into heat (plastic deformation, or hysteresis). This process effectively "cushions" the blow, preventing direct metal-on-metal or metal-on-concrete contact.
Force Transmission Mitigation
By absorbing and distributing impact forces, the bumper significantly reduces the peak shock load transmitted to the underlying structures. For vehicles, this protects the chassis, frame rails, rear crossmembers, suspension components, and sensitive cargo from sudden, damaging stresses. For loading docks, it prevents premature degradation of concrete, cracking of masonry, deformation of steel frames, and damage to dock equipment such as levelers and shelters. The bumper acts as an interface that prolongs the structural integrity and operational life of expensive assets by mitigating the destructive forces of impact.
Broad Spectrum Applications and Versatility
The robust design and specific dimensions of these 2-1/2" W x 3" D x 6" H molded rubber bumpers make them highly versatile, suitable for a wide array of applications beyond typical loading dock scenarios. Sold as a set of two, their utility extends across various industries and equipment types.
Commercial and Industrial Fleets
- Heavy-Duty Trucks and Semi-Trailers: Essential for protecting the rear of over-the-road semi-trailers, dump trucks, refuse vehicles, and other heavy-duty transport vehicles during backing operations. They safeguard expensive components like taillight assemblies, rear doors, and suspension systems from impacts with loading docks, concrete barriers, or other stationary objects.
- Box Trucks and Delivery Vehicles: Smaller commercial vehicles benefit equally from impact protection. These bumpers prevent damage during urban deliveries, protecting vehicle bodies and ensuring the integrity of perishable or fragile cargo.
- Utility and Service Vehicles: Trucks equipped with specialized utility bodies, such as service trucks, flatbeds, and utility vans, can leverage these bumpers to protect sensitive equipment mounted at the rear and to prevent frame damage during frequent maneuvers in confined spaces.
Loading Dock Infrastructure
- Primary Dock Protection: Integral components of any well-maintained loading dock. They protect the structural elements of the building, including concrete foundations, steel framework, and masonry walls, from the cumulative wear and sudden impacts of truck and trailer traffic.
- Equipment Protection: Beyond structural elements, these bumpers shield critical dock equipment such as dock levelers, seals, shelters, and restraint systems from direct vehicular contact, reducing repair and replacement costs.
Other Industrial and Marine Applications
- Forklifts and Material Handling Equipment: Can be affixed to industrial machinery, carts, or equipment frames to provide localized impact protection, safeguarding both the equipment itself and adjacent structures or products.
- Marine Docks and Piers: While designed primarily for vehicular applications, their material properties and dimensions can make them suitable for use as smaller dock fenders for recreational boats or utility vessels, protecting both the vessel and the dock structure.
- Building Column Protection: In warehouses or manufacturing facilities, these bumpers can be mounted to protect structural columns from accidental impacts by forklifts or other internal transport vehicles.
Long-Term Performance, Durability, and Cost-Effectiveness
The investment in Buyers Products Molded Rectangular Rubber Bumpers translates into significant long-term benefits, primarily through enhanced durability and substantial cost savings.
Resistance to Environmental Degradation
The industrial-grade rubber compound used is inherently resistant to a spectrum of environmental factors. This includes prolonged exposure to sunlight (UV radiation), which can cause degradation and hardening in lesser materials; ozone, a known rubber antagonist; and wide temperature fluctuations, ensuring consistent performance from sub-zero conditions to high summer temperatures. The material also exhibits excellent water and moisture resistance, preventing absorption that could lead to swelling, cracking, or reduced elasticity.
Maintenance and Longevity
These bumpers are virtually maintenance-free. Their robust construction and material composition are designed for continuous outdoor exposure and repeated mechanical stress without requiring painting, rust removal, or specialized cleaning. The inherent resilience of compression-molded rubber ensures that the bumpers retain their shape and impact-absorbing capabilities over an extended operational lifespan, significantly outperforming alternative materials that may crack, corrode, or deform permanently.
Reduced Total Cost of Ownership (TCO)
Implementing these high-quality rubber bumpers dramatically reduces the total cost of ownership for both vehicles and facility infrastructure. By acting as a sacrificial barrier, they prevent costly repairs to truck chassis, taillights, doors, and body panels, as well as extensive damage to concrete loading docks, building walls, and expensive dock equipment. The initial investment in these durable bumpers is quickly recouped through avoided repair expenses, reduced vehicle downtime, and extended asset life, contributing directly to operational efficiency and profitability.
Safety Enhancement and Compliance
Beyond asset protection, these molded rubber bumpers play a crucial role in enhancing workplace safety. By providing a clear, visible buffer and absorbing impact forces, they reduce the risk of accidents and potential injuries.
Prevention of Damage and Injury
The controlled deceleration provided by the bumpers minimizes the jarring forces associated with impacts, which can otherwise cause cargo shifts, equipment dislodgement, or even minor injuries to personnel on board or near the vehicle. They establish a clear physical limit for vehicle approach, aiding drivers in safe maneuvering and preventing contact with sensitive areas of the loading dock. While no specific regulatory compliance is stated for generic rubber bumpers, their use aligns with general safety principles aimed at preventing property damage and personal harm in industrial environments.
Visual and Functional Indicator
The black color of the rubber (often due to the inclusion of carbon black, which also enhances UV stability and strength) provides a clear visual contrast against lighter vehicle colors or concrete docks, aiding drivers in judging distances. Their presence serves as a constant reminder for operators to exercise caution during backing maneuvers, thereby promoting safer operational practices.
Conclusion: A Strategic Investment in Protection and Efficiency
The Buyers Products Molded Rectangular Rubber Bumper (2-1/2" W x 3" D x 6" H), supplied as a set of two, represents a technically superior solution for critical impact protection requirements. Its foundation in advanced compression-molded rubber technology, combined with precise dimensional engineering and a robust mounting system, culminates in a product that delivers exceptional impact resistance, abrasion resistance, and environmental durability. These bumpers are not merely accessories but essential components for mitigating operational risks, preserving the integrity of valuable assets—from heavy-duty trucks to integral loading dock infrastructure—and ensuring a safer, more efficient working environment. By significantly reducing maintenance expenditures and preventing costly damage, this product embodies a strategic investment that yields substantial returns in operational longevity and fiscal prudence.
