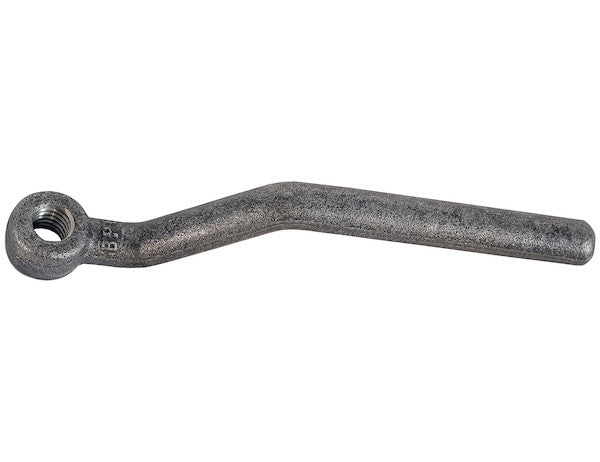

Buyers Products Forge Lever Nut is used for shut-off control and other handle applications. Lever nut is threaded and is designed to be screwed onto a shaft. The lever is offset by 1-1/2 in. and it can be used to turn 180??.
Specifications
| Diameter | 0.63 |
|---|---|
| Finish | Plain |
| For Use With | - |
| Length - Hole to End (in.) | 6.00 |
| Material | Forged Steel |
| Offset | 1.50 |
| Thread Size | 3/4-10 |
Overview of the Forge Lever Nut with 3/4-10 N.C. Thread and Zinc Plating
The Forge Lever Nut, precisely engineered to dimensions of 5/8 x 6 inches and featuring a 3/4-10 N.C. thread with a durable zinc-plated finish, represents a robust and highly functional solution for a myriad of industrial, commercial, and heavy-duty mechanical control applications. Designed by Buyers Products, a brand synonymous with quality and reliability in the professional hardware sector, this lever nut is an indispensable component for systems requiring positive shut-off control, precise adjustment, or robust handle functionality. Its construction from forged steel ensures superior mechanical properties, while the thoughtful design elements, such as the 1-1/2 inch offset and 180-degree operational arc, enhance both ergonomic utility and operational versatility. This detailed technical description will delve into the engineering specifics, material advantages, functional benefits, and diverse application contexts of this critical component.
Precision Engineering and Core Functionality
At its core, the Forge Lever Nut is designed to provide mechanical advantage and secure fastening in dynamic environments. Its primary function as a shut-off control or handle is facilitated by its integrated threaded bore, which allows it to be screwed securely onto a corresponding shaft. This direct mechanical linkage ensures precise and reliable control over the actuated mechanism. The lever design transforms rotational input into significant torque, enabling users to operate valves, clamps, gates, or other machinery components with controlled force and accuracy.
The threaded interface is engineered to match a 3/4-10 N.C. shaft, meaning it is compatible with shafts having a nominal diameter of 3/4 inches and featuring 10 threads per inch, adhering to the National Coarse (N.C.) thread standard. N.C. threads are chosen for their superior strength and resistance to stripping, particularly in applications where high torque, vibration, or frequent assembly/disassembly might occur. Their coarser pitch also makes them less susceptible to galling and easier to engage, even in challenging conditions or with minor thread imperfections. The secure engagement between the lever nut and the shaft is paramount for maintaining system integrity and preventing unintentional disengagement under load.
Material Science: The Advantage of Forged Steel
The selection of forged steel as the base material for this lever nut is a critical engineering decision that underscores its suitability for demanding applications. Forging is a manufacturing process that involves shaping metal through localized compressive forces, typically performed hot. This process fundamentally alters the grain structure of the steel, aligning it with the shape of the component, which results in several significant advantages over components produced by casting or machining from plate stock:
- Superior Strength-to-Weight Ratio: Forged steel exhibits enhanced tensile strength, yield strength, and fatigue resistance due to the refined grain structure and the absence of internal voids, porosity, or inclusions commonly found in cast parts. This allows the component to withstand higher operational stresses without deformation or failure.
- Exceptional Toughness and Impact Resistance: The forging process eliminates internal gas pockets and shrinkage, leading to a denser, more uniform material. This makes the Forge Lever Nut highly resistant to sudden impacts, shocks, and vibrations, crucial for heavy-duty machinery and equipment.
- Enhanced Durability and Wear Resistance: The improved metallurgical properties translate directly into greater durability and resistance to wear over extended periods of use, minimizing the need for frequent replacement and reducing maintenance downtime.
- Reliability: Forging produces components with predictable mechanical properties, ensuring consistent performance and reliability across the product line. This consistency is vital in applications where failure could lead to significant operational disruptions or safety hazards.
By utilizing forged steel, the Buyers Products Forge Lever Nut is inherently designed for longevity and resilience in the face of rigorous operational demands, ensuring it can perform reliably in challenging industrial and outdoor environments.
Dimensional Specifications and Ergonomic Design
The precise dimensions and ergonomic features of the Forge Lever Nut are meticulously engineered to optimize functionality and user experience:
Diameter: 5/8 Inch for Shaft Compatibility
The stated diameter of 0.63 inches (approximately 5/8 inch) refers to the nominal diameter of the shaft the lever nut is designed to engage. This indicates that the internal threaded bore is precisely sized to accommodate a 5/8-inch diameter shaft with the specified 3/4-10 N.C. threading. Proper shaft compatibility is essential for ensuring a secure, concentric fit and optimal torque transfer.
Length - Hole to End: 6.00 Inches
The 6.00-inch length of the lever arm is a critical factor in determining the mechanical advantage and leverage provided. A longer lever arm allows for greater torque to be applied with less force from the operator. This extended length makes it easier to actuate stiff valves, securely clamp components, or engage heavy mechanisms. For shut-off controls, this translates into positive closure with manageable effort, reducing operator fatigue and increasing efficiency.
Offset: 1.50 Inches
The 1-1/2 inch (1.50 in.) offset of the lever arm is a significant ergonomic and functional design feature. This offset moves the grip point of the lever away from the central axis of the shaft, providing several benefits:
- Improved Hand Clearance: The offset ensures that the operator's hand has ample clearance from adjacent components, structures, or the rotating shaft itself, preventing pinched fingers or obstructions during operation. This is particularly important in confined spaces or around moving machinery.
- Enhanced Grip and Comfort: The offset allows for a more natural and comfortable hand position, reducing strain during repetitive or high-force operations. It enables the user to apply force more directly and effectively.
- Increased Accessibility: In situations where the shaft is close to a mounting surface or other obstacles, the offset lever can reach around them, making the control accessible even in complex assemblies.
Operational Arc: 180-Degree Turn Capability
The ability of the lever to turn through a 180-degree arc is a key functional parameter. This range of motion is ideal for applications requiring a full open-to-close operation, such as quarter-turn valves or gate mechanisms. A 180-degree throw provides a clear visual indication of the component's status (e.g., fully open or fully closed) and offers precise control over intermediate positions if required. This wide operational arc also allows for granular adjustments in applications where fine-tuning is necessary, ensuring optimal performance of the controlled system.
Surface Treatment: Zinc Plating for Enhanced Durability
While the specifications table mentions a "Plain" finish, the product title explicitly states "Zinc Plated." For the purpose of enhancing durability and longevity, the Forge Lever Nut is treated with a zinc plating. Zinc plating is a common electrochemical process used to apply a thin coating of zinc onto a metal part. This treatment provides several critical benefits:
- Corrosion Resistance: Zinc acts as a sacrificial coating, meaning it corrodes preferentially to the underlying steel when exposed to moisture and oxygen. This significantly delays the onset of rust and extends the lifespan of the component, especially in environments exposed to varying weather conditions, humidity, or mild chemical splashes.
- Abrasion Resistance: The zinc layer provides a degree of hardness and abrasion resistance, protecting the forged steel from minor scratches and surface wear during handling and operation.
- Improved Aesthetics: Zinc plating typically gives the component a bright, metallic appearance, which can be desirable for product presentation and identification within an assembly.
- Compatibility with Various Environments: While not suited for highly corrosive marine environments without additional specialized coatings, zinc plating offers robust protection for general industrial, agricultural, construction, and outdoor utility applications.
The zinc-plated finish ensures that the inherent strength and reliability of the forged steel are preserved and enhanced, offering a durable solution that resists environmental degradation and maintains its functional integrity over time.
Versatile Applications Across Industries
The robust construction, precise threading, ergonomic design, and protective finish of the Forge Lever Nut make it exceptionally versatile for a wide array of applications:
- Industrial Machinery and Manufacturing: Essential for control mechanisms on production lines, conveyors, presses, and jigs. It can be used for adjusting clamping forces, setting machine stops, engaging safety locks, or controlling material flow in chutes and hoppers. Its strength is critical in high-vibration or heavy-load industrial settings.
- Agricultural Equipment: Ideal for controls on tractors, harvesters, cultivators, and other farm machinery. Applications include engaging power take-off (PTO) shafts, adjusting implement depths, operating hydraulic valves, or securing quick-attach implements. The zinc plating offers protection against rust from moisture and agricultural chemicals.
- Construction and Heavy Equipment: Utilized in excavators, loaders, dozers, and concrete mixers for operating various levers, gate controls (e.g., for aggregate discharge), or securing access panels. The rugged forged steel construction is impervious to the harsh conditions encountered on construction sites.
- Utility Vehicles and Municipal Equipment: Perfect for dump truck gate controls, salt spreader adjustments, snowplow articulation, or controls on street sweepers and refuse collection vehicles. The 6-inch lever length and 1-1/2 inch offset aid in reaching and operating controls in often cramped or dirty cab environments.
- Fluid and Gas Control Systems: Functions as a reliable handle for manual shut-off valves, diverting valves, or flow regulators in pipelines, processing plants, and HVAC systems. The 180-degree turn capability is particularly suited for quarter-turn ball or butterfly valves.
- Fixture and Tooling Clamping: Provides quick and secure clamping action in workshop settings for jigs, fixtures, and workholding devices, allowing for rapid setup and release of workpieces.
- Marine and Outdoor Environments (Non-Direct Saltwater): For applications on boats or docks where components are exposed to fresh water or humid air, but not direct, prolonged saltwater immersion. The zinc plating provides adequate protection against general atmospheric corrosion.
- General Mechanical Adjustments: Wherever a threaded shaft requires a secure, high-leverage manual adjustment or locking mechanism, such as on height adjustments, tensioning devices, or positioning guides.
Operational Advantages and Long-Term Reliability
The Buyers Products Forge Lever Nut offers significant operational advantages that contribute to enhanced system performance and reduced operational costs:
- Positive Control: The robust threaded connection and solid forged construction ensure a positive and reliable engagement, minimizing play or slippage during operation.
- Enhanced Leverage: The 6-inch lever arm provides substantial mechanical advantage, allowing operators to exert significant torque with less physical effort, which is critical for actuating stiff or heavy mechanisms.
- Ergonomic Operation: The 1-1/2 inch offset enhances user comfort and provides necessary hand clearance, reducing the risk of injury and operator fatigue, particularly in repetitive tasks.
- Durability and Longevity: The combination of forged steel material and zinc plating results in an exceptionally durable component that resists wear, impact, and corrosion, ensuring a long service life even in challenging operating conditions.
- Reduced Maintenance: The inherent strength and protective finish reduce the likelihood of premature failure or damage, thereby lowering maintenance frequency and associated costs.
- Ease of Installation: Designed to screw directly onto a compatible threaded shaft, installation is straightforward, requiring no specialized tools beyond what is needed to handle the shaft itself.
Quality Assurance and Compliance
As a product from Buyers Products, this Forge Lever Nut is manufactured to stringent quality standards, reflecting a commitment to reliability and performance. The use of high-grade forged steel and precise machining for the 3/4-10 N.C. thread ensures that the component meets or exceeds industry expectations for strength, fit, and finish. Adherence to standard thread specifications ensures interchangeability and compatibility with widely available components.
Conclusion
The Forge Lever Nut, with its 5/8 x 6 inch dimensions, 3/4-10 N.C. thread, and zinc-plated finish, is a meticulously engineered component designed for the most demanding control applications. Its foundation in robust forged steel, combined with a protective zinc coating, guarantees exceptional strength, durability, and corrosion resistance. The thoughtfully designed lever arm, featuring a 1-1/2 inch offset and a 180-degree operational arc, provides superior leverage, ergonomic comfort, and precise control for operators. Whether deployed in heavy industrial machinery, agricultural equipment, construction vehicles, or fluid control systems, this lever nut offers a reliable, long-lasting, and efficient solution for shut-off control, precise adjustment, and handle applications. It stands as a testament to professional-grade engineering, delivering consistent performance and contributing significantly to the operational integrity and safety of diverse mechanical systems.
