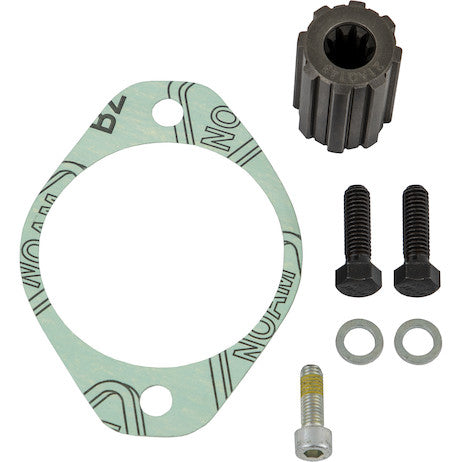

This Bolt-on Adapter from Buyers Products, an optional accessory for #B3940POE783DA, converts 8T DIN to SAE A 5/8-9T. It permits installation of standard SAE A flanged- 5/8"-9 tooth splined shaft pump onto DIN 5462 PTO mount.
Specifications
| For Use With | B3940POE783DA Hot Shift PTO |
|---|
Seamless component integration is crucial for mobile hydraulic system performance and reliability. Power Take-Off (PTO) systems connect a vehicle's driveline to auxiliary equipment like hydraulic pumps. However, global industrial standards, particularly European DIN and North American SAE, frequently present compatibility challenges.
The Buyers Products Bolt-on Adapter resolves this common incompatibility, converting an 8T DIN interface to an SAE A 5/8-9T configuration. This adapter directly enables installation of standard SAE A flanged hydraulic pumps (5/8-inch diameter, 9-tooth splined shaft) onto DIN 5462 PTO mounts (typically an 8-tooth involute spline). As an optional accessory for the #B3940POE783DA Hot Shift PTO, this unit significantly expands the PTO's application scope, offering critical flexibility in component selection and configuration.
Technical Disparity: DIN 5462 vs. SAE J744 Type A
Understanding the technical differences between DIN 5462 and SAE J744 Type A is paramount. Both standards define spline geometry and mounting flange configurations, yet their specific parameters reflect distinct engineering origins and regional prevalence.
The DIN 5462 Standard: Predominantly adopted in European heavy-duty commercial and industrial machinery, DIN 5462 specifies an involute spline profile for high torque transmission. The "8T" indicates an 8-tooth involute spline, a common configuration utilizing metric dimensions for critical spline parameters. DIN PTO mounts feature distinct flange patterns. This standard is widely applied in demanding European-centric environments for precise and durable power transmission.
The SAE J744 Type A Standard: Dominant in North America and many other global markets for hydraulic pump and motor mounts, SAE J744 Type A defines both the mounting flange and drive shaft spline. The "SAE A" flange specifies a two-bolt pattern with a standard 3.25-inch (82.55 mm) pilot diameter and a 4.25-inch (107.95 mm) bolt circle diameter, ensuring precise alignment. The "5/8-9T" refers to a 5/8-inch nominal major diameter with a 9-tooth involute spline, a common configuration for hydraulic pumps requiring moderate to high power input. This standard is extensively utilized in North American-designed construction, municipal, and agricultural equipment.
This adapter addresses the challenge when a vehicle's PTO adheres to DIN 5462 but requires a more readily available or cost-effective SAE J744 Type A pump. Without this intermediary, operators face expensive alternatives: custom machining, complete PTO replacement, or severely restricted pump selection, imposing significant logistical and financial burdens.
Engineering Excellence: Adapter Design and Construction
The Buyers Products Bolt-on Adapter embodies precision engineering, meticulously designed for reliable mechanical bridging between disparate standards. Its design prioritizes seamless conversion, structural integrity, and straightforward installation.
Mechanical Conversion: The adapter integrates an engineered shaft with a DIN 8T male spline on one end and an SAE A 5/8-9T male spline on the other. This component is housed within a robust casing that bolts to the DIN PTO mount and presents the necessary SAE A flange for the hydraulic pump. Manufacturing both involute spline types demands exceptional precision for accurate tooth profiles, consistent pitch, and minimal runout. This precision maximizes contact area, distributes torque evenly, and minimizes wear, backlash, and stress, ensuring efficient power transfer and preventing premature failure under dynamic loads.
Material Selection and Heat Treatment: Critical adapter components, especially the splined shaft, are fabricated from high-grade alloy steels (e.g., AISI 4140 series) for superior strength, toughness, and fatigue resistance. Precise heat treatment, like case hardening (carburizing/nitriding), enhances surface hardness while maintaining a ductile core. This process significantly improves wear resistance at spline interfaces, extends service life, and increases resilience to shock loads and cyclical stresses.
Housing and Flange Construction: The adapter's housing, typically high-strength cast iron or machined steel, provides robust structural support and mounting points. The SAE A flange on the pump-side is precision-machined to conform exactly to the SAE J744 Type A standard, including critical pilot and bolt circle diameters. This exact machining ensures perfect concentricity and perpendicularity of the pump to the PTO output, preventing misalignment issues that could lead to premature bearing failure.
Sealing Integrity: Effective sealing is paramount in hydraulic applications. The adapter incorporates robust sealing provisions (O-rings/gaskets) at all mating surfaces. These seals are selected for compatibility with various hydraulic fluids and ability to withstand typical operating temperatures and pressures, preventing leakage and maintaining hydraulic system integrity.
Operational Benefits and Strategic Advantages
Integrating the Buyers Products Bolt-on Adapter into hydraulic power transmission systems offers significant operational and strategic advantages.
1. Enhanced System Versatility: Expanded hydraulic pump selection is the primary benefit. Converting DIN 5462 PTO output to SAE A grants access to a wider array of readily available, competitively priced SAE A pumps, offering broader ranges of flow rates, pressure ratings, and displacement volumes. This flexibility is crucial for optimizing system performance and expediting repairs.
2. Significant Cost Efficiency: Alternatives like custom pump shaft machining or new SAE-compatible PTO units incur substantial costs. This bolt-on adapter offers a remarkably cost-effective, standardized conversion at a fraction of these alternative costs, reducing total cost of ownership.
3. Simplified and Expedited Installation: Designed for straightforward installation, the adapter eliminates complex modifications, specialized tools, or extensive fabrication. This ease translates directly into reduced equipment downtime, allowing faster return to service and minimizing operational disruptions.
4. Superior Durability and Reliability: Engineered by Buyers Products for rigorous demands, this adapter is built with premium materials, precision manufacturing, and advanced heat treatment, ensuring exceptional durability, fatigue resistance, and a long service life. This reliability minimizes unexpected failures, safeguarding continuous operation and reducing maintenance frequencies.
5. Optimized Power Transfer: Precise engineering of spline interfaces and flange alignment ensures efficient, smooth power transfer. Accurate spline engagement minimizes backlash and torsional vibrations, reducing wear on both PTO and pump splines. This optimized power transfer contributes to higher overall system efficiency and extended component lifespan.
Seamless Integration with Buyers Products #B3940POE783DA Hot Shift PTO
This adapter is specifically designed as an optional accessory for the Buyers Products #B3940POE783DA Hot Shift PTO. A Hot Shift PTO enables engagement/disengagement of auxiliary equipment while the vehicle is in motion, utilizing an internal clutch for smooth, on-the-fly power. This is vital for continuous operations or frequent cycles without interrupting primary vehicle function, common in refuse collection, snowplowing, or utility truck boom lifts.
Pairing the DIN to SAE A adapter with the #B3940POE783DA Hot Shift PTO delivers an exceptionally versatile power transmission solution. Fleets with DIN standard PTO outputs can now fully leverage their hot shift PTOs' capabilities while utilizing a broader, more accessible range of SAE A compatible hydraulic pumps. This ensures hot shift technology advantages—reduced cycle times, improved productivity, and enhanced operator convenience—are not constrained by incompatible pump interfaces. It empowers operators to specify the most suitable hydraulic pump, maximizing return on investment for the entire system.
Installation, Maintenance, and Longevity Considerations
While installation is straightforward, adherence to best practices ensures long-term performance and hydraulic system integrity. Proper installation involves:
- Cleanliness: Ensuring all mating surfaces are thoroughly clean.
- Alignment: Verifying precise adapter-to-PTO and pump alignment, utilizing critical pilot diameters to prevent stress.
- Torque Specifications: Strictly adhering to manufacturer's recommended torque specifications for fasteners, using a calibrated torque wrench.
- Sealing: Correct installation of O-rings/gaskets, with appropriate sealant, to maintain leak-free connections.
Routine maintenance includes periodic inspection for wear (spline interfaces) and verification of secure fastening. Promptly addressing hydraulic fluid leaks is essential. Overall hydraulic system cleanliness, including regular filter changes, directly impacts the lifespan of all components.
Conclusion
The Buyers Products Bolt-on Adapter (8T DIN to SAE A 5/8-9T) skillfully resolves standard incompatibility in mobile hydraulics. Through precision engineering, superior materials, and a straightforward "bolt-on" design, this adapter significantly enhances the versatility and operational efficiency of hydraulic power take-off systems, particularly with high-performance units like the #B3940POE783DA Hot Shift PTO. For engineers, fleet managers, and equipment operators, it is a strategic solution unlocking greater flexibility, reducing operational costs, and ensuring seamless, powerful integration for demanding applications.
