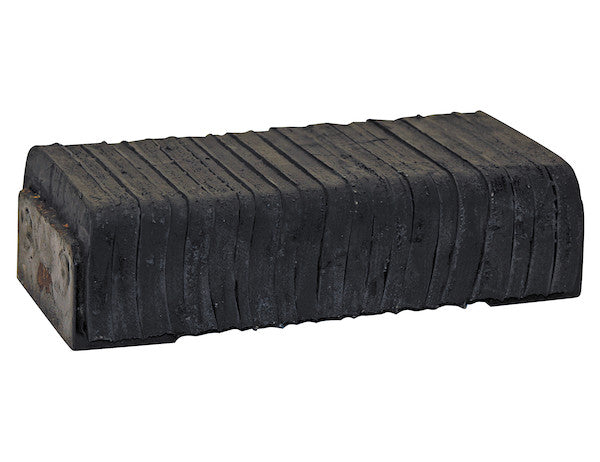

B9000 - Laminated Rubber Bumpers - 10 x 5 x 2-1/2 Inch

Buyers Products Laminated Rubber Bumpers are built for refuse and severe duty applications to reduce and protect against impact. Each bumper has belted rubber sections encased in structural steel angles with welded tie rods for the ultimate in strength. These durable rubber bumpers weld-on to surfaces for any severe duty application.

Specifications

Advanced Engineering of Laminated Rubber Bumpers for Severe Duty Applications

The Laminated Rubber Bumper, with precise dimensions of 10 inches in depth, 5 inches in width, and 2-1/2 inches in height, represents a pinnacle in impact protection technology. Designed specifically for the rigorous demands of refuse, severe duty, and heavy industrial applications, this product is engineered to deliver unparalleled resilience, structural integrity, and prolonged service life. Its sophisticated construction integrates multi-layered rubber plies with robust steel reinforcement, offering a superior alternative to monolithic rubber bumpers or less durable protective solutions.

Structural Engineering and Material Science: The Core of Durability

The Laminated Rubber Matrix

At the heart of these bumpers lies a meticulously engineered laminated rubber matrix. Unlike solid rubber bumpers, which rely solely on the bulk of the material for impact absorption, the laminated design leverages the principle of multi-layered material science. This involves stacking numerous plies of high-density, tire-grade rubber, typically sourced from recycled truck tires. These individual plies are then subjected to immense pressure and heat through a vulcanization process, fusing them into a singular, highly resilient block. The benefits of this laminated construction are multi-fold:

• Progressive Energy Absorption: Each rubber ply contributes to a progressive deformation under impact, effectively dissipating kinetic energy over a larger volume and time. This prevents immediate, catastrophic failure and significantly reduces the transfer of shock forces to the protected structure.
• Superior Shear and Tear Resistance: The layered structure inherently resists shear forces, which are common in glancing blows or abrasive contact. Should one layer experience localized damage, the adjacent layers maintain the structural integrity of the overall bumper, preventing complete material failure.
• Enhanced Durability and Longevity: The recycled rubber, often Styrene-Butadiene Rubber (SBR) based, exhibits exceptional resistance to abrasion, cutting, and tearing. Its inherent elasticity and memory properties allow the bumper to rebound effectively after repeated impacts, maintaining its original form and protective capacity over extended periods. The specified black color is not merely aesthetic; it typically indicates a carbon-black filled rubber compound, which provides excellent UV and ozone resistance, crucial for outdoor, continuous exposure.
• Optimized Durometer Hardness: The rubber compound is carefully selected to possess an optimal durometer hardness, typically in the range of 60-70 Shore A. This specific hardness ensures sufficient flexibility for energy absorption while maintaining enough rigidity to prevent excessive compression and bottoming out, thereby protecting the underlying structure from direct impact.

Structural Steel Angle Reinforcement

Encasing this advanced rubber core are robust structural steel angles. These angles are typically fabricated from hot-rolled carbon steel, such as ASTM A36 mild steel, known for its excellent strength, ductility, and weldability. The steel angles serve several critical functions:

• Rigid Framework: They provide a unyielding framework that mechanically encapsulates the laminated rubber plies. This enclosure prevents lateral bulging or excessive deformation of the rubber under severe compression, ensuring that the impact forces are channeled and distributed efficiently.
• Anchoring Point: The steel angles act as the primary interface for welding the bumper to the vehicle chassis or structural surface. Their inherent strength guarantees a secure and permanent attachment capable of withstanding extreme dynamic loads.
• Protection Against Delamination: By providing a continuous perimeter of steel, the angles actively resist any tendency for the rubber laminates to delaminate or separate, particularly under eccentric or oblique impact loads.
• Impact Distribution: The steel components help to distribute localized impact forces over a wider area of the rubber core and, subsequently, to the vehicle's frame, reducing stress concentrations.

Welded Tie Rods: Integral Strength

Further augmenting the structural integrity are integrally welded tie rods. These high-strength steel rods penetrate through the laminated rubber core, effectively "tying" the entire assembly together and securing the steel angles. The welding of these rods to the steel angles is a critical manufacturing step, ensuring maximum joint strength and fatigue resistance. The primary roles of the tie rods include:

• Preventing Disintegration: Under extreme impact or prolonged stress, the tie rods prevent the individual rubber plies from delaminating or the entire rubber block from separating from its steel enclosure. They ensure the bumper behaves as a monolithic, cohesive unit.
• Enhancing Compression Resistance: By holding the rubber laminates under a slight pre-compression, the tie rods contribute to the bumper’s ability to withstand high compressive loads without permanent deformation.
• Mitigating Torsional Stress: In scenarios involving glancing blows or twisting forces, the tie rods resist torsional movements, ensuring the bumper remains securely anchored and fully functional.

Performance Characteristics and Mechanical Advantages

The confluence of advanced material selection and superior structural design imbues these laminated rubber bumpers with several key performance characteristics:

• Exceptional Impact Energy Management: The progressive deformation capabilities of the laminated rubber, combined with the rigid steel framework, enable the bumper to absorb a significantly higher amount of kinetic energy compared to solid rubber alternatives. This translates into reduced rebound forces and substantial protection for both the impacting and impacted surfaces.
• Extended Service Life Under Harsh Conditions: Engineered for severe duty, these bumpers exhibit remarkable resistance to environmental degradation. They withstand continuous exposure to UV radiation, ozone, moisture, road salts, oils, greases, and common industrial chemicals. Their robust construction ensures they remain functional and effective across a wide temperature spectrum, from freezing conditions to intense heat, without cracking, hardening, or softening prematurely. This longevity directly translates to a lower total cost of ownership by reducing maintenance and replacement frequencies.
• Superior Structural Protection: By effectively cushioning impacts, these bumpers prevent costly damage to vehicle chassis, trailer frames, building structures, and critical equipment. This proactive protection minimizes downtime, repair expenses, and ensures the operational continuity of fleets and facilities.
• Noise and Vibration Dampening: As a secondary, yet significant, benefit, the inherent properties of the rubber matrix help to dampen noise and vibration generated during impacts. This can contribute to a quieter working environment and reduced stress on mechanical components.

Applications Across Diverse Severe Duty Sectors

The 10 x 5 x 2-1/2 inch Laminated Rubber Bumper is indispensable across a broad spectrum of industries where robust impact protection is paramount:

• Refuse and Waste Management: This sector represents a primary application. Rear-loading and side-loading refuse trucks require robust bumpers to withstand repeated impacts from waste containers, compactors, and stationary objects during daily collection routes and at transfer stations. These bumpers protect tailgates, bodies, and hydraulic systems from the stresses of continuous operation.
• Heavy-Duty Fleet and Transportation: Critical for semi-trailers, cargo trucks, and heavy-duty delivery vehicles. Installed at loading docks, they protect both the vehicle’s rear and the dock structure from damage during backing maneuvers, ensuring safe and efficient loading/unloading operations.
• Industrial and Manufacturing Facilities: In high-traffic warehouse environments, these bumpers guard against impacts from forklifts, palette jacks, and other material handling equipment, protecting facility walls, columns, and machinery. They serve as essential buffer zones in production lines and storage areas.
• Marine and Port Applications: While larger versions might be used for major docks, these specific dimensions are ideal for smaller marine vessels, utility boats, and lighter jetties, providing critical cushioning against impact during mooring and docking procedures.
• Construction and Mining Equipment: Used on heavy machinery, excavation equipment, and dump trucks to protect vulnerable areas from impact with rocks, debris, or other heavy equipment during operation. They enhance safety by providing a robust buffer.
• Agricultural Machinery: Large farm equipment often requires durable protection against impacts with trailers, barns, or other structures during maneuvering and storage.
• Utility Vehicles and Service Fleets: Vehicles operating in urban or rugged environments benefit from enhanced protection against minor collisions or contact with infrastructure.

Installation and Integration: The Weld-On Advantage

The "weld-on" mounting methodology is a defining feature of these bumpers, offering distinct advantages over bolt-on alternatives, particularly in severe duty applications. The absence of mounting holes as listed in the specifications directly supports this robust installation method. Weld-on installation provides:

• Unparalleled Strength and Permanence: When properly welded, the bumper becomes an integral, permanent part of the vehicle chassis or structural steel. This creates an exceptionally strong connection capable of resisting extreme shear, tensile, and torsional forces without loosening or failing, which can be an issue with bolted connections over time due to vibration and repeated impacts.
• Seamless Structural Integration: Welding ensures a direct and continuous load path between the bumper and the host structure. This means impact forces are more efficiently transferred and dissipated throughout the frame, rather than being concentrated at discrete bolt points.
• Tamper-Proof and Low Maintenance: Once welded, the bumper is secure against tampering or accidental detachment. It requires minimal ongoing maintenance, as there are no bolts to check, tighten, or replace due to corrosion or loosening.

Technical Considerations for Welding:

Successful weld-on installation requires adherence to best practices:

• Surface Preparation: The steel angles of the bumper and the recipient surface on the vehicle or structure must be thoroughly cleaned of paint, rust, grease, and any other contaminants to ensure a strong, defect-free weld.
• Welding Process: Shielded Metal Arc Welding (SMAW) or Gas Metal Arc Welding (GMAW) are common methods. Low-hydrogen electrodes (e.g., E7018) are often recommended for SMAW on structural steel to minimize hydrogen embrittlement.
• Skilled Welders: Installation should be performed by qualified and experienced welders, ideally certified to relevant industry standards such as AWS D1.1 for structural welding.
• Fillet Welds: Typically, continuous or intermittent fillet welds are used along the contact edges of the steel angles to the mounting surface, providing robust mechanical attachment. The length and size of the welds must be sufficient to meet the anticipated loading requirements.

Detailed Dimensions and Specifications Analysis

The precise dimensions of 10 inches Depth, 5 inches Width, and 2-1/2 inches Height are critical for optimal performance and applicability:

• Depth (10.00 in.): This significant depth provides a substantial standoff distance and cushioning effect, crucial for absorbing kinetic energy and preventing the protected surface from coming into direct contact during most impact scenarios. It allows for considerable elastic deformation of the rubber matrix without bottoming out.
• Width (5.00 in.): The 5-inch width provides ample surface area for impact distribution, ensuring that forces are spread across a reasonable contact patch, reducing localized stress points on both the bumper and the impacted object. When installed in pairs, as is common, it creates a wide protective zone.
• Height (2-1/2 in.): The 2-1/2 inch height, while seemingly compact, is optimized to provide effective protection in specific clearances, such as beneath refuse truck tailgates or within constrained loading dock envelopes. This height is sufficient to present a robust barrier without unduly increasing vehicle dimensions or interfering with operational mechanics.
• Material (Rubber): The specification of "Rubber" encapsulates the sophisticated laminated composite described, highlighting its primary composition and functional properties.
• Color (Black): The standard black color is not merely aesthetic; it typically indicates the inclusion of carbon black, which enhances the rubber's UV stability, weather resistance, and overall durability.
• Sold in Pairs: Supplying these bumpers in pairs ensures that users have matching units for symmetrical installation, which is crucial for balanced impact distribution and consistent protection across a vehicle's rear or a dock's edge.

Conclusion

The Laminated Rubber Bumper, with its 10 x 5 x 2-1/2 inch dimensions, stands as a testament to advanced engineering in impact protection. Its robust construction, integrating high-grade laminated rubber, structural steel angles, and welded tie rods, delivers unmatched durability, energy absorption, and longevity. Tailored for the most demanding refuse and severe duty applications, and secured by a permanent weld-on installation, this product offers superior structural protection and a lower total cost of ownership by significantly reducing damage and maintenance requirements. It represents a strategic investment in the safety and operational efficiency of heavy-duty fleets and industrial infrastructure.
