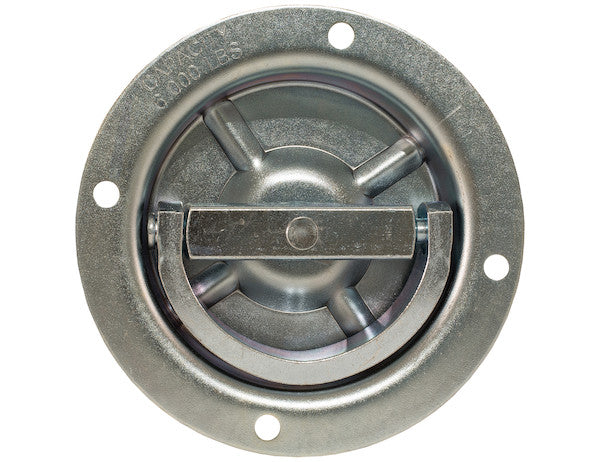

Get high capacity holding power and the ability to rotate 360?? with the Heavy Duty Recessed Rotating Rope Ring from Buyers Products. It carries a working load limit of 2,000 lb. Bolt it to the floor or weld it to steel cross members as needed. The sturdy rope ring is zinc-plated for corrosion resistance and is available with a zinc-plated back support plate. Rope rings are not approved for lifting.
Specifications
| Min. Breaking Strength (lbs) | 6,000 |
|---|---|
| Mount Type | Recessed |
| W.L.L. (lbs) | 2,000 |
In contemporary logistics, transportation, and industrial environments, the securement of cargo and equipment is paramount. This objective is achieved through the deployment of robust and reliable tie-down points. The Heavy Duty Recessed Rotating Rope Ring 360° Swivel represents a pinnacle of engineering excellence in this category, designed to provide unparalleled securement capabilities for a multitude of applications. This comprehensive description delves into the technical specifications, design principles, installation methodologies, and operational benefits of this indispensable hardware component, underscoring its pivotal role in enhancing safety and efficiency.
Advanced Engineering for Superior Performance: The Heavy-Duty Mandate
The designation "Heavy Duty" is not merely a descriptor but a testament to the robust construction and material science inherent in this rotating rope ring. Engineered to withstand significant static and dynamic loads, the component is fabricated from high-grade steel, selected for its optimal balance of tensile strength, yield strength, and ductility. The specific alloying elements and heat treatment processes employed during manufacturing contribute to a metallurgical structure capable of resisting deformation and fracture under extreme stress conditions. This commitment to material integrity ensures that the rope ring maintains its structural form and load-bearing capacity even when subjected to the rigors of heavy cargo securement on uneven terrain or during abrupt maneuvers. The design prioritizes stress distribution, minimizing localized stress concentrations that could lead to premature failure. Furthermore, the overall geometry of the ring and its housing is optimized through finite element analysis (FEA) to confirm that the component's architecture effectively translates applied forces across its structure, thereby supporting its impressive Working Load Limit (W.L.L.) of 2,000 lbs and a Min. Breaking Strength (M.B.S.) of 6,000 lbs. This substantial safety factor, typically 3:1 in cargo securement applications, provides a critical buffer against unforeseen forces and ensures operational safety beyond routine expectations.
The Pivotal Advantage: 360° Swivel Mechanism
A defining feature of this product is its innovative 360° swivel capability. This mechanical design element significantly enhances the versatility and effectiveness of cargo securement by allowing the rope ring to pivot freely in any direction. Unlike fixed tie-down points, which constrain the angle of attachment and can introduce angular stresses on ropes or straps, the full rotational freedom ensures that the securement device aligns perfectly with the tension vector of the tie-down strap or rope. This alignment minimizes friction and abrasion on the strap, thereby extending its lifespan and preventing premature wear, which is a common cause of failure in static systems. Moreover, the swivel mechanism facilitates optimal load distribution, as it allows the securing medium to naturally find the path of least resistance and most effective tensioning. This adaptability is crucial in dynamic environments where cargo may shift slightly during transit or where securement points need to accommodate various load configurations. The internal mechanism of the swivel is designed for smooth, unhindered rotation, utilizing high-performance bearings or precision-machined surfaces that minimize frictional resistance, even under significant load. This engineering ensures that the rotational functionality remains consistent and reliable throughout the product's operational life, providing operators with maximum flexibility and confidence in their securement strategies.
Strategic Integration: The Recessed Mounting Design
The recessed mounting design is a crucial safety and operational feature, setting this rope ring apart from surface-mounted alternatives. When installed, the primary load-bearing components of the tie-down point are flush or slightly below the surface of the mounting platform, whether it be a trailer floor, truck bed, or workshop floor. This flush integration offers several distinct advantages. Foremost, it significantly reduces the risk of snagging hazards. Protruding hardware can catch on equipment, cargo, or personnel, leading to damage, injuries, or operational inefficiencies. By eliminating these protrusions, the recessed design creates a smoother, safer working environment. Secondly, it optimizes available cargo space. In vehicles where every inch is valuable, a flush-mounted tie-down system allows for easier maneuvering of cargo and equipment without obstruction. This is particularly beneficial in enclosed trailers, cargo vans, or flatbeds where bulky items need to be loaded and unloaded frequently. Thirdly, the recessed profile contributes to a cleaner aesthetic, indicating a professional and well-engineered securement solution. From a structural perspective, the recessed housing provides additional protection to the critical swivel mechanism, shielding it from direct impacts, debris, and environmental exposure, thereby extending its functional lifespan. The precision of the recess ensures a snug fit, preventing unwanted movement or rattling during transit and contributing to the overall stability and securement integrity.
Understanding Load Dynamics: Working Load Limit (W.L.L.) and Minimum Breaking Strength (M.B.S.)
A thorough understanding of the specified load ratings is fundamental for safe and effective operation. The Heavy Duty Recessed Rotating Rope Ring is rated with a Working Load Limit (W.L.L.) of 2,000 lbs and a Minimum Breaking Strength (M.B.S.) of 6,000 lbs. The Working Load Limit (W.L.L.) represents the maximum load that the tie-down point is designed to safely support in tension under normal operating conditions. This value is determined through rigorous testing and calculation, incorporating a safety factor to account for dynamic forces, shock loads, and potential misuse. Adhering strictly to the W.L.L. is paramount to preventing structural failure and ensuring the safety of cargo, personnel, and equipment. Exceeding the W.L.L. can compromise the integrity of the tie-down point, leading to catastrophic failure, loss of cargo, and severe accidents. The Minimum Breaking Strength (M.B.S.), also known as Ultimate Breaking Strength, signifies the absolute minimum force at which a brand-new component is expected to fail or break when subjected to a static tensile load in laboratory conditions. The ratio of M.B.S. to W.L.L. defines the safety factor, which in this case is 3:1 (6,000 lbs / 2,000 lbs). This 3:1 safety factor is a widely accepted industry standard for cargo securement devices, providing a robust margin of safety against unforeseen stresses and variables. It is crucial to remember that the M.B.S. is a destructive test value and should never be approached or exceeded during actual use. Responsible operation dictates that all securement components, including ropes, chains, and straps, also meet or exceed the W.L.L. requirements for the cargo being secured, creating a holistic system where the weakest link does not compromise the entire securement assembly.
Versatile Installation Methodologies: Bolting vs. Welding
The adaptability of the Heavy Duty Recessed Rotating Rope Ring extends to its installation flexibility, offering two primary methods: bolting to the floor or welding to steel cross members. Each method presents distinct advantages and considerations:
Bolting: This method is ideal for applications where the mounting surface is accessible from both sides, such as composite or wooden trailer floors, or where future removal or relocation of the tie-down point might be desired. For secure bolting, it is critical to select high-grade fasteners (Grade 8 or equivalent) that are appropriately sized and threaded for the mounting holes. A minimum of four bolts should be used, evenly distributing the load. The use of large-diameter washers on both the top and underside of the mounting surface is essential to spread the clamping force over a wider area, preventing pull-through, especially in softer materials like wood or fiberglass. A zinc-plated back support plate, available as an option, significantly enhances the integrity of bolted installations, distributing the load over an even larger surface area beneath the mounting platform, effectively reinforcing the floor structure and preventing deflection or cracking under heavy loads. Proper torque specifications, as recommended by the fastener manufacturer, must be adhered to to ensure a secure, vibration-resistant connection.
Welding: For applications involving steel chassis components, truck frames, or metal floors where maximum permanence and structural integration are desired, welding offers an exceptionally strong and durable attachment. This method creates a monolithic bond between the rope ring's housing and the vehicle's structural steel. Welding should only be performed by certified welders employing appropriate techniques (e.g., MIG, TIG, Stick welding) and filler materials compatible with the base metals. Thorough surface preparation, including grinding away paint, rust, and contaminants, is crucial for a strong weld. Post-weld inspection for complete penetration, proper bead profile, and freedom from defects (e.g., cracks, porosity) is essential to ensure the structural integrity of the joint. Welding is typically preferred in heavy-duty commercial applications where the tie-down point is considered a permanent fixture of the vehicle's structure. Both installation methods require careful planning to ensure the mounting surface and underlying structure can adequately support the rated W.L.L. of the rope ring, considering the potential for dynamic forces during transport.
Advanced Corrosion Protection: The Zinc-Plating Advantage
Environmental factors, particularly moisture, road salt, and various chemicals, pose significant threats to the longevity and performance of metal components in transportation and industrial settings. To counteract these corrosive forces, the Heavy Duty Recessed Rotating Rope Ring undergoes a comprehensive zinc-plating process. Zinc plating, a form of galvanization, involves depositing a thin layer of zinc onto the steel surface. This coating acts as a sacrificial barrier; zinc is more electrochemically active than steel, meaning it will corrode preferentially, protecting the underlying steel base metal from rust and oxidation. Even if the coating is scratched, the surrounding zinc will continue to provide cathodic protection to the exposed steel. This defense mechanism is crucial for maintaining the structural integrity and aesthetic appearance of the rope ring over its operational lifespan, particularly in outdoor environments or regions prone to harsh weather conditions. The zinc-plated finish also contributes to enhanced durability against minor abrasions and contributes to a professional, clean appearance. The optional zinc-plated back support plate similarly benefits from this protective layer, ensuring that all components of the securement system resist degradation, thereby maintaining consistent performance and extending the service life of the entire assembly.
Diverse Application Spectrum
The versatility and robust design of the Heavy Duty Recessed Rotating Rope Ring make it an indispensable component across a wide array of industries and applications:
- Commercial Transportation: Essential for flatbed trailers, box trucks, enclosed cargo trailers, and step vans, providing reliable anchor points for securing diverse cargo, from construction materials and machinery to general freight.
- Logistics and Warehousing: Can be installed on loading docks, in storage facilities, or on specific floor sections to secure equipment, pallets, or temporary structures, ensuring safety during handling or storage.
- Utility and Service Vehicles: Used in service trucks, utility vans, and municipal vehicles to anchor tools, equipment, spare parts, and specialized gear, preventing shifting during transport.
- Recreational Vehicle Transport: Ideal for securing ATVs, UTVs, motorcycles, snowmobiles, or other recreational equipment onto trailers or truck beds, providing peace of mind during travel.
- Marine Applications (Non-Lifting): While not approved for lifting, these rings can serve as robust tie-down points on boats or marine vessels for securing covers, fenders, or auxiliary equipment against movement in choppy waters, provided they are not submerged in saltwater for extended periods without additional marine-grade coatings.
- Construction Sites: Utilized for anchoring temporary structures, securing equipment during transport between sites, or creating fixed securement points on job trailers.
Operational Safety and Best Practices
The explicit statement that "Rope rings are not approved for lifting" is a critical safety directive that must be rigorously adhered to. This product is specifically engineered and tested for cargo securement applications where forces are primarily tensile and horizontal/diagonal, designed to prevent movement. Lifting operations involve entirely different stress profiles, dynamics, and safety standards, requiring specialized lifting hardware that can withstand complex multi-directional forces and shock loads with a higher safety factor.
Beyond this fundamental guideline, responsible operation includes:
- Regular Inspection: Prior to each use, visually inspect the rope ring for any signs of wear, deformation, cracks, corrosion, or damage to the swivel mechanism. Any compromised unit must be immediately taken out of service.
- Proper Securement Techniques: Always use appropriate tie-down straps, ropes, or chains that match or exceed the W.L.L. of the cargo and the rope ring. Ensure tension is evenly distributed across multiple tie-down points where possible.
- Load Distribution: Position cargo to distribute weight evenly and use multiple securement points to prevent concentrated stress on any single tie-down.
- Environmental Factors: Be mindful of how environmental conditions (e.g., ice, snow, extreme heat) might affect the performance of tie-down straps or the integrity of the securement.
- Compliance: Adhere to all applicable local, national, and international cargo securement regulations (e.g., DOT regulations in North America) which often specify the number and type of tie-downs required for different cargo weights and types.
Durability, Maintenance, and Long-Term Value
Designed for longevity, the Heavy Duty Recessed Rotating Rope Ring requires minimal maintenance. The zinc plating offers substantial protection, but periodic cleaning to remove accumulated dirt, salt, or debris is recommended to preserve the coating and ensure smooth swivel operation. While the construction is robust, avoiding deliberate impacts or overloading beyond the W.L.L. will significantly extend its lifespan. This product represents a sound investment for any operation prioritizing cargo safety and efficiency. Its durable construction, superior load capacity, and versatile functionality translate into reduced risk of cargo damage, fewer insurance claims, and enhanced operational uptime. The long-term reliability of these tie-down points minimizes the need for frequent replacements, offering an excellent return on investment and contributing to a safer, more productive work environment.
Conclusion
The Heavy Duty Recessed Rotating Rope Ring 360° Swivel is a meticulously engineered securement solution that delivers exceptional performance, durability, and safety. Its heavy-duty construction, coupled with an innovative 360° swivel and strategic recessed mounting, addresses the complex demands of modern cargo securement. With a robust W.L.L. of 2,000 lbs and a formidable M.B.S. of 6,000 lbs, it provides a reliable anchor for critical applications across various industries. The dual installation options (bolting or welding) and the inherent corrosion resistance from zinc-plating further underscore its versatility and long-term value. By adhering to proper installation techniques and operational safety guidelines, users can leverage the full potential of this advanced securement device, ensuring the integrity of their cargo and the safety of their operations.
