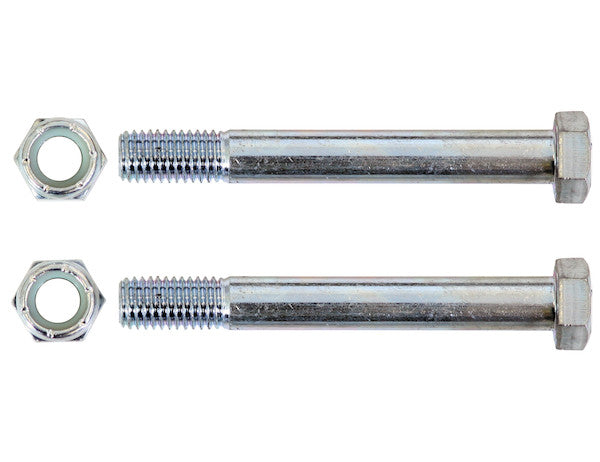

Buyers Products Pintle/Combination Hitch Mounting kit is is used to attach lunette rings to heavy duty adjustable channels. It works with Heavy Duty 3 and 5 Position Channels (B9909, B9912), as well as replacement hardware for the Heavy Duty Adjustable Eye Assembly (B20143, B20145). It includes: (2) 5/8-11 x 5 in. Grade 8 cap screws, and (2) 5/8-11 nylock nuts.
Specifications
| Color | Natural |
|---|---|
| Finish | Zinc Plated Clear |
| Material | Carbon Steel |
The Buyers Products Heavy-Duty Bolt and Nut Kit represents a critical and meticulously engineered fastening solution designed to ensure the secure and reliable attachment of lunette rings to heavy-duty adjustable channels in demanding towing applications. This kit is not merely a collection of standard fasteners; it is a precisely specified assembly of components, each selected for its superior strength, durability, and resistance to environmental and operational stresses. Understanding the technical merits of this kit is paramount for professionals involved in commercial towing, agricultural transport, construction equipment hauling, and other heavy-duty logistics requiring unwavering structural integrity.
At the core of this fastening system are the two (2) 5/8-11 x 5 inch Grade 8 cap screws. The designation "Grade 8" is a critical indicator of the fastener's mechanical properties, adhering to the SAE J429 standard for carbon and alloy steel bolts and screws. Grade 8 fasteners are heat-treated, medium carbon alloy steel, or low carbon boron steel, providing significantly higher tensile strength, yield strength, and proof load compared to lower grades like Grade 5 or Grade 2. Specifically, a Grade 8 bolt with a diameter of 5/8 inch boasts a minimum tensile strength of 150,000 psi (pounds per square inch) and a minimum yield strength of 130,000 psi. These elevated strength characteristics are indispensable in applications where the fasteners are subjected to extreme static and dynamic loads, including tension, shear, and bending forces that are inherent in heavy-duty towing operations. The constant acceleration, deceleration, road shocks, and lateral stresses exerted on a trailer coupling demand a fastening system that can withstand continuous high-stress cycling without elongation, deformation, or catastrophic failure.
The physical dimensions of the cap screws – 5/8 inch diameter and 5 inches in length – are carefully chosen to provide optimal engagement and load distribution within the heavy-duty adjustable channels and lunette ring assemblies. The 5/8 inch diameter ensures a substantial cross-sectional area, directly contributing to the shear strength and tensile load-bearing capacity of the bolt. This dimension is robust enough to manage the considerable forces encountered, yet sized to fit precisely within the mounting holes of the specified channels and adjustable eye assemblies, minimizing play and maximizing structural rigidity. The 5-inch length is equally vital, allowing for sufficient material to pass through the various components – the channel, the lunette ring, and the adjustable eye assembly – while providing ample thread engagement for the nylock nut. Proper thread engagement is crucial for achieving the specified clamping force (preload) and preventing premature thread stripping under load, a common failure mode for fasteners that are either too short or improperly torqued.
The threading specification, 5/8-11, denotes a 5/8-inch nominal diameter with 11 threads per inch (TPI). This corresponds to a Unified National Coarse (UNC) thread series. UNC threads are generally preferred in heavy-duty applications due to their greater thread depth, which provides increased resistance to stripping and faster assembly compared to fine threads. While fine threads offer greater shear strength and resistance to vibrational loosening when properly torqued, the robust nature of UNC threads makes them highly suitable for applications where material thickness and impact resistance are primary concerns. The selection of UNC threading for this heavy-duty kit underscores a design philosophy prioritizing reliability and ease of maintenance in rugged environments.
Complementing the high-strength cap screws are the two (2) 5/8-11 nylock nuts. These specialized nuts are engineered to provide superior resistance to loosening, which is a paramount concern in vibrational environments typical of heavy-duty trailers. A nylock nut, also known as a nylon insert lock nut, incorporates a nylon polymer ring positioned at the top of the nut. As the nut is tightened onto the bolt, the bolt threads deform the nylon ring. This deformation creates an interference fit, establishing a consistent frictional resistance between the nylon and the bolt threads. This friction effectively locks the nut in place, preventing it from backing off even when subjected to severe vibration, shock, or dynamic loading. Unlike traditional lock washers, which rely on spring action and embedment, or jam nuts, which require precise torqueing of two nuts, nylock nuts offer a single, reliable, and often reusable (within limits) locking mechanism. The inherent damping properties of the nylon insert also contribute to vibration absorption, further enhancing the stability of the bolted joint. The material of the nylock nuts, like the cap screws, is carbon steel, ensuring mechanical compatibility and uniform thermal expansion characteristics, which are important for maintaining joint integrity across varying temperatures.
Both the cap screws and the nylock nuts feature a Zinc Plated Clear finish. This surface treatment is applied to the carbon steel components to provide critical protection against corrosion. Zinc plating acts as a sacrificial coating, meaning that in the presence of moisture and oxygen, the zinc corrodes preferentially to the underlying steel, thereby protecting the base material from rust and degradation. The "Clear" designation typically refers to a clear chromate conversion coating applied over the zinc. This chromate layer further enhances the corrosion resistance of the zinc, providing a passivation layer that seals the zinc surface and inhibits the formation of white rust, significantly extending the lifespan of the fasteners in harsh outdoor conditions. This finish is particularly important for trailer components, which are frequently exposed to rain, road salt, mud, and other corrosive elements that can compromise the structural integrity and aesthetic appeal of unprotected steel fasteners over time. The natural color of the carbon steel, visible beneath the clear plating, maintains a consistent industrial aesthetic.
The application specificity of this kit is centered around its compatibility with Heavy Duty 3 and 5 Position Channels (B9909, B9912) and as replacement hardware for the Heavy Duty Adjustable Eye Assembly (B20143, B20145). These channels are fundamental components of many heavy-duty trailer coupling systems, providing vertical adjustability for lunette ring height. This adjustability is crucial for accommodating different towing vehicle hitch heights and maintaining proper trailer attitude, ensuring safe and efficient transport. The 3-position and 5-position channels offer varying degrees of vertical adjustment, allowing for precise leveling. The fasteners must integrate seamlessly with these channels, passing through their thick steel construction and securely clamping the lunette ring assembly in place. The robustness of the Grade 8 fasteners is essential here because the entire vertical and horizontal load from the trailer is transferred through these bolts. Similarly, the Heavy Duty Adjustable Eye Assemblies are the components that house the lunette ring itself, facilitating its attachment to the channel. As critical wear items or components subject to significant operational stress, these assemblies occasionally require replacement hardware to maintain peak performance and safety. This bolt and nut kit provides the exact, high-strength replacements necessary, ensuring that original equipment manufacturer (OEM) performance standards are upheld.
From an engineering perspective, the selection of Grade 8 fasteners with nylock nuts for this application addresses several critical performance criteria:
- High Tensile and Shear Strength: The immense weight and dynamic forces associated with heavy-duty towing necessitate fasteners capable of resisting very high tensile (pulling apart) and shear (cutting across) stresses. Grade 8 provides this margin of safety.
- Fatigue Resistance: Trailer hitches and their components are subjected to continuous vibrational loads and stress cycles during transit. High-strength, properly torqued fasteners exhibit superior fatigue resistance, preventing material degradation and eventual failure over prolonged periods of use.
- Vibration Resistance: The nylock nuts are specifically chosen to counteract the vibrational loosening inherent in trailer operations. Maintaining preload is critical for joint integrity and preventing wear between joined components.
- Corrosion Protection: The zinc plated clear finish is vital for the longevity of the fasteners, preventing rust and ensuring that the mechanical properties of the steel are not compromised by environmental exposure. This is crucial for both operational safety and reducing maintenance frequency.
- Precise Fit and Compatibility: The specific dimensions (5/8-11 x 5 in.) ensure a snug fit within the designated channels and assemblies, minimizing slack and maximizing the efficiency of load transfer. This precision prevents unintended movement or accelerated wear.
- Safety Criticality: Given that these fasteners directly connect the trailer to the towing vehicle's coupling mechanism, their integrity is non-negotiable. Any failure in this joint could lead to catastrophic decoupling, presenting extreme safety hazards.
Proper installation and periodic maintenance are crucial for maximizing the lifespan and safety performance of this heavy-duty bolt and nut kit. When installing, it is imperative to ensure that all mating surfaces are clean and free from debris or corrosion that could impede proper seating or thread engagement. While specific torque values are not included with the kit, it is highly recommended to consult the manufacturer's specifications for the specific channel and adjustable eye assembly being utilized. Applying the correct torque with a calibrated torque wrench is essential to achieve the optimal preload, which is the tension created in the bolt when it is tightened. This preload is what holds the joint together and prevents relative movement between components. Over-tightening can stretch and weaken the bolt, potentially leading to premature failure, while under-tightening can result in insufficient clamping force, allowing components to loosen and wear. Regular inspection of the fasteners for any signs of corrosion, deformation, cracking, or thread damage is also recommended as part of routine trailer maintenance. The nylon insert in nylock nuts can lose some of its effectiveness after multiple uses, particularly if subjected to extreme temperatures. Therefore, while often reusable, it is prudent to replace nylock nuts after a few removal cycles, or immediately if any signs of wear or reduced locking capability are observed, especially in safety-critical applications like trailer hitches.
This Buyers Products Heavy-Duty Bolt and Nut Kit adheres to stringent quality standards, reflecting Buyers Products' commitment to delivering robust and reliable solutions for commercial and industrial applications. The use of high-grade materials and precise manufacturing processes ensures that each component meets or exceeds the required specifications for strength and durability. By providing this specialized kit, Buyers Products offers a comprehensive solution for maintaining the structural integrity and operational safety of heavy-duty towing systems, ensuring that valuable equipment and cargo remain securely coupled during transit. This kit embodies a technical understanding of the forces and environmental challenges inherent in heavy-duty towing, delivering peace of mind through engineered reliability.
In summary, the Buyers Products Heavy-Duty Bolt and Nut Kit for 3 or 5 Position Heavy-Duty Channel is an expertly designed and manufactured component set. It leverages the superior mechanical properties of Grade 8 carbon steel cap screws, enhanced with a durable zinc-plated clear finish, and pairs them with high-performance 5/8-11 nylock nuts for exceptional vibration resistance. This combination ensures maximum tensile strength, shear resistance, and anti-loosening capabilities, making it indispensable for securing lunette rings to adjustable channels and supporting heavy-duty adjustable eye assemblies. Its adherence to stringent engineering specifications and material standards makes it the preferred choice for applications demanding uncompromising safety, longevity, and performance in the most challenging towing environments. Investing in genuine, purpose-built hardware like this kit is a commitment to operational excellence and paramount safety.
