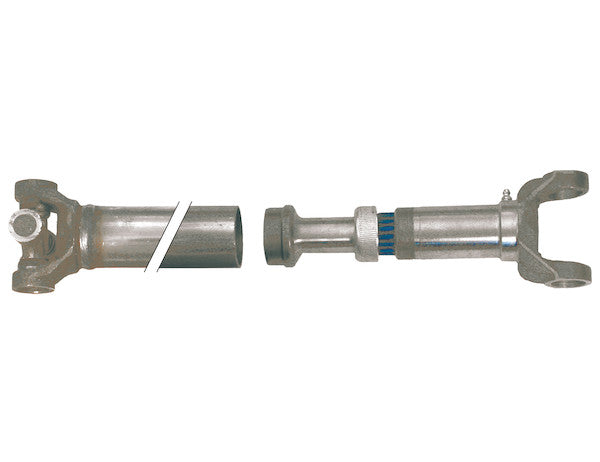

B9553SF - B1310 2 Inch Tubular Shaft Assembly 48 Inch

Buyers Products B1310 2 Inch Tubular Shaft Assembly can fulfill a variety of coupling applications due to its customizable length and heavy torque rating. Torque transfer is smooth and continuous, and the assembly comes to you unwelded so that it can be easily cut to length. Buy as a whole assembly, or choose the component that will fulfill your needs. The tubular shaft assembly includes a splined slip yoke, two journal assemblies, splined stub shaft, and tube weldment with yoke welded on one end.

Specifications

The Buyers Products B1310 2 Inch Tubular Shaft Assembly, with its nominal 48-inch tube length, represents a robust and versatile solution engineered for demanding power transmission applications across a diverse range of industries. This comprehensive assembly is meticulously designed to facilitate efficient, smooth, and continuous torque transfer, making it an indispensable component in complex mechanical systems requiring adaptability and high performance. Its unique attribute of arriving unwelded for precise length customization sets it apart, offering unparalleled flexibility for original equipment manufacturers (OEMs) and aftermarket service providers.

Advanced Engineering and Design for Superior Performance

The core of the B1310 assembly's exceptional performance lies in its thoughtful engineering, which addresses critical parameters such as torque capacity, dynamic balancing, and structural integrity. The "2 Inch Tubular Shaft" designation refers to the outside diameter of the primary torque-transmitting tube, a dimension selected to provide an optimal balance between torsional rigidity and weight efficiency. The B1310 series signifies adherence to industry standards for universal joint and driveline components, ensuring compatibility and interchangeability with other B1310 series parts, while also indicating a specific class of torque capacity and dimensional characteristics.

High Torque Rating: The Foundation of Reliability

A central feature of the B1310 assembly is its heavy torque rating. This specification is a testament to the robust material selection and precision manufacturing processes employed. The heavy torque rating implies that the shaft assembly is capable of transmitting substantial rotational forces without experiencing premature failure due to yield, fatigue, or catastrophic fracture. This capability is critical in applications where high power outputs are common, such as heavy-duty truck drivelines, agricultural machinery power take-offs (PTOs), industrial conveyors, construction equipment, and specialty utility vehicles. The design considers peak transient torques, which can often exceed continuous operating torques, ensuring a substantial safety margin under dynamic loading conditions. Factors contributing to this heavy torque rating include the high-strength steel alloys utilized for the yokes and stub shaft, the specific geometric profile of the splines for optimal load distribution, and the robust construction of the universal joints (journal assemblies) designed to withstand high stress concentrations and wear.

Smooth and Continuous Torque Transfer: Mitigating Driveline Vibrations

The principle of smooth and continuous torque transfer is paramount for driveline efficiency and longevity. Intermittent or uneven torque delivery can lead to excessive vibrations, noise, accelerated wear on components, and even structural damage to connected machinery. The B1310 achieves this critical attribute through the synergistic interaction of its key components: the splined slip yoke, two journal assemblies (universal joints), and the splined stub shaft. The design ensures that angular velocity variations inherent in universal joint operation are minimized, especially when operating within recommended angularities. Proper phasing of universal joints (i.e., aligning the yokes correctly) is crucial for this smooth transfer, and the unwelded nature of the tube allows for precise component orientation during customization and assembly. Furthermore, the selection of high-quality journal assemblies with precision-machined bearing surfaces and effective sealing mechanisms minimizes friction and ensures consistent rotational performance.

Component Breakdown: Engineering for Modularity and Performance

The B1310 Tubular Shaft Assembly is a composite unit, meticulously engineered from several interconnected components, each playing a vital role in its overall function. Understanding these individual elements is key to appreciating the assembly’s versatility and performance.

1. Splined Slip Yoke (Part Number: B23128KX)

The splined slip yoke is a critical interface component designed to accommodate axial length changes in the driveline. These changes commonly occur due to suspension travel in vehicles, thermal expansion and contraction, or frame flex. The B23128KX slip yoke features an internally splined bore that mates with the externally splined stub shaft. The splines are typically involute in design, offering superior strength, smooth engagement, and even load distribution compared to straight-sided splines. The "slip" functionality refers to its ability to slide along the stub shaft while transmitting torque, thereby preventing undue compressive or tensile stresses on other driveline components. This movement is facilitated by precision machining and, ideally, by proper lubrication within the splined interface. The material typically used for slip yokes is a high-strength forged steel, heat-treated to resist wear and torsional stresses. Effective sealing around the slip yoke prevents contaminants from entering the splined connection and retains lubricating grease, ensuring long-term, low-friction operation.

2. Journal Assemblies (Universal Joints) (Part Number: 5153XBA)

The B1310 assembly includes two journal assemblies, commonly known as universal joints or U-joints (Part Number 5153XBA). These components are fundamental for transmitting torque between shafts that operate at an angle to each other. Each journal assembly consists of a cross (spider) with four trunnions, on which needle roller bearings are mounted. These bearings are housed within cups that press-fit into the yokes of the shaft. The needle bearings are crucial for their high load capacity in a compact form factor, their ability to operate under varying angularities, and their low friction characteristics. The 5153XBA journal assembly is specified for its robust design, incorporating high-quality bearing steels and effective grease seals that protect the internal needle bearings from moisture and contaminants while retaining lubrication. Regular lubrication through a grease fitting, common in these components, is essential for maximizing service life and preventing premature wear, which can manifest as vibrations or "clunking" noises.

3. Splined Stub Shaft (Part Number: B2401031)

The splined stub shaft (Part Number B2401031) serves as the mating component for the splined slip yoke. It features external splines that engage with the internal splines of the slip yoke, providing the torsional connection while allowing axial movement. Similar to the slip yoke, the stub shaft is typically manufactured from high-strength alloy steel, often through forging, followed by precision machining and heat treatment to achieve optimal hardness and wear resistance on the spline teeth. The concentricity and dimensional accuracy of the splines are critical to ensure smooth engagement and uniform load distribution, minimizing backlash and extending the life of both the stub shaft and the slip yoke. The length and diameter of the stub shaft are engineered to provide adequate spline engagement throughout the operational range of axial movement, preventing spline disengagement under dynamic conditions.

4. Tube Weldment with Yoke Welded on One End (Part Number: B228357TY)

The main body of the shaft assembly is the tube weldment (Part Number B228357TY). This component consists of a heavy-duty tubular section with one yoke factory-welded to one end. The tube itself is engineered for high torsional strength and rigidity, resisting twisting and bending stresses during torque transmission. Typically made from cold-drawn mechanical tubing (CDMT) or an equivalent high-strength steel, its wall thickness and diameter are specified to meet the B1310 series' torque capacity. The factory-welded yoke ensures a precise, high-integrity connection on one end, established under controlled manufacturing conditions to minimize run-out and ensure proper balance. The critical advantage of this component is its unwelded nature on the other end, allowing the customer or installer to cut the tube to the exact required length for a specific application. This customization capability is a significant benefit, reducing inventory needs for various fixed-length shafts and enabling precise fitment in unique driveline configurations. After cutting, a corresponding yoke is then welded to the second end, and the entire assembly is typically balanced to prevent critical speed vibrations.

Detailed Specifications and Their Significance

The provided specifications offer critical engineering data for proper application and integration of the B1310 assembly:

• Center of Journal Assembly to Center of Journal Assembly Length (55.8 inches): This measurement, often referred to as the "operating length" or "C-to-C" length, represents the distance between the centers of the two universal joints when the shaft is fully compressed or at a standard operating position. For the B1310, 55.8 inches signifies a common minimum or nominal operating length. This dimension is crucial for calculating driveline angles, critical speeds, and ensuring proper clearance within the chassis or machine structure. Incorrect operating lengths can lead to excessive U-joint angles, binding, or inadequate slip yoke engagement.
• Overall Length (60.00 inches): The overall length denotes the total physical dimension of the complete shaft assembly, from end to end, including yokes, when fully assembled. This measurement is important for shipping, storage, and initial fitment checks. It is typically slightly longer than the C-to-C length due to the dimensions of the yokes themselves.
• Series (B1310): As mentioned, "B1310" categorizes the assembly within a specific industry standard or manufacturer's series, dictating the universal joint size (cross and bearing dimensions) and the associated torque capacity. This series is often equivalent or comparable to other industry standards, ensuring broad interchangeability and application knowledge.
• Tube and Weld Yoke Length (49.5 inches): This specific length refers to the primary tubular component with one yoke already factory-welded. Knowing this dimension is vital for the customization process. It tells the installer the maximum available tube length before cutting, allowing for precise calculation of the required cut-down to achieve a desired overall or C-to-C length.

Applications and Industry Relevance

The B1310 2 Inch Tubular Shaft Assembly's design attributes make it highly suitable for a broad spectrum of heavy-duty and industrial applications:

• Heavy-Duty Commercial Vehicles: Primarily used as drive shafts in medium to heavy-duty trucks, buses, and utility vehicles, transmitting power from the transmission to the differential. The customizable length is especially beneficial for fleet maintenance and specialized vehicle conversions.
• Agricultural Machinery: Employed in various implements and tractors for power take-off (PTO) applications, transferring power to balers, mowers, choppers, and other towed or mounted equipment. The robust torque rating handles the demanding loads of farm work.
• Construction Equipment: Found in machinery such as excavators, wheel loaders, backhoes, and articulated dump trucks, often in drivelines or auxiliary power systems where durability and high torque capacity are essential.
• Industrial Power Transmission: Utilized in factory automation, material handling systems, paper mills, steel mills, and other industrial settings for transmitting power between various components of machinery, often requiring customized lengths for specific layouts.
• Marine Applications: In certain marine propulsion systems or auxiliary drives, where robust and reliable torque transfer is necessary under challenging environmental conditions.
• Specialty Vehicles: Custom-built vehicles, off-road equipment, and military applications that demand highly reliable and adaptable driveline components.

Customization, Installation, and Maintenance Considerations

The unwelded configuration of the B1310 assembly offers significant advantages but also necessitates adherence to specific engineering best practices during customization and installation:

• Precision Cutting: When cutting the tube to length, extreme precision is required to ensure that the final C-to-C length is accurate. Imperfections can lead to misalignment and premature component wear.
• Welding Quality: The subsequent welding of the second yoke to the cut tube must be performed by certified welders using appropriate welding procedures (e.g., MIG, TIG, or stick welding) suitable for the specified steel alloys. The weld joint must possess full penetration and be free of defects to withstand torsional and bending stresses. Distortion control during welding is paramount to maintain concentricity.
• Dynamic Balancing: After welding, it is highly recommended to dynamically balance the entire shaft assembly. Unbalanced shafts operating at high rotational speeds can generate significant vibrations, leading to discomfort, noise, and accelerated wear on U-joints, bearings, and other driveline components. Balancing involves adding or removing material to ensure uniform mass distribution around the rotational axis.
• Phasing of Universal Joints: Correct phasing, where the yokes on either end of the shaft are aligned correctly (typically in phase for two U-joint shafts), is crucial for smooth torque transfer and minimizing speed fluctuations.
• Lubrication: Regular lubrication of the journal assemblies and slip yoke is vital. Following manufacturer-recommended lubrication schedules and using the specified type of grease will extend the operational life of these components significantly, preventing friction, heat build-up, and wear.
• Inspection: Periodic inspection for wear, damage, or signs of looseness in U-joints, splines, and welds is recommended. Early detection of issues can prevent catastrophic failure and costly downtime.

Material Science and Manufacturing Excellence

The durability and performance of the B1310 assembly are intrinsically linked to the materials chosen and the manufacturing processes employed. Components like yokes and stub shafts are typically forged from high-grade alloy steels (e.g., SAE 4140, 8620) known for their excellent strength-to-weight ratio, toughness, and hardenability. These are often heat-treated (e.g., case hardening for spline surfaces) to enhance wear resistance and fatigue strength. The tubular section is selected for its high torsional yield strength and fatigue limits. Precision machining, especially for spline profiles and bearing surfaces, ensures tight tolerances, smooth operation, and optimal load distribution. Strict quality control at every stage, from material incoming inspection to final assembly, guarantees that each B1310 unit meets rigorous performance and reliability standards.

Conclusion

The Buyers Products B1310 2 Inch Tubular Shaft Assembly is an expertly engineered component designed for the most demanding power transmission tasks. Its heavy torque rating, capability for smooth and continuous torque transfer, and significant customization potential through its unwelded configuration offer unparalleled versatility and reliability. Comprising a meticulously designed splined slip yoke, robust journal assemblies, a durable splined stub shaft, and a high-strength tube weldment, this assembly provides a comprehensive solution for engineers and operators seeking to construct or maintain high-performance drivelines. Its modular design allows for efficient repair and component replacement, ensuring long-term operational efficiency and reduced total cost of ownership across a wide array of industrial, agricultural, and commercial vehicle applications. The B1310 series represents a commitment to quality, adaptability, and sustained performance in critical mechanical systems.
