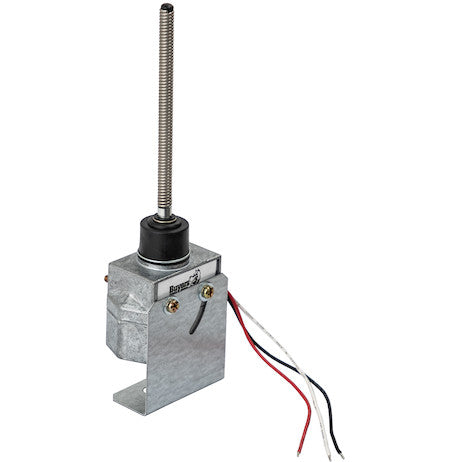

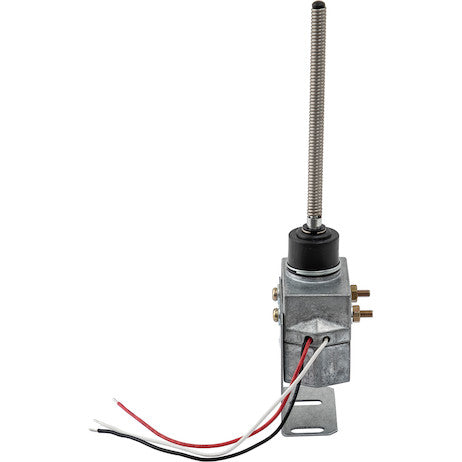

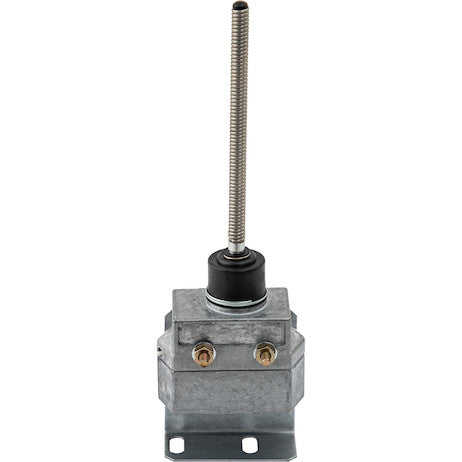

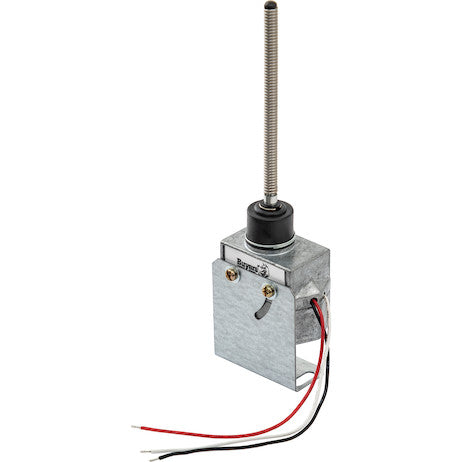

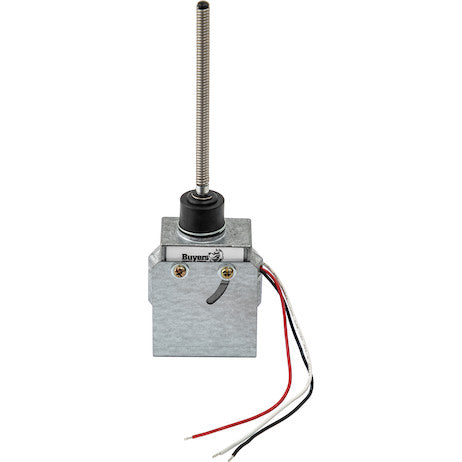

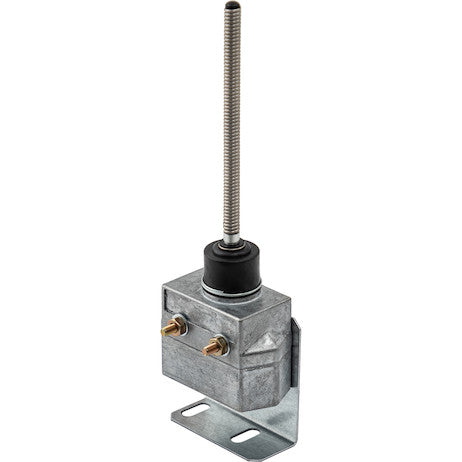

B95W - Dump Body-Up Indicator 15 Amp Pre-Wired

Buyers Products Pre-Wired Body-Up Indicator mounts to the back frame of your vehicle to notify you when the dump body is raised, reducing the chance of an overhead collision with a raised dump body. This water-resistant indicator has 360?? activation and an adjustable wand that springs back into place if hit. Each 12V, 15A indicator comes pre-wired and includes a bracket and wiring plug for easy installation. 3-wire design can be wired normally open or normally closed for a variety of applications.

Specifications

In the realm of commercial vehicle operations, particularly those involving dump trucks, refuse vehicles, and other equipment with hydraulically actuated bodies, safety is paramount. The Buyers Products Pre-Wired Dump Body-Up Indicator represents a critical technological advancement designed to mitigate a common yet profoundly dangerous operational hazard: unintended contact between a raised dump body and overhead obstructions. This device is not merely an accessory; it is an integral safety system engineered to enhance operational awareness, prevent catastrophic accidents, and safeguard personnel and infrastructure.

The fundamental principle behind the Dump Body-Up Indicator is proactive hazard notification. By providing a clear, unambiguous signal when the dump body is in an elevated state, it significantly reduces the likelihood of incidents such as striking overhead power lines, bridges, tree limbs, building structures, or even engaging in transport with the body partially or fully raised. Such collisions can result in severe structural damage to the vehicle, extensive property damage, power outages, serious injuries, and even fatalities. The financial implications extend beyond immediate repair costs, encompassing downtime, increased insurance premiums, regulatory fines, and potential legal liabilities. The Buyers Products indicator addresses these risks head-on through its robust design and intelligent operational features.

Operational Mechanics and Technical Specifications

At the core of this system is a highly responsive mechanical detection mechanism. The "wand" style sensor, a distinguishing feature of this indicator, is engineered for optimal reliability and durability in demanding environments. This wand is strategically mounted to the back frame of the vehicle, positioned to interact directly with the dump body as it elevates. When the dump body rises, it actuates the wand, triggering an internal electrical switch. This switch then provides a signal indicating the body's elevated status.

A key engineering highlight is the 360-degree activation capability of the wand. This design ensures that detection occurs regardless of the precise angle or minor misalignment of the dump body relative to the sensor, maximizing the probability of accurate activation. Furthermore, the wand features an innovative spring-back mechanism. In the event of an accidental impact or external force, the wand is designed to flex and return to its original position without incurring damage. This resilience is crucial for maintaining system integrity and functionality over extended operational periods, minimizing the need for frequent replacements due to minor impacts often encountered in rugged work environments.

Electrically, the indicator is designed for seamless integration into 12-volt vehicle electrical systems, the industry standard for most heavy-duty commercial vehicles. With a robust 15-amp capacity, the internal switch is capable of directly activating a variety of warning devices, including in-cab indicator lights, external strobe lights, or audible alarms, without the need for additional relays in many common configurations. This high current rating simplifies wiring and reduces system complexity, contributing to overall reliability.

The 3-wire design offers significant versatility, allowing the unit to be configured as either normally open (NO) or normally closed (NC). In a normally open configuration, the circuit is open when the dump body is down (safe position) and closes when the body is raised, completing the circuit to activate a warning. Conversely, in a normally closed configuration, the circuit is closed when the body is down and opens when the body is raised. This flexibility enables compatibility with a broader range of existing vehicle control systems and personal preferences for warning logic. For instance, some operators may prefer a warning light to illuminate when the body is up (NO), while others might integrate it into a system that disables PTO (Power Take-Off) or vehicle movement unless the circuit is complete (NC), indicating the body is fully lowered. The "Blunt Cut" wiring design means the wires are pre-stripped, ready for direct connection or termination, further facilitating installation flexibility without the constraints of proprietary connectors on the device end.

Durability and Environmental Resilience

Commercial vehicles operate in some of the most challenging environments imaginable, subjecting components to extreme conditions including heavy vibration, shock, dust, debris, moisture, and temperature fluctuations. The Buyers Products Dump Body-Up Indicator is engineered to withstand these rigors, ensuring consistent performance and longevity.

Its "water-resistant" designation is a testament to its robust construction. While not necessarily fully submersible, the housing and internal components are meticulously sealed to protect against ingress of rain, spray, and wash-down procedures. This typically involves durable, UV-stabilized polymer housings and sealed electrical connections, preventing corrosion and short circuits that could compromise functionality. The materials selected for the housing and wand are chosen for their impact resistance and resistance to common environmental contaminants such as road salts, chemicals, and fuel spills.

The pre-wired nature of the unit, coupled with a dedicated wiring plug and mounting bracket, exemplifies a commitment to both ease of installation and long-term durability. The inclusion of an AMP connector is a deliberate choice. AMP connectors are renowned in the automotive and heavy-duty equipment industries for their superior environmental sealing, vibration resistance, and secure electrical connections. They feature robust housings and often utilize silicone seals to prevent moisture and dust ingress, ensuring signal integrity even in harsh operating conditions where traditional connectors might fail. This attention to detail in the connector choice significantly contributes to the overall reliability and extended service life of the indicator.

Installation and Integration Advantages

Ease of installation is a significant factor in total cost of ownership and fleet maintenance efficiency. The Buyers Products Pre-Wired Dump Body-Up Indicator excels in this regard. The "pre-wired" attribute means that the necessary electrical connections are already established within the unit and typically extend to a specified length, terminating in the included AMP plug. This eliminates complex in-field wiring, reduces installation time, and minimizes potential wiring errors that could lead to system malfunctions. Technicians can simply mount the unit using the supplied bracket, run the pre-terminated cable, and connect it to the vehicle's electrical system, often to an existing harness or a dedicated warning circuit.

The included mounting bracket is designed for direct attachment to the vehicle's back frame, a standard and accessible location that provides optimal proximity to the dump body for reliable activation. The precise positioning of the bracket and the adjustable nature of the wand allow for fine-tuning during installation to accommodate variations in dump body designs and achieve optimal sensing parameters. This adjustability ensures a custom fit and reliable operation across a wide range of vehicle models and body types, from light-duty dump trailers to heavy-duty articulated dump trucks.

While the unit itself does not include an integrated buzzer or indicator light, its 15-amp capacity and versatile NO/NC output make it an ideal trigger for a multitude of external warning systems. Operators can integrate it with existing in-cab warning panels to illuminate an LED, trigger an audible chime, or even integrate it with telematics systems to log events or send alerts to fleet managers. In advanced safety configurations, the output from this indicator can be used to interlock critical vehicle functions, such as preventing the transmission from shifting into drive when the dump body is raised, or disengaging the PTO if the body is not fully lowered. This level of integration transforms a simple sensor into a cornerstone of a comprehensive vehicle safety management system.

Safety Compliance and Risk Mitigation

The implementation of a reliable dump body-up indicator is increasingly recognized as an industry best practice and, in some jurisdictions or specific operational contexts, a regulatory requirement. Regulatory bodies such as OSHA (Occupational Safety and Health Administration) often emphasize the importance of hazard communication and prevention, particularly in construction and waste management sectors where heavy equipment is used. Accidents involving raised dump bodies often lead to severe consequences, making preventive measures like this indicator invaluable.

By installing the Buyers Products indicator, fleet operators demonstrate a proactive commitment to worker safety and adherence to a culture of risk mitigation. This not only protects personnel but also shields the organization from potential legal liabilities, costly investigations, and reputational damage following an accident. The investment in such a device pays dividends in terms of reduced accident rates, lower insurance premiums, and enhanced operational efficiency due to minimized downtime from incidents.

Target Applications and Versatility

The versatility of this Pre-Wired Dump Body-Up Indicator extends its applicability across a broad spectrum of commercial vehicles and industries. Its primary use is, of course, with various types of dump trucks, from municipal vehicles used for snow removal and road maintenance to heavy-duty construction dumpers. However, its utility is not limited to these:

• Refuse Collection Vehicles: Many refuse trucks employ liftable bodies for compaction and unloading, making them susceptible to overhead obstructions.
• Roll-Off Trucks: Vehicles that transport and dump large containers benefit from clear body status indication.
• Salt and Sand Spreaders: These often feature dump or tipping mechanisms, especially those integrated into multi-purpose chassis.
• Emergency Vehicles: Certain specialized fire apparatus or rescue vehicles with unique hydraulic lifting components.
• Agricultural Vehicles: Farm trucks or trailers with tipping beds for grain or produce.
• Utility Vehicles: Trucks used by utility companies that may have custom liftable equipment or material handling bodies.

Its robust design and flexible wiring options make it suitable for OEM installations as well as aftermarket retrofits, providing a universal solution for enhancing safety across diverse fleets.

Economic and Operational Advantages

Beyond the immediate safety benefits, the integration of the Buyers Products Dump Body-Up Indicator yields substantial economic and operational advantages:

• Reduced Downtime: Accidents involving raised dump bodies can lead to extensive repairs and prolonged vehicle downtime, directly impacting productivity and revenue. This indicator significantly reduces such occurrences.
• Lower Repair Costs: Preventing collisions translates directly into savings on vehicle repairs, infrastructure damage repairs, and third-party property damage.
• Insurance Savings: A verifiable commitment to safety can potentially lead to more favorable insurance rates or reduce the impact of claims.
• Enhanced Operator Confidence: Drivers operate with greater peace of mind knowing they have an active safety system monitoring the dump body status, allowing them to focus on other critical aspects of driving.
• Improved Public Image: A strong safety record contributes to a positive public and corporate image, which can be valuable for attracting and retaining clients.
• Compliance and Risk Management: Helps meet regulatory safety standards and reduces the risk of legal penalties or lawsuits resulting from accidents.

Detailed Specification Analysis

The provided specifications offer a concise overview of the product's capabilities. A deeper look reveals the engineering considerations:

• Amperage (15.0): This high rating is crucial. It means the internal switch contacts are designed to handle up to 15 amperes of current, enabling it to directly power many auxiliary lights, relays, or alarms without additional intermediating circuitry. This simplifies system design and reduces points of failure.
• Blunt Cut? (Yes): This indicates that the wires extending from the unit are not terminated with a specific connector on the *vehicle* side (though the unit side likely has an internal robust connection to the wand mechanism). Instead, they are pre-cut and ready for the installer to crimp or splice into the vehicle's harness. This provides maximum flexibility for custom installations, allowing installers to use their preferred connectors or integrate directly into existing wiring.
• Body Up Style (Wand): Confirms the physical sensing mechanism. The wand is a highly effective and mechanically robust solution for detecting the angular displacement of the dump body. Its simplicity contributes to its reliability in harsh conditions compared to more complex electronic proximity sensors that might be susceptible to dirt or calibration issues.
• Buzzer Included? (No): Clearly states that the unit acts as a sensor and switch, not an alarm device itself. This design choice provides flexibility, allowing operators to select and integrate their preferred audible warning system.
• Connector (AMP): Specifies the type of electrical connector used on the pre-wired harness. As discussed, AMP connectors are industry-standard for demanding automotive and heavy-duty applications due to their superior sealing, vibration resistance, and reliability. This is a significant advantage for long-term performance.
• Indicator Light Included? (No): Similar to the buzzer, this unit provides the signal but does not include the visual output. This allows for integration with existing dashboard indicator lights or installation of custom-selected lights to match vehicle aesthetics or specific operational requirements.
• Prewired? (Yes): A major feature emphasizing ease of installation. It minimizes installation time and potential wiring errors, providing a plug-and-play like experience for the core sensing function.
• Use With (-): This typically means the product is universally applicable across various vehicle types that require a dump body-up indicator and is not restricted to a specific brand or model of equipment.
• Voltage (12): Confirms compatibility with standard 12-volt DC vehicle electrical systems, ensuring broad applicability across the commercial vehicle market.
• Water Resistant (y/n) (Yes): Reconfirms the unit's ability to withstand exposure to moisture, including rain, road spray, and vehicle wash-downs, without compromising internal electronics or functionality. This is critical for outdoor-mounted components.

In conclusion, the Buyers Products Pre-Wired Dump Body-Up Indicator is an essential safety component for any fleet operating vehicles with liftable bodies. Its thoughtful engineering, combining a robust wand-style detection mechanism with 360-degree activation and spring-back resilience, ensures reliable performance. The 15-amp, 12-volt, 3-wire pre-wired design with an AMP connector offers unparalleled ease of installation and versatile integration options, allowing fleet managers to tailor warning systems to their specific needs. By investing in this advanced indicator, organizations not only comply with best safety practices but also proactively protect their personnel, assets, and reputation, thereby achieving significant long-term operational and economic benefits.
