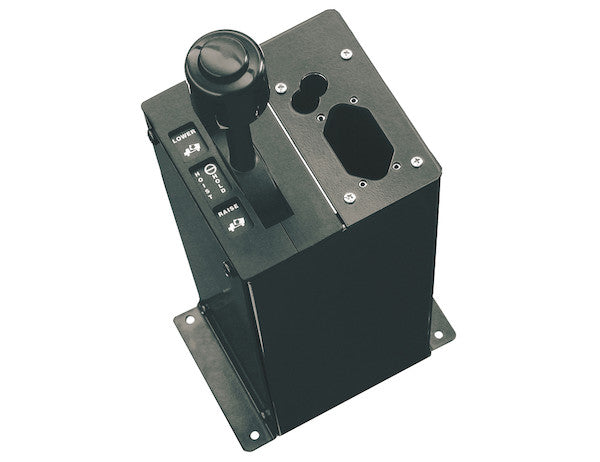

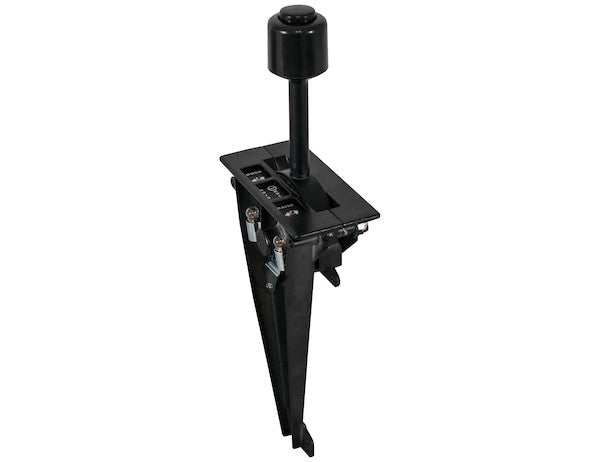

Buyers Products B Series Air PTO Single Lever Control includes a mounting kit for a Chelsea?? or Muncie?? air valve and a 3-position (raise-hold-lower) HOIST lever. Controls are grouped in a single console at the operator's fingertips. The durable, corrosion-resistant control is built tough, and features zinc alloy castings and a hardened steel gate plate with safety detents. It can be used with all 3 in. travel, clamp type push-pull cables.
Specifications
| Detent Type | Center |
| Cable Travel (in.) | 3 " |
| Material | Aluminum |
| Knob Material | Polymer |
| Number of Levers | 1 |
| Backlight | Yes |
| Series | B-Series |
| Works w/ Cable Thread Size | 1/4-28 " |
| Works w/ Cable Type | 5200 Series |
| Air PTO | Yes |
Advanced Technical Overview: Buyers Products B-Series Air PTO-Hoist Single Lever Control System
The Buyers Products B-Series Air PTO-Hoist Single Lever Control System represents a pinnacle of ergonomic design and robust engineering tailored for the precise and reliable operation of hydraulic PTO (Power Take-Off) and hoist mechanisms in commercial vehicle applications. This detailed technical description will delve into the core functionalities, material science, operational advantages, and integration capabilities of this sophisticated control unit, emphasizing its suitability for demanding industrial environments.
System Architecture and Core Functionality
At its heart, the B-Series control is an integrated electromechanical interface designed to simplify complex operational sequences into intuitive user actions. It facilitates the engagement and disengagement of a vehicle’s Power Take-Off (PTO) unit, which subsequently drives auxiliary equipment such as hydraulic pumps for hoists, cranes, or other implements. The "Air PTO" designation signifies its reliance on a pneumatic circuit to actuate the PTO, providing a distinct advantage in terms of reliability and safety over purely mechanical linkages, especially in applications where precise engagement and disengagement are critical.
The control system is characterized by its single-lever design, which streamlines operator interaction by consolidating multiple functions into one intuitive input. This particular model incorporates a 3-position HOIST lever: "raise," "hold," and "lower." This configuration is critical for hydraulic hoist applications, allowing for granular control over the vertical movement of loads. The "hold" position is paramount for safety, ensuring that a lifted load remains stationary without continuous operator input, thereby reducing fatigue and improving operational security. The seamless transition between these positions, aided by the hardened steel gate plate and safety detents, provides tactile feedback and prevents accidental engagement of extreme positions.
Material Science and Durability Engineering
The construction of the B-Series control unit is a testament to its engineering for durability and longevity in harsh operating conditions. The primary structural components are fabricated from zinc alloy castings. Zinc alloys are chosen for their excellent balance of strength, hardness, and corrosion resistance, making them ideal for chassis components that are exposed to varying temperatures, moisture, and potential chemical agents prevalent in commercial vehicle environments. The inherent self-lubricating properties of zinc alloys also contribute to the smooth operation of moving parts over extended periods.
Further enhancing its robustness is the hardened steel gate plate. Steel, particularly when heat-treated for hardening, offers superior wear resistance and structural integrity compared to softer metals. This is crucial for components that experience repeated mechanical stress during lever actuation, ensuring the detents maintain their integrity and precise indexing over thousands of operational cycles. Safety detents are engineered into this gate plate to provide positive tactile feedback at each lever position, minimizing the risk of inadvertent engagement or disengagement, a critical safety feature in hoist operations.
The knob material, specified as Polymer, is selected for its ergonomic properties, tactile feel, and resistance to environmental factors. Polymers are inherently insulative, providing comfort to the operator across a range of ambient temperatures, and are resistant to common oils, greases, and cleaning agents encountered in industrial settings. The use of polymer for the knob also contributes to the overall reduction in component weight, albeit marginally.
The primary housing material is specified as Aluminum. Aluminum offers an excellent strength-to-weight ratio, contributing to the overall lighter weight of the control console without compromising structural integrity. Its inherent corrosion resistance, especially when anodized or appropriately treated, is superior, safeguarding internal components from environmental degradation. The combination of zinc alloy castings for internal mechanisms and an aluminum housing ensures a balanced approach to strength, durability, and weight management.
Precision Cable Compatibility and Interface
The B-Series control is engineered for seamless integration with industry-standard mechanical push-pull cables. Specifically, it is designed for cables with 3 inches of travel and a 1/4-28 threaded connection, compatible with the 5200 Series cable type. This standardization is critical for versatility, allowing the control to be integrated into a wide array of existing vehicle systems without requiring custom fabrication or specialized adapters. The 1/4-28 thread is a fine thread specification, offering enhanced vibration resistance and a secure mechanical connection, which is vital for maintaining precise cable tension and response over time.
The 3-inch cable travel is a carefully selected parameter, offering a sufficient range of motion for actuating air valves and other mechanical components without requiring excessive physical exertion from the operator. This travel distance ensures full engagement and disengagement of the PTO and hoist functions, providing definitive operational feedback.
Mounting and Installation Considerations
A significant advantage of the B-Series control is its inclusion of a dedicated mounting kit for standard Chelsea® or Muncie® air valves. This forethought in design simplifies the installation process significantly, eliminating the need for custom brackets or modifications. Chelsea and Muncie are industry leaders in PTO and hydraulic components, and their air valves are widely utilized. By ensuring direct compatibility, Buyers Products streamlines integration for fleet operators and vehicle upfitters, reducing installation time and complexity. The "controls are grouped in a single console at the operator's fingertips" statement underscores the ergonomic focus, aiming to place essential functions within easy reach, minimizing operator distraction and improving reaction times.
Backlighting and Ergonomics
The inclusion of backlighting is a subtle yet significant feature, enhancing operability in low-light conditions. This is particularly important for commercial vehicles that operate during nighttime hours or in poorly lit environments. Backlighting ensures that the lever positions (raise-hold-lower) and any associated indicators are clearly visible, preventing errors and improving safety during critical operations. The ergonomic design principles extend beyond just the physical placement of the control; they also encompass the visual interface, ensuring that the operator can quickly and accurately assess the control's status at a glance.
Technical Specifications Deconstructed
- Detent Type: Center - A center detent signifies a distinct, positive stop at the central "hold" position, providing tactile confirmation that the hoist mechanism is securely locked. This is crucial for safety and preventing accidental movement.
- Cable Travel (in.): 3" - As previously discussed, this travel distance is optimized for comprehensive actuation of connected components, ensuring full engagement and disengagement.
- Material: Aluminum - The primary housing material, selected for its strength-to-weight ratio and corrosion resistance.
- Knob Material: Polymer - Chosen for ergonomics, insulation, and resistance to common industrial fluids.
- Number of Levers: 1 - Emphasizes the single-lever control philosophy, simplifying operation.
- Backlight: Yes - Essential for visibility in low-light conditions, enhancing safety and operational efficiency.
- Series: B-Series - Identifies the product line, indicating adherence to specific design and manufacturing standards within Buyers Products.
- Works w/ Cable Thread Size: 1/4-28" - Specifies the precise thread standard for compatible push-pull cables, ensuring a secure and reliable mechanical connection. This fine thread pitch provides excellent resistance to loosening under vibration.
- Works w/ Cable Type: 5200 Series - Defines the compatible cable series, guiding users to select appropriate mating components for optimal performance and longevity.
- Air PTO: Yes - Confirms the pneumatic actuation mechanism for the PTO, highlighting its reliability and commonality in heavy-duty applications.
Operational Advantages and Safety Features
The Buyers Products B-Series Air PTO-Hoist Control system offers several critical operational advantages. The consolidation of controls into a single lever reduces operator workload and the potential for errors, leading to increased productivity and reduced training requirements. The robust construction ensures long-term reliability, minimizing downtime and maintenance costs. The inherent corrosion resistance of the materials prolongs the unit's operational life, even in challenging environmental conditions.
From a safety perspective, the hardened steel gate plate with safety detents is paramount. These detents provide positive feedback, preventing the lever from inadvertently shifting positions due to vibrations or accidental bumps. This is especially critical in hoist applications where unintended movement can lead to catastrophic failures or injuries. The "hold" position is engineered to provide a secure lock, ensuring that loads remain safely suspended without constant operator attention. The pneumatic actuation of the PTO further enhances safety by providing a reliable and often fail-safe mechanism for engagement and disengagement, which can be integrated into broader vehicle safety systems.
Applications and Target Market
The B-Series Air PTO-Hoist Single Lever Control is ideally suited for a wide range of commercial vehicle applications requiring precise and reliable control of PTO and hoist mechanisms. This includes, but is not limited to:
- Dump Trucks: For controlling the hydraulic raise and lower functions of dump beds.
- Refuse Vehicles: Managing compaction mechanisms and lifting systems.
- Service and Utility Trucks: Operating cranes, aerial lifts, and other hydraulic tools.
- Tow Trucks and Wreckers: Controlling boom and winch operations.
- Snow Plows and Salt Spreaders: Actuating hydraulic functions for blade positioning and material dispensing.
- Construction Equipment: Where auxiliary hydraulic functions need precise control.
Its robust design and compatibility with industry-standard components make it an excellent choice for original equipment manufacturers (OEMs) and aftermarket installers alike, seeking to enhance the functionality and reliability of their vehicle systems.
Conclusion
The Buyers Products B-Series Air PTO-Hoist Single Lever Control with 1/4-28 Threaded Cable/PTO Air Valve represents a sophisticated and highly engineered solution for critical vehicle control applications. Its thoughtful design, incorporating durable materials, ergonomic principles, and precise mechanical interfacing, ensures optimal performance, safety, and longevity. The emphasis on standardization, coupled with a robust construction, positions this control unit as a superior choice for professionals demanding reliability and efficiency in their operational equipment. By integrating this advanced control system, operators can achieve enhanced precision, reduced fatigue, and improved overall safety in demanding work environments.
