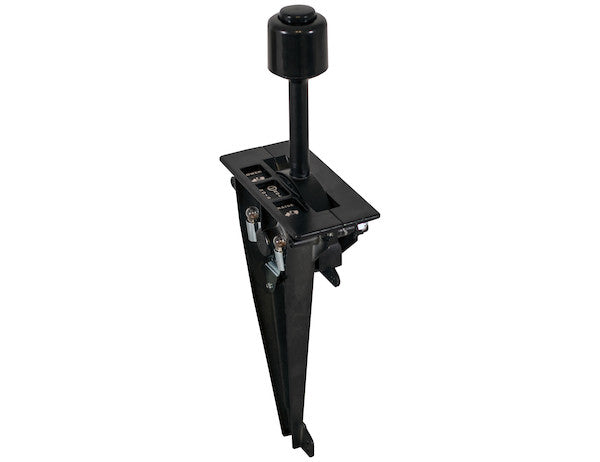

Buyers Products B Series Air PTO Single Lever Control includes a mounting kit for a Chelsea?? or Muncie?? air valve and a 3-position (raise-hold-lower) HOIST lever. Controls are grouped in a single console at the operator's fingertips. The durable, corrosion-resistant control is built tough, and features zinc alloy castings and a hardened steel gate plate with safety detents. It can be used with all 3 in. travel, clamp type push-pull cables.
Specifications
| Works w/ Cable Thread Size | 5/16-24 " |
| Detent Type | Center |
| Material | Aluminum |
| Number of Levers | 1 |
| Knob Material | Polymer |
| Backlight | Yes |
| Series | B-Series |
| Air PTO | Yes |
| Cable Travel (in.) | 3 " |
| Works w/ Cable Type | 6200 Series |
Advanced Control for Hydraulic Systems: The B-Series Air PTO-Hoist Single Lever Control
The Buyers Products B-Series Air PTO-Hoist Single Lever Control represents a pinnacle of ergonomic design and robust engineering, meticulously developed to provide precise and intuitive command over critical truck-mounted hydraulic systems. This sophisticated control unit integrates the actuation of both Power Take-Off (PTO) mechanisms and hydraulic hoist functions into a single, operator-friendly console, significantly enhancing operational efficiency and safety in a wide array of commercial and municipal applications. Engineered for demanding environments, its technical specifications and construction materials ensure unparalleled durability and long-term reliability, making it an indispensable component for fleet managers and equipment operators seeking optimal performance.
Integrated System Control: PTO and Hoist Functionality
At the core of the B-Series control unit is its dual-purpose capability, orchestrating both the engagement of a Power Take-Off and the precise positioning of a hydraulic hoist. The PTO functionality is managed via an integrated air valve system, which is fully compatible with industry-standard Chelsea™ or Muncie™ air valves. This compatibility ensures seamless integration into existing hydraulic power units, allowing for the reliable activation and deactivation of the PTO, which in turn drives auxiliary equipment such as pumps for dump bodies, refuse compactors, spreaders, or other specialized implements. The air-actuated PTO engagement offers a smooth, positive connection, minimizing wear on drivetrain components and ensuring consistent power delivery to the hydraulic system.
Simultaneously, the unit incorporates a dedicated hoist lever, providing a 3-position control sequence: raise, hold, and lower. This intuitive lever action directly manipulates the hydraulic hoist cylinder, offering granular control over the angle and position of a dump body or similar lifting mechanism. The 'hold' position is critical, engaging a center detent mechanism that securely locks the lever in place, preventing unintended movement and ensuring the load remains stable at the desired height. This center detent functionality is a crucial safety feature, particularly when operating heavy loads or working on uneven terrain, providing operators with confidence in the system's stability and responsiveness.
Precision Cable Management: 5/16-24 Threaded Cables
A key technical attribute of the B-Series control is its specific design for use with 5/16-24 threaded, clamp-type push-pull cables. This precise cable thread size is an industry standard, facilitating broad compatibility and ease of replacement or integration. The push-pull cable system translates the mechanical input from the control lever into direct action at the hydraulic valve, offering a robust and reliable linkage that is resistant to environmental contaminants and physical stress. The design accommodates cables with exactly 3 inches of travel, a critical specification that ensures full range of motion for the associated hydraulic valve without over-extension or under-actuation, thereby optimizing hydraulic system performance and longevity. Furthermore, its compatibility with 6200 Series cables underscores its adherence to established industry standards for heavy-duty applications, guaranteeing material strength, flexibility, and resistance to kinking or corrosion.
Engineered for Durability and Resistance
The B-Series control unit is constructed with an unwavering commitment to durability, designed to withstand the rigors of continuous operation in harsh industrial and outdoor environments. The primary structural components feature high-grade zinc alloy castings. Zinc alloys are renowned for their exceptional strength-to-weight ratio, superior corrosion resistance, and excellent casting properties, which allow for intricate and precise component geometries. This material choice provides a robust foundation for the control mechanism, ensuring structural integrity under repeated mechanical stress.
Complementing the zinc alloy castings is a hardened steel gate plate. This critical component, where the lever's movement is guided and secured, benefits immensely from the hardening process. Hardened steel exhibits significantly increased wear resistance, preventing premature erosion from constant lever interaction and maintaining precise detent engagement over the product's lifespan. This combination of zinc alloy for the main body and hardened steel for high-wear areas ensures that the control maintains its operational integrity and tactile feedback even after years of strenuous use. While the overall material is specified as Aluminum for some structural aspects, the strategic use of zinc alloy castings and hardened steel for critical moving parts provides a balanced approach to strength, weight, and longevity, contributing to the unit's corrosion-resistant properties and overall toughness.
Ergonomic Design and Operator Interface
Understanding that operator comfort and intuitive control are paramount to productivity and safety, the B-Series control unit boasts an ergonomic design focused on the operator's experience. The single lever control streamlines complex operations into a simple, three-position action, reducing cognitive load and the potential for errors. By grouping all controls within a single console and placing them "at the operator's fingertips," Buyers Products has prioritized accessibility and ease of use. This consolidated design minimizes reaching and awkward body movements, contributing to reduced operator fatigue over long shifts and increasing overall operational efficiency.
The lever itself is topped with a durable polymer knob. Polymer materials offer several advantages in this application, including excellent resistance to abrasion, impact, and a wide range of chemicals, ensuring the knob maintains its tactile quality and appearance over time. Beyond its physical resilience, polymer provides a comfortable grip, remaining thermally stable in both hot and cold conditions, thereby enhancing operator comfort regardless of ambient temperature. Furthermore, the inclusion of backlighting within the control unit dramatically improves visibility in low-light conditions, such as nighttime operations or poorly lit cabins. This crucial feature ensures that operators can quickly and accurately identify and manipulate the control lever, enhancing safety and operational continuity around the clock.
Safety Features: Detents and Positive Feedback
Safety is an intrinsic design principle of the B-Series control. The hardened steel gate plate, in conjunction with precisely engineered safety detents, provides tactile and audible feedback for each of the three lever positions (raise, hold, lower). The center detent, specifically, ensures that the hoist lever remains firmly in the 'hold' position, resisting inadvertent shifts caused by vehicle vibration or accidental nudges. This positive locking mechanism is paramount for preventing unintended movement of the hoist, which could lead to equipment damage, material spills, or, more critically, serious injury. The robust construction ensures that these safety detents maintain their integrity and effectiveness throughout the control's operational life, providing operators with a reliable and secure interface for managing heavy loads.
Versatile Applications and System Integration
The versatility of the B-Series Air PTO-Hoist Single Lever Control makes it suitable for a broad spectrum of commercial vehicle applications. Its compatibility with Chelsea™ and Muncie™ air valves, coupled with its adherence to common cable specifications, allows for seamless integration into various hydraulic systems. Typical applications include, but are not limited to:
- Dump Trucks: Providing precise control over dump body raising and lowering for construction, landscaping, and aggregate transport.
- Refuse Vehicles: Managing compaction cycles and container lifting mechanisms.
- Snow Plows and Spreaders: Actuating hydraulic functions for blade positioning and material spreading.
- Wreckers and Rollback Trucks: Operating winches, booms, and bed tilting mechanisms.
- Utility Trucks: Controlling auxiliary hydraulic tools and equipment.
- Specialized Vocational Trucks: Any application requiring the reliable engagement of a PTO and precise hoist control.
The included mounting kit simplifies installation, providing the necessary hardware for a secure and stable integration into the vehicle's cabin or control panel. This attention to detail in system integration minimizes installation time and ensures a professional, durable setup.
Operational Efficiency and Total Cost of Ownership
Investing in the B-Series Air PTO-Hoist Single Lever Control translates into tangible benefits for operational efficiency and long-term cost savings. The intuitive single-lever operation reduces the training curve for new operators and minimizes errors, leading to faster, more consistent job completion. The robust, corrosion-resistant construction, incorporating zinc alloy castings, hardened steel, and durable polymer, significantly extends the product's lifespan, reducing the need for frequent replacements and minimizing downtime associated with maintenance or repairs. The precise cable and air valve control mechanisms contribute to the longevity of the entire hydraulic system by preventing shock loads and ensuring smooth, controlled movements. Furthermore, the integrated backlighting contributes to safer nighttime operations, potentially reducing accidents and associated costs.
Conclusion
The Buyers Products B-Series Air PTO-Hoist Single Lever Control stands as a testament to advanced engineering in hydraulic control systems. Its seamless integration of air-actuated PTO engagement and precise, three-position hoist control, combined with exceptional durability, ergonomic design, and robust safety features, positions it as a premier choice for demanding commercial and municipal vehicle operations. By providing intuitive, reliable, and enduring control, the B-Series unit not only enhances operator efficiency and safety but also contributes significantly to the overall performance and longevity of critical mobile hydraulic equipment, representing a strategic investment for any fleet focused on maximizing productivity and minimizing operational expenditures.
